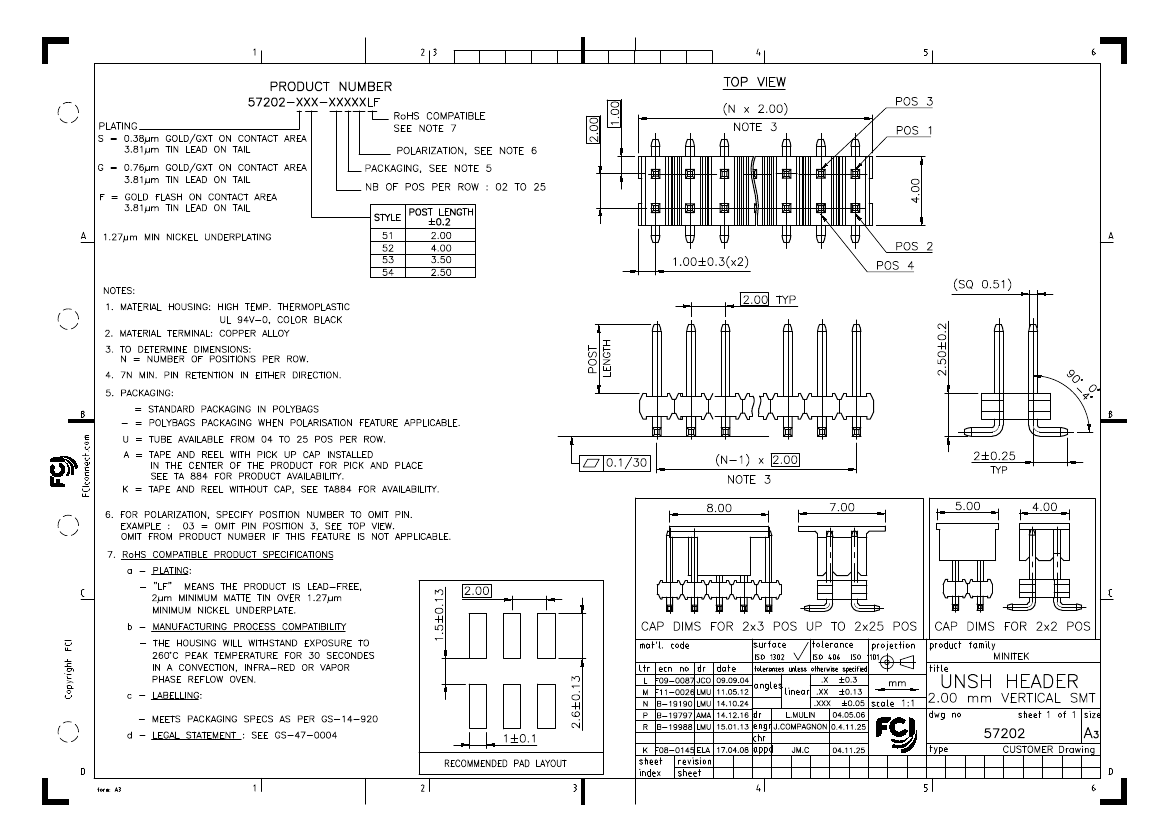

57202-S5123LF datasheet, PDF - EEWORLD Datasheet

57202-S5123LF: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

57202-S5123LF Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1808513270
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.4
body width	0.157 inch
subject depth	0.098 inch
body length	1.811 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	57202
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0894 mm
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	46
UL Flammability Code	94V-0

PDS: Rev :R

STATUS:Released

Printed: Jan 15, 2015
