KD22/400MDTKFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KD22/400MDTKFP

KD22/400MDTKFP: DescriptionRectangular Power Connector, 22 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

KD22/400MDTKFP Overview

Rectangular Power Connector, 22 Contact(s), Male, Solder Terminal, Plug,

KD22/400MDTKFP Parametric

Parameter Name	Attribute value
Objectid	4004189542
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

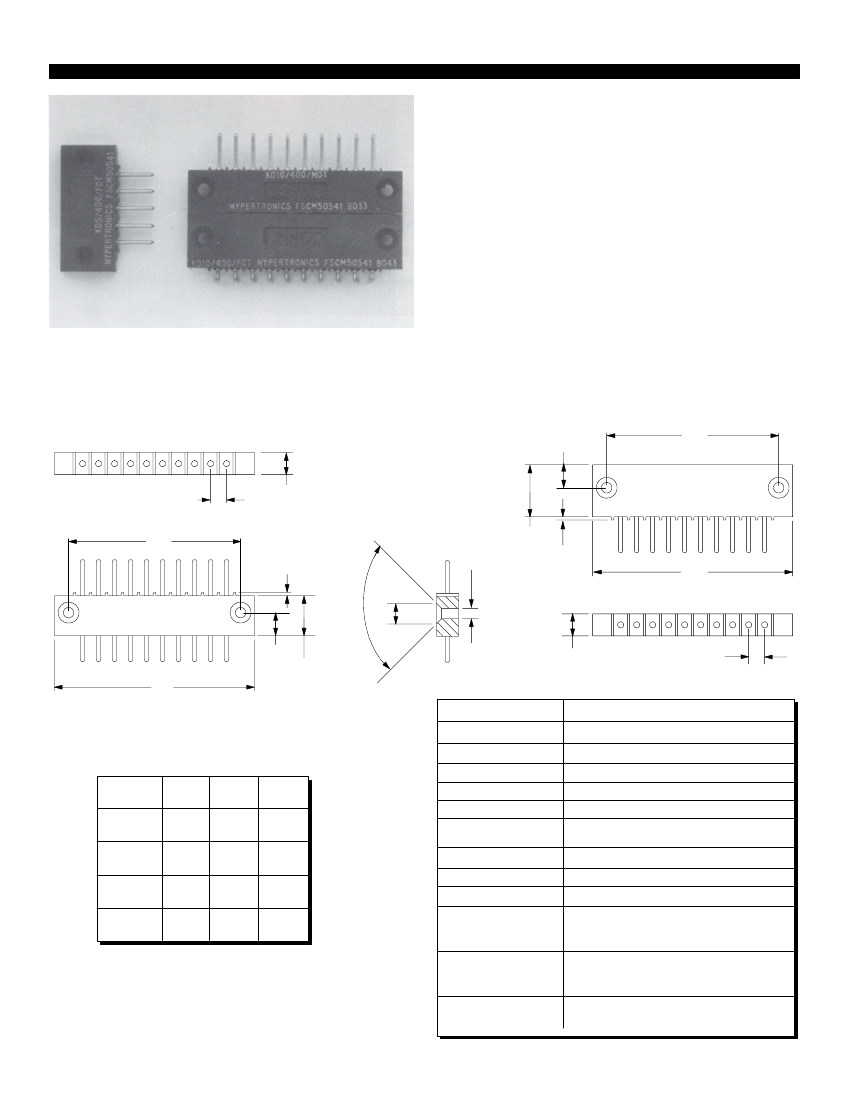

KD SERIES

10 AMP POWER P.C. BOARD

CONNECTORS 5, 10, 16 & 22

CONTACTS (SINGLE ROW)

Very low mating forces.

One row on .157” (4.00mm) centers

Fixed contacts on both male and female halves.

Mounting accessories available.

Æ.059”

(1.50mm) contacts

KD5 also mates with L Series R Module see page L3

Connectors with 4, 8, 16 positions on .200” are also

available as the KE Series

Plug

CONNECTOR DIMENSIONS

5, 10, 16 & 22 CONTACTS

Receptacle

.226

(5.75)

.157

(4.00)

.217

(5.50)

.512

(13.00)

.031

(.80)

Æ.102

(2.60)

.031

(.80)

.226

(5.75) .394

(10.00)

Æ.200

(5.10)

.217

(5.50)

.157

(4.00)

GENERAL SPECIFICATIONS

Number Contacts

Contact Diameter

Current Rating

Contact Resistance

5, 10, 16 & 22

.059 (1.50)

10 amps

< 2.5 milliohms

1 -- 5.4 oz.

>100,000

>2200V RMS

>10

Megohms @ 500 VDC

--55

C to + 125

Diallyl-phthalate

Brass

Gold over nickel

Brass (pin),

BeCu wires & brass body (socket)

Nickel

T = 10

in gold (min) over Ni on mating

surface, gold flash over Ni on socket

termination

Connector A dim.

KD5

KD10

KD16

KD22

.906

(23.00)

B dim.

1.181

(30.00)

C dim.

.630

(16.00)

1.417

(36.00)

2.362

(60.00)

3.307

(84.00)

Extraction Force

Contact Life Cycles

Breakdown voltage

between contacts

Insulation Resistance

Temperature Rating

Insulator

Contact

Material:

Plating:

Guide Hardware

Material:

Plating:

Plating

Reference

1.969

1.693

(43.00) (50.00)

2.638

(67.00)

3.582

(91.00)

2.913

(74.00)

3.857

(98.00)

Notes

1) Tolerance:

.020 (.5).

2) Dimensions in inches (mm).

K38

HYPERTRONICS CORPORATION, 16 Brent Drive, Hudson, MA 01749--2978

Toll Free 1--800--225--9228 or 1--888--HYPERTAC

Tel: 978--568--0451, Fax: 978--568--0680, www.hypertronics.com
