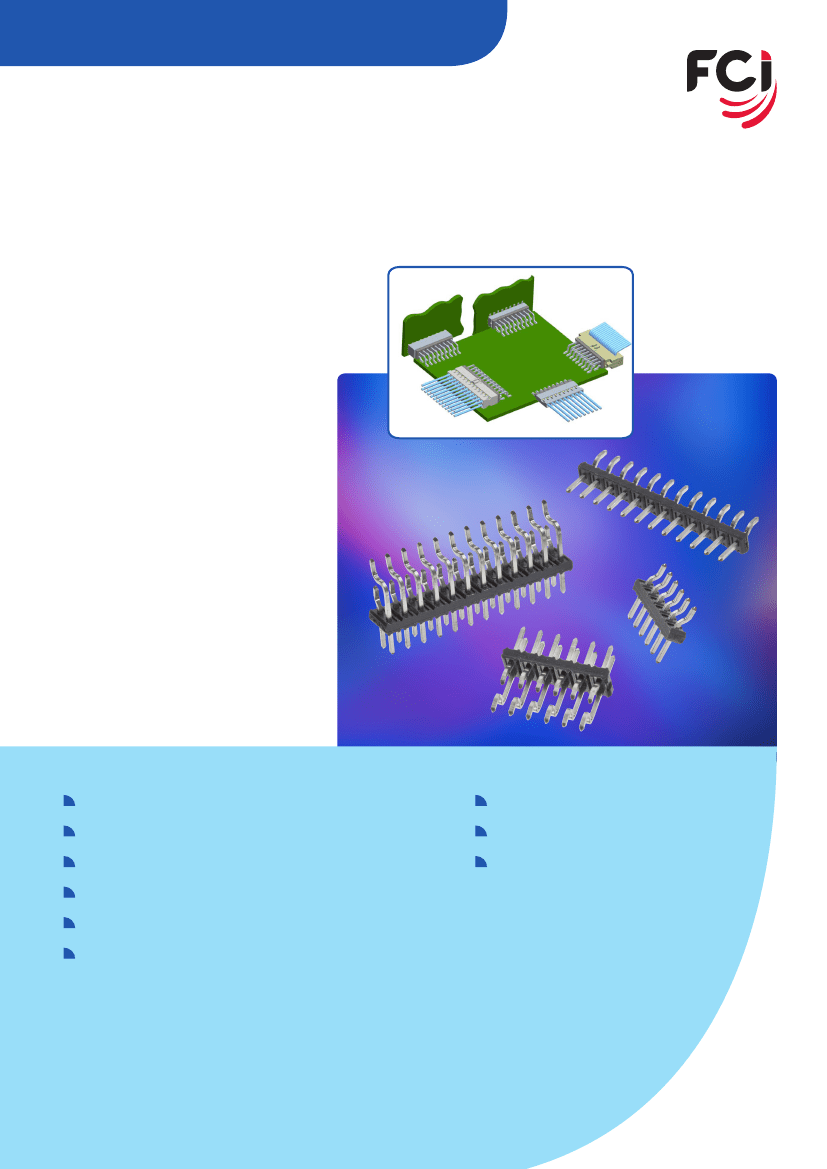

2.0mm SMT HORIZONTAL Headers
DESCRIPTION
Minitek
TM
Horizontal SMT Headers en-
able perpendicular printed circuit board
connections on a 2 mm grid using
surface mount technology. In a typical
application the horizontal SMT header
is soldered at the edge of the PCB and
mates with any of various different types
of receptacles.
Using the part number selector, it is
possible to specify the pin length
required, the number of rows (single or
double), the number of circuits and the
plating.
The Minitek
TM
SMT horizontal header
is part of the MinitekTM range, FCI’s
2mm modular connector system which
includes a wide variety of header,
receptacles, cables connectors and wire
connectors.
The components in the Minitek
TM
sys-
tem including the SMT horizontal
headers are fully intermateable.
FEATURES & BENEFITS
Available up to 25 Pins Per Row
Single and Double Row
Tin and Selective Gold
High Temperature housing
Coplanarity 0.1
Mates with standard Minitek Receptacles
TARGET MARKETS / APPLICATIONS
Industrial
Instrumentation
Medical
MINITEK™ 2.00 mm
SMT HORIZONTAL HEADER

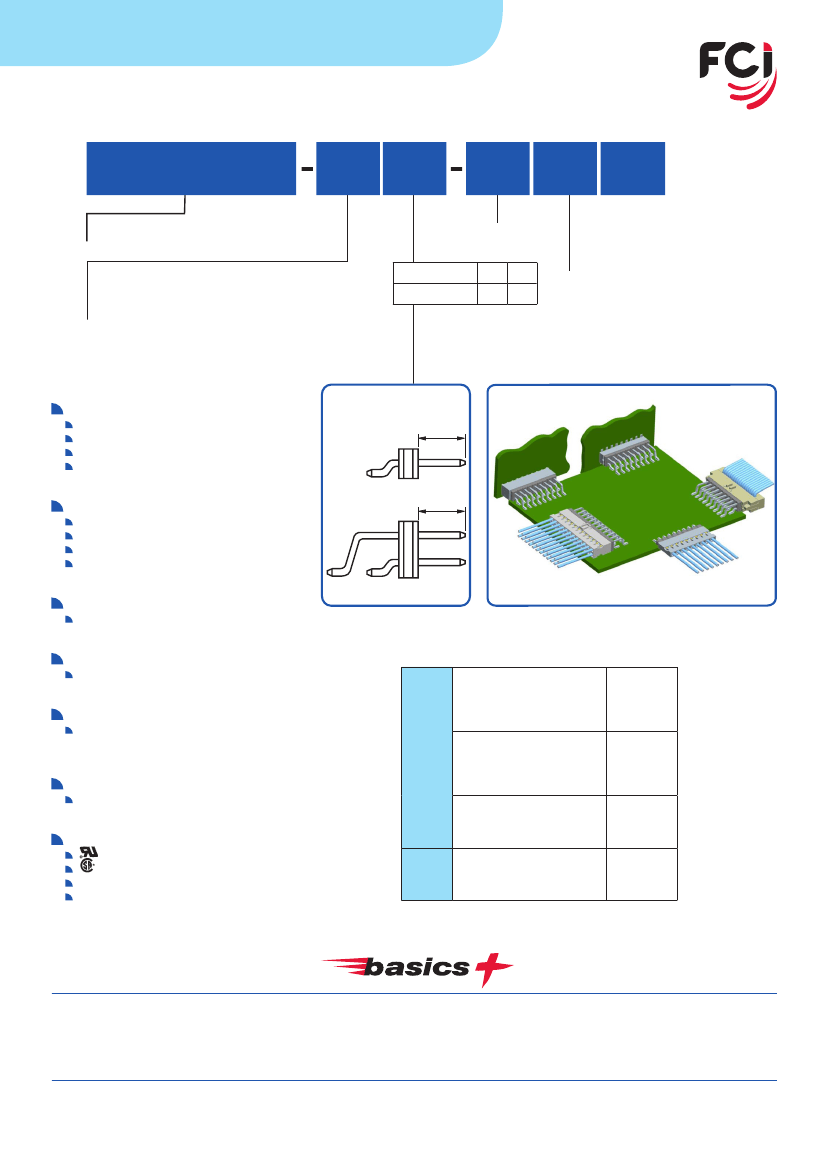

PART NUMBERS
8 - digit part number
Plating
Pin
style
no. of pos.
per row
U
LF
10112684
=
single row
10112690
=
double row
G
=
0.76µm GOLD / GXT on mating area; 2-6µm Pure Tin on solder area
F
=
Gold flash on mating area; 2-6µm Pure Tin on solder area
T
=
2-6µm Pure Tin on mating area; 2-6µm Pure Tin on solder area
All with 1.27 Ni MIN underplating
02 to 25
U
=
Tube Packaging
(from 4 to 25 positions)
03
4.0
A
=
Tape and reel with
Pick-up cap (optional)
Pin Style
Post length (mm)
01
3.2
www.fciconnect.com/minitek
TECHNICAL DATA
PHYSICAL
Housing: High-temperature thermoplastic
Colour: black
Flammability rating: UL 94 V-0
Pin: copper alloy
post length
ELECTRICAL PERFORMANCE
Current rating: 2 A , 80°C ambient
Contact resistance: 20 mΩ max.
Dielectric withstanding voltage: 650 V
Voltage rating: 200 V.
post length
MECHANICAL PERFORMANCE
Mating cycles (durability): 100.
OPERATING TEMPERATURE RANGE
-55°C to 125°C
MATING DATA
Minitek
TM
Vertical receptacles
55510
55508
63453
Double
Row
Minitek
TM
CTW contacts and housings
RoHs INFORMATION
This product is RoHs compatible according
to the European Union Directive 2002/95/IEC
REFERENCE INFORMATION
File no. E66906
File no. LR46923
Product drawing: 10112684, 10112690
Product specifications: DPS-12-011 and GS-12-0804
77138
10044403
90311
Minitek
TM
IDC receptacles
89947
89361
Single
Row
Minitek
TM
CTW contacts and housings
77138
90312
BASICS+ SERVICE PROGRAM
Minitek
TM
is a part of the Basics+ product range. The Basics+ program is
built around 2.54 mm and 2 mm pitch connectors for board-to-board,
wire-to-board and cable-to-board applications.
Basics+ makes the entire product design-in-process very simple, with
easy-to-use product selection, technical hot-line, fast sample service,
and core range products. Included are established, proven brands such
as BergStik
TM
, Dubox
TM
, Quickie
TM
, Minitek
TM
and BergCon PV
TM
.
For more information please contact: elxcommunications@fci.com
www.fciconnect.com
ELXMINSMHDR0311EA4
PROCESSING INFORMATION
Compatible with vapor-phase,
and IR reflow soldering processes
