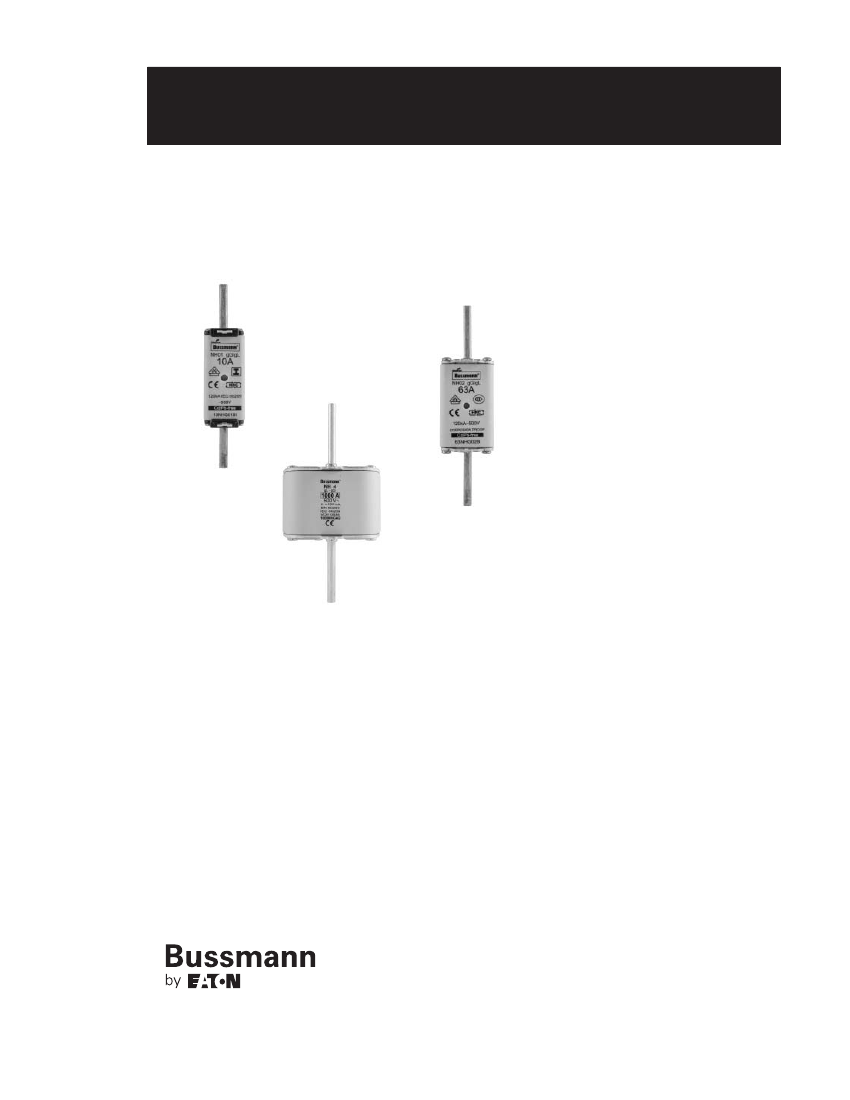

500 Volts gG/gL NH Fuse links
Product description
Bussmann’s range of 500 Volts NH square
bodied industrial fuse links is suitable for a wide
variety of applications.
Standard features
•
•
•
•
Reliable dual indicator system
Low temperature rise
Globally compliant
Compatible with Bussmann PV NH base
range (see data sheet 10163)
Technical Data
10164
Effective August 2014
Bussmann
500 Volts gG/gL NH Fuse links
Fuse holders (ordered separately)
•
Catalogue Symbol:
•
(amp)NHG(size)B
Fuse size:
•
Fuse bases:
•
DIN-Rail mounting and screw mounting:
1-pole SD(size)-D, 3-pole TD(size)-D
•
000 to 4
•
•
•
Screw mounting only: SD(size)-S
Fuse rails - vertical: BFR Series
Fuse switch disconnectors vertical: BFD Series
Fuse switch disconnectors horizontal: BFH Series
Technical data:
•
•
•
•
•
Volts: 500 V a.c.
Amps: 2 to 1250 A
Breaking capacity: 120 kA AC
Operating frequency: 45-62 Hz
Class of operation: gG/gL
Standards/Approvals:
•
•
•
•
IEC 60269
VDE 0636
DIN 43620
CE
Microswitches:
•
•
170H0236
BVL50
Packaging:
•
•
Sizes 000 to 3: 3 per carton
Size 4: 1 per carton
Size - mm
Table 1. NH Sizes
Size
000
00
0
01
1
02
2
03
3
4
a1
78.5 ± 1.5
78.5 ± 1.5
125±2.5
135±2.5
135±2.5
150±2.5
150±2.5
150±2.5
150±2.5
200±3
a2
(max)
54
54
68
+3
-1.5
75
75
75
75
75
75
84
a3
45±1.5
45±1.5
62
+3
-1.5
62±2.5
62±2.5
62±2.5
62±2.5
62±2.5
62±2.5
62±2.5
a4
49±1.5
49±1.5
68
68±2.5
68±2.5
68±2.5
68±2.5
68±2.5
68±2.5
90±3
b
15
15
15
15
20
20
25
25
32
50
c1
35
35
35
40
40
48
48
60
60
85
c2
10
11
11
11
11
11
11
11
11
10
d
2±0.5
2±0.5
2.5±0.5
2.5±0.5
2.5±0.5
2.5±0.5
2.5±0.5
2.5±0.5
3±0.5
3±0.5
e1
(max)
41
48
48
48
53
53
61
61
75
102
e2
(max)
21
30
30
30
40
40
53
53
70
87
e3
(max)
16
25
25
25
25
25
25
25
25
25
e4
6
6
6
6
6
6
6
6
6
8
f
(max)
8
15
15
15
15
15
15
15
18
30
2
EATON
www.eaton.com
Bussmann
500 Volts gG/gL NH Fuse links
Table 2. Part numbers sizes 000 to 01
Technical Data
10164
Effective August 2014
Size
Rated
current
(Amps)
2
4
6
10
16
20
25
32
35
40
50
63
80
100
50
63
80
100
125
160
6
10
16
20
25
32
35
40
50
63
80
100
125
160
6
10
16
20
25
32
35
40
50
63
80
100
125
160
Rated
voltage
(V a.c.)
500
000
000
000
000
000
000
000
000
000
000
000
000
000
000
00
00
00
00
00
00
0
0
0
0
0
0
0
0
0
0
0
0
0
0
01
01
01
01
01
01
01
01
01
01
01
01
01
01
gG/gL dual indicator
Voltage conducting
metal gripping lugs
2NHG000B
4NHG000B
6NHG000B
10NHG000B
16NHG000B
20NHG000B
25NHG000B
32NHG000B
35NHG000B
40NHG000B
50NHG000B
63NHG000B
80NHG000B
100NHG000B
50NHG00B
63NHG00B
80NHG00B
100NHG00B
125NHG00B
160NHG00B
6NHG0B
10NHG0B
16NHG0B
20NHG0B
25NHG0B
32NHG0B
35NHG0B
40NHG0B
50NHG0B
63NHG0B
80NHG0B
100NHG0B
125NHG0B
160NHG0B
6NHG01B
10NHG01B
16NHG01B
20NHG01B
25NHG01B
32NHG01B
35NHG01B
40NHG01B
50NHG01B
63NHG01B
80NHG01B
100NHG01B
125NHG01B
160NHG01B
Insulated metal
gripping lugs
2NHG000BI
4NHG000BI
6NHG000BI
10NHG000BI
16NHG000BI
20NHG000BI
25NHG000BI
32NHG000BI
35NHG000BI
40NHG000BI
50NHG000BI
63NHG000BI
80NHG000BI
100NHG000BI
50NHG00BI*
63NHG00BI*
80NHG00BI*
100NHG00BI*
125NHG00BI
160NHG00BI
-
-
-
-
-
-
-
-
-
-
-
-
-
-
6NHG01BI
10NHG01BI
16NHG01BI
20NHG01BI
25NHG01BI
32NHG01BI
35NHG01BI
40NHG01BI
50NHG01BI
63NHG01BI
80NHG01BI
100NHG01BI
125NHG01BI
160NHG01BI
Pack
quantity
3
* Available upon request
EATON
www.eaton.com
3
Technical Data
10164
Effective August 2014
Bussmann
500 Volts gG/gL NH Fuse links
Table 3. Part numbers sizes 1 to 4
Size
Rated
current
(Amps)
50
63
80
100
125
160
200
224
250
315
355
35
40
50
63
80
100
125
160
200
224
250
250
300
315
355
400
425
450
500
250
315
355
400
315
355
400
425
500
630
800
500
630
800
1000
1250
Rated
voltage
(V a.c.)
500
500
500
500
500
500
500
500
500
440
440
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
440
500
500
500
500
500
500
500
500
500
500
440
500
500
500
500
500
gG/gL dual indicator
Voltage conducting
metal gripping lugs
50NHG1B
63NHG1B
80NHG1B
100NHG1B
125NHG1B
160NHG1B
200NHG1B
224NHG1B
250NHG1B
315NHG1B
355NHG1B
35NHG02B
40NHG02B
50NHG02B
63NHG02B
80NHG02B
100NHG02B
125NHG02B
160NHG02B
200NHG02B
224NHG02B
250NHG02B
250NHG2B
300NHG2B
315NHG2B
355NHG2B
400NHG2B
425NHG2B
450NHG2B
500NHG2B
250NHG03B
315NHG03B
355NHG03B
400NHG03B
315NHG3B
355NHG3B
400NHG3B
425NHG3B
500NHG3B
630NHG3B
800NHG3B
500NHG4G
630NHG4G
800NHG4G
1000NHG4G
1250NHG4G
Insulated metal
gripping lugs
50NHG1BI*
63NHG1BI*
80NHG1BI*
100NHG1BI*
125NHG1BI*
160NHG1BI*
200NHG1BI
224NHG1BI
250NHG1BI
315NHG1BI*
355NHG1BI*
35NHG02BI
40NHG02BI
50NHG02BI
63NHG02BI
80NHG02BI
100NHG02BI
125NHG02BI
160NHG02BI
200NHG02BI
224NHG02BI
250NHG02BI
250NHG2BI*
300NHG2BI*
315NHG2BI
355NHG2BI
400NHG2BI
425NHG2BI*
450NHG2BI*
500NHG2BI*
250NHG03BI
315NHG03BI
355NHG03BI
400NHG03BI
-
-
-
-
-
-
-
-
-
-
-
-
Pack
quantity
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
02
02
02
02
02
02
02
02
02
02
02
2
2
2
2
2
2
2
2
03
03
03
03
3
3
3
3
3
3
3
4**
4**
4**
4**
4**
* Available upon request
** Single indicator and slotted end tags
4
EATON
www.eaton.com
Bussmann
500 Volts gG/gL NH Fuse links

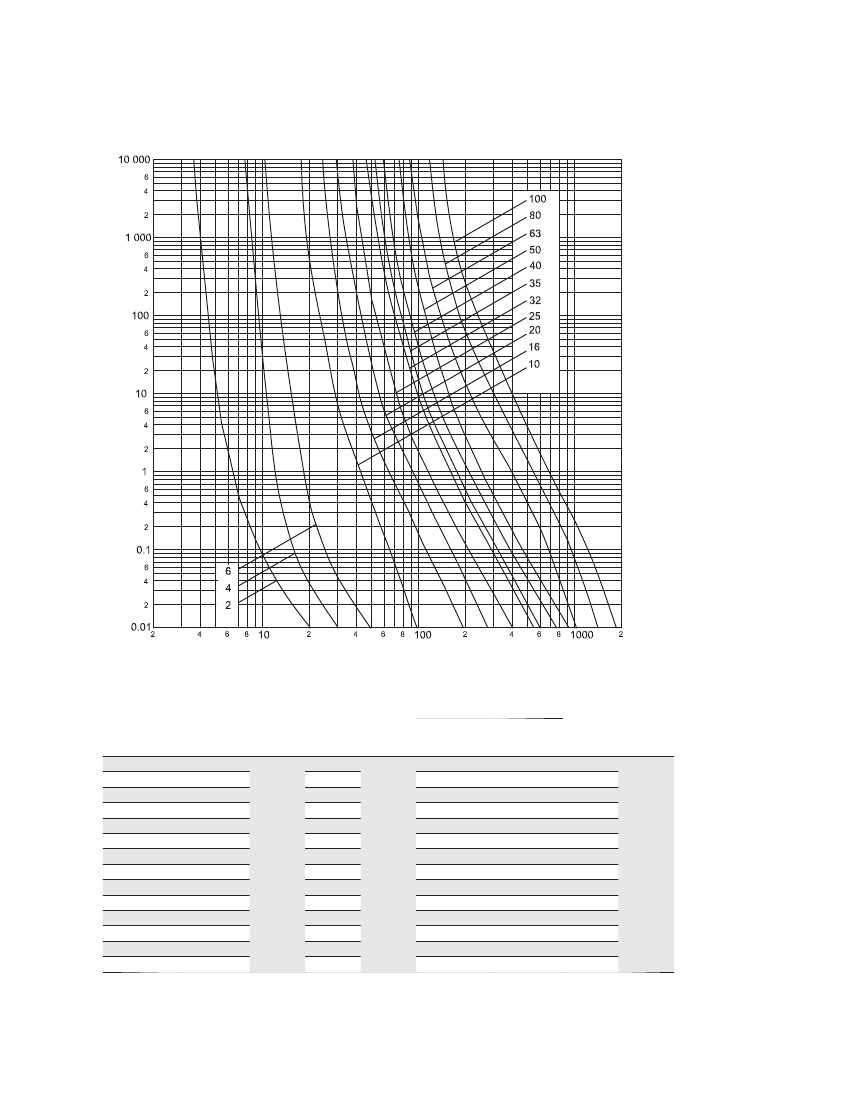

Time-current curves - NH Size 000
Technical Data
10164
Effective August 2014
Time in seconds
(s)
Current in Amps (A)
Technical data - NH size 000
Part numbers
with metal
gripping lugs
2NHG000B
4NHG000B
6NHG000B
10NHG000B
16NHG000B
20NHG000B
25NHG000B
32NHG000B
35NHG000B
40NHG000B
50NHG000B
63NHG000B
80NHG000B
100NHG000B
Part numbers
with insulated
metal gripping
lugs
2NHG000BI
4NHG000BI
6NHG000BI
10NHG000BI
16NHG000BI
20NHG000BI
25NHG000BI
32NHG000BI
35NHG000BI
40NHG000BI
50NHG000BI
63NHG000BI
80NHG000BI
100NHG000BI
Fuse link
size
Rated
current
(Amps)
2
4
6
10
16
20
25
32
35
40
50
63
80
100
Rated
voltage
(V a.c.)
500
I
2
t (Amps
2
Seconds)
Minimum
*I
1
120kA
pre-arcing
at 500 V a.c.
3.5
6
14
58
234
490
920
1800
2400
3300
5900
6300
9800
18,100
6
12
21
290
1200
2500
4600
9000
11,800
16,500
29,500
24,900
38,900
72,300
Watts loss
Net weight
per fuse
(kg)
0.13
000
3.9
1.8
2
1.5
2.3
2.2
3.1
3.4
3.7
4
4.9
4.6
6.3
7.4
*I
1
is the maximum breaking capacity test at rated voltage according to IEC 60269 requirements
EATON
www.eaton.com
5
