CFS12-92-A-A-B: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerWave Tech Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

CFS12-92-A-A-B Overview

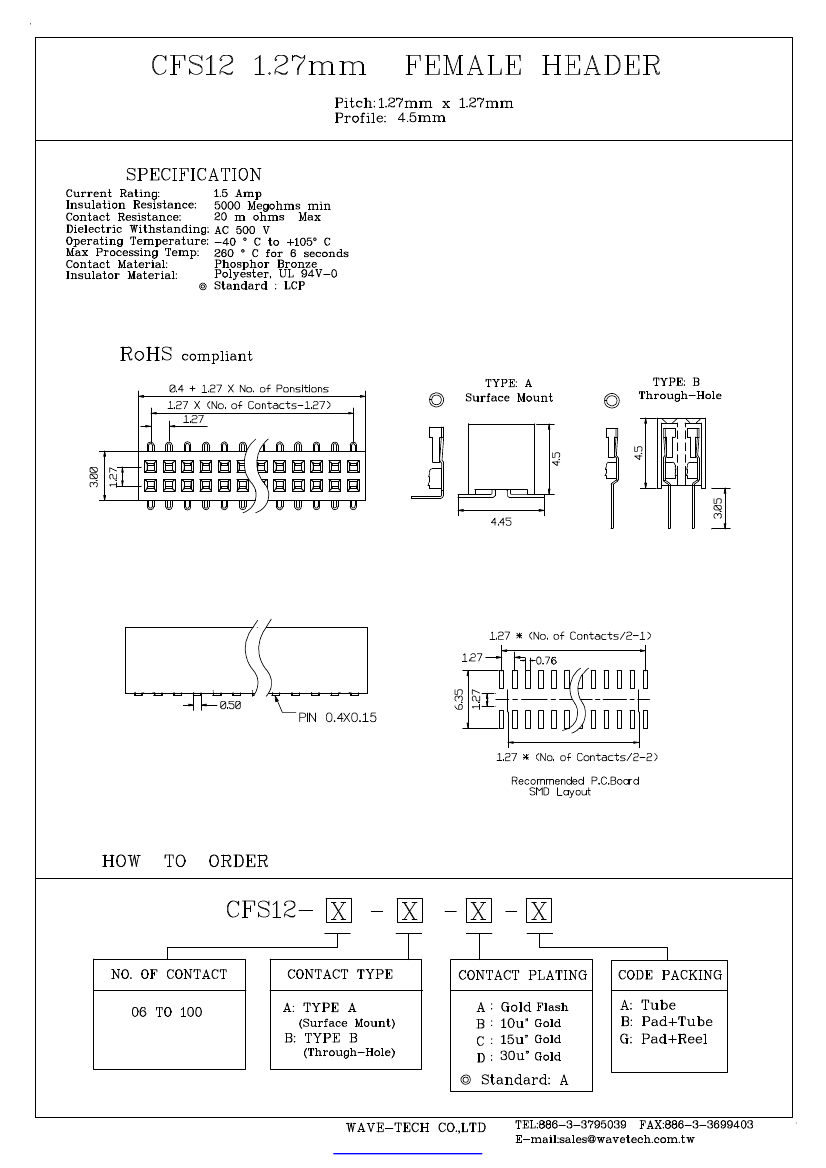

Board Connector, 92 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166480945
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PAD+TUBE PACKING
body width	0.118 inch
subject depth	0.177 inch
body length	2.316 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	CFS12
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	92
