NOTES:
1.
2.
PACKAGE CABLE ASSEMBLIES IN A BAG. LABEL BAG WITH AMPHENOL 115101-07-XX.XX AND DATE CODE.
CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.
115101-07-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
RELEASE TO MFG.
DESCRIPTION
16-Apr-13
DATE
ECO
--
APPR
RAK
SCALE
0.500
LENGTH XX.XX (SEE TABLE)
1 TYP(2)
2
3 TYP(2)
0.75" MAX
[19.05]MM
TYP(2)
115101-07-06.00
115101-07-12.00
115101-07-18.00
115101-07-24.00
115101-07-36.00
115101-07-48.00
CONNEX NUMBER
LENGTH TABLE
LENGTH (IN.)
06.00 #
0.25
12.00 #
0.25
18.00 #
0.25
24.00 #
0.50
36.00 #
0.50
48.00 #
0.50
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LENGTH IN INCHES
CONTACT CONNEX MARKETING FOR QUOTE
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
DRAWN
DATE
DATE
DATE
009-954-352
009-881-447
PART NUMBER
ABHAYA KISHORE
ABHAYA KISHORE
16-Apr-13
16-Apr-13
TITLE
A/R
2
112514
A/R
QTY
3
2
1
RG 142 CO-AXIAL CABLE
BNC CRIMP PLUG
DESCRIPTION
FINISH
HEAT SHRINK TUBE
ITEM
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
ENGINEER
REFERENCE
APPROVED
CAD FILE

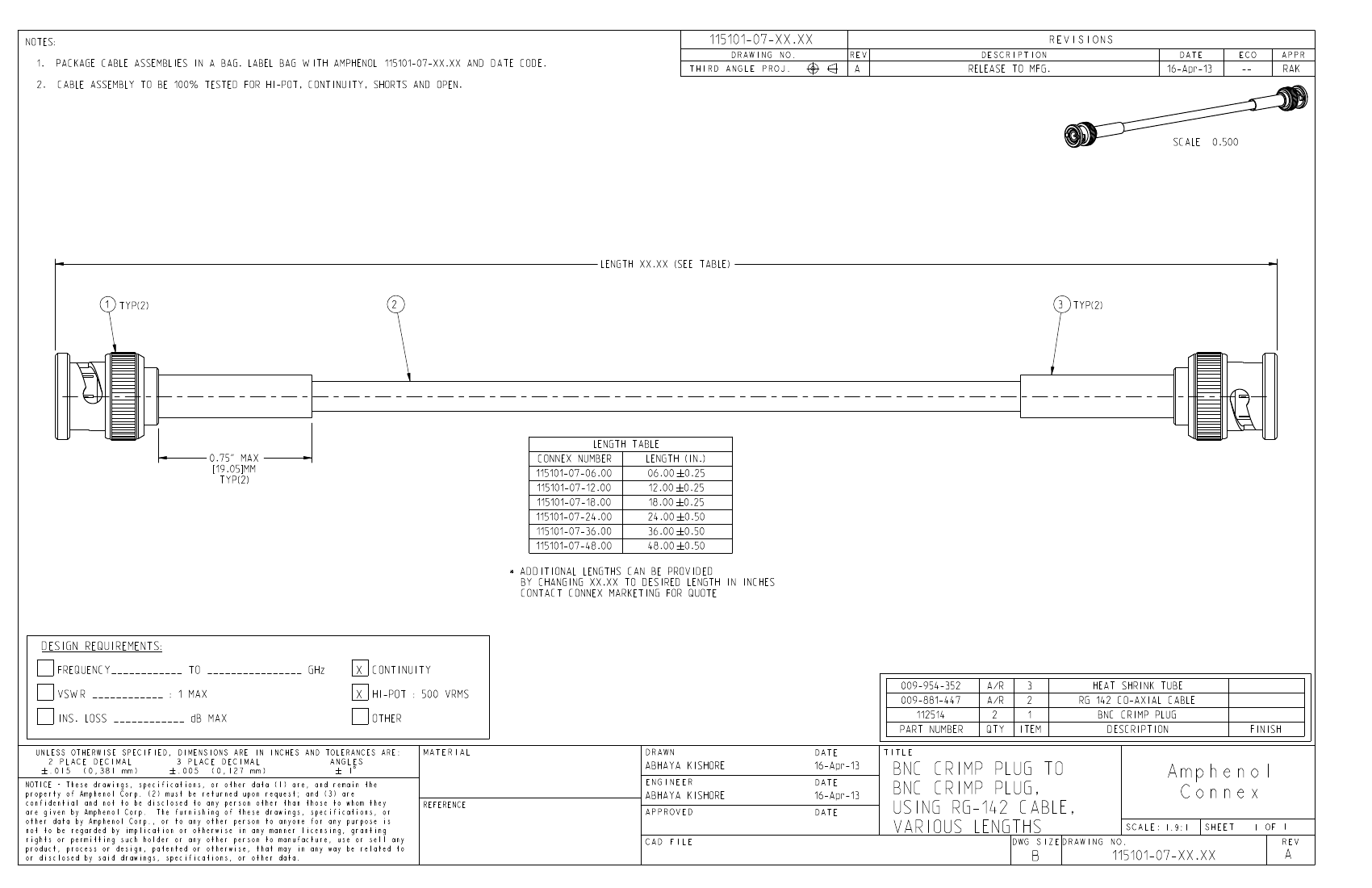

BNC CRIMP PLUG TO
BNC CRIMP PLUG,
USING RG-142 CABLE,
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 1.9:1
SHEET
1 OF 1
REV
DWG SIZE DRAWING NO.
115101-07-XX.XX
A
