IRLIZ24G datasheet, PDF - EEWORLD Datasheet

IRLIZ24G: DescriptionHEXFET POWER MOSFET; CategoryDiscrete semiconductor The transistor; File Size174KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

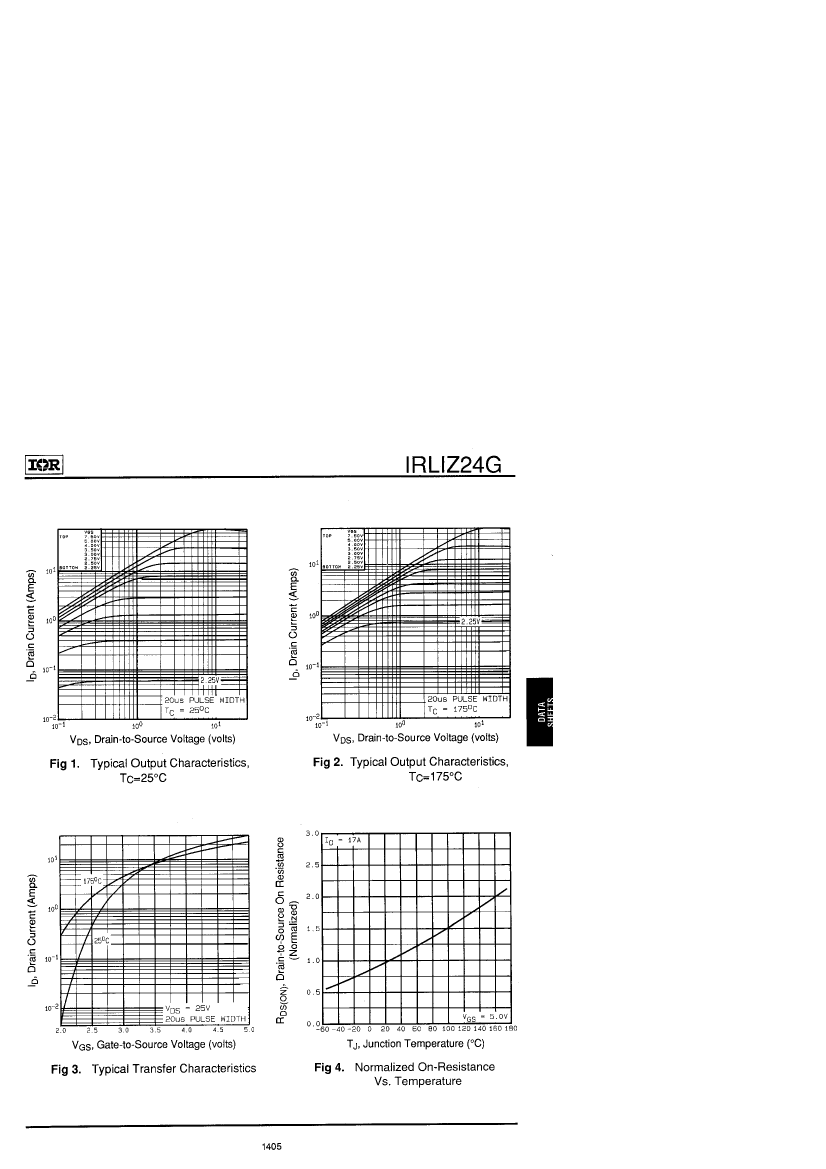

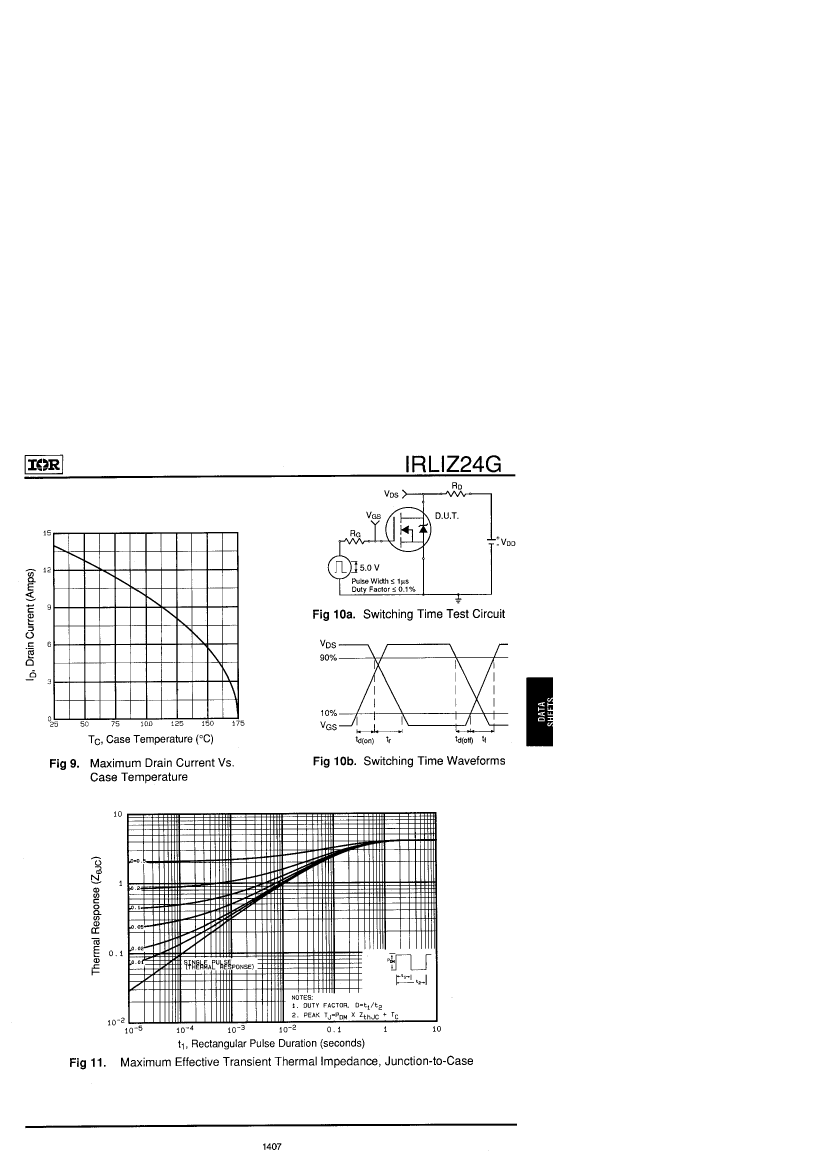

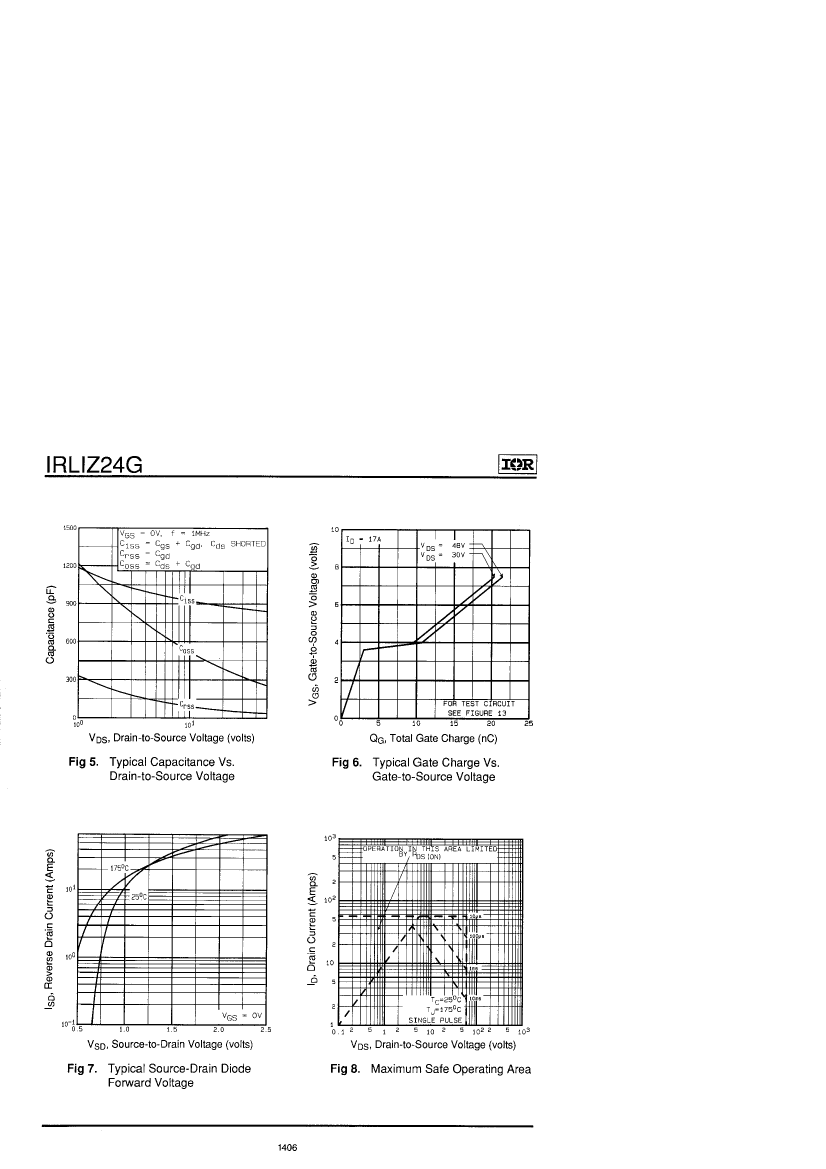

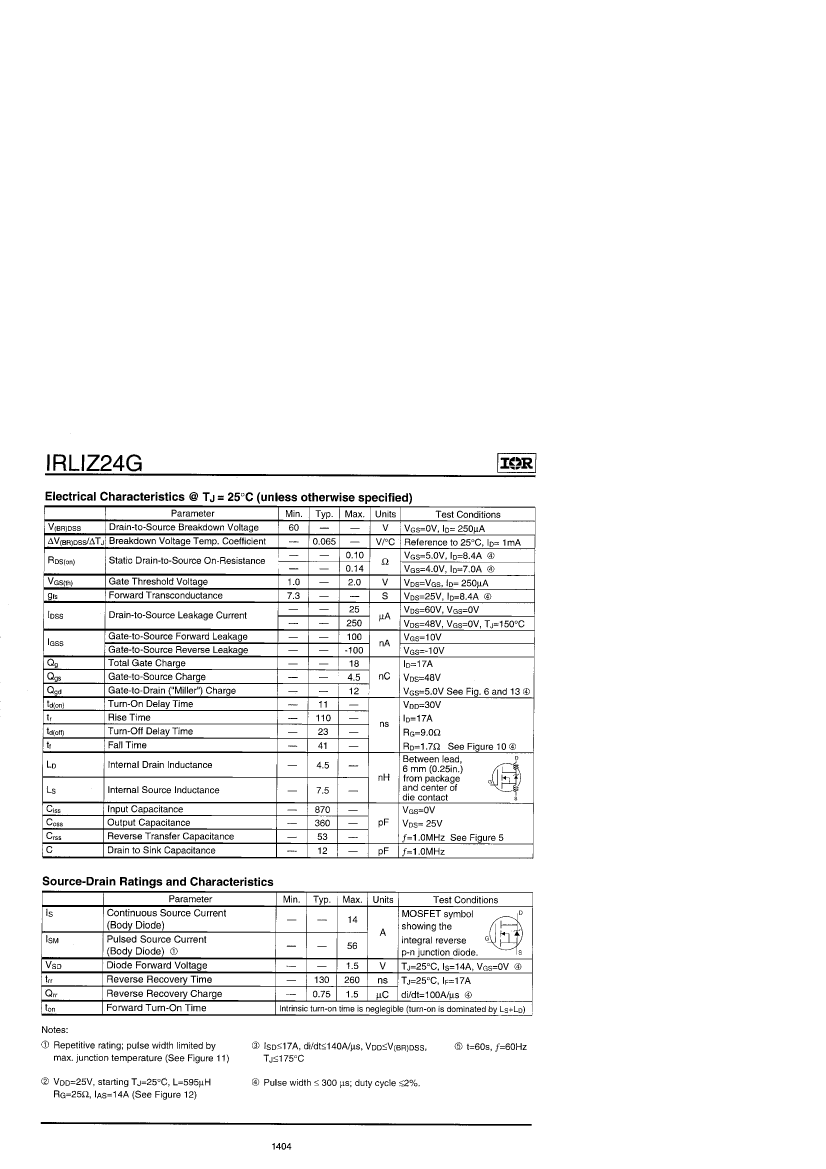

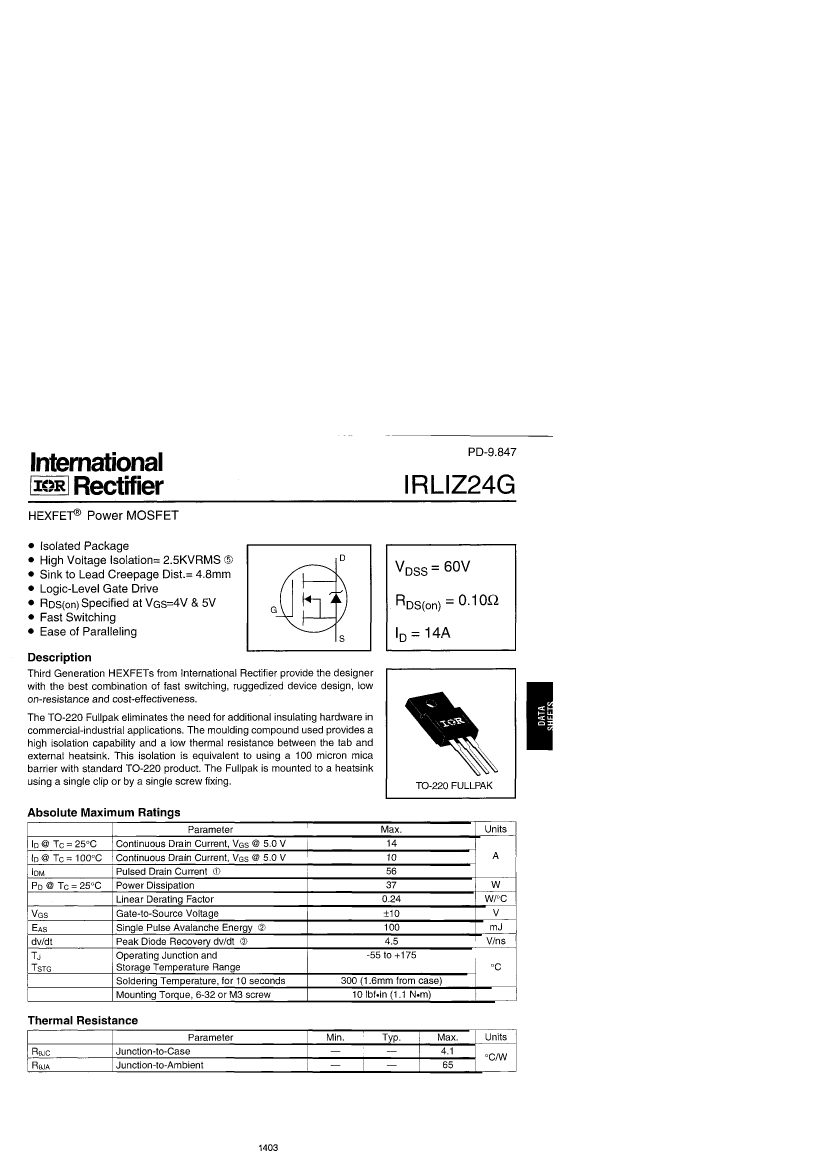

IRLIZ24G Overview

HEXFET POWER MOSFET

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	100 mJ
Shell connection	ISOLATED
Configuration	SINGLE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (Abs) (ID)	14 A
Maximum drain current (ID)	14 A
Maximum drain-source on-resistance	0.1 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	37 W
Maximum power dissipation(Abs)	37 W
Maximum pulsed drain current (IDM)	56 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
