Part Number

Search

EG-4101CA242.2180M-LGWAB

Description
CLOCK SAW OSCILLATOR
CategoryPassive components    oscillator
File Size533KB,3 Pages
ManufacturerSeiko Epson Corporation
Environmental Compliance

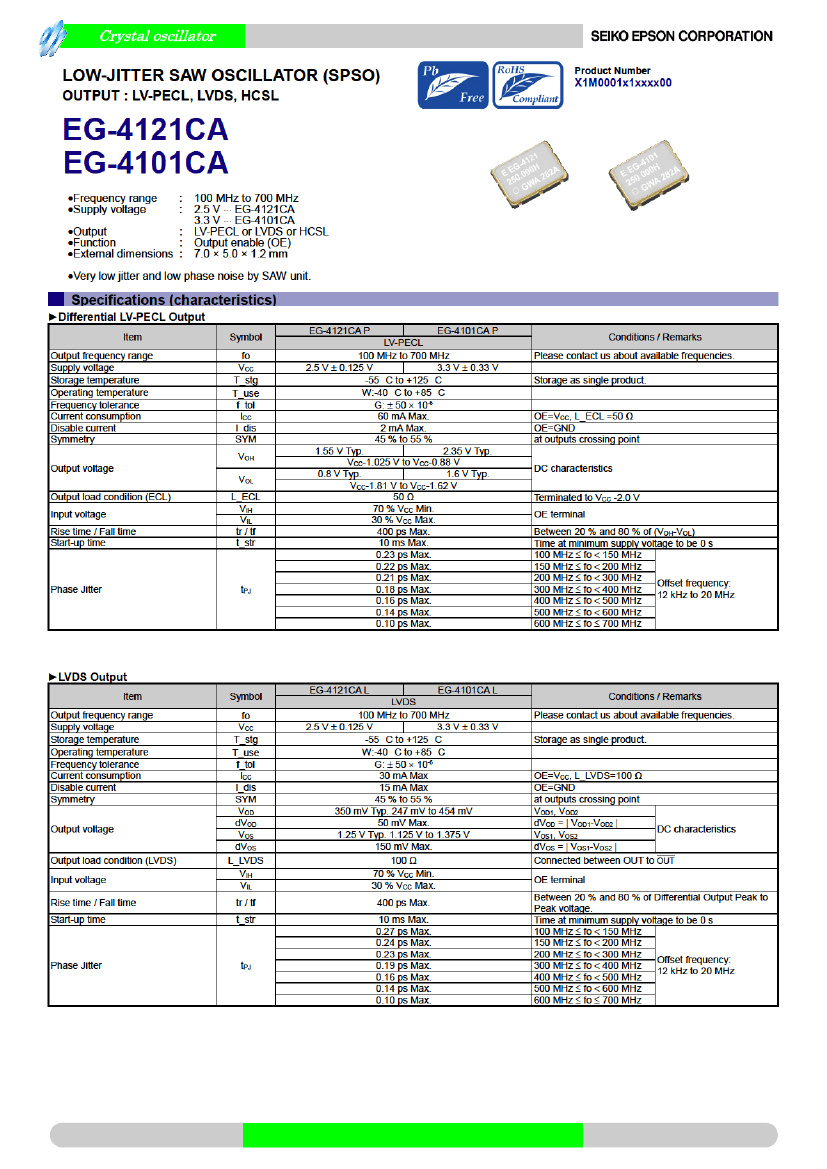

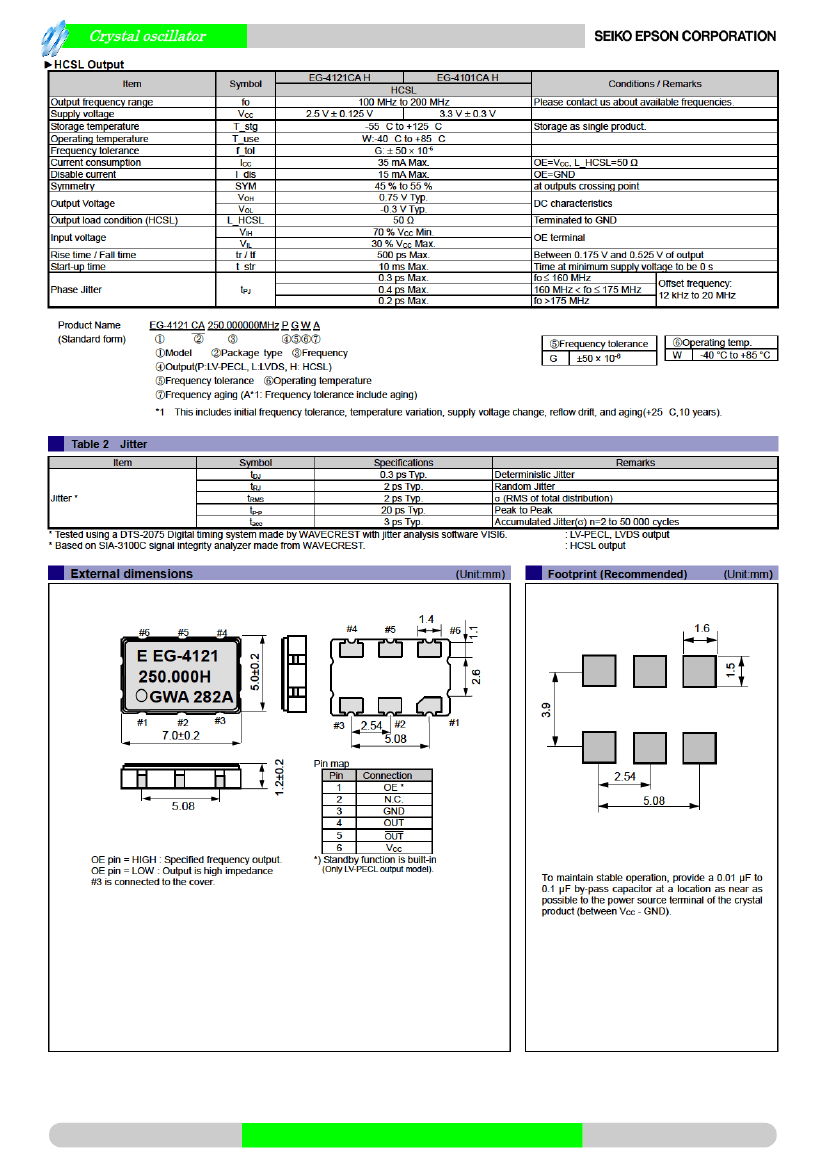

Download Datasheet Parametric View All

EG-4101CA242.2180M-LGWAB Overview

CLOCK SAW OSCILLATOR

EG-4101CA242.2180M-LGWAB Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1288114392
package instructionDILCC6,.2
Reach Compliance Codecompliant
Other featuresENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
maximum descent time0.4 ns
frequency tolerance50 ppm
JESD-609 codee4
Installation featuresSURFACE MOUNT
Number of terminals6
Nominal operating frequency242.218 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeSAW OSCILLATOR
Output compatibilityLVDS
Package body materialCERAMIC
Encapsulate equivalent codeDILCC6,.2
physical size7.0mm x 5.0mm x 1.2mm
power supply3.3 V
Certification statusNot Qualified
longest rise time0.4 ns
Maximum slew rate30 mA
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au)
