RX-0509D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> RX-0509D

RX-0509D: Description2-OUTPUT 1 W DC-DC REG PWR SUPPLY MODULE; Categorysemiconductor Analog mixed-signal IC; File Size103KB，2 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet Parametric View All

RX-0509D Overview

2-OUTPUT 1 W DC-DC REG PWR SUPPLY MODULE

RX-0509D Parametric

Parameter Name	Attribute value
Rated input voltage	24 V
Number of functions	1
Number of terminals	5
Minimum operating temperature	-40 Cel
Maximum operating temperature	70 Cel
Rated output voltage	24 V
Maximum total output power	1 W
Processing package description	ROHS COMPLIANT, SIP-7/5
each_compli	Yes
EU RoHS regulations	Yes
state	Contact Mf
Analog IC other types	DC-DC REGULATED POWER SUPPLY MODULE
Minimum input voltage	22.8 V
Maximum input voltage	25.2 V
jesd_30_code	R-XSMA-P5
load_regulation_max	1 %
Number of outputs	2
Maximum output current	0.0210 A
Packaging Materials	UNSPECIFIED
ckage_equivalence_code	SIP5/7,.05
packaging shape	RECTANGULAR
Package Size	MICROELECTRONIC ASSEMBLY
qualification_status	COMMERCIAL
seated_height_max	10.45 mm
sub_category	Other Analog ICs
surface mount	NO
Craftsmanship	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal spacing	2.54 mm
Terminal location	SINGLE
im_adjustable_output__v_	YES
length	19.65 mm
width	7.05 mm
dditional_feature	ADDITIONAL -24V OUTPUT AVAILABLE

Preview

Download Datasheet

View All

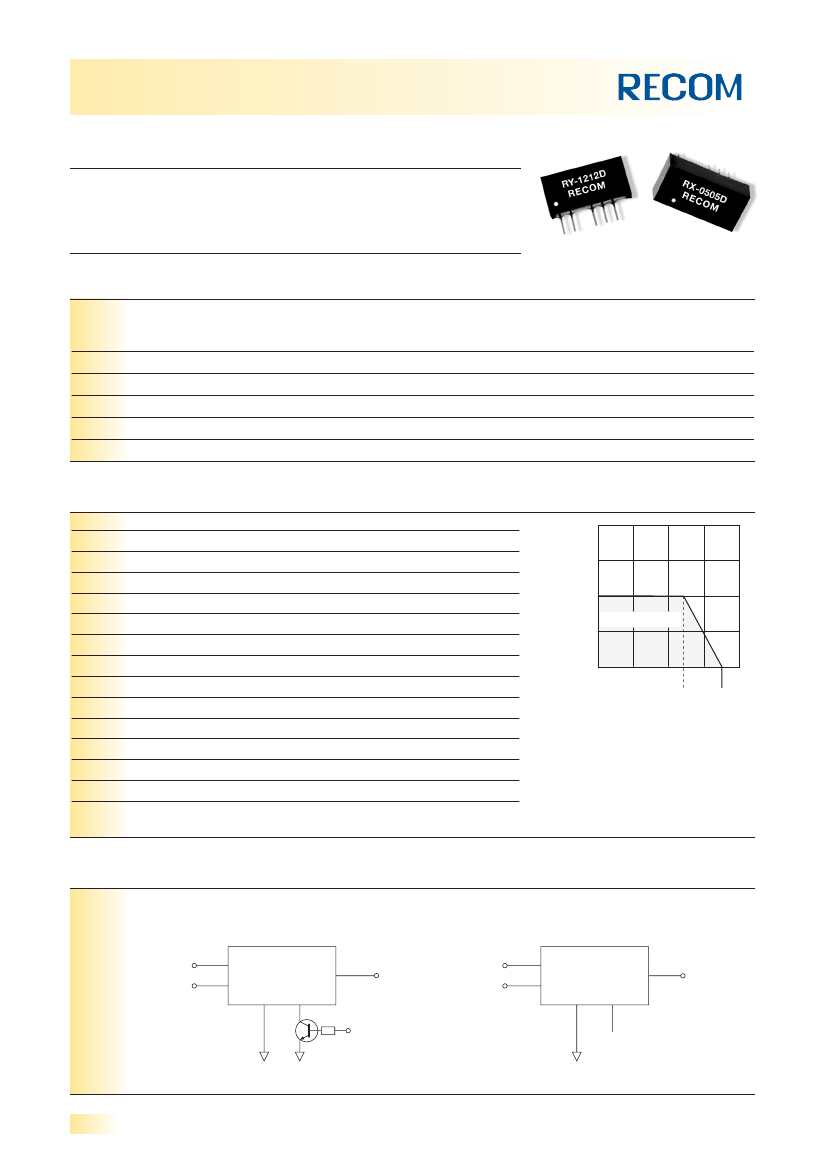

ECONOLINE - DC/DC-Converter

RX and RY Series, 1 Watt, DIP14/SIP7, Regulated (Dual Output)

Features

●

Controllable Output

1kVDC Isolation

UL94V-0 Package Material

No Heatsink Required

●

Fully Encapsulated

No External Components

Toroidal Magnetics

Selection Guide

Part

Number

DIP14

RX-XX05D

RX-XX09D

RX-XX12D

RX-XX15D

RX-XX24D

Part

Number

SiP7

RY-XX05D

RY-XX09D

RY-XX12D

RY-XX15D

RY-XX24D

Input

Voltage

(VDC)

5, 9, 12, 15, 24

Output

Voltage

(VDC)

±5 V

±9 V

±12 V

±15 V

±24 V

Output

Current

(mA)

±100

±55

±42

±33

±21

Efficiency

(%)

Specifications (Core Operating Area) and Operating Temperature / Derating-Graph

Input Voltage

Input Filter

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation (20% to 100% full load)

Ripple and Noise (20MHz limited)

Efficiency at Full Load

Isolation Voltage

Isolation Resistance (Viso = 500VDC)

Isolation Capacitance

Short Circuit Protection

Switching Frequency at Full Load

Operating Temperature

Storage Temperature

Package Weight

RX types

RY types

±5%

Capacitor Type

±0.5%

Output Power (Watts)

1.5

1.0

Safe Operating Area

0.5

-40

100

125

150

Operating Temperature ˚C

2.0

±0.05% / ±1.0%

±0.5% / ±1.0%

100mVp-p max.

50% min.

1.000VDC min.

10 GΩ min.

40pF min./72pF max.

1 Second

30kHz min. / 88kHz max.

-40°C to +71°C (see Graph)

-55°C to +125°C

2.7g

2.8g

Typical Applications

Flash PROM Programming Voltage Control

Vcc

Normal Isolated Regulated Output

Vcc

RY-XX12

CTRL

1kΩ

Vout = 12V, TTL = 0V

Vout = 1.2V, TTL = 1V

GND

RY-XX12

CTRL

Vout

GND

TTL Input

2N2219, BC107, ZTX451

or Similar Transistors capable of

Sinking 50mA Continuous Current

EC 40

August 2002

www.recom-international.com
