MeTAllIZeD POlyeSTeR FIlM CAPACITOR
D.C MulTIPuRPOSe APPlICATIONS
MKT Series
R66
Typical applications:
this series combines small size,
good performances in by-passing, blocking and interference
suppression in low voltage applications (i.e.: AUToMoTIVe).
PRoDUCT CoDe:
R66
p = 7.5mm
Note:
R66 series has replaced the R84 series (available only
upon request).
For new design we suggest the use of the R66 series
B
Ød ±0.05
<3.5
0.5
≥4.0
0.6
Pitch Box thickness (B)
(mm)
(mm)
7.5
All
Maximum dimensions (mm)
B max
H max
L max
B +0.1
H +0.1
L +0.2
All dimensions are in mm.
geNeRAl TeChNICAl DATA
Dielectric:
polyester film (polyethylene terephthalate).
The part number, comprising 14 digits, is formed as follows:
Plates:
aluminium layer deposited by evaporation under
1 2 3
4
5
6 7 8 9 10 11 12 13 14
vacuum.
Winding:
non-inductive type.
D
-
R 6 6
leads:
tinned wire.
Protection:
plastic case, thermosetting resin filled.
Digit 1 to 3
Series code.
Box material is solvent resistant and flame
Digit 4
d.c. rated voltage:
retardant according to UL94.
C = 50V
D = 63V e = 100V
Marking:
Capacitance, tolerance, D.C. rated voltage.
I = 250V M = 400V P = 630V
Climatic category:
55/105/56 IeC 60068-1
Digit 5
Pitch: D = 7.5 mm
Operating temperature range:
-55 to +105°C
For stacked technology an upper operating
Digit 6 to 9
Digits 7 - 8 - 9 indicate the first three digits of
temperature of +125°C is allowed for a max operating
Capacitance value and the 6th digit indicates
time of 1000 h.
the number of zeros that must be added to
Related documents:
IeC 60384-2
obtain the Rated Capacitance in pF.
Digit 10 to 11 Mechanical version and/or packaging (table1)
Digit 12
Identifies the dimensions and electrical
characteristics.
Winding scheme
Digit 13
Internal use
Digit 14
Capacitance tolerance:
J=5%; K=10%; M=20%.
PRODuCT CODe SySTeM
Table 1 (for more detailed information, please refer to page
14).
Standard
packaging style
lead
length
(mm)
Taping
style
Figure No.
Ordering
code
(Digit 10 to 11)
single sided metallized
polyester film
AMMo-PACK
AMMo-PACK
Reel Ø 355 mm
Loose, short leads
Loose, long leads
4
+2
17
+1/-2
1
2
1
DQ
28
CK
AA
Z3
09/2008
36
MeTAllIZeD POlyeSTeR FIlM CAPACITOR
D.C. MulTIPuRPOSe APPlICATIONS
p = 7.5 mm
PRoDUCT CoDe:
R66
STACKeD VeRSION
Rated
Cap.
B
0.68
µF
1.0
µF
1.5
µF
2.2
µF
4.7
µF
Rated
Cap.
B
0.33
µF
0.47
µF
0.68
µF
1.0
µF
1.5
µF
2.2
µF
3.3
µF
Rated
Cap.
B
0.068
µF
0.10
µF
0.15
µF
0.22
µF
0.33
µF
0.47
µF
0.68
µF
1.0
1.5
µF
µF
3.0
3.0
3.0
3.0
4.0
4.0
4.0
3.0
3.0
4.0
4.0
3.0
3.0
4.0
50Vdc/30Vac
Std dimensions
H
L
p
7.5
7.5
7.5
7.5
7.5
8.0 10.0
8.0 10.0
9.0 10.0
Max
dv/dt
(V/
µs)
100
100
100
100
100
Max
dv/dt
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
(V/
µs)
120
120
120
120
120
120
120
Max
dv/dt
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
(V/
µs)
150
150
150
150
150
150
150
150
150
Max K
0
(V
2
/
µs)
10 e3
10 e3
10 e3
10 e3
10 e3
Max K
0
(V
2
/
µs)
15 e3
15 e3
15 e3
15 e3
15 e3
15 e3
15 e3
Max K
0
(V
2
/
µs)
30 e3
30 e3
30 e3
30 e3
30 e3
30 e3
30 e3
30 e3
30 e3
R66eD 2680
--
7
--
R66eD 3100
--
7
--
R66eD 3150
--
7
--
R66eD 3220
--
7
--
R66eD 3330
--
7
--
R66eD 3470
--
7
--
R66eD 3680
--
7
--
R66eD 4100
--
7
--
R66eD 4150
--
6
--
R66DD 3330
--
7
--
R66DD 3470
--
6
--
R66DD 3680
--
7
--
R66DD 4100
--
7
--
R66DD 4150
--
7
--
R66DD 4220
--
6
--
R66DD 4330
--
6
--
Part Number
R66CD3680
--
6
--
0.022µF
0.033
µF
0.047
µF
0.068
µF
0.10
µF
0.15
µF
0.22
µF
0.33
µF
Rated
Cap.
6800 pF
0.010
µF
0.015
µF
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
µF
0.15
µF
R66CD 4100
--
6
--
R66CD 4150
--
6
--
R66CD 4220
--
6
--
R66CD 4470
--
6
--
Part Number
Part Number
Rated
Cap.
B
3.0
3.0
3.0
3.0
4.0
4.0
250Vdc/160Vac
Std dimensions
H
L
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
Max
dv/dt
(V/
µs)
200
200
200
200
200
200
200
200
Max
dv/dt
(V/µs)
275
275
275
275
275
275
275
275
275
Max K
0
(V
2
/
µs)
100 e3
100 e3
100 e3
100 e3
100 e3
100 e3
100 e3
100 e3
Max K
0
(V
2
/µs)
220 e3
220 e3
220 e3
220 e3
220 e3
220 e3
220 e3
220 e3
220 e3
MKT Series
R66
Part Number
R66ID 2220
--
7
--
R66ID 2330
--
7
--
R66ID 2470
--
7
--
R66ID 2680
--
6
--
R66ID 3100
--
7
--
R66ID 3150
--
7
--
R66ID 3220
--
7
--
Part Number
R66MD1680
--
7
--
R66MD2100
--
7
--
R66MD2150
--
7
--
R66MD2220
--
6
--
R66MD2330
--
7
--
R66MD2470
--
7
--
R66MD2680
--
7
--
R66MD3100
--
6
--
R66MD3150
--
6
--
5.0 10.5 10.0
6.0 12.0 10.5
63Vdc/40Vac
Std dimensions
H
L
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
5.0 10.5 10.0
6.0 12.0 10.5
R66ID 3330
--
6
--
400Vdc/200Vac
Std dimensions
B
H
L
p
3.0 8.0 10.0 7.5
3.0
3.0
3.0
4.0
4.0
8.0
8.0
8.0
9.0
9.0
10.0
10.0
10.0
10.0
10.0
10.0
10.5
10.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
5.0 10.5 10.0
6.0 12.0 10.5
6.0 12.0 10.5
100Vdc/63Vac
Std dimensions
H
L
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
9.0 10.0
5.0 10.5
6.0 12.0
6.0 12.0
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
5.0 10.5 10.0
6.0 12.0 10.5
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
a) WOuND version
b) STACKeD version
630Vdc/220Vac*
Std dimensions
B
H
L
p
a)
1000 pF 3.0 8.0 10.0 7.5
a)
1500 pF 3.0
a)
2200 pF 3.0
a)
3300 pF 3.0
a)
4700 pF 3.0
a)
6800 pF 4.0
b)
0.010
µF
4.0
b)
0.015
µF
4.0
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
9.0 10.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
Rated
Cap.
Max
dv/dt
(V/µs)
40
40
40
40
40
40
300
300
300
300
300
Max K
0
(V
2
/µs)
50 e3
50 e3
50 e3
50 e3
50 e3
50 e3
378 e3
378 e3
378 e3
378 e3
378 e3
Part Number
R66PD 1100
--
1
--
R66PD 1220
--
1
--
R66PD1150
--
1
--
R66PD 1330
--
1
--
R66PD 1470
--
1
--
R66PD 2100
--
7
--
R66PD 1680
--
1
--
R66PD 2150
--
7
--
b)
0.022
µF
5.0 10.5 10.0
b)
0.033
µF
6.0 12.0 10.5
b)
0.047
µF
6.0 12.0 10.5
R66PD 2220
--
7
--
R66PD 2330
--
6
--
R66PD 2470
--
6
--
All dimensions are in mm.
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
Note: If the working voltage (V) is lower than the rated voltage (V
R
), the capacitor may work at higher dv/dt. In this case the
maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio V
R
/V.
The pulse characteristic K
0
depends on the voltage wave-form and in any case it cannot overcome the value given in
the above table.
*Not suitable for across-the-line applications. Please refer to Interference Suppression Capacitors (page 145).
37
09/2008
MeTAllIZeD POlyeSTeR FIlM CAPACITOR
D.C. MulTIPuRPOSe APPlICATIONS
p = 7.5 mm
PRoDUCT CoDe:
R66
MKT Series
R66
eleCTRICAl ChARACTeRISTICS
Rated voltage (V
R
):
50 Vdc
250 Vdc
63 Vdc
400 Vdc
100 Vdc
630 Vdc
TeST MeThOD AND PeRFORMANCe
Damp heat, steady state:
Test conditions
Temperature:
Relative humidity (RH):
Test duration:
Performance
Capacitance change |∆C/C|:
DF change (∆tg
δ
):
Insulation resistance:
endurance:
Test conditions
Temperature:
Test duration:
Voltage applied:
Performance
Capacitance change |∆C/C|:
DF change (∆tg
δ
):
Insulation resistance:
Resistance to soldering heat:
+105°C ±2°C
2000 h
1.25xV
C
≤5%
≤50
10
-4
at 10kHz
≥50%
of initial limit.
+40°C ±2°C
93% ±2%
56 days
≤5%
≤50x10
-4
at 1kHz
≥50%
of initial limit.
Rated temperature (T
R
):
+85 °C
Temperature derated voltage:
for temperatures between +85°C and the upper operating
temperature ( +105°C for wound technology and +125°C
for stacked technology) a decreasing factor of 1.25% per
degree °C on the rated voltage V
R
(d.c. and a.c.) has to be
applied.
Capacitance range:
Capacitance values:
1000 pF to 4.7
µ
F
e6 series (IeC 60063 Norm).
Capacitance tolerances
(measured at 1 kHz):
± 5% (J); ±10% (K); ±20% (M).
Total self-inductance
(L):
≈8nH
(lead length ~2mm)
Dissipation factor (DF):
tgd 10
-4.
at +25°C ”5°C
kHz
1
10
tgδ x 10
-4
≤
100
≤
150
Insulation resistance:
Test conditions
Temperature
Voltage charge time:
Voltage charge:
Performance
For V
R
≤100
Vdc
≥3750
MΩ for C
≤0.33µF
(5000 MΩ)*
≥1250
s
for C >0.33µF (5000 s)*
For V
R
>100 Vdc
≥30000MΩ
(50000 MΩ)*
*Typical value
Test voltage between terminals:
1.6xV
R
applied for 2 s at +25°C ± 5°C
+25°C±5°C
1 min
50 Vdc for V
R
<100 Vdc
100 Vdc for V
R
≥100
Vdc
Test conditions
Solder bath temperature:
+260°C±5°C
Dipping time (with heat screen):10 s ±1 s
Performance
Capacitance change |∆C/C|:
≤2%
DF change (∆tg
δ
):
≤50x10
-4
at 10kHz
≥
initial limit.
Insulation resistance:
long term stability
(after two years):
Storage
standard environmental conditions (see page 12).
Performance
Capacitance change |∆C/C|:
≤3%
for C≤0.1µF
≤2%
for C>0.1µF
RelIABIlITy
Reference MIL HDB 217
Application conditions:
Temperature:
+40°C±2°C
Voltage:
0.5xV
R
Failure rate:
≤2
FIT
-9
(1 FIT = 1 10 failures/components h)
Failure criteria:
(according to DIN 44122)
Short or open circuit
Capacitance change |∆C/C|:
>10%
DF change (∆tg
δ
):
>2 x initial limit.
Insulation resistance:
<0.005 x initial limit.
09/2008
38
MeTAllIZeD POlyeSTeR FIlM CAPACITOR
D.C. MulTIPuRPOSe APPlICATIONS
p = 7.5 mm
PRoDUCT CoDe:
R66
MKT Series
R66

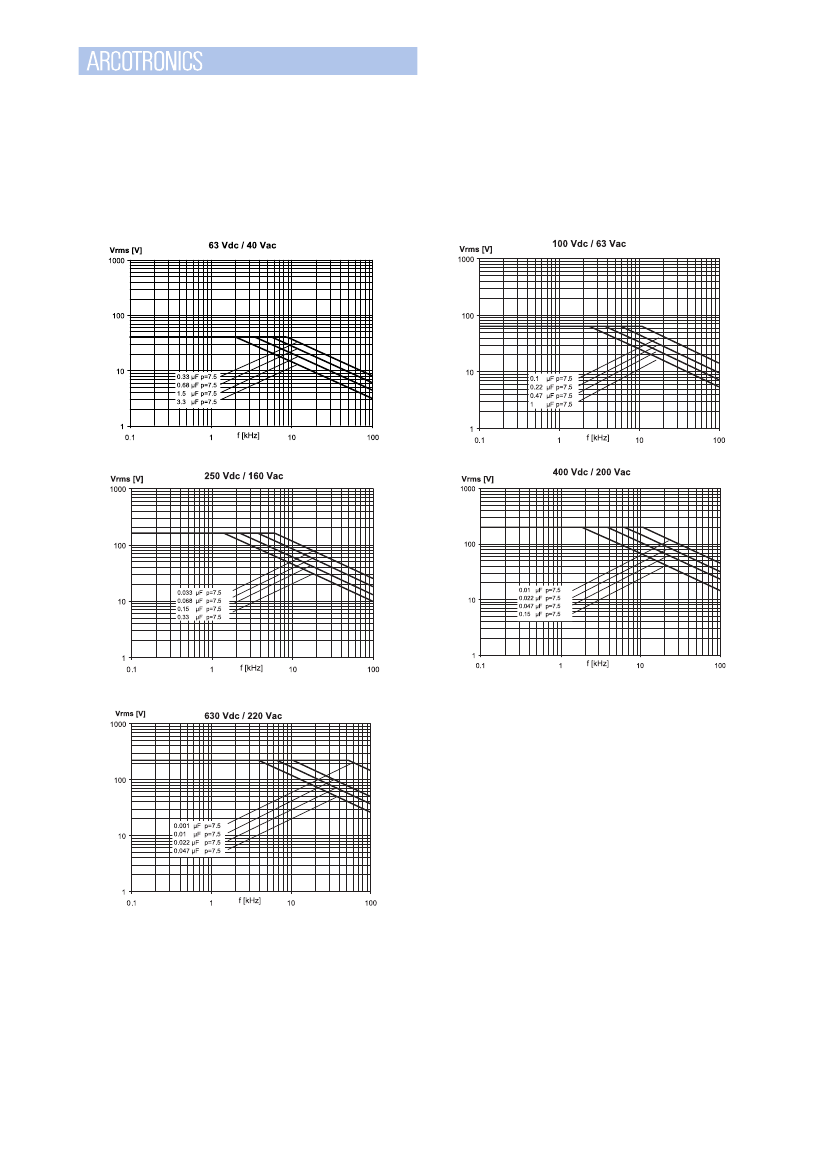

MAX. VoLTAGe (Vr.m.s.) VeRSUS FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
Note: p (pitch) in mm.
39
09/2008
MeTAllIZeD POlyeSTeR FIlM CAPACITOR
D.C. MulTIPuRPOSe APPlICATIONS
p = 7.5 mm
PRoDUCT CoDe:
R66
MKT Series
R66

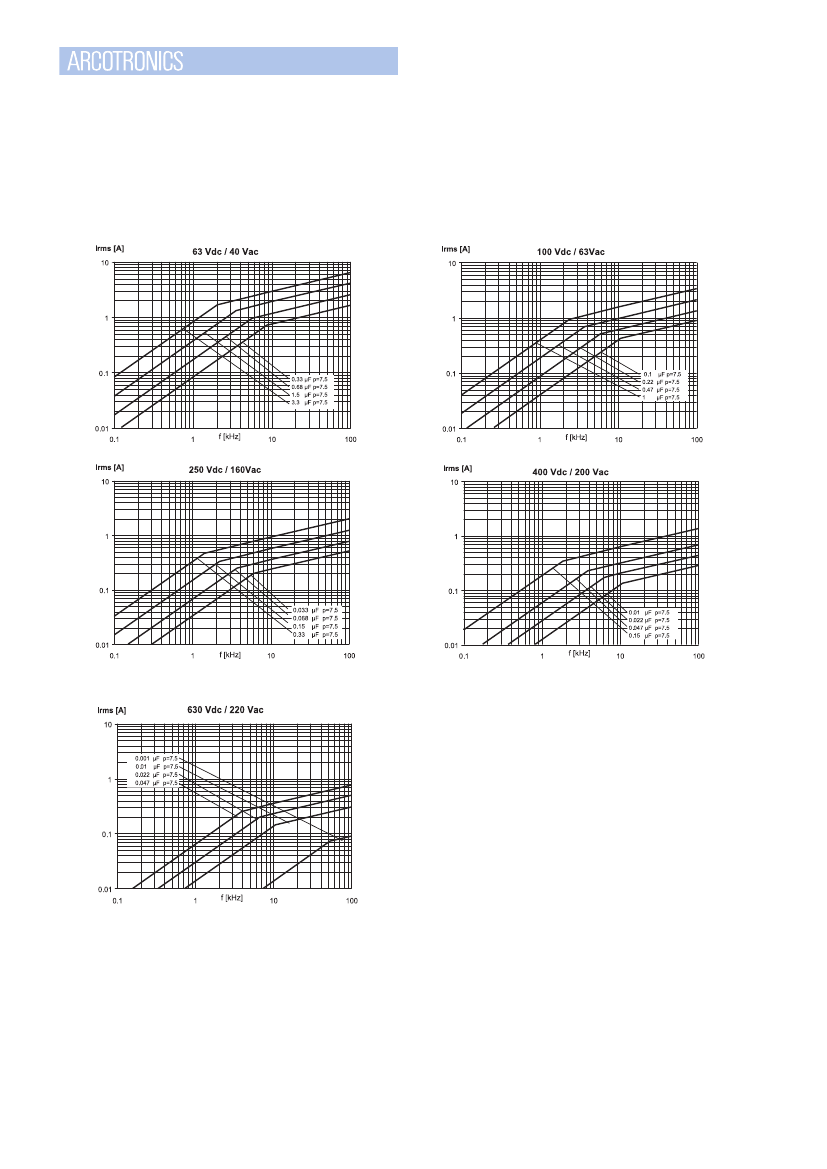

MAX. CURReNT (Ir.m.s.) VeRSUS FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
Note: p (pitch) in mm.
09/2008
40
京公网安备 11010802033920号
EEWORLD
