24-526-1001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 24-526-1001

24-526-1001: DescriptionIC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size500KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

24-526-1001 Overview

IC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT

24-526-1001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (50)
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP24
Shell material	NYLON46
JESD-609 code	e3
Number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

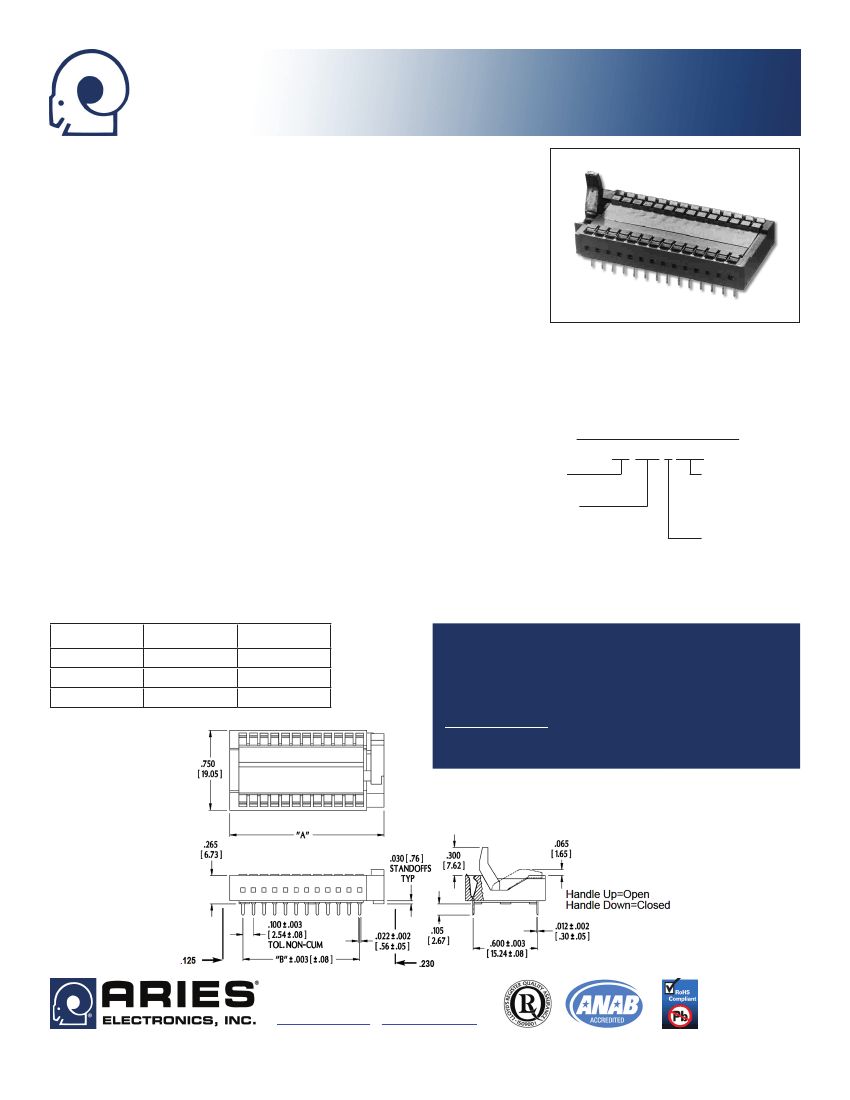

Series 526 Lo-PRO

file

ZIF (Zero-Insertion-Force) Socket

FEATURES

• A choice of 24, 28, or 40 pin count devices can be inserted without bending or

otherwise damaging the legs, since no force is required to either insert or remove

the component from the socket.

• A metal cam provides strong, smooth action as it moves to a positive stop, com-

pressing the double-sided contacts, ensuring a gas-tight seal.

• Test point openings provided to reach all pins.

GENERAL SPECIFICATIONS

• PLASTIC BODY: black UL 94V-0 glass-filled 4/6 Nylon

• CONTACTS: BeCu 172, spring-tempered

• CONTACT PLATING: “-10” 200µ [5.08µ] min. matte Sn per ASTM B545-

CUSTOMIZATION:

In addition to the standard products shown

97(2004) over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290; “-10TL” 200µ

on this page, Aries specializes in custom design and production.

[5.08µ] min. 90/10 Sn/Pb per MIL-T-10727 over 50µ [1.27µ] min. Ni per SAE

Special materials, platings, sizes, and configurations can be

AMS-QQ-N-290; “-11” 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ]

furnished, depending on the quantity.

NOTE:

Aries reserves the

right to change product general specifications without notice.

min. Ni per SAE AMS-QQ-N-290 – Consult factory for availability

• CAM: lightweight, strong, and rigid cast Zn

• OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb

ORDERING INFORMATION

plating; -67°F to 257°F [-55°C to 125°C] Au plating

XX-526-1 XXX

• CONTACT CURRENT RATING: 2 amps

Plating Option

Pins

• CONTACT RESISTANCE: 10 mΩ max.

0 = Sn

(See Table)

• BREAKDOWN VOLTAGE: 1000VAC min.

0TL = Sn/Pb

• AVERAGE RETENTION FORCE (when closed): 110g/Pb, based on 0.010 [0.25]

Series

1 = Au

dia. test lead

Solder Tail Only

• SOCKET ACCEPTS: 0.008-0.014 [0.20-0.36] thick leads, 0.075-0.200 [1.91-

5.08] long

MOUNTING CONSIDERATIONS

• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

No. of Positions

Dim. “A”

1.450 [36.83]

1.650 [41.90]

2.250 [57.15]

Dim. “B”

1.100 [27.94]

1.300 [33.02]

1.900 [48.26]

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

SERIES 516 STANDARD ZIF SOCKET ALSO AVAILABLE. CONSULT

DATA SHEET 10017

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

10018

Rev. AA

24-526-1001 Related Products

	24-526-1001	28-526-1000	28-526-1001	24-526-1000	40-526-1000	40-526-1001
Description	IC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT	IC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT	IC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT	IC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT	IC Socket, DIP40, 40 Contact(s), ROHS COMPLIANT	IC Socket, DIP40, 40 Contact(s), ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)	MATTE TIN (200) OVER NICKEL (50)
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP24	DIP28	DIP28	DIP24	DIP40	DIP40
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
JESD-609 code	e3	e3	e3	e3	e3	e3
Number of contacts	24	28	28	24	40	40
Base Number Matches	1	1	1	1	1	-
