RLR07C2942FS: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 29400ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size182KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

RLR07C2942FS Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 29400ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2038457740
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Cylindrical
JESD-609 code	e0
Lead diameter	0.64 mm
Lead length	38.1 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package diameter	2.3 mm
Package length	6.4 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
Guideline	MIL-R-39017
resistance	29400 Ω
Resistor type	FIXED RESISTOR
series	RLR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	250 V

Established Reliability Mil-Qualified

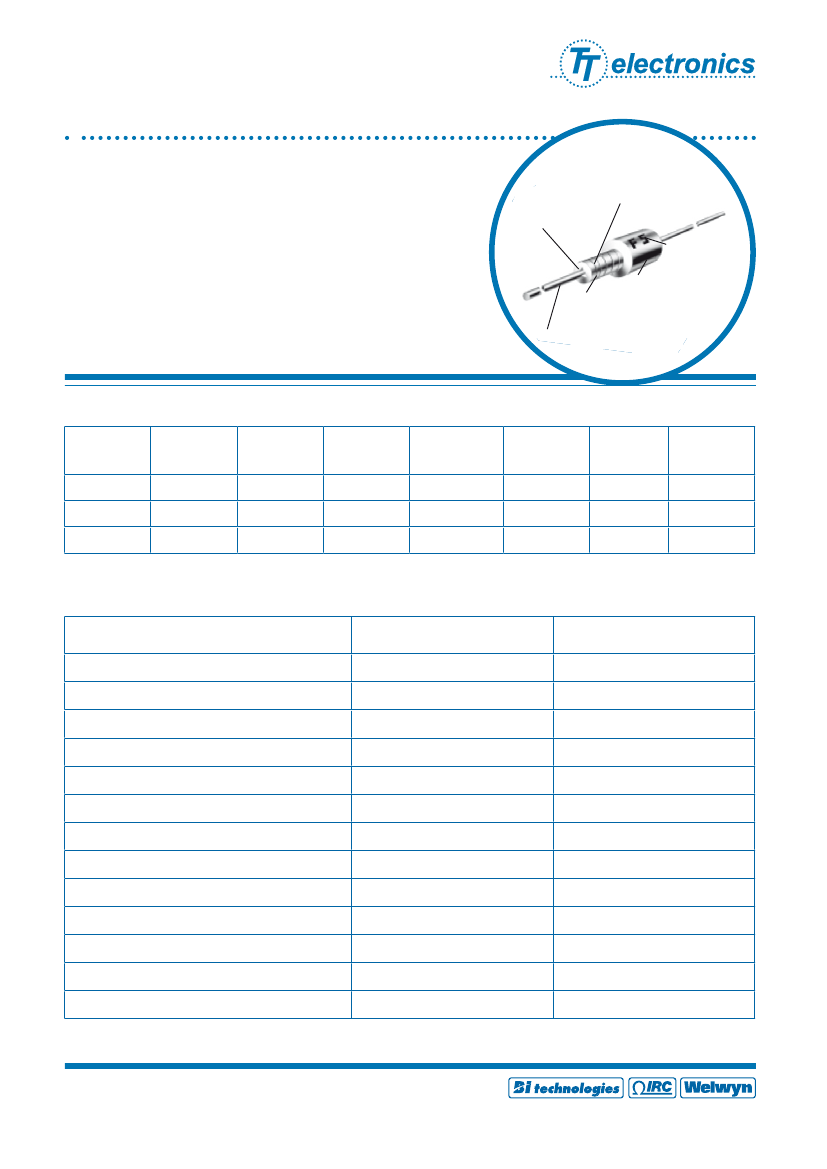

Metal Glaze™ Resistor

RLR Series

·

1/8 watt to 1/2 watt

TCR of ±100 ppm/°C

1% and 2% tolerance

4.3 ohms to 3.01M ohms

MIL-R-39017 approved to “S” level

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
