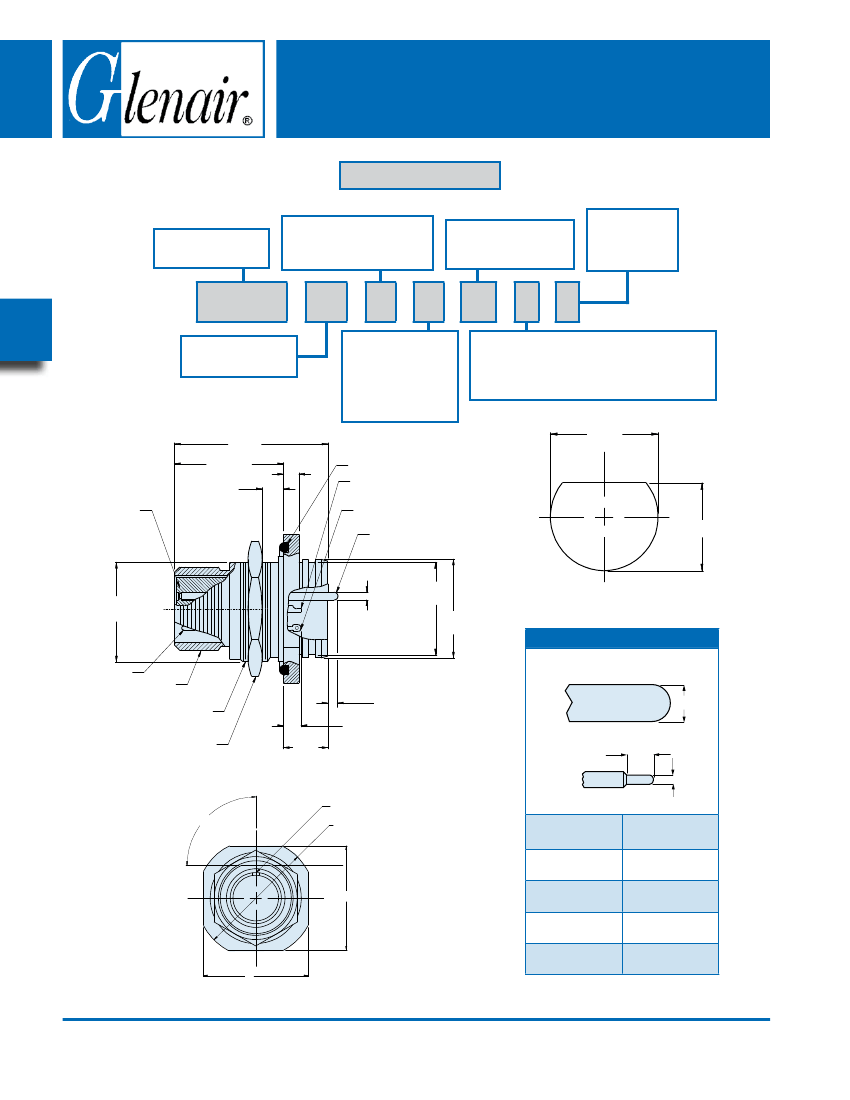

D38999/23
Jam Nut Mount Hermetic Receptacle
MIL-DTL-38999 Series III
How To Order:
MS
Alternate Key
Position
A, B, C, D, E
(N = Normal)
Connector Material / Finish
N
- CRES, Nickel
Y
- CRES, Passivated
Insert Arrangement
Per MIL-STD-1560;
See Pages B2 - B4
B
D38999
Shell Style
/23
-
Jam Nut Mount
/23
A
B
C
D
E
Y
B
35
P
N
Shell Size
- 9
F
- 19
- 11
G
- 21
- 13
H
- 23
- 15
J
- 25
- 17
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
Flex Feedthrough
Flex Feedthrough
L
Max
.889
Max
Socket
Face
H
Panel
Thickness
J
O-Ring
Solder Cup
Contact (P & S)
Eyelet
Contact (X & Z)
Feedthrough
Contact (C & D)
K DIA
N
D
Flat
E
DIA
P
(See Table II)
F
DIA
Recommended Panel
Cut-Out
TABLE ll: CONTACT SIZE
PRINTED CIRCUIT TAIL CONFIGURATIONS
CONTACT STYLE C AND D
Pin Face
A Thread
G Thread
Nut
Per D38999/28
.382
Max
Master
Keyway
B
DIA
.175/.125
M Max
P
SIZE 12 AND SIZE 16
.050 ± .015
(1.27 ± 0.38)
SIZE 22D AND SIZE 20
Contact
Size
22D
P
ø P
90°/85°
.011 (0.28)
.015 (0.38)
.024 (0.61)
.028 (0.71)
.0635 (1.61)
.0615 (1.56)
.095 (2.41)
.093 (2.36)
C
20
16
12
C
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-22
D38999/23
Jam Nut Mount Hermetic Receptacle
MIL-DTL-38999 Series III
How To Order:
Commercial
Connector Series
233
-
Series III Type
Shell Style
H7
- Hermetic Jam Nut Mount
Shell Size
09,11,13,15,17,19,21,23,25
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
233
-
100
-
H7
Connector Type
100
-
Hermetic
Receptacle
Z1
11
-
35
P
N
Alternate Key Position
A, B, C, D, E
(N = Normal)
Connector Material / Finish
ZL
- CRES, Nickel
Z1
- CRES, Passivated
Insert Arrangement
Per MIL-STD-1560;
See Pages B-2 - B-4
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
CODE
A
B
C
D
E
F
G
H
J
SHELL
SIZE
9/09
11
13
15
17
19
21
23
25
A THREAD
-0.1P-0.03L-
TS
0.625
0.750
0.875
1.000
1.187
1.250
1.375
1.500
1.625
B DIA
1.200(30.5)
1.178(29.9)
1.385(35.2)
1.363(34.6)
1.511(38.4)
1.489(37.8)
1.637(41.6)
1.615(41.0)
1.763(44.8)
1.741(44.2)
1.948(49.5)
1.926(48.9)
2.074(52.7)
2.051(52.1)
2.200(55.9)
2.177(55.3)
2.322(59.0)
2.300(58.4)
C A/F
±.015(0.4)
1.063(27.0)
1.252(31.8)
1.374(34.9)
1.500(38.1)
1.626(41.3)
1.811(46.0)
1.937(49.2)
2.063(52.4)
2.189(55.6)
D FLAT
±.005(0.1)
.650(16.5)
.750(19.1)
.937(23.8)
1.061(26.9)
1.186(30.1)
1.311(33.3)
1.436(36.5)
1.561(39.6)
1.686(42.8)
E DIA
±.012(0.3)
.603(15.3)
.725(18.4)
.851(21.6)
.977(24.8)
1.103(28.0)
1.229(31.2)
1.351(34.3)
1.477(37.5)
1.603(40.7)
F DIA
.653(16.6)
.642(16.3)
.775(19.7)
.764(19.4)
.905(23.0)
.894(22.7)
1.031(26.2)
1.020(25.9)
1.153(29.3)
1.142(29.0)
1.278(32.5)
1.268(32.2)
1.405(35.7)
1.394(35.4)
1.531(38.9)
1.520(38.6)
1.653(42.0)
1.642(41.7)
G THREAD
ISO METRIC
M17 X 1.0-6g
M20 X 1.0-6g
M25 X 1.0-6g
M28 X 1.0-6g
M32 X 1.0-6g
M35 X 1.0-6g
M38 X 1.0-6g
M41 X 1.0-6g
M44 X 1.0-6g
H
±.032(0.8)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
.094(2.4)
TABLE I: (Continued) CONNECTOR DIMENSIONS
J
±.008(0.2)
.106(2.7)
.106(2.7)
.106(2.7)
.106(2.7)
.106(2.7)
.138(3.5)
.138(3.5)
.138(3.5)
.138(3.5)
K DIA
±.005 (0.1)
.703/.693 (17.86/17.60)
.835/.825 (20.96/20.96)
1.020/1.010 (25.65/25.65)
1.145/1.135 (28.83/28.83)
1.270/1.260 (32.01/32.00)
1.395/1.385 (35.43/35.18)
1.520/1.510 (38.60/38.35)
1.645/1.635 (41.78/41.53/)
1.770/1.760 (44.96/44.70)
L MAX
1.149(29.2)
1.149(29.2)
1.153(29.3)
1.153(29.3)
1.153(29.3)
1.185(30.1)
1.185(30.1)
1.185(30.1)
1.185(30.1)
M MAX
P&X
.208(5.3)
.208(5.3)
.200(5.1)
.200(5.1)
.200(5.1)
.200(5.1)
.200(5.1)
.200(5.1)
.200(5.1)
S&Z
.232(5.9)
.232(5.9)
.224(5.7)
.224(5.7)
.224(5.7)
.224(5.7)
.224(5.7)
.224(5.7)
.224(5.7)
N
±.005 (0.1)
.657/.655 (16.69/16.70)
.771/.769 (19.58/19.53)
.955/.953 (24.26/24.21)
1.085/1.083 (27.56/27.51)
1.210/1.208 (30.73/30.68)
1.335/1.333 (33.91/33.86)
1.460/1.458 (37.08/37.03)
1.585/1.583 (40.26/40.21)
1.710/1.708 (43.43/43.38)
Printed in U.S.A.
E-Mail: sales@glenair.com
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-23
