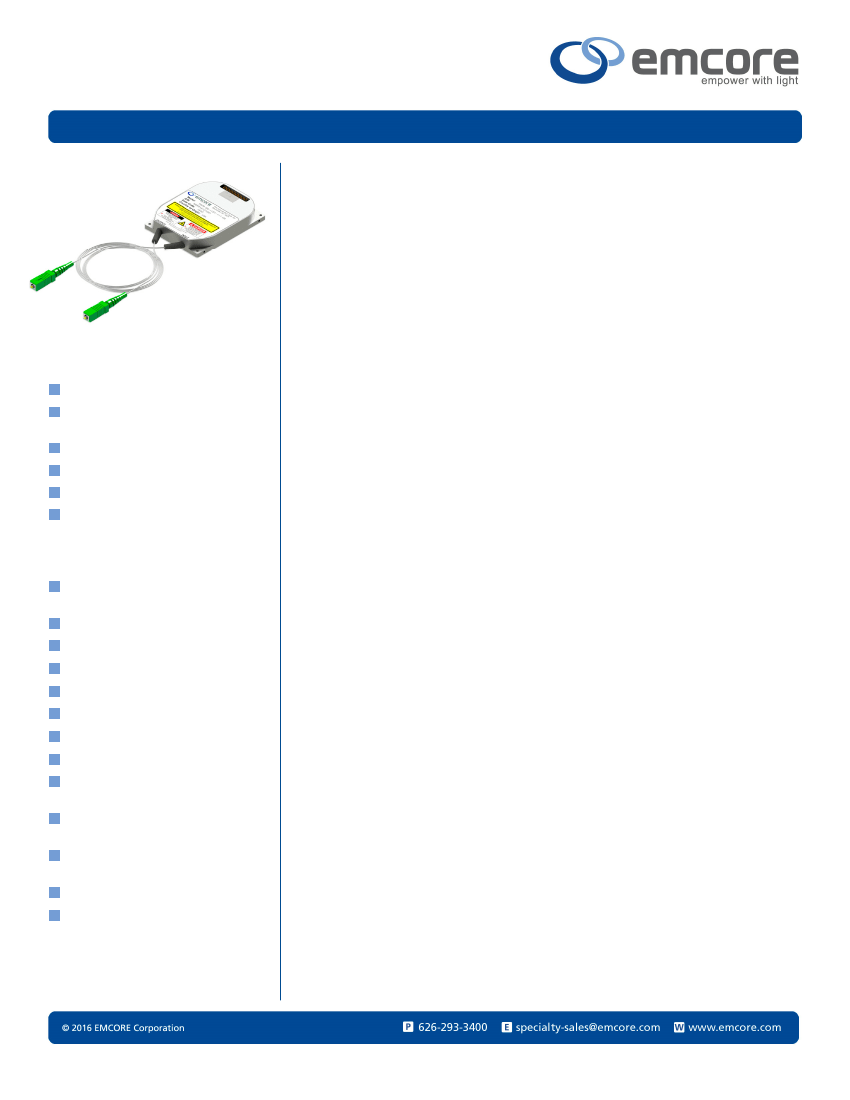

The EMCORE MAFA 5000 Series Micro Erbium Doped Fiber Amplifier (μEDFA)
gain block module is an ideal building block for OEM systems integration where
there is a requirement to amplify a 1550 nm signal for a broad range of
applications including CATV systems, RF/microwave fiber optic links, sensing
and control systems, and more. The family of MAFA 5000 EDFA gain blocks is
designed to meet the most demanding noise performance requirements of fiber
optic communications and control systems, and perform all the functions
required of an optical amplifier for system integration.
MAFA 5000 series EDFA gain blocks provide input and output optical isolation
for stable, low noise operation. The input and output optical signals are detected
for monitoring and control. The input optical signal is amplified with active gain
control for a constant output power level or with active output power control for
constant gain mode operation.
The MAFA 5000 series EDFA gain blocks also provide monitors and associated
alarms for all critical operating parameters. The optical output of the MAFA 5000
series EDFA gain blocks can be split into multiple ports (2, 3 or 4) by an optional
internal splitter.
The compact mechanical footprint of the MAFA 5000 allows use of this unit in
constrained space environments and high-density applications.
Applications
CATV Systems
Long Distance RF/Microwave Fiber Optic
Communication Links
Sensing and Control Systems
High-Performance Supertrunking Links
Redundant Ring Architectures
FTTx Networks
Features
Full Function Fiber Optic Amplifier Ready
for Integration
Wavelength Range: 1530 nm to 1562 nm
Low Noise Figure (Typ < 5.0 dB)
Pin: –10 dBm to +12 dBm
Pout: +14 dBm to +24.5 dBm
RS-232 Monitor and Control Interface
Low Electrical Power Consumption
Input / Output Isolation > 35 dB / 35 dB
Polarization Dependent Gain (PDG)
< 0.5 dB
Polarization Mode Dispersion (PMD)
< 0.5 ps
Output Residual Pump Power < -30dB
(in reference to the output signal power)
Input & Output Return Losses < -40 dB
Polarization Dependent Loss < 0.3 dB
|
REV 2016.10
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
MAFA 5000 Series Erbium Doped Fiber Amplifier
PRELIMINARY DATASHEET | OCTOBER 2016
FIBER OPTICS
Optical/Electrical Characteristics
Property
Unit
Limit
Note
1
Models
14
17
12
-10
17
+/- .25
≤
5.0 dB
+/-2.0
+/- 0.2
Comments
23
12
-10
23
+/- .25
≤
5.0 dB
+/-2.5
+/- 0.2
20
12
-10
20
+/- .25
≤
5.0 dB
+/-2.5
+/- 0.2
22
12
-10
22
+/- .25
≤
5.0 dB
+/-2.5
+/- 0.2
24
12
-10
24.5
+/- .25
≤
5.0 dB
+/- 8.0
+/- 0.2
Other power levels are
possible
Typical (may vary for some
models)
Typical (may vary for some
models)
Before Splitter (if installed)
Note 2
Note 3
Note 4
Note 5
Operating Input
Power
Operating Input
Power
Total Output Power
Noise Figure
Dynamic Gain
Flatness
Output Power
Stability
Power
Consumption
(Steady state)
Pin (dBm)
Pin (dBm)
Po (dBm)
NF (dB)
∆Gd
(dB)
(dB)
Max
Min
Nominal
Typ
Max
Max
12
-10
14
+/-.25
≤
5.0 dB
+/-2.0
+/- 0.2
Psys(W)
Max
3
5.5
8
9
11
13
Note 6
Notes:
1)
2)
3)
4)
5)
6)
Unless stated otherwise, all specifications apply over the full operating temperature and humidity ranges
Measurement variations
Measured @ 25°C, Pin
≈
0 dBm.
λ
≈
1555 nm
Measured by combining a small-probe signal (Pin – 20 dB) with the signal (Pin) that sets the EDFA to defined saturation level of Pout.
0 dBm
≤
Pin
≤
6 dBm (Please
contact EMCORE for details, also See “Fiber Optic Test and Measurement” HP, Dennis Derickson, Editor, ISBN
0-13-534330-5, 1998, page 54)
Over polarization and temperature
Max - power consumption @ -20ºC or +70ºC of case temperatures
General and Mechanical Specifications
Property
Operating Wavelength
Operating Case Temperature
Storage Temperature
Operating Humidity
Voltage Supply Range
Optical Connectors
Dimensions (mm)
Requirement
1530nm ~ 1562nm
0°C to 65°C
-40°C to 85°C
up to 95%
+5VDC
SC, FC, E2000, LC
70 x 90 x 15
Comments
Standard
Standard*
Standard
Non-condensing
All versions
User Specified
All versions
* Extended temperature range of –20°C to +70°C is also possible
|
REV 2016.10
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
MAFA 5000 Series Erbium Doped Fiber Amplifier
PRELIMINARY DATASHEET | OCTOBER 2016
FIBER OPTICS

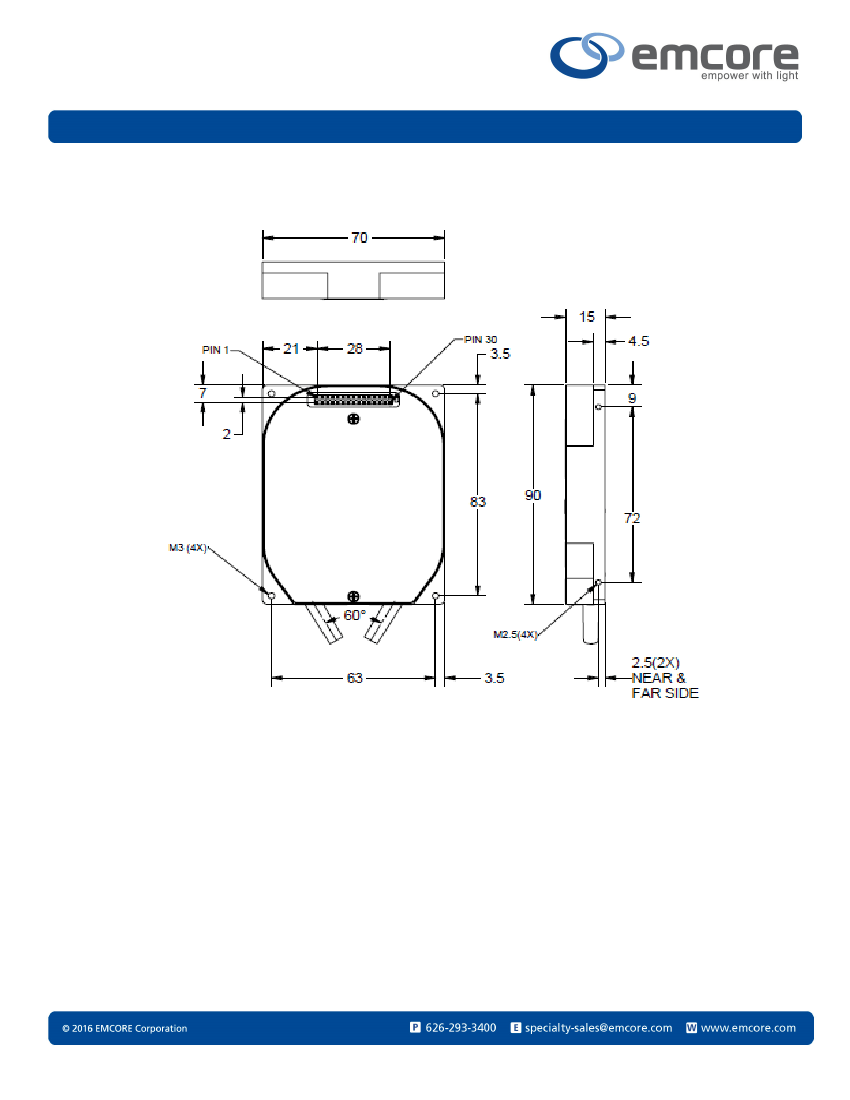

Outline Drawing (dimensions in mm)
Compliance and Reliability Information
Class 3B Laser Safety
221,000 hours MTBF at 50°C per Telcordia SR-332, Issue 2
|
REV 2016.10
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
MAFA 5000 Series Erbium Doped Fiber Amplifier
PRELIMINARY DATASHEET | OCTOBER 2016
FIBER OPTICS
Electrical Connector Pinout
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
* - SAMTEC, TMM-115-01-L-D
Designation
5VDC
+5VDC
+5VDC
+5VDC
GND
GND
RS232_Rx
RS232_Tx
GND
GND
NC
EDFA_Reset (TTL active high)
EDFA_Disable (TTL active high)
Pout_Mute (TTL active high)
EDFA_Temp_Alarm (TTL active high)
PIN #
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Designation
NC
Pump_Temp_Alarm (TTL active high)
Pump_Bias_Alarm (TTL active high)
Loss_Input_Power (TTL active high)
Loss_Output_Power (TTL active high)
GND
GND
Input Power Mon
Output Power Mon
GND
GND
RxD
TxD
+5VDC
+5VDC
Ordering Information
MAFA5000
-□□-□□□□-□□□-□□
Output
Power
Per Port,
dBm
08
= 8
11
= 11
14
= 14
17
= 17
20
= 20
21
= 21
22
= 22
23
= 23
24
= 24
03
= 3 ports
04
= 4 ports
Number of
Output
Ports
Input
Connector
Type
1 = SC/APC
2 = FC/APC
3 = E2000 /
APC
4 = LC / APC
Output
Connectors
Type
1 = SC / APC
2 = FC / APC
3 = E2000 /
APC
4 = LC / APC
Required
Power Supply
Future
Use
Future
Use
Logo &
Customer
Specifics
Temperature
Option
0
= Emcore
Logo
S = Standard
01
= 1 port
1 = +5VDC
0 = NA
0 = NA
E = Extended
02
= 2 ports
Example:
MAFA5000-0S-1401-111-00: MAFA5000 gain block, with Emcore logo, standard temperature range, 14 dBm per port, 1 output port, SC/APC connector on
input, SC/APC connector on output, +5VDC power supply required
|
REV 2016.10
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
MAFA 5000 Series Erbium Doped Fiber Amplifier
PRELIMINARY DATASHEET | OCTOBER 2016
FIBER OPTICS
Laser Safety Information
This component product classified as a Class 3B laser product based on the maximum optical output power defined below.
Wavelength = 1530
nm
~ 1562 nm (dependent on input source)
Maximum Output Power < 0.3 W (single output, 24.5 dBm model)
|
REV 2016.10
