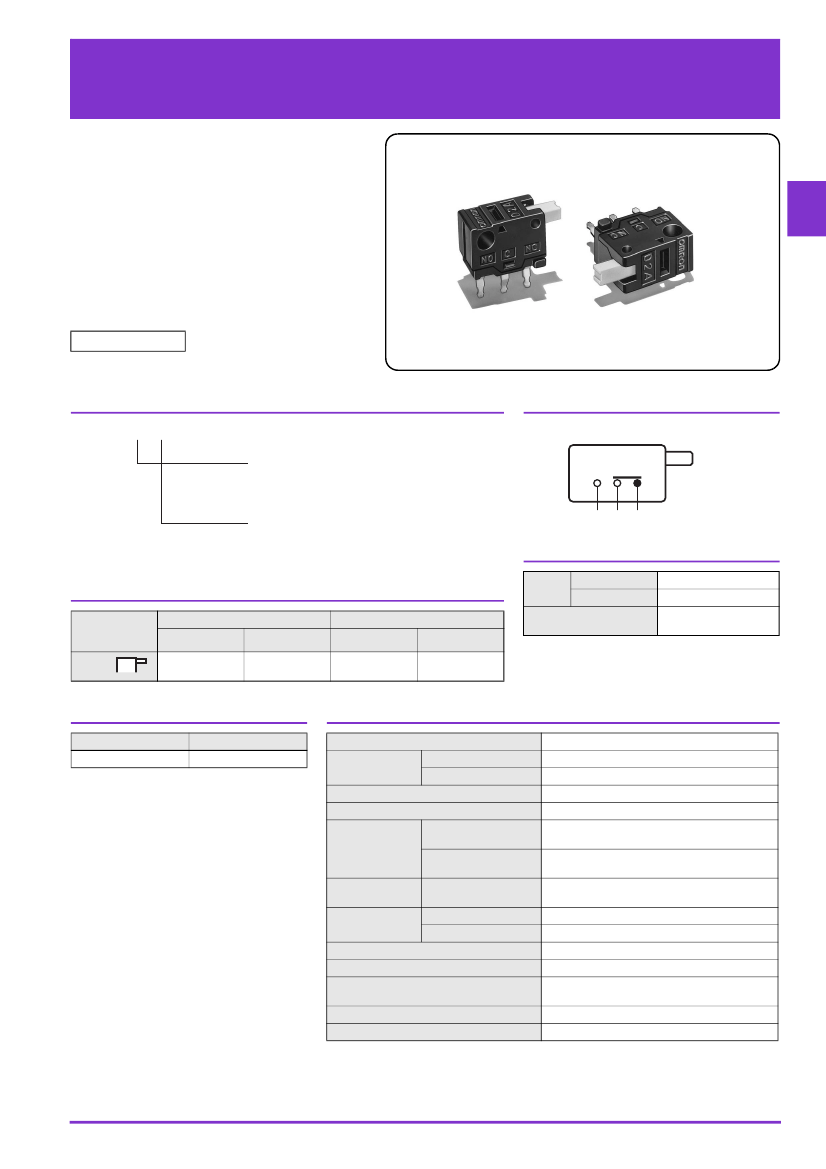

D2A
Ultra Subminiature Detection Switch
Ultra Subminiature
Detection Switch with
Slide Mechanism and
Pushbutton Actuator
●
Compact, light weight, and 3 mm long stroke.
●
Built-in slide mechanism allows selection of
shorting or non-shorting switching timing of the
switch.
RoHS Compliant
D
2
A
Model Number Legend
2
1
D2A-
@
1
@
0
1. Switching timing
1: Non-shorting Model
2: Shorting Model
2. Maximum Operating Force (OF)
1: 0.98 N {100 gf}
2: 0.49 N {50 gf}
Contact form
●SPDT
NO COM NC
3
1
2
Contact specifications
Contact
Specification
Material
Slide
Silver plated
5 VDC 1mA
List of models
Operating Force (OF)
0.98N (standard)
Switching timing
Non-shorting Model
Shorting Model
Actuator
Pin
plunger
D2A-1110
D2A-2110
0.49N (low operating force)
Non-shorting Model
D2A-1120
Shorting Model
D2A-2120
*
Minimum applicable load
(reference value) *
Please refer to the "■Using
Micro Loads"
in
"●Precautions" for more information on the minimum
applicable load.
Ratings
Rated voltage
30 VDC
Resistive load
0.1 A
Characteristics
Permissible operating speed
Permissible
operating frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the
same polarity
Between current-carrying
metal parts and ground
Malfunction
Durability
Malfunction *1
Mechanical
Electrical
1 mm to 500 mm/s
200 operations/min
30 operations/min
100 MΩ min. (at 250 VDC with insulation tester)
50 mΩ max.
250 VAC 50/60 Hz 1 min
250 VAC 50/60 Hz 1 min
between 10 to 55 Hz, 1.5 mm-double amplitude
1,000 m/s
2
{approx. 100G} max.
300 m/s
2
{approx. 30G} max.
50,000 operations min. (30 operations/min)
IEC IP00
-10°C to +80°C (at ambient humidity 60% max.)
(with no icing or condensation)
85% max. (for
+5°C
to
+35°C)
Approx. 0.3 g
Note. The ratings values apply under the following test
conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Dielectric strength
Vibration resistance
*1
Shock resistance
Durability *2
Degree of protection
Ambient operating temperature
Ambient operating humidity
Weight
Note.The data given above are initial values.
*1. The values are at Free Position and Total Travel Position. Close or open circuit of contact is 1ms max.
*2. For testing conditions, consult your OMRON sales representative.
1
D2A

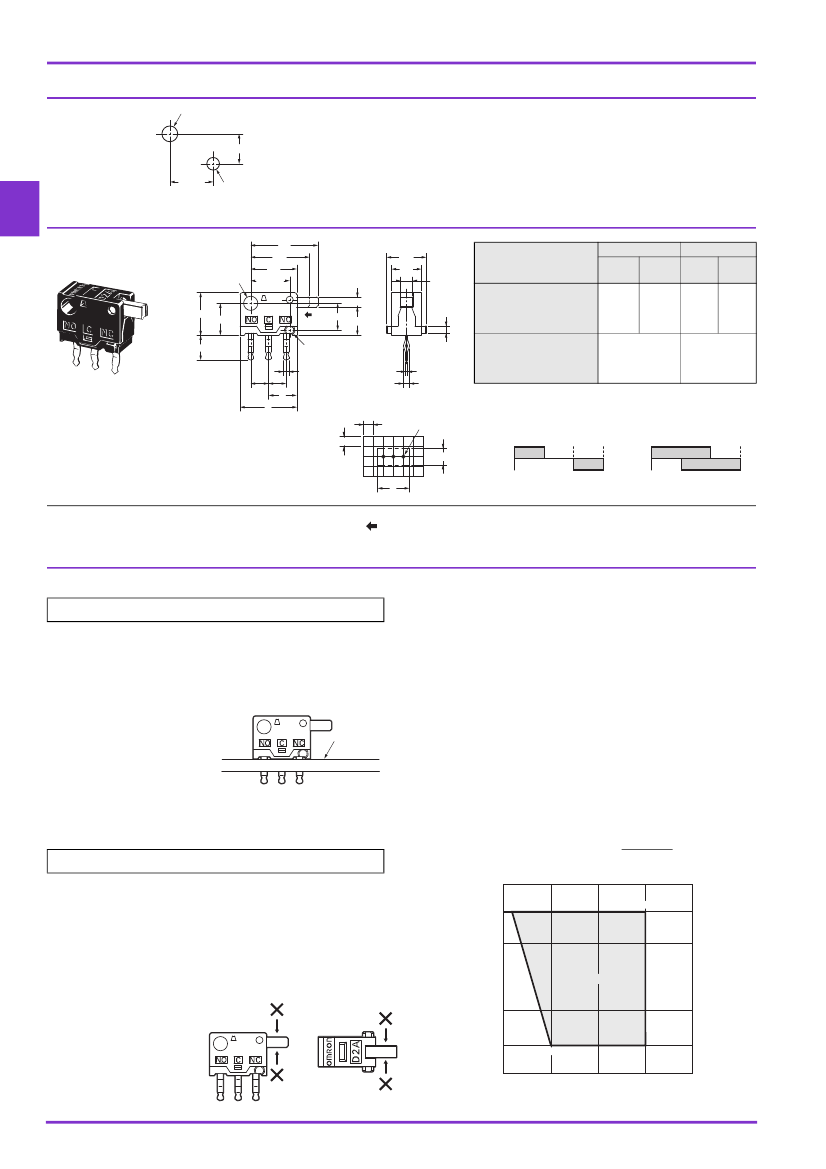

Mounting Holes
(unit: mm)
M2 Tap
Ultra Subminiature Detection Switch
3.8
±0.1
5.5
±0.1
1.6 dia. holes
Dimensions
(unit: mm)
and Operating Characteristics
D2A-1110, D2A-1120
D
2
D2A-2110, D2A-2120
A
FP
OP
6.5
2
+0.12
0
dia. holes
5.5
±0.15
1.4
6
4.5
A 3.8
±0.15
4
1
3.5
0
1.5
-0.12
dia.
Models Non- Shorting Model
5.6
4.2
1.6
Shorting Model
D2A
-2110
0.98 N
{100 gf}
0.15 N
{15 gf}
D2A
-2120
0.49 N
{50 gf}
0.05 N
{5 gf}
Operating
characteristics
Operating Force
Releasing Force
Free Position
Operating Position
OF
RF
Model D2A
-1110
Max
Min.
0.98 N
{100 gf}
0.15 N
{15 gf}
D2A
-1120
0.49 N
{50 gf}
0.05 N
{5 gf}
0.8
2.54 2.54
4
8
0.3
0.9
FP Max.
OP1
OP2
Total Travel Position TTP
9.5 mm
8.1±0.3 mm
7.4±0.3 mm
6.5±0.2 mm
9.5 mm
8.0±0.3 mm
7.5±0.3 mm
6.5±0.2 mm
<PCB Mounting
Dimensions (Reference)>
2.54
3-1 dia. holes
2.54
4.2
2
NC
1
3
NO
Switching timing
FP
Non-shorting Model
OP1
OP2
TTP
2
NC
1
3
NO
FP
Shorting Model
OP1
OP2
TTP
8
Note1.
Note2.
Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
The operating characteristics are for operation in the A direction ( ).
Precautions
★Please
refer to "Common Precautions" for correct use.
Cautions
●Soldering
For soldering time, we recommend to solder within 3 seconds at
a soldering iron temperature of less than 350°C. When soldering
exceeds this temperature and time, or repeated soldering will
degrade the Switch characteristics.
Make sure that flux and liquid
surface of the solder do not flow
Switch mounti
surface
over the edge of the board when
soldering. Please complete
soldering at a temperature of
260°C within 5 seconds.
It is also recommended that you apply flux guard to the mounting
surface of the Switch.
●Mounting
Plate
Use materials other than ABS or polycarbonate for the mounting
plate. Since grease is used for the Switch, cracks may occur if
grease from the Switch comes in contact with such materials.
●Using
Micro Loads
It is recommended to use the Switch in the operation range
shown below. However, even when using micro load models
within the following operating range, if inrush current occurs
when the contact is opened or closed, it may increase the
contact wear and so decrease durability. Therefore, insert a
contact protection circuit where necessary. The minimum
applicable load is the N-level reference value. This value
indicates the malfunction reference level for the reliability level of
60% (λ
60
). (JIS C5003)
The equation,
λ
60
=0.5×10
-6
/operation, indicates that the
1
estimated malfunction rate is less than
2,000,000
operations with
a reliability level of 60%.
Voltage (V)
Correct Use
●Mounting
Use M2 mounting screw with plane washers or spring washers to
mount the Switch. Tighten the screws to a torque of 4.9 to
9.8×10
-2
N • m {0.5 to 1kgf • cm}.
30
0.16 mA
100 mA
●Application
of Operation Force to the Actuator
Do not apply operation forces other than in the operating
direction of the lever as shown in the following figure.
It may damage the Switch or
cause malfunction.
24
Operating range
12
5
0
0.1
1 mA
1
10
100
1,000
Current (mA)
2
D2A
Ultra Subminiature Detection Switch
D
2
A
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
ELECTRONIC AND MECHANICAL COMPONENTS COMPANY
Contact: www.omron.com/ecb
Cat. No. B116-E1-02
0812(0207)(O)
