800 SERIES - SNAP-ACTING MINIATURE PUSHBUTTON SWITCHES
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
L

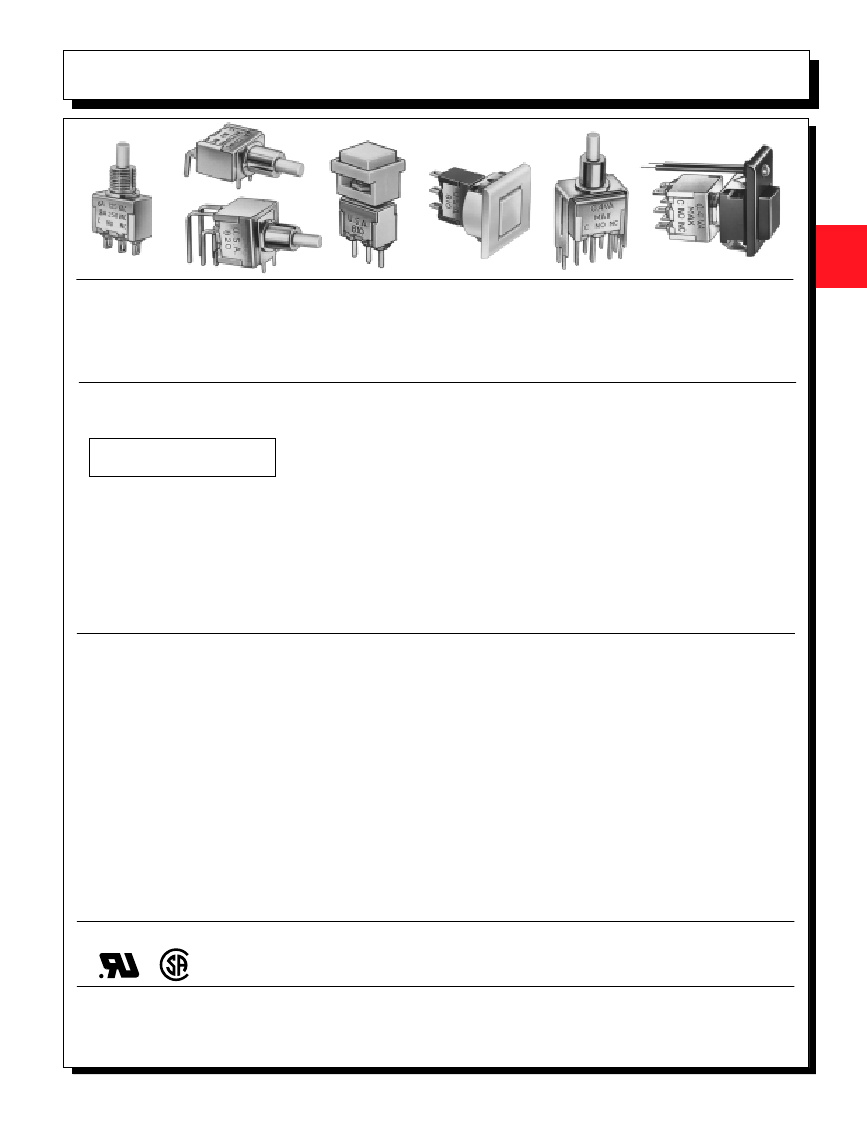

FEATURES
Dry circuit through power ratings .
Ultra-rugged construction SPDT & DPDT momentary models with numerous options.
Panel, panel & p.c. and p.c. mounting models, lighted and unlighted.
SPECIFICATIONS
Contact ratings (resistive loads):
Also see economy ratings
N & T in options section.
(Q) power models - coin silver: 6 Amps at 125 VAC, 3 Amps at 250 VAC or 7
Amps at 30 VDC.
(B) dry circuit models - gold over nickel over brass: 0.4 VA max. at 20 V max.
UL models - coin silver: 6 Amps at 125 VAC or 3 Amps at 250 VAC (75%
power factor). UL file no. E66367. CSA models - coin silver: same ratings as
UL models. CSA file no. LR54592-1.
20 milliohms max. at 3 VDC, 0.1 Amp.
Greater than 200,000 megohms between terminals & case ground.
Greater than 1500 VAC for 1 minute between terminals & case ground.
60,000 cycles min. at full load.
-30°C to +85°C
.035" (0.9mm) approx.
Single pole: 290 ± 75 grams Double pole: 550 ± 75 grams
Initial contact resistance:
Insulation resistance:
Dielectric strength:
Electrical life (resistive loads):
Operating temperature range:
Total travel:
Actuation force:
MATERIALS
Contacts:
circuit models.
Actuator:
Bushing:
Strap:
Case:
Terminal seal:
Support bracket:
Spring mounting bracket:
Bezel & cap:
Hardware:
LED:
Coin silver for power,UL & CSA models. Gold over nickel over brass for dry
Glass filled polyester, color white
Nickel plated brass
Stainless steel
DAP, color blue
Epoxy (standard)
Brass or steel, tin plated
Stainless steel
Nylon. Available in black, red & white. Consult factory for other colors.
See 'Miscellaneous' section.
Intensity: 2.0 mcd at 10 mA. Forward voltage: 2.0V (3.0V max.). Max. contin-
uous forward current: 15 mA for red, 30 mA for green & 20 mA for yellow.
Red is standard. Yellow & green are optional. Specifications are subject to
change without notice - consult factory.
AGENCY RECOGNITION
UL, & CSA. Marking: Switches ordered with '/UL' added at end of
model no. are supplied with recognition marked. Switches ordered with '/CSA' added at end
of model no. are supplied with recognition marked.
ABOUT THIS SERIES
The material in this series is organized in the following sequence:
a. Completely specified switch models b. 'build your own switch' order format
d. Option drawings & information e. Panel cut-outs
c. Miscellaneous
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
L55

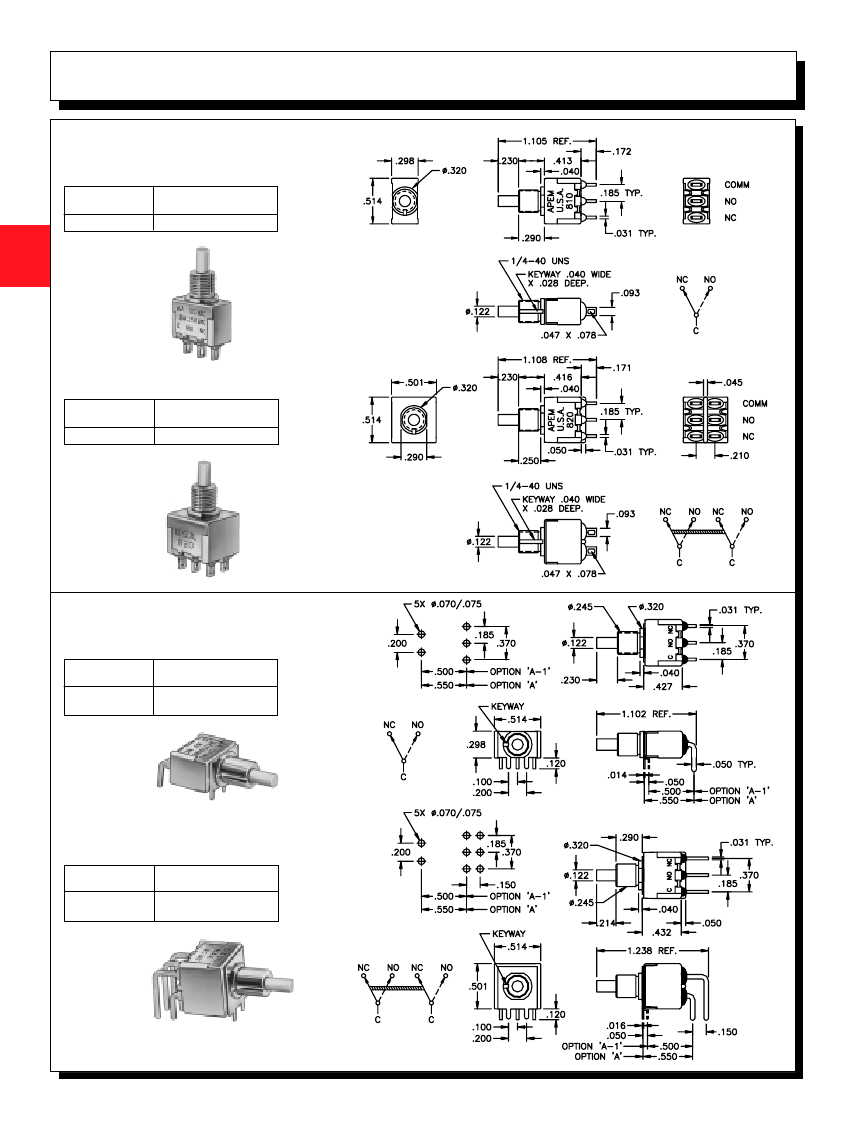

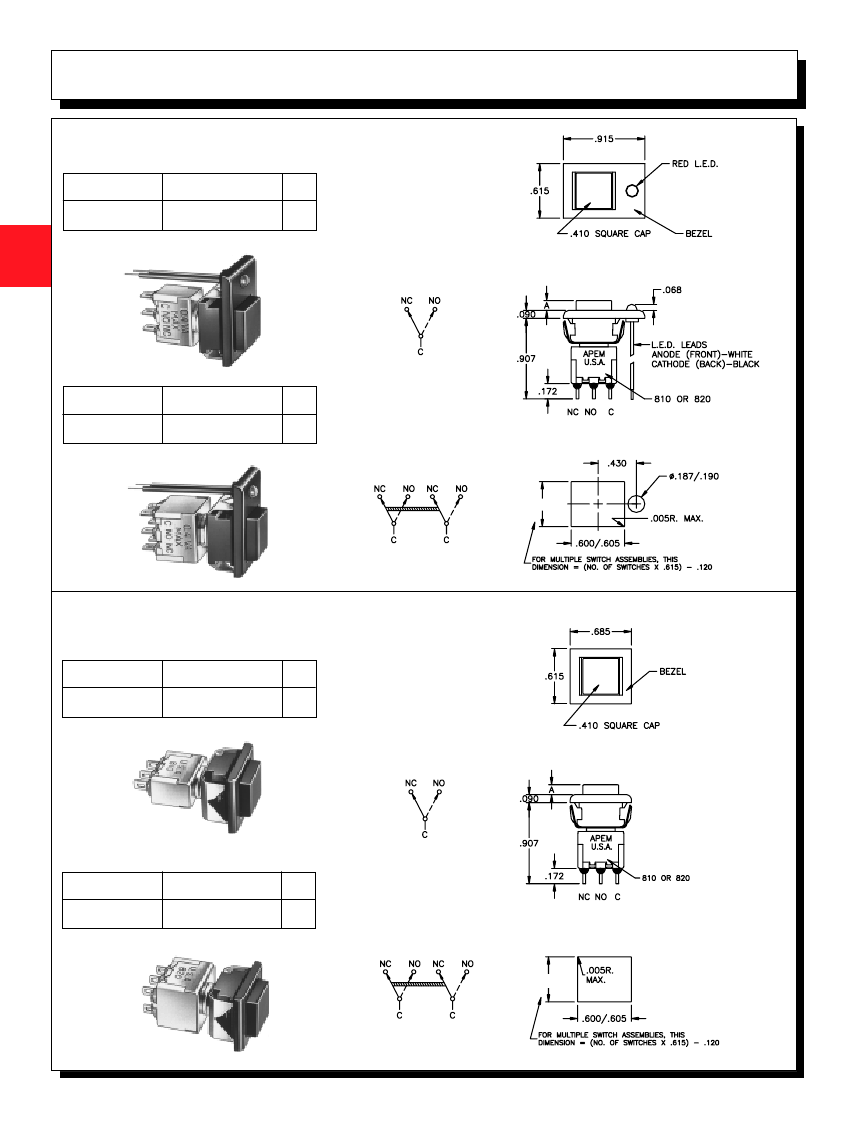

800 SERIES - SNAP-ACTING MINIATURE PUSHBUTTON SWITCHES
Solder lug terminals - snap-in bezel with outboard LED
SINGLE POLE
POWER CKT.
MODEL NO.
810K2M1ZQJ6122
810K1M1ZQJ6122
UL MODEL NO.
810K2M1ZQJ6122/UL
810K1M1ZQJ6122/UL
DIM.
A
.100
.010
Models listed above have black bezel and cap.
L
DOUBLE POLE
POWER CKT.
MODEL NO.
820K2M1ZQJ6122
820K1M1ZQJ6122
UL MODEL NO.
820K2M1ZQJ6122/UL
820K1M1ZQJ6122/UL
DIM.
A
.100
.010
Models listed above have black bezel and cap.
.512/.517
Solder lug terminals - snap-in bezel
SINGLE POLE
POWER CKT.
MODEL NO.
810K2M1ZQJ8122
810K1M1ZQJ8122
UL MODEL NO.
810K2M1ZQJ8122/UL
810K1M1ZQJ8122/UL
DIM.
A
.100
.010
Models listed above have black bezel and cap.
DOUBLE POLE
POWER CKT.
MODEL NO.
820K2M1ZQJ8122
820K1M1ZQJ8122
UL MODEL NO.
820K2M1ZQJ8122/UL
820K1M1ZQJ8122/UL
DIM.
A
.100
.010
Models listed above have black bezel and cap.
.512/.517
L58
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

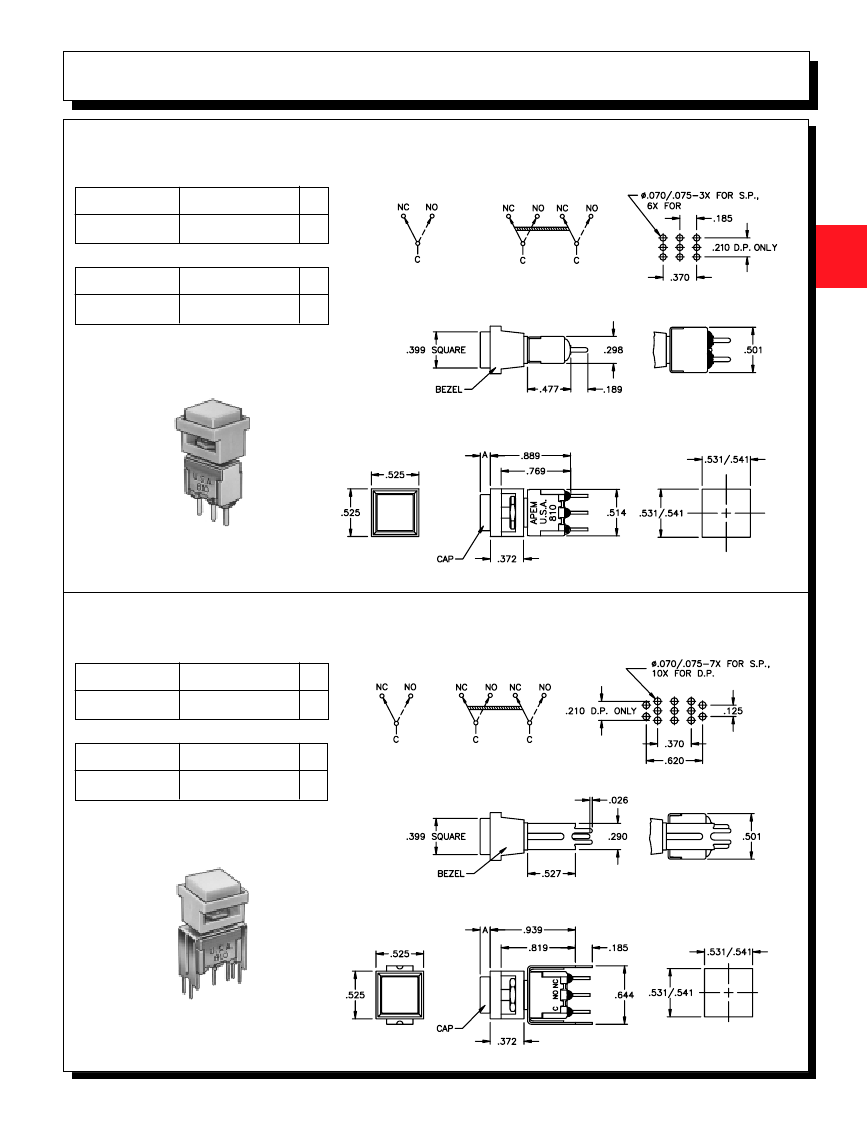

800 SERIES - SNAP-ACTING MINIATURE PUSHBUTTON SWITCHES

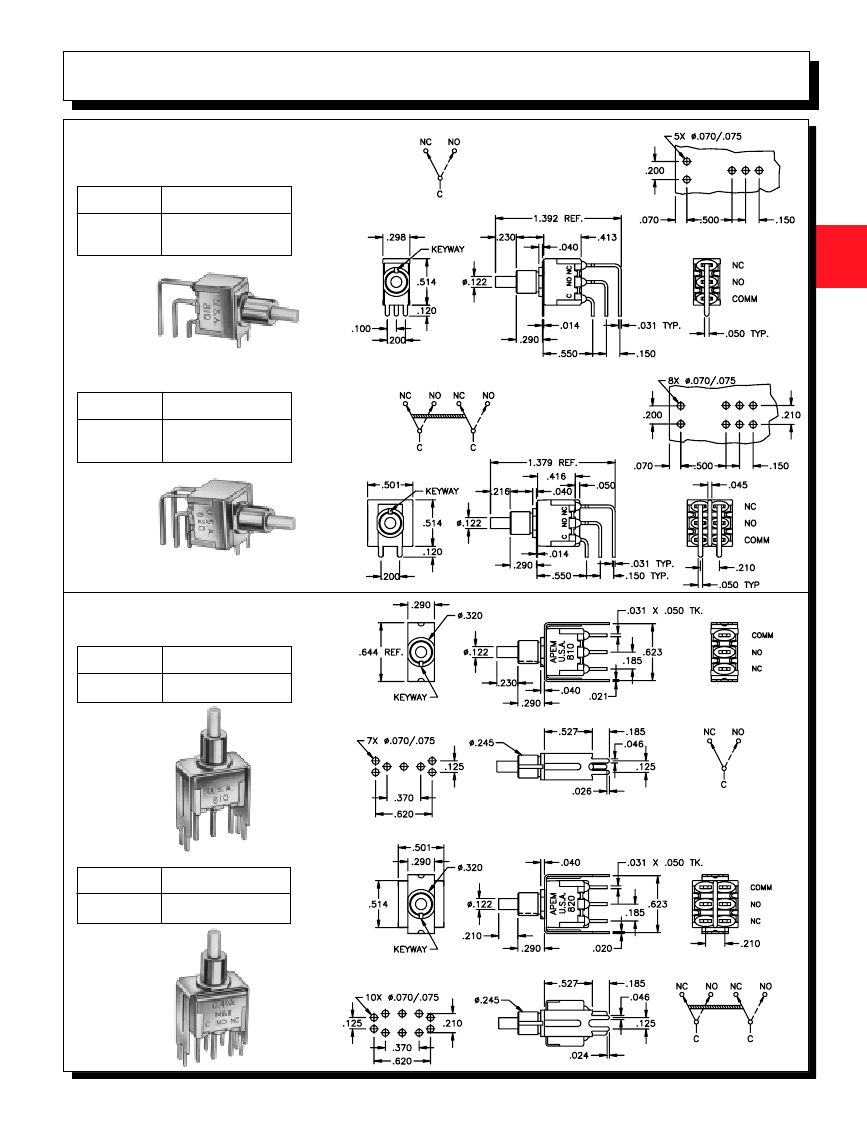

Straight p.c. terminals - p.c. mounting bezel
SINGLE POLE
DRY CKT.
MODEL NO.
810K2M1CBJ8422
810K1M1CBJ8422
UL MODEL NO.
810K2M1CQJ8422/UL
810K1M1CQJ8422/UL
DIM.
A
.100
.010
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
DOUBLE POLE
DRY CKT.
MODEL NO.
820K2M1CBJ8422
820K1M1CBJ8422
UL MODEL NO.
820K2M1CQJ8422/UL
820K1M1CQJ8422/UL
DIM.
A
.100
.010
L
Models listed above have black bezel and cap.
Straight p.c. terminals w/bracket - p.c. mounting bezel
SINGLE POLE
DRY CKT.
MODEL NO.
810K2M1V30BJ8422
810K1M1V30BJ8422
DIM.
UL MODEL NO.
A
810K2M1V30QJ8422/UL .100
810K1M1V30QJ8422/UL .010
DOUBLE POLE
DRY CKT.
MODEL NO.
820K2M1V30BJ8422
820K1M1V30BJ8422
DIM.
UL MODEL NO.
A
820K2M1V30QJ8422/UL .100
820K1M1V30QJ8422/UL .010
Models listed above have black bezel and cap.
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
L59
