R
OTARY
S
WITCHES
S
UB
-M
INIATURE
T-05 S
PACE
S
AVER
R
OTARY
S
WITCHES

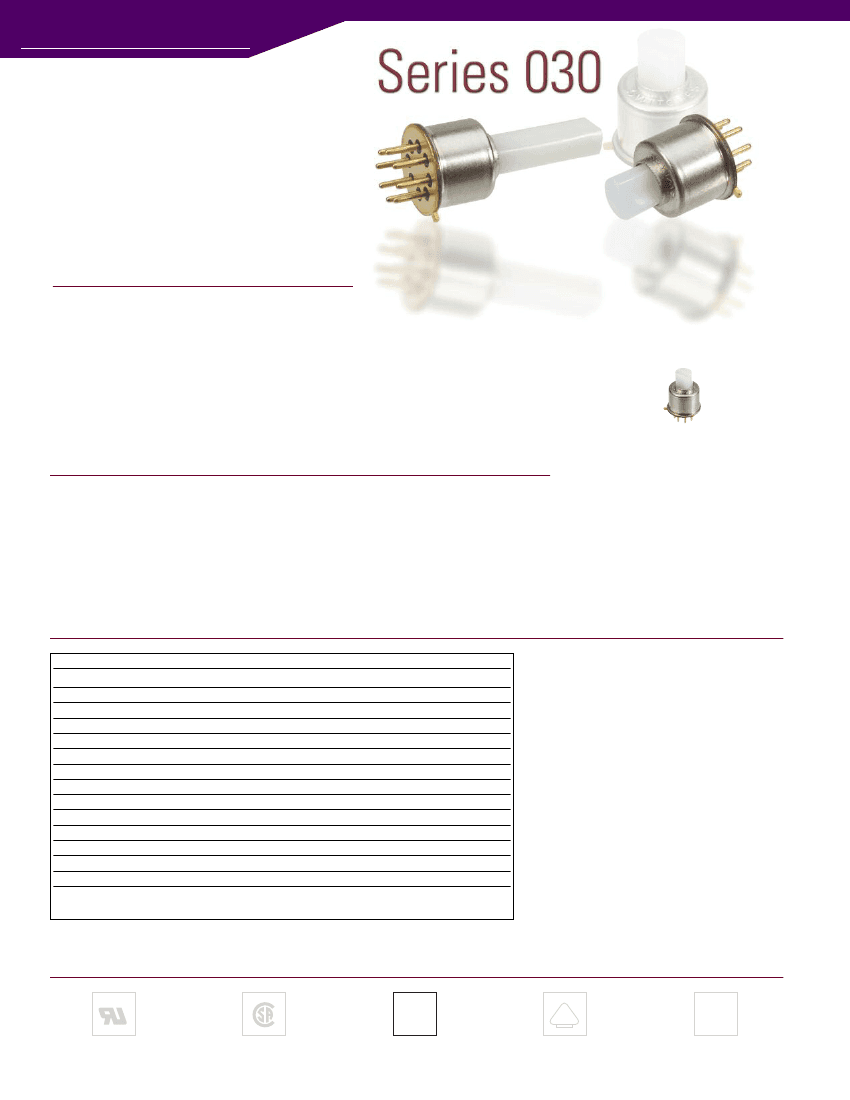

This sub-miniature rotary switch has up to 8 posi-
tions in a T-05 can. Gold contacts deliver long life
and reliability. Contacts are glass to metal sealed
to prevent solder flux penetration. The Series 030
can be used for manually programming a single
PC board for test or multi-function use.
A
PPLICATIONS
•
Communications
equipment
•
Cable TV equipment
•
Circuit breakers
•
Timers
•
Thermostatic controls
K
EY
F
EATURES
:
•
Gold contacts
•
Up to 8 positions
•
Life: 10,000 mechanical actuation
(nom.)
•
Variety of actuator lengths
•
Glass to metal sealed header
•
PC terminals
•
Sub-miniature package size
(.36” diameter)
A
CTUAL
S
IZE
O
RDERING
I
NFORMATION
:
Part Number
030-202-018
030-303-018
030-404-018
030-404-904
030-404-905
030-505-018
030-505-906
030-606-018
030-606-902
030-808-005
030-808-030
030-808-907
030-808-908
030-808-909
Positions
2
3
4
4
4
5
5
6
6
8
8
8
8
8
Shaft Length
0.18
0.18
0.18
0.05
0.05
0.18
0.05
0.18
0.30
0.05
0.30
0.05
0.30
0.30
Custom *
—
—
—
Black Insert, Spacer, No Post
Red Insert, Micro Plastic Spacer
—
Black Insert, Spacer, No Post
—
Black Insert, Spacer, No Post
—
—
Black Insert, Spacer, No Post
Black Insert, Spacer, No Post
No Insert, Spacer, No Post
* Subject to change without notice, all orders are NC & NR.
S
TANDARDS
/ A
GENCY
/ R
ATINGS
:
®
RoHS
COMPLIANT
2002 / 95 / EC
V
D E
IEC
IP67
COMPLIANT
www.itwswitches.com
78
Contact an Authorized Distributor or Factory for Pricing
S
ERIES
030: S
UB
-M
INIATURE
T-05 S
PACE
S
AVER

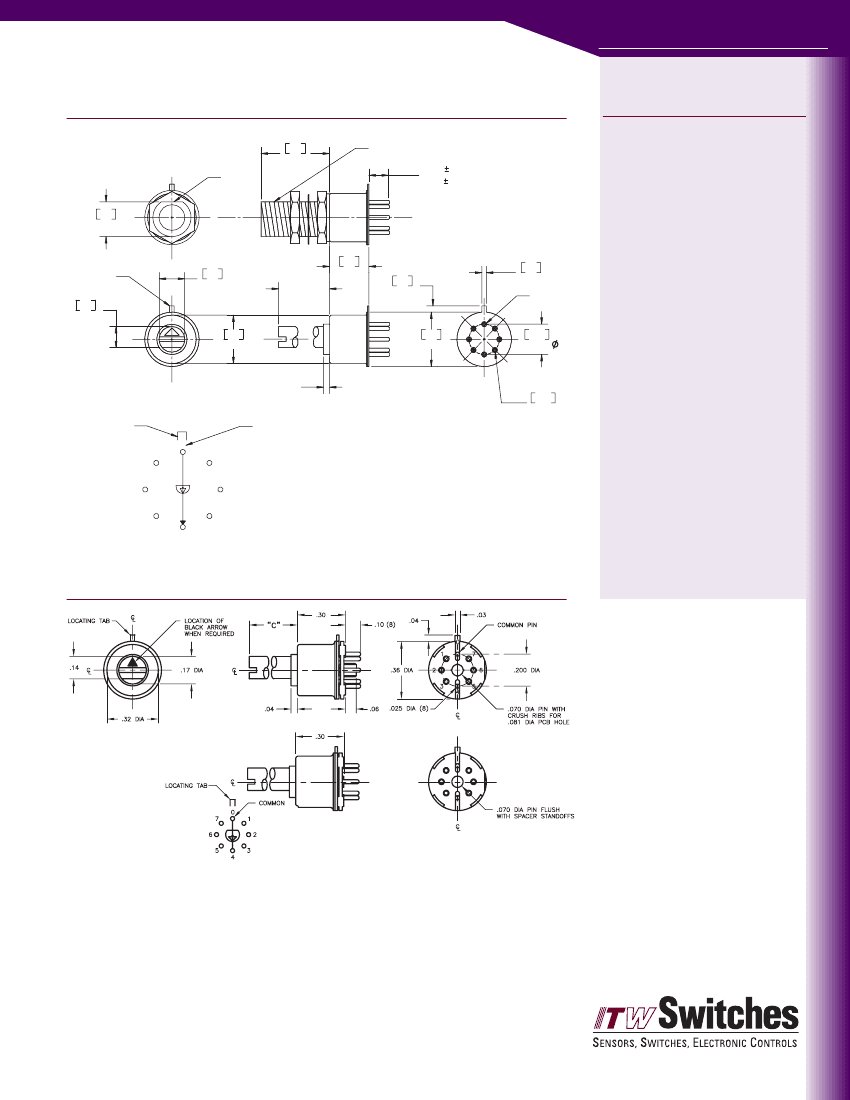

030-XOX-XXX
7.6
.30
FLAT
1/4-40 THD. OPTIONAL BUSHING
R
OTARY
S
WITCHES
M
ECHANICAL
/ E
LECTRICAL
C
HARACTERISTICS
:
Contact rating:
dry circuit to 500 mA
@ 125 VAC
Contact material:
hard gold over barrier
Contact resistance:
80 milliohms Max (initially)
Life:
10,000 actuations
End of life criteria:
100 milliohms
contact resistance
Angle of throw:
45° / position—
8 positions max
Breakdown voltage:
500 V 60 HZ
Insulation resistance:
50,000 megohms
Actuation torque:
85 inch—grams nom initially
Temperature range:
-30°C to +100°C
[3.43 0.25]
.135 .010
5.8
.23
LOCATING TAB
4.3
.17
6.6
.26
[1.3 - 19.1]
.05 - .75
1.0
.04
0
1
7
6
3
4
5
0.8
.03
COMMON PIN
3.6
.14
8.1
.32
C
L
9.1
.36
2
5.08
.200
[1.0]
.04
0.64
.025
8 PINS
LOCATING TAB
"0"
7
1
1
COMMON TERMINAL
6
2
5
4
3
SWITCH POSITIONS VIEWED FROM
SHAFT END (SHOWN WITH POSITIONS
"0" AND "4" MADE)
030-XOX-9XX
Copyright © 2011 ITW Switches 2011
Designs and specifications are subject to change
without notice due to product improvement.
79
800.544.3354
