TA050TCR335KDR-13 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TA050TCR335KDR-13

TA050TCR335KDR-13: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 2917, ROHS COMPLIANT; CategoryPassive components capacitor; File Size306KB，5 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

TA050TCR335KDR-13 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 2917, ROHS COMPLIANT

TA050TCR335KDR-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1716685998
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.18
Other features	ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 25CEL
capacitance	3.3 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	800 mΩ
high	2.8 mm
JESD-609 code	e3
leakage current	0.0017 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
ripple current	433 mA
size code	2917
surface mount	YES
Delta tangent	0.06
Terminal surface	MATTE TIN
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

TCR

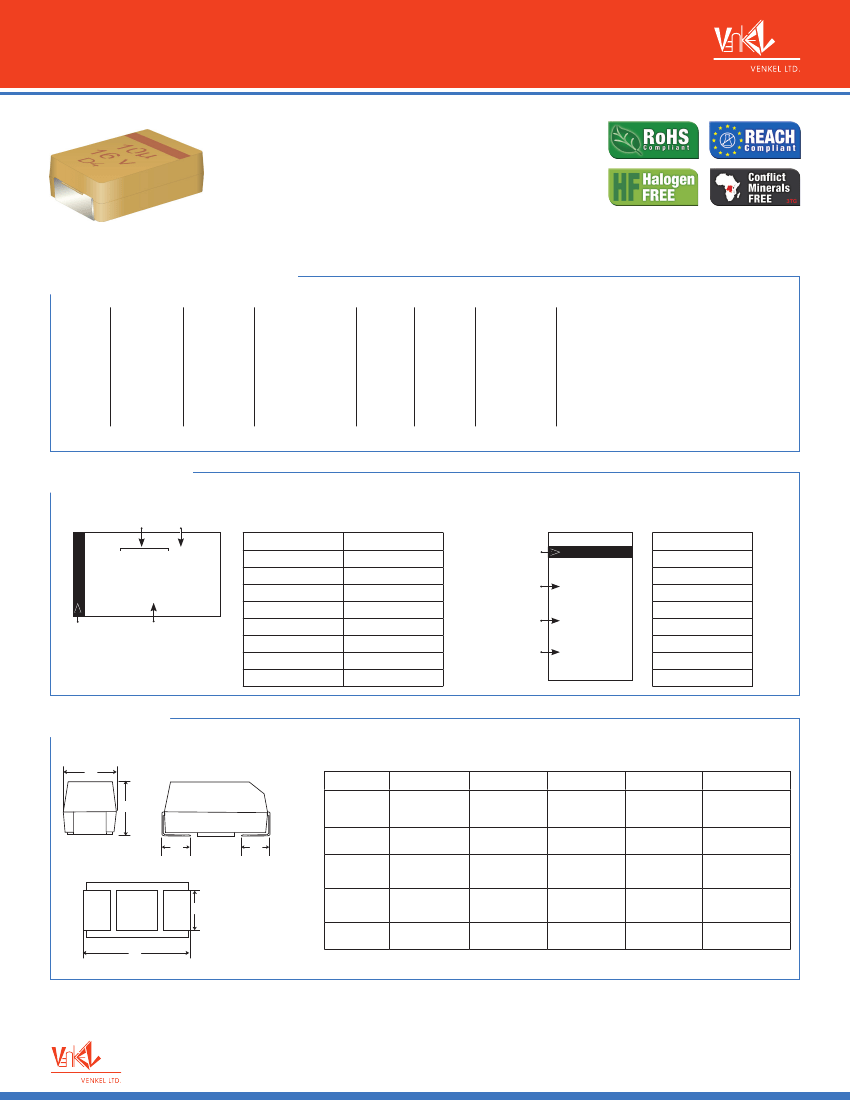

LOW ESR TANTALUM CAPACITORS

FEATURES:

• Excellent frequency characteristics and impedance

• Laser marking for easy identification

• Voltage range: 4V to 50V

• Operating temperature: -55°C to + 125°C

• Capacitance range: 0.47uF to 680uFH)

SERIES

PART NUMBER STRUCTURE

Tantalum

Capacitor

035

Rated Voltage

4R0 = 4.0V

6R3 = 6.3V

010 = 10V

016 = 16V

020 = 20V

025 = 25V

035 = 35V

050 =50V

TCR

Series

TCR

105

Capacitance

(pico - Farads)

1st two figures are

significant.

Third is the number

of zeros to follow.

105 = 1.0uF

226 = 22uF

107 = 100uF

Tolerance

K = ±10%

M = ±20%

Case Code

Packaging

R = Tape & Reel

☐☐

Optional Reel Identifier

Leave blank for standard

7 inch reels.

For 13 inch reels add "-13".

Example P/N:

TA035TCR105KCR

Standard termination finish is 100% matte Tin (Sn) over Nickel

MARKING CODE

VOLTAGE CODE ( A & B CASE)

Capacitance Code

Voltage Code

VOLTAGE CODE (C, D, E CASE)

RATED VOLTAGE

2.5V

6.3V

10V

16V

20V

25V

35V

ID Code

Voltage Code

XXXXX

Polarity Band

ID Code

108G

VOLTAGE CODE

Polarity Band

RATED VOLTAGE

Capacitance

Code

10μ

16V

6.3V

10V

16V

20V

25V

35V

50V

DIMENSIONS

END VIEW

SIDE VIEW

Unit: mm (inch)

CASE CODE

3.2 ± 0.2

(0.126 ± 0.008)

3.5 ± 0.2

(0.138 ± 0.008)

6.0 ± 0.3

(0.236 ± 0.012)

7.3 ± 0.3

(0.287 ± 0.012)

7.3 ± 0.3

(0.287 ± 0.012)

1.6 ± 0.2

(0.063 ±

0.008)

2.8 ± 0.2

(0.110 ± 0.008)

3.2 ± 0.3

(0.126 ± 0.012)

4.3 ± 0.3

(0.169 ± 0.012)

4.3 ± 0.3

(0.169 ± 0.012)

1.6 ± 0.2

(0.063 ±

0.008)

1.9 ± 0.2

(0.075 ± 0.008)

2.5 ± 0.3

(0.098 ± 0.012)

2.8 ± 0.3

(0.110 ± 0.012)

4.0 ± 0.3

(0.157 ± 0.012)

0.8 ± 0.3

(0.031 ± 0.012)

0.8 ± 0.3

(0.031 ± 0.012)

1.3 ± 0.3

(0.051 ± 0.012)

1.3 ± 0.3

(0.051 ± 0.012)

1.3 ± 0.3

(0.051 ± 0.012)

1.2 ± 0.2

(0.047 ± 0.008)

2.2 ± 0.2

(0.087 ± 0.008)

2.2 ± 0.2

(0.087 ± 0.008)

2.4 ± 0.2

(0.094 ± 0.008)

2.4 ± 0.2

(0.094 ± 0.008)

BOTTOM VIEW

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev: 05/2021-A
