SPA337315M3535: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 315V, 20% +Tol, 20% -Tol, 330uF,; CategoryPassive components capacitor; File Size347KB，3 Pages; ManufacturerTaiwan Ostor Corporation

Download Datasheet Parametric View All

SPA337315M3535 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 315V, 20% +Tol, 20% -Tol, 330uF,

SPA337315M3535 Parametric

Parameter Name	Attribute value
Objectid	837866496
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM
length	35 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	315 V
series	SPA(315V)

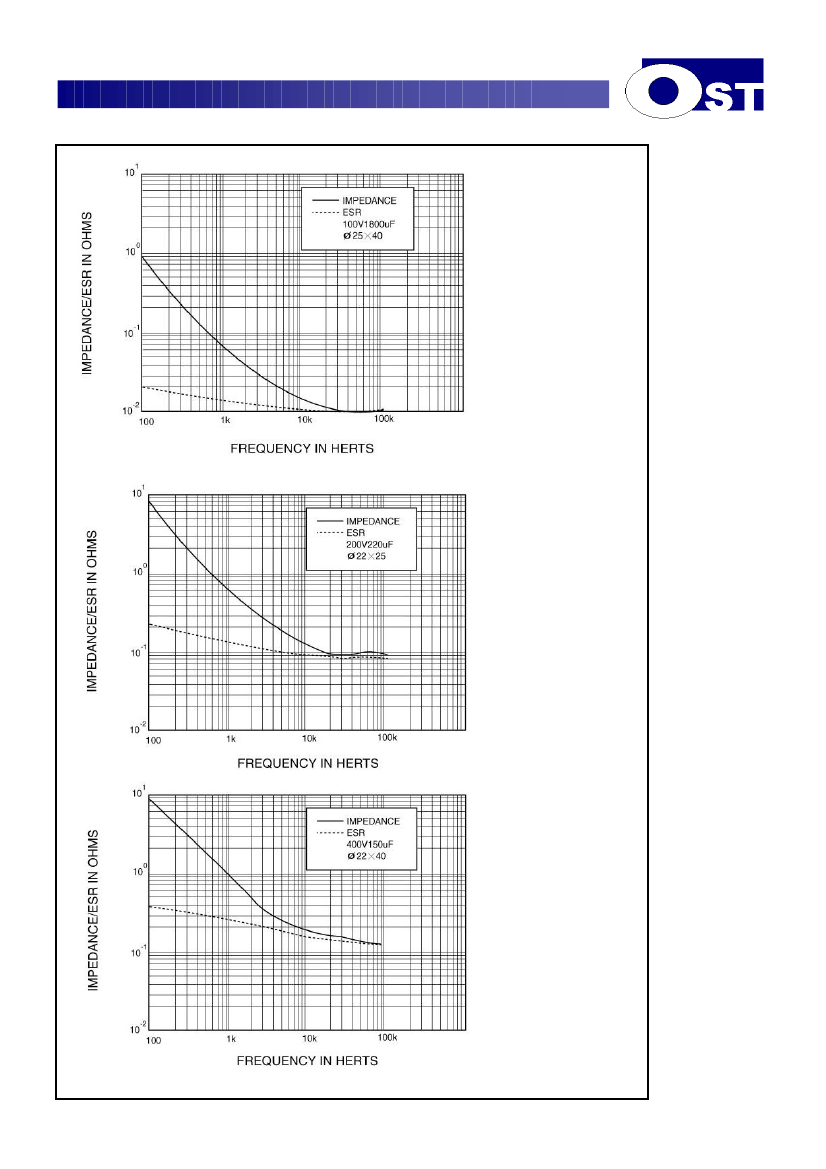

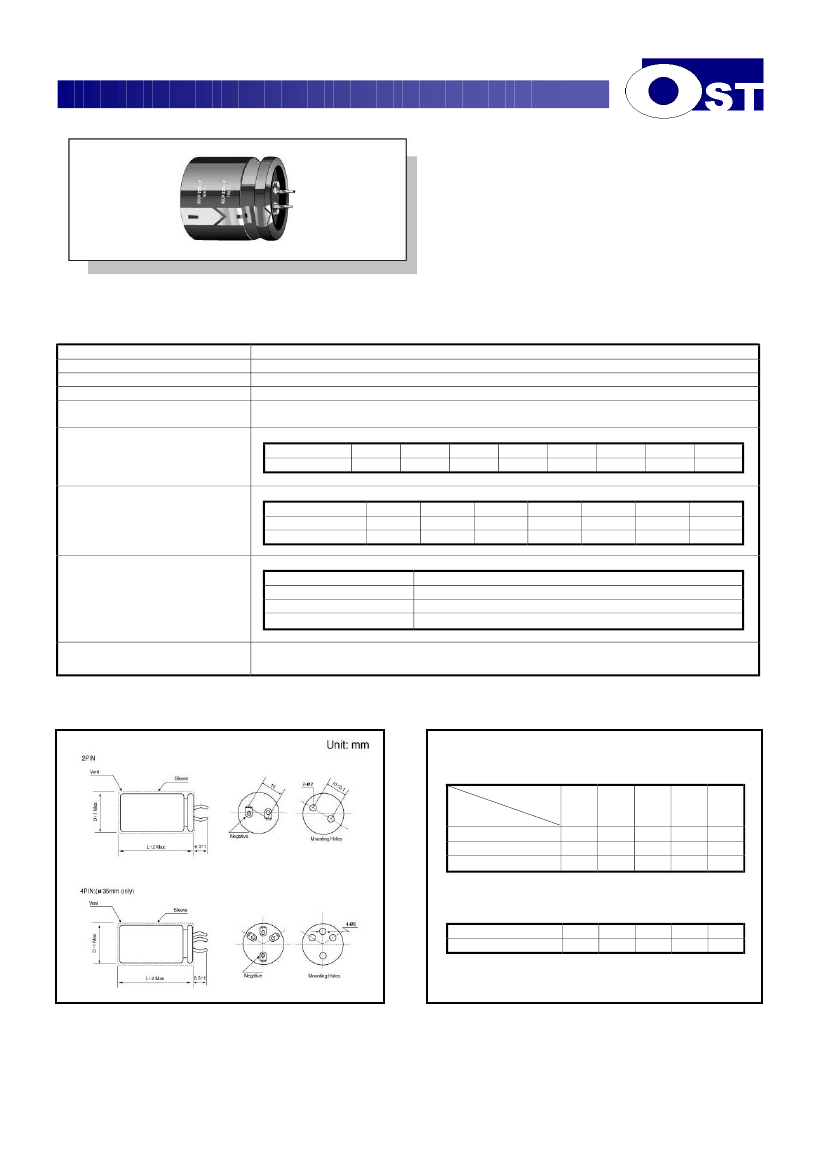

Preview

Download Datasheet

View All

"# "$

%&'

!! !() !"! *+!, #!

Operating Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(at 20°C, 120Hz)

-40~+105°C (250~400WV: -25~+105°C)

10 ~ 400V

39 ~ 22000uF

±20% (at 20°C, 120Hz)

0.01CV or 1.5mA whichever is smaller (at 20°C, after 5 minutes)

C: Nominal Capacitance (uF)

V: Rated Voltage (V)

Rated Voltage(V)

tan

0.45

0.35

0.30

0.25

0.20

63~100 160~200 250~400

0.15

0.12

0.15

Temperature Characteristics

(Impedance Ratio at 120Hz)

W.V

Z(-25°C)/Z(+20°C)

Z(-40°C)/Z(+20°C)

10~16

50~63

80~100

160~200 250~400

•

Load Life (+105°C)

Time

Capacitance Change

Dissipation Factor

Leakage Current

3000 hours

Within± 20% of the initial value

200% of the specified value or less

The specified value or less

Shelf Life (+105°C)

After storage for 500 hours at 105°C with no voltage applied, the capacitor shall meet the specified limits

of “Load Life”. After Test: U

to be applied for 60 minutes, 24 to 48 hours before measurement.

Frequency Coefficient

Freq(Hz)

Rated

Voltage(V)

0.95

63~100

0.95

160

0.90

120

1.10

1.16

1.20

10K

1.15

1.30

1.50

20K

1.15

1.33

1.55

Temperature Coefficient

Temperature(°C)

Factor

+40

2.7

+55

2.5

+70

2.1

+85

1.7

+105

1.0
