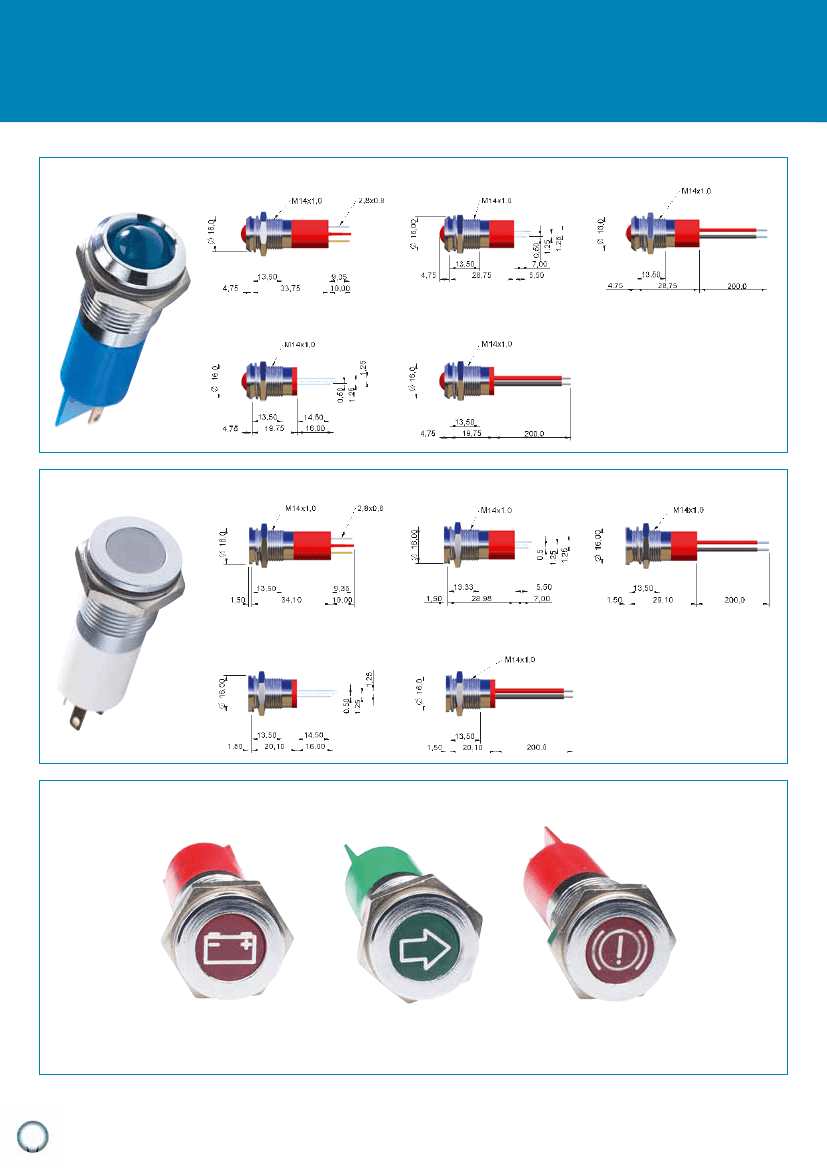

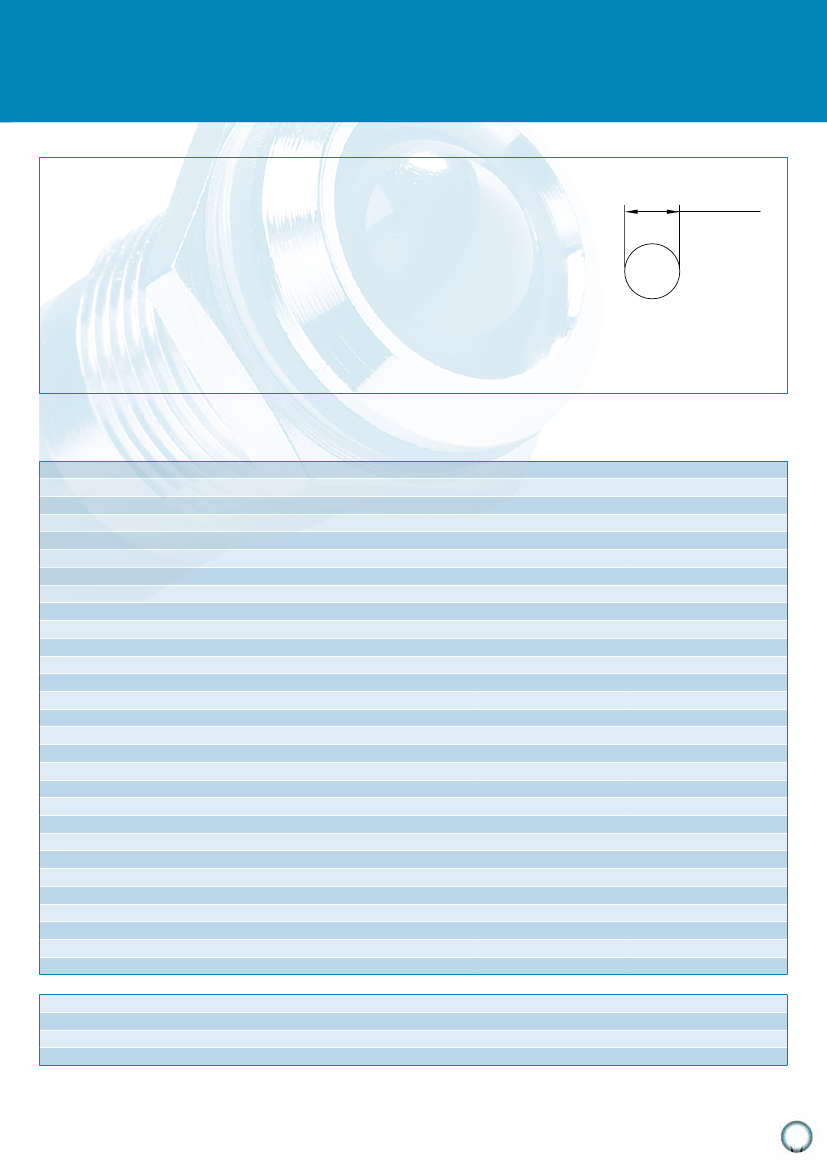

Q-SERIES 14mmØ Panel Mounting LED Indicator
Product Specification
Distinctive Features and Specifications
14mm panel mounting LED indicator
10mm coloured diffused epoxy lens or 10mm water clear super bright LEDs
Bright chrome, black chrome or satin grey bezel finish
Prominent and flush bezel styles
2VDC – 220VAC
(2.8 x 0.8) terminals, pins or (200mm long) wire terminations
IP67 sealing option (EN60529)
Supplied with fixing nut and spring washer
Ø 14,00 ±0,1
PANEL CUTOUT
NB: UL Recognised Component
TECHNICAL SPECIFICATIONS
Switch Voltage
2VDC (No Resistor)
12VDC
24VDC
28VDC
110VAC
230VAC
Intensity (Typical) at |op Standard
Operating Voltage Vop
(Min to Max)
1.8 to 2.5VDC
10.8 to 13.2VDC
21.6 to 26.4VDC
25.2 to 30.8VDC
99 to 121VAC
207 to 253VAC
Operating Current |op
(Typical All Types)
20mA
20mA
20mA
20mA
6mA
3mA
Prominent
Flush
Forward Voltage
(all voltages)
(all voltages)
HE Red
80mcd
10mcd
2.0V
Green
40mcd
5mcd
2.2V
Yellow
30mcd
4mcd
2.1V
Blue
280mcd
10mcd
3.2V
White
350mcd
20mcd
3.2V
Bi-colour (Typical) (Red/Green)
80/50mcd
14/10mcd
2.0V/2.2V
Tri-colour (Typical) (Red/Green/Yellow)
80/50/50mcd
14/10/10mcd
2.0V/2.2V/2.1V
Bi-colour - The colour is changed by reversing the polarity of the supply voltage.
Tri-colour - The indicator has red and green LEDs, when both connected yellow is produced.
Super Bright
HE Red
Green
Yellow
Blue
White
Prominent
Flush
(all voltages)
(all voltages)
7,500mcd
2000mcd
4,100mcd
250mcd
2,500mcd
350mcd
1,300mcd
300mcd
1,900mcd
200mcd
Luminous intensity will be reduced with lower operating current.
Forward Voltage
2.2V
3.5V
2.3V
3.7V
3.7V
Max Reverse Voltage:
5V
Viewing Angle:
100° (dependant on model)
Life Expectancy:
100,000 hours
Operating Temperature Range:
–40 to +85°C
Note: The operating voltage must not be exceeded by more that 10% as this will result in reduced life expectancy.
The company reserves the right to change specifications without notice.
www.apem.com
