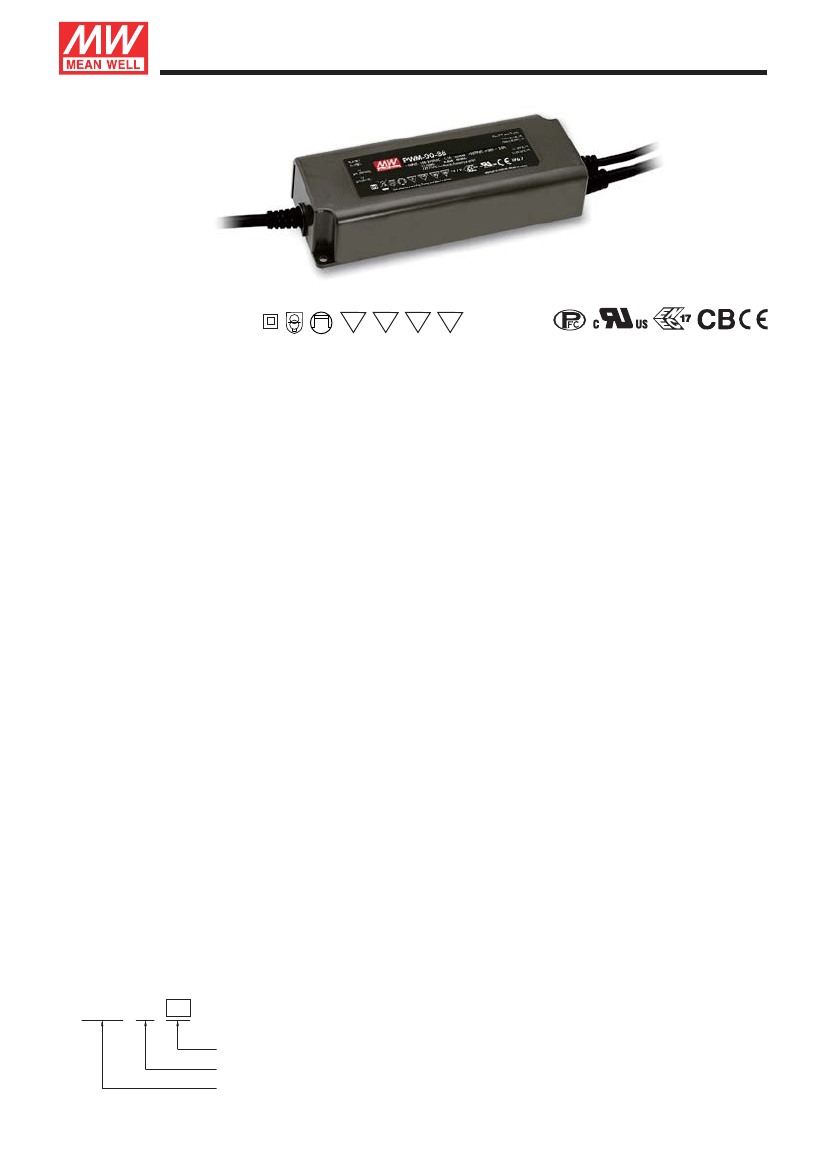

90W PWM output LED power supply
PWM-90
series
F
110
M
M
SELV
IP67
■
Applications
LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
■
Features
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Constant voltage PWM style output
Build in 2 in 1
dimming function(
0
~10Vdc or PWM signal)
Dimming range : 0~100%
High efficiency up to 90.5%
Protections: Short circuit / Over load / Over voltage
/ Over temperature
Class
Ⅱ
power unit, no FG
Class 2 power unit(Except for PWM-90-12)
Suitable for dry / damp / wet locations
No load power consumption<0.5W
5 years warranty
■
Description
PWM-90 is one 90W waterproof constant-voltage output LED power supply series. Differentiating from
general DC output power supplies, PWM-90 transmits PWM style output, adapting to directly driving all
kinds of LED strips that the color temperature can be maintained and the brightness homogeneity can
be assured. Adopting a universal input range between 90VAC and 305VAC and incorporating the built-in
PFC function, this series is also designed with a 2 in 1 dimming function (0~10Vdc or PWM signal) that
simplifies the brightness adjustment for system designers so as to achieve light reduction and energy
conservation.
Providing a high efficiency up to 90.5% and a low no load power consumption below 0.5W, PWM-90 can
satisfy the energy saving demand for the new generation LED lighting. The class
Ⅱ
design (without FG pin)
and the double insulation weather-resistant cable (SJTW) on the input side make it convenient for users
to flexibly install on various types of lighting systems. The enclosure design is a 94V-0 flame retardant
plastic case. The interior is fully potted with silicone that enhances the heat dissipation and allows PWM-90
to meet the anti-vibration demand up to 5G; it also thus conforms to IP67 level, enabling PWM-90 to be used
in a highly dusty and highly humid harsh environment. The entire series can operate under the temperature
between -40~+70
℃
and comply with the relevant global lighting safety certification.
■
Model Encoding
PWM - 90 - 12
Output voltage
Output wattage
Series name
File Name:PWM-90-SPEC 2014-07-09
90W PWM output LED power supply
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
OUTPUT
DIMMING RANGE
PWM FREQUENCY (Typ.)
VOLTAGE TOLERANCE
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER LOAD
PROTECTION
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
PWM-90-12
12V
7.5A
90W
0 ~ 100%
300Hz
±4.0%
16ms/230VAC
90 ~ 305VAC
47 ~ 63Hz
±3.0%
16ms/115VAC at full load
127 ~ 431VDC
±2.0%
PWM-90-24
24V
3.75A
90W
PWM-90-36
36V
2.5A
90W
PWM-90
PWM-90-48
48V
1.88A
90.24W
series
±1.0%
SETUP, RISE TIME
Note.2
500ms, 80ms 115VAC / 230VAC at full load
PF>0.98/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
88%
0.95A / 115VAC
<0.25mA / 277VAC
108 ~ 120% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
15 ~ 17V
28 ~ 34V
41 ~ 46V
54 ~ 60V
Protection type :
Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
-40 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, CSA C22.2 No. 250.
13-12
, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved ;
Design refer to EN60335-1
90.5%
0.5A / 230VAC
0.4A / 277VAC
90.5%
90.5%
TOTAL HARMONIC DISTORTION
THD< 20% when output loading
≧
60% at 115VAC/230VAC input and output loading
≧
75% at 277VAC input
COLD START 60A(twidth=550 s measured at 50% Ipeak) at 230VAC
μ
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +80
℃
, 10 ~ 95% RH
I/P-O/P:3.75KVAC
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS DIMENSION
PACKING
NOTE
Compliance to EN55015, EN61000-3-2 Class C (
≧
60% load) ; EN61000-3-3
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge L- N : 2KV), criteria A
224.2K hrs min.
MIL-HDBK-217F (25
℃
)
171*63*37.5mm (L*W*H)
0.77Kg; 18pcs/14.9Kg/0.82CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
File Name:PWM-90-SPEC 2014-07-09
90W PWM output LED power supply

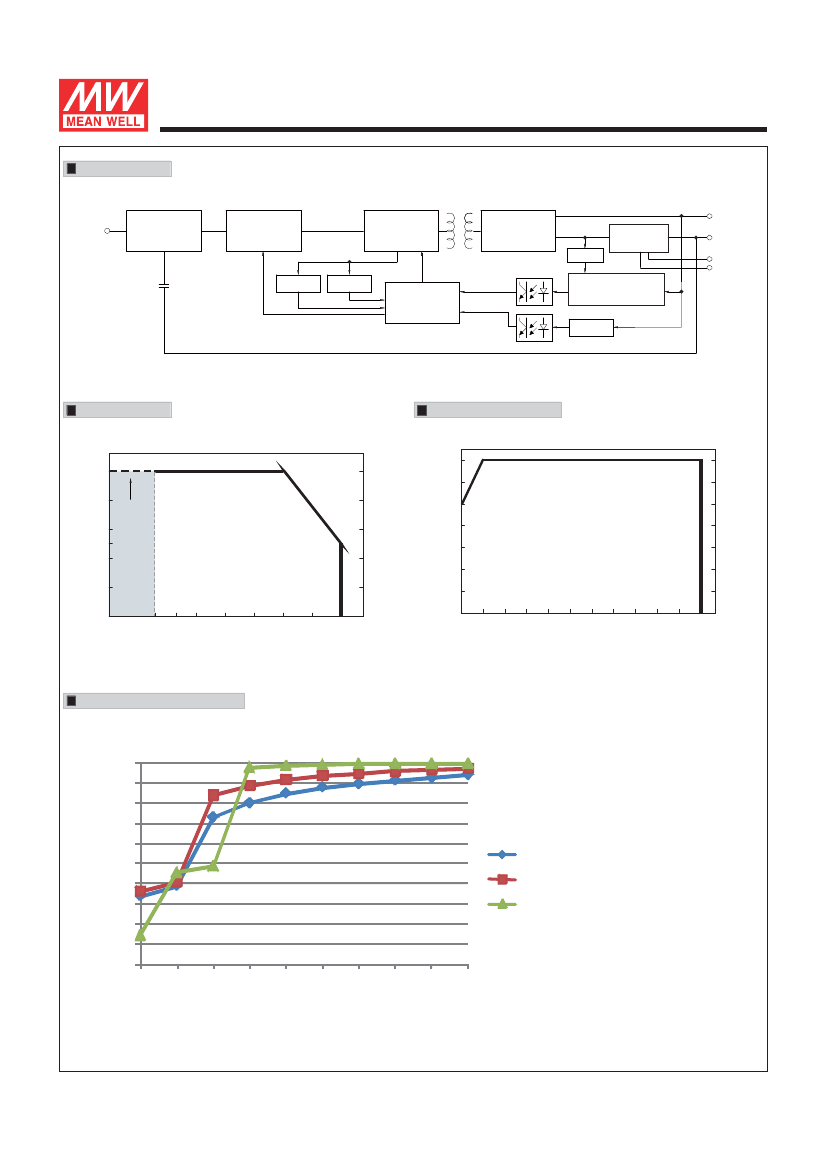

Block Diagram
PWM-90
series
PFC fosc : 50~120KHz
PWM fosc : 60~130KHz
I/P
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
O.T.P.
O.L.P.
PWM & PFC
CONTROL
DETECTION
CIRCUIT
O.V.P.
+V
DIMMING
CIRCUIT
-V
DIM+
DIM-
Derating Curve
Static Characteristics
100
100
90
80
230VAC
Input only
80
70
LOAD (%)
(HORIZONTAL)
LOAD (%)
60
50
40
60
50
40
20
-40
-25
-10
0
15
30
50
60
70
90
100
125
135
145
155 165
175
180
200
230
305
AMBIENT TEMPERATURE (
℃
)
INPUT VOLTAGE (V) 60Hz
Power Factor Characteristic
Constant Voltage Mode
1.00
0.90
0.80
0.70
PF
0.60
0.50
0.40
0.30
0.20
0.10
0.00
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
LOAD
(90W)
277V
230V
115V
File Name:PWM-90-SPEC 2014-07-09
90W PWM output LED power supply
EFFICIENCY vs LOAD (48V Model)
PWM-90 series possess superior working efficiency that up to 90.5% can be reached in field applications.
PWM-90
series
94
92
90
88
86
84
82
80
78
76
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
LOAD
EFFICIENCY (%)
277V
230V
115V
DIMMING OPERATION
The PWM style output is a simple switching of supply ON/OFF at a rate so fast that the human eye cannot see led
flickering. Duty cycle describes the proportion of time when output voltage is on relative to the entire period of time.
It is expressed in percentage, 100% being fully on (maximal brightness) and a low duty cycle corresponding to lower
brightness.
Built-in 2 in 1 dimming function. The duty of the PWM style output can be adjusted through output cable by connecting
a 0~10Vdc or 10V PWM signal between DIM+ and DIM-.
◎Connection
LED Strips
+V
-V
DIM+
+
-
+
0~10Vdc or 10V PWM control dimmer
DIM-
-
+
-
※DO
NOT connect "DIM- to -V"
File Name:PWM-90-SPEC 2014-07-09
90W PWM output LED power supply

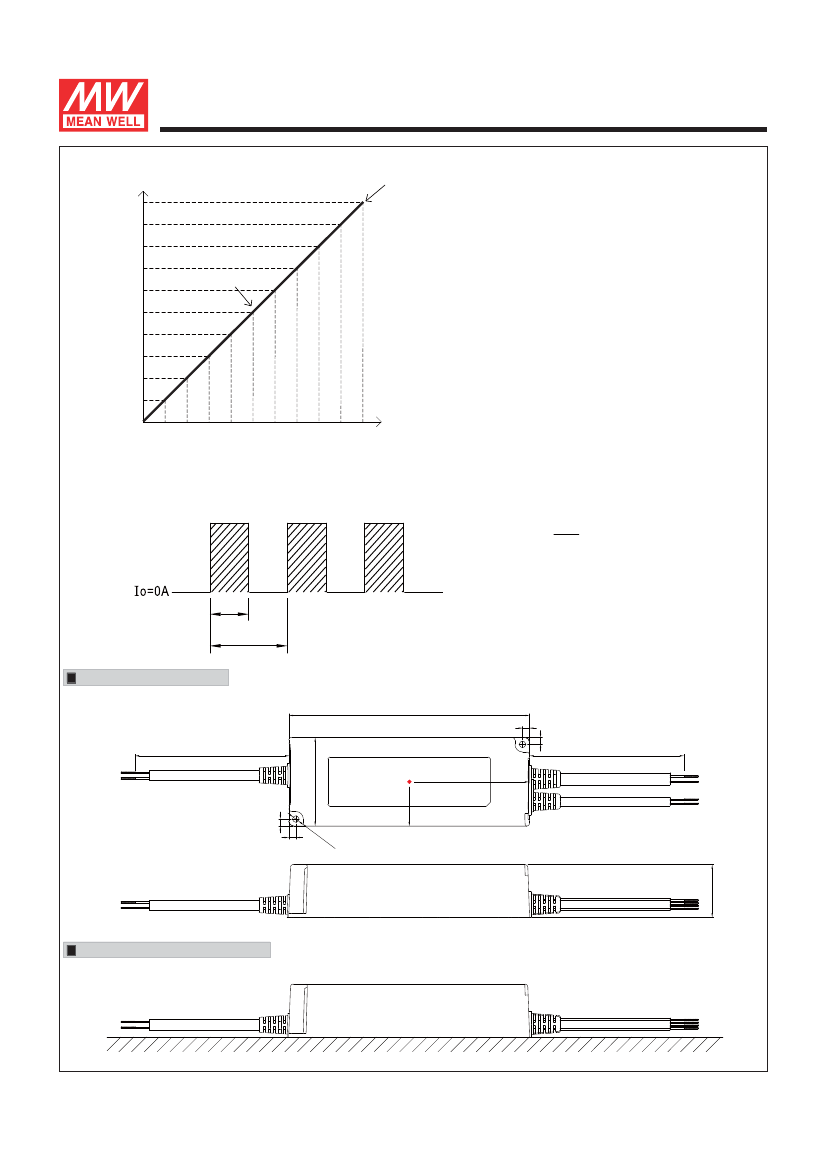

◎Duty
cycle of output current VS Dimming input
100% when DIM+/DIM- are open circuit.
100%
90%
80%
PWM-90
series
Duty cycle of output current
70%
60%
50%
40%
30%
20%
10%
0%
Non-Linear
0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Dimming input
0~10Vdc
Duty cycle of 10V PWM (frequency range = 100~3KHz)
◎PWM
Style Output
Output DC current
ON
Duty cycle(%) =
OFF
T
ON
T
Mechanical Specification
Case No. PWM-90P
171
5
5
T
ON
T
×100%
Output PWM frequency : 300Hz fixed (Typ.)
Unit:mm
300
±
20
300
±
20
+V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
31.5
SJTW 18AWG
×
2C
63
AC/L(Brown)
AC/N(Blue)
85.5
SJTW 16AWG
×
2C
UL2464 18AWG
×
2C
5
5
2 -
ψ
4.5
※
T case: Max. Case Temperature.
37.5
Recommend Mounting Direction
File Name:PWM-90-SPEC 2014-07-09
