Data and signal line chokes
Common-mode chokes, ring core
0.005 … 47 mH, 100 … 1200 mA, 60 °C
Series/Type:
Date:
B82793C0/S0
July 2010
a~í~=pÜÉÉí
¤
EPCOS AG 2010. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Data and signal line chokes
Common-mode chokes, ring core
Rated voltage 42 V AC/80 V DC
Rated inductance 0.005 mH to 47 mH
Rated current 100 mA to 1200 mA
Construction
■
■
■
■
■
B82793C0/S0
Current-compensated double choke
Ferrite core
LCP case (UL 94 V-0), silicone potting
Bifilar winding (B82793C0)
Sector winding (B82793S0)
Features
■
■
■
■
High rated currents, reduced components height
Qualified to AEC-Q200 (L
d
4.7 mH)
Suitable for reflow soldering
RoHS-compatible
Function
■
B82793C0:
Suppression of asymmetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
■
B82793S0:
Suppression of asymmetrical and symmetrical interference (by L
stray
)
coupled in on lines. The high-frequency portions of the symmetrical
data signal are decreased so far that EMC problems can be
significantly reduced.
Applications
■
Automotive applications, e.g. CAN bus
■
Industrial applications
■
Types with L
R
!
4.7 mH only for telecom applications
Terminals
■
Base material CuSn6
■
Layer composition Ni, Sn
■
Hot-dipped
Marking
■
Marking on component: Manufacturer, process location (coded),
winding method (coded), ordering code (short form), date of manufacture (YWWD)
■
Minimum data on reel: Manufacturer, ordering code,
L value and tolerance, quantity, date of packing
Delivery mode and packing unit
■
16-mm blister tape, wound on 330-mm
reel
■
Packing unit: 1500 pcs./reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
07/10
Data and signal line chokes
Common-mode chokes, ring core

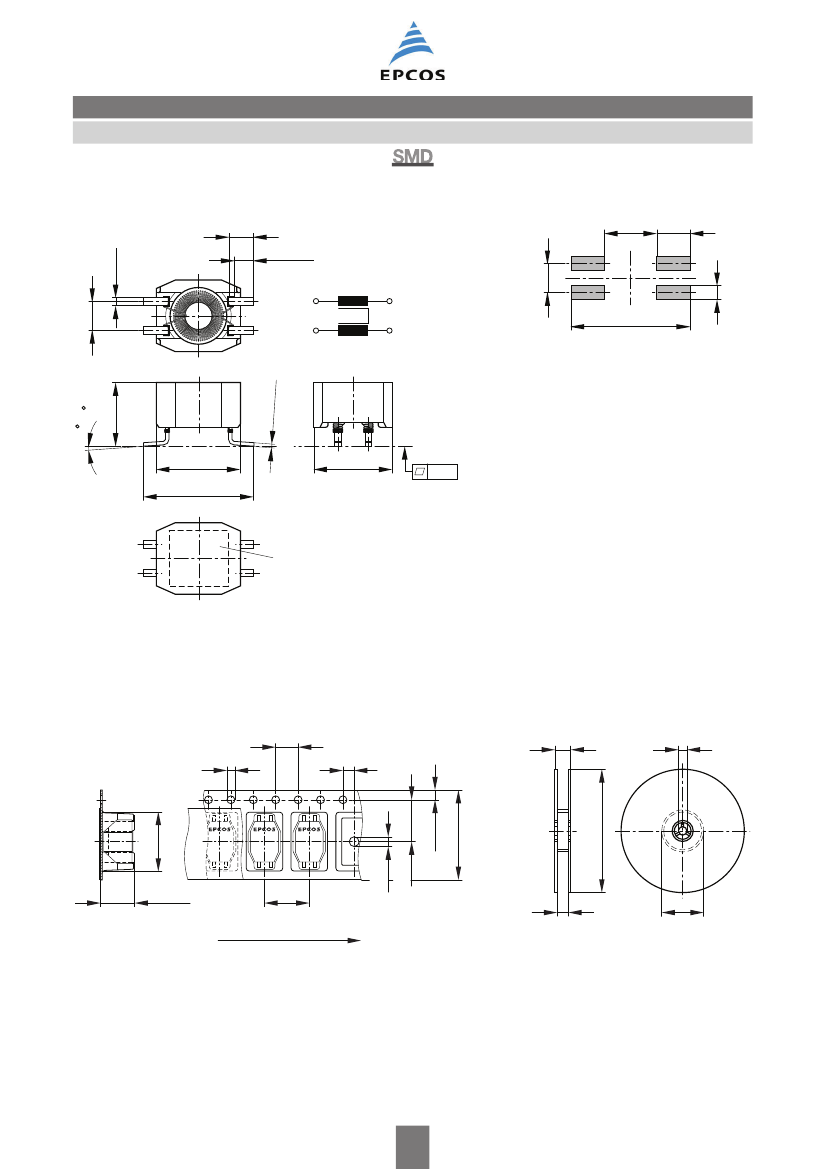

Dimensional drawing and pin configuration
1.9±0.2
_
0.05
0.6
+0.1 1)
B82793C0/S0
Layout recommendation
(4.5)
2.85
1.5 min.
1)
1
2
1
4
3
0.3±0.05
1)
2.5
1.2
10.2
IND0163-B
2.5±0.1
2
3
4
0 ...6
4.8 max.
7.1 max.
_
0.2
9
+0.4
6.0 max.
0.08
Marking
1) Soldering area
IND0010-9-E
Dimensions in mm
Taping and packing
Blister tape
4±0.1
1.5±0.1
2±0.05
1.75±0.1
Reel
22.4 max.
13±0.25
10.5 max.
6.0 max.
8±0.1
Direction of unreeling
1.6±0.1
7.5±0.1
16±0.3
IND0417-H-E
_
0
16.4
+2
_
2
330
+0
_
0
60
+2
IND0422-K
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
07/10
Data and signal line chokes
Common-mode chokes, ring core
Technical data and measuring conditions
Rated voltage V
R
Rated temperature T
R
Rated current I
R
Rated inductance L
R
42 V AC (50/60 Hz) / 80 V DC
60 °C
B82793C0/S0
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A, 0.1 mA, 20 °C
Measuring frequency: L
R
d
1 mH = 100 kHz
L
R
!
1 mH = 10 kHz
Inductance is specified per winding.
r30%
(L
R
d
0.47 mH), –30/+50% (L
R
t
1 mH) at 20 °C
10% at DC magnetic bias with I
R
, 20 °C
Measured with Agilent 4284A, 5 mA, 20 °C, typical values
Measuring frequency: L
R
d
11
PH
= 1 MHz
L
R
!
11
PH
= 100 kHz
Measured at 20
qC,
typical values, specified per winding
SnPb:
(215
r3)
°C, (3
r0.3)
s
Sn96.5Ag3.0Cu0.5: (245
r5)
°C, (3
r0.3)
s
Wetting of soldering area
t
95%
(to IEC 60068-2-58)
(260
r5)
°C, (10
r1)
s (to IEC 60068-2-58)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
d
75% RH
Approx. 0.25 g
Inductance tolerance
Inductance decrease
'L/L
Stray inductance L
stray,typ
DC resistance R
typ
Solderability
Resistance to soldering heat
Climatic category
Storage conditions (packaged)
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
07/10
Data and signal line chokes
Common-mode chokes, ring core
Characteristics and ordering codes
L
R
mH
0.005
0.011
0.025
0.025
0.051
0.051
0.10
0.47
1.0
2.2
4.7
20
47
L
stray,typ
nH
40
50
60
1400
70
2300
100
100
70
120
250
300
1200
I
R
mA
1200
800
800
800
800
800
500
700
700
500
400
100
100
R
typ
m:
60
80
110
110
140
140
180
170
140
400
550
1800
3700
V
test
V DC, 2 s
250
250
250
250
250
250
250
750
750
750
750
750
750
B82793C0/S0
Ordering code
B82793C0502N201
B82793C0113N201
B82793C0253N201
B82793S0253N201
B82793C0513N201
B82793S0513N201
B82793C0104N201
B82793C0474N215
B82793C0105N265
B82793C0225N265
B82793C0475N265
B82793C0206N265
B82793C0476N265
For telecommunications
Sample kit available. Ordering code: B82793X001.
For more information refer to chapter “Sample kits”.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
07/10
