CMT-SERIES
Common Mode Inductors
(Through-Hole)

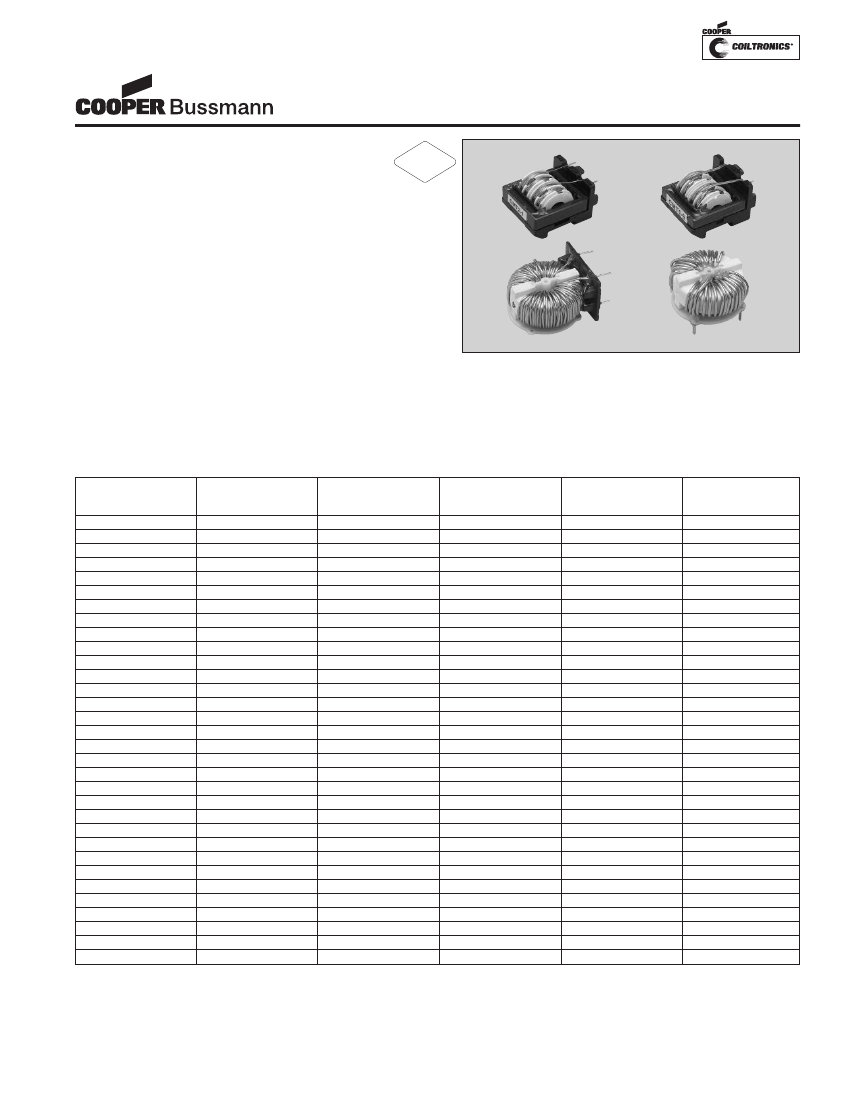

Description
RoHS
2002/95/EC
• Four sizes of through-hole off-line
common mode inductors
• Inductance range from 0.53 - 66 mH
• Current range up to 6.5 Amps
• Noise attenuation up to 68 dB
• Frequency range up to 6 MHz
• Meets UL94V-0 flammability standard
• Ferrite core material
Applications
• Protects AC input from effects of switching regulators
• Off-line power supplies
• EMI filters
• DC-DC converters
• Computer, TV, VCR, audio and office equipment
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C
range is application specific. The internal “hot-spot”
temperature defines the maximum allowable currents,
which are limited to 130°C, including ambient.
Part Number
CMT1-1-R
CMT1-2-R
CMT1-3-R
CMT1-4-R
CMT1-5-R
CMT1-6-R
CMT1-7-R
CMT1-8-R
CMT1-9-R
CMT1-10-R
CMT2-1-R
CMT2-2-R
CMT2-3-R
CMT2-4-R
CMT2-5-R
CMT2-6-R
CMT2-7-R
CMT2-8-R
CMT2-9-R
CMT2-10-R
CMT3-1-R
CMT3-2-R
CMT3-3-R
CMT3-4-R
CMT3-5-R
CMT3-6-R
CMT4-1-R
CMT4-2-R
CMT4-3-R
CMT4-4-R
CMT4-5-R
CMT4-6-R
OCL
(mH) min
(1-2)
66.0
49.0
28.0
21
13
7.50
4.20
2.40
1.85
0.94
30
20
12
8.0
6.0
4.8
3.2
2.4
2.0
1.6
5.4
3.5
2.7
1.3
0.92
0.53
5.4
3.5
2.7
1.3
0.92
0.53
OCL
(mH) min
(4-3)
66.0
49.0
28.0
21
13
7.50
4.20
2.40
1.85
0.94
30
20
12
8.0
6.0
4.8
3.2
2.4
2.0
1.6
5.4
3.5
2.7
1.3
0.92
0.53
5.4
3.5
2.7
1.3
0.92
0.53
Packaging
• Supplied in bulk packaging
I rms.
Amperes
max
0.74
0.88
1.13
1.37
1.76
2.27
2.89
3.85
4.53
6.05
1.50
1.95
2.45
2.80
3.40
3.95
4.40
4.75
5.45
5.75
2.0
2.6
3.0
4.0
5.0
6.5
2.0
2.6
3.0
4.0
5.0
6.5
DCR (Ω) typ
@ 20°C
(1-2)
1.20
0.85
0.50
0.35
0.20
0.13
0.08
0.045
0.033
0.018
0.350
0.220
0.135
0.100
0.070
0.053
0.042
0.037
0.028
0.026
0.12
0.08
0.055
0.032
0.021
0.013
0.12
0.08
0.055
0.032
0.021
0.013
DCR (Ω) typ
@ 20°C
(4-3)
1.20
0.85
0.50
0.35
0.20
0.13
0.08
0.045
0.033
0.018
0.350
0.220
0.135
0.100
0.070
0.053
0.042
0.037
0.028
0.026
0.12
0.08
0.055
0.032
0.021
0.013
0.12
0.08
0.055
0.032
0.021
0.013
Definitions:
OCL = Open Circuit Inductance
DCR = Direct Current Resistance
Irms = rms current for 40°C max temperature rise at worst case ambient temperature
of 85°C
Electrical Characteristics:
OCL (1-2) 0.10Vrms, 10kHz, 0.0Adc: (See Chart)
OCL (4-3) 0.10Vrms, 10kHz, 0.0Adc: (See Chart)
DCR (1-2) typ @ 20°C: (See Chart)
DCR (4-3) typ @ 20°C: (See Chart)
Hipot rating: winding to winding: 2400 Vac for 1 second.
Turns Ratio: (1-2):(4-3) 1:1
CMT-SERIES
Common Mode Inductors
(Through-Hole)

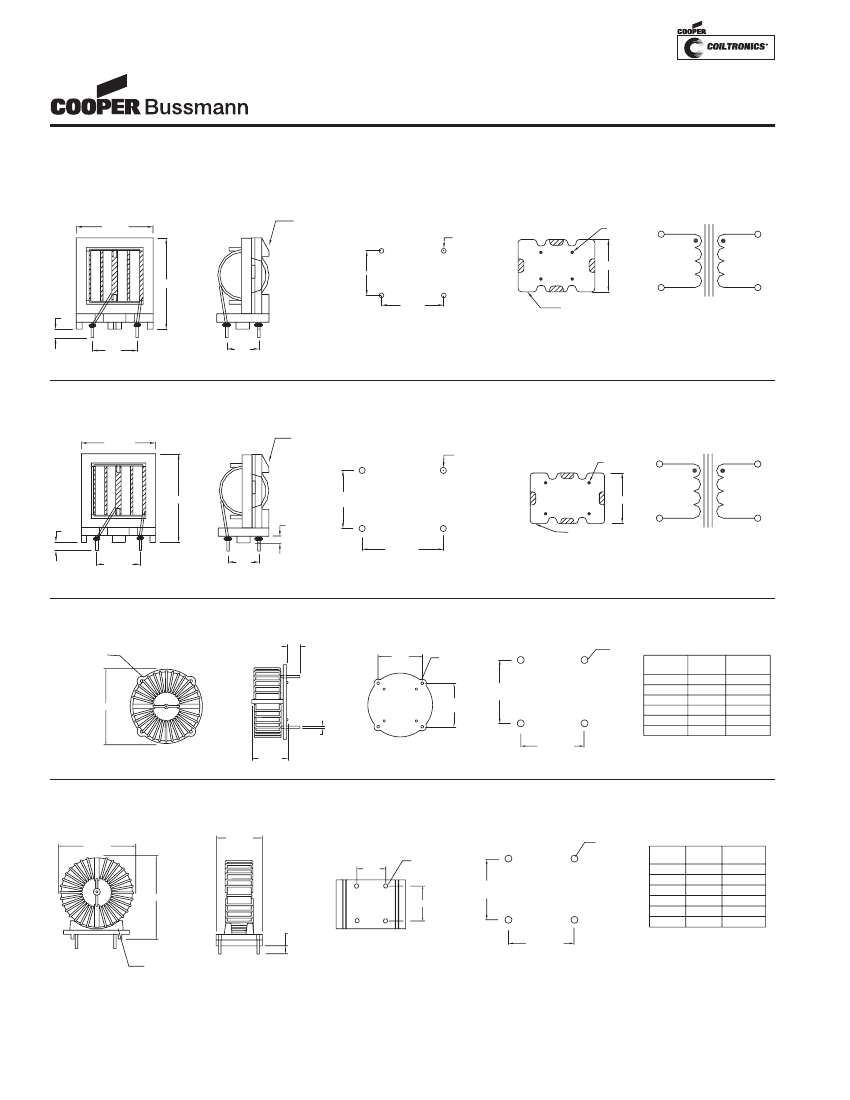

Mechanical Diagrams
CMT1 Series
FRONT VIEW
29.5 max
SIDE VIEW
CMT1-X
wwll yy R
RECOMMENDED PCB LAYOUT
1.15 dia
±
0.13
BOTTOM VIEW
0.80 dia
SCHEMATIC
1
4
1
10.0
±
0.20
36.5 max
4
2
1
3
22.0 max
component side
2
13.0
±
0.20
4
3
Pin #1 indicator
2
3
3.8
typ
2
13.00
3
3
10.00
4
CMT2 Series
FRONT VIEW
36.5 max
SIDE VIEW
CMT2 -
wwll yy R
RECOMMENDED PCB LAYOUT
BOTTOM VIEW
SCHEMATIC
3.00 dia
±
0.13
1.2 dia
1
44.5 max
15.0
±
0.20
3.2
4
2
component side
1
4
3
26.5 max
1
4.0
±
1.0
4
2
Pin #1 indicator
3
2
21.0
±
0.20
3
2
21.0
±0.2
3
3
15.0
±0.2
4
CMT3 Series
TOP VIEW
Pin #1 Indicator
SIDE VIEW
5
typ
BOTTOM VIEW
15.0
±0.20
y dia
RECOMMENDED PCB LAYOUT
z dia
1
15.0
±
0.20
2
CMT3-1
CMT3-2
CMT3-3
CMT3-4
CMT3-5
CMT3-6
1
25.0 max Dia
2
2
3
4
3
component side
15.0
±0.20
4
ØDia
3
15.0
±
0.20
4
3
14 max
1
2
"Y" Dia
ref
0.58
0.64
0.71
0.80
0.89
0.99
"Z" Dia ref
0.83
0.90
0.97
1.06
1.15
1.25
CMT4 Series
FRONT VIEW
25.0 ma
x
y dia
12.00
SIDE VIEW
15.4 max
BOTTOM VIEW
RECOMMENDED PCB LAYOUT
z dia
1
11.0
±
0.20
4
CMT4-1
CMT4-2
CMT4-3
CMT4-4
CMT4-5
CMT4-6
4
25.5 max
1
11.00
component side
CMT4-x
wwllyy - R
3
5.0 typ
2
2
3
12.0
±
0.20
"Y" Dia
ref
0.58
0.64
0.71
0.80
0.89
0.99
"Z" Dia ref
0.83
0.90
0.97
1.06
1.15
1.25
4
1
Pin #1 indicator
1
2
(1) All Dimensions are in millimeters unless otherwise
specified
(2) Tolerances are +/- 0.20mm unless stated otherwise.
(3) wwllyy = (Date Code) R = (Revision Level)
Schematic is the same for all the series
CMT-SERIES
Common Mode Inductors
(Through-Hole)

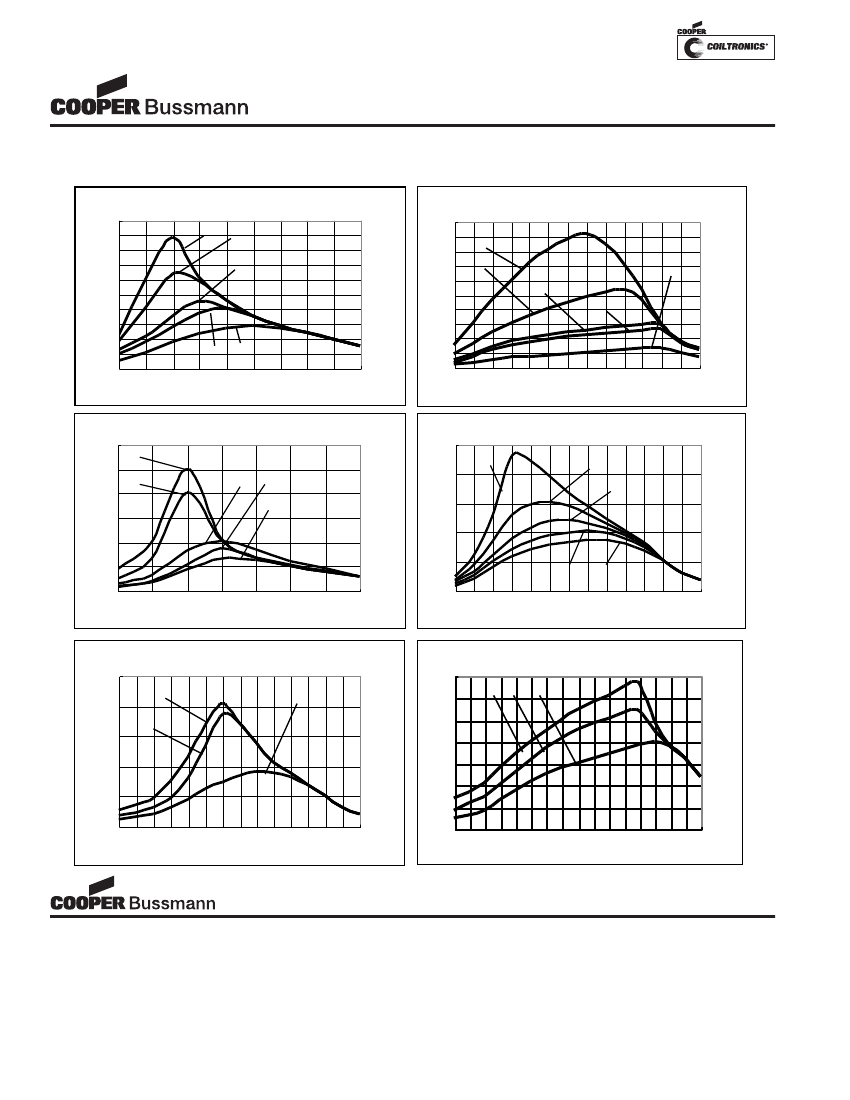

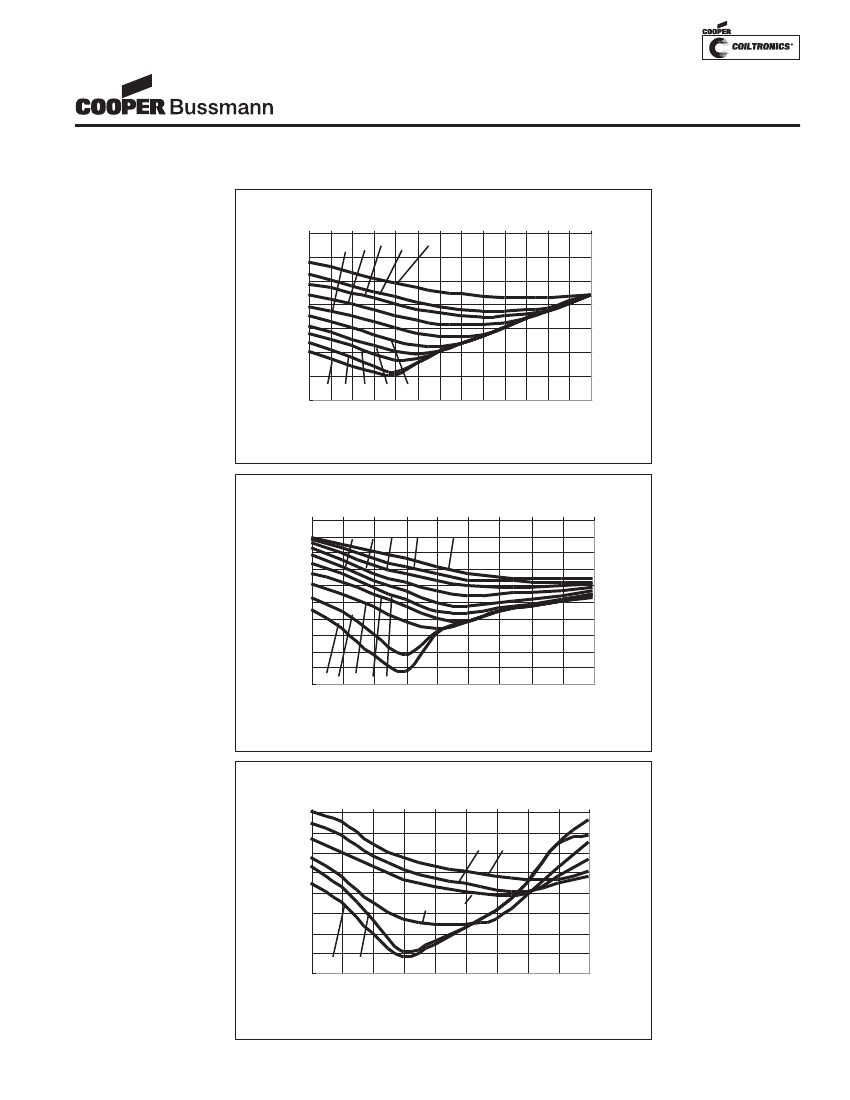

Impedance Curves
