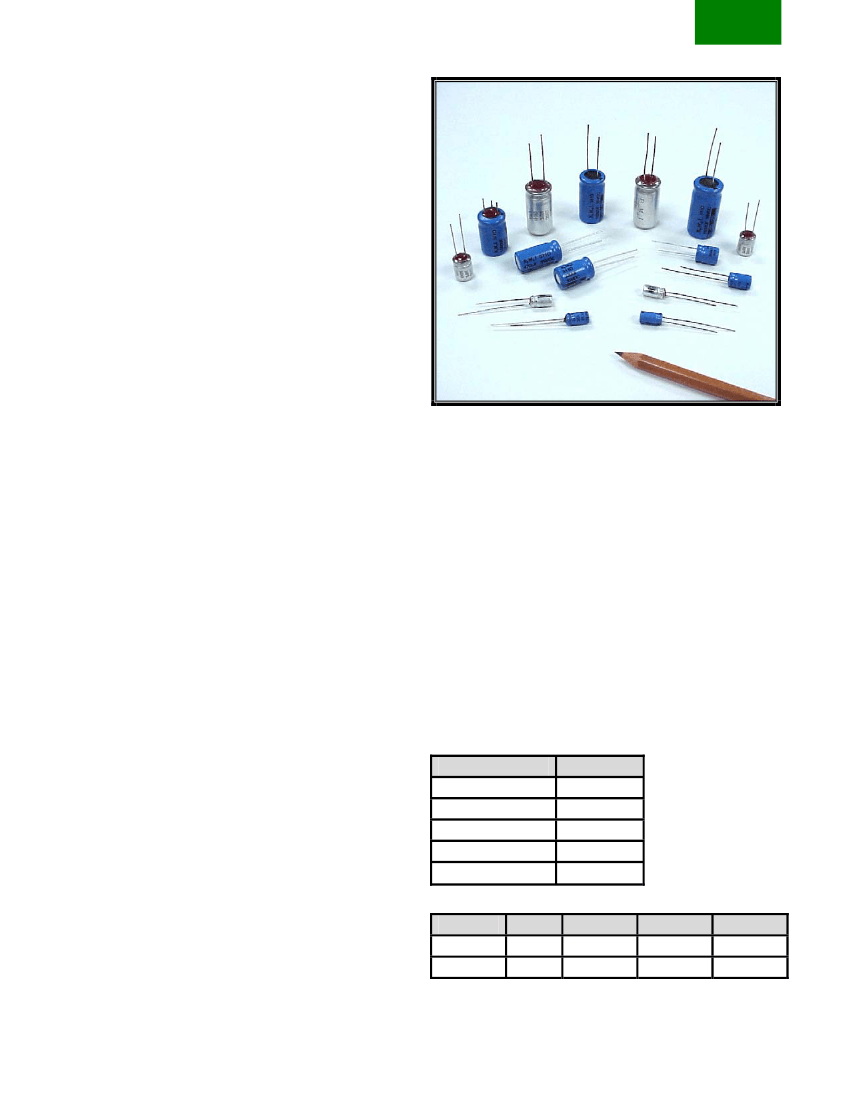

511D
+105°C
General Purpose
Miniature Radial Lead,
Aluminum Capacitors
Features-
•
•
•
•
Increased Capacitance
Case Sizes Through 18 x 36mm
Optional 3
rd
Lead On Diameters
≥
12.5mm
Epoxy End Seal Available
General Specifications-
Operating Temperature:
-40 to +105°C
Voltage Range:
6.3 – 250 VDC
Capacitance Range:
1.2µF to 10,000µF
Capacitance Tolerance:
±20% (Std.)
Case Size Range:
6.0 X 11.0mm – 18.0 X 36.0mm
Termination:
2 or 3 Radial Leads.
Life Validation Test:
1,000hrs @ +105°C (dia.
≤
8.0mm):
2,000hrs @ +105°C (dia. > 8.0mm):
Δ
CAP
≤
15% (6.3 – 16VDC),
≤
10% (25 – 250VDC)
From initial measurement.
Δ
ESR
≤
1.20X Initial specified limit.
Δ
DCL
≤
Initial specified limit.
Shelf Test: 500hrs @ +105°C:
Δ
CAP
≤
10% From initial measurement.
Δ
ESR
≤
1.20X Initial specified limit.
Δ
DCL
≤
2X Initial specified limit.
DC Leakage Current: (After 5 min. charge)
For: 6.3 – 63VDC
I
=
0.005CV
For: 100 – 250VDC
I
=
0.01CV
Where:
I is in µA
C is in µF
V is in Volts
Ripple Current Multipliers:
Temperature:
Ambient Temp.
+105°C
+95°C
+85°C
+75°C
≤
+65°C
Multiplier
0.45
0.77
1.00
1.18
1.34
300-400
1.05
1.30
1k-100k
1.10
1.40
Frequency (Hz):
VDC
50-60 100-120
6.3 – 25
0.85
1.00
26 – 250 0.80
1.00
511D

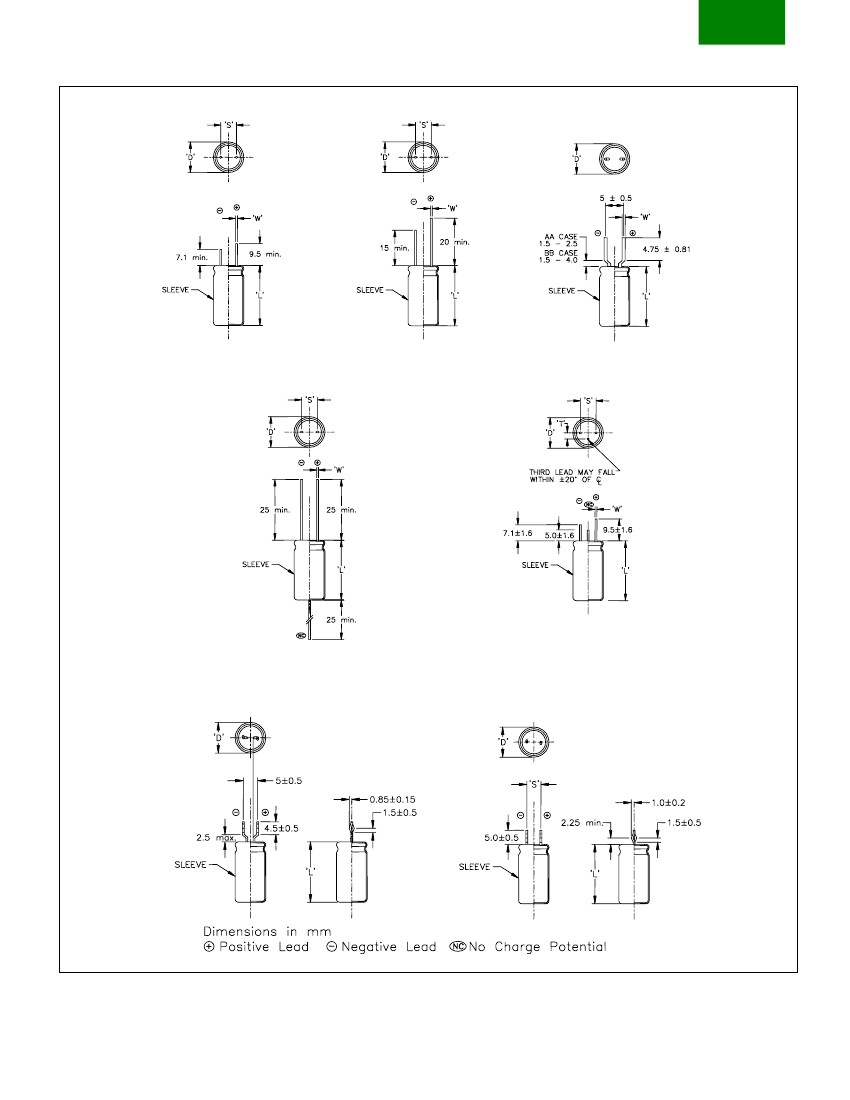

PART NUMBER BREAK-DOWN:
511D 157 M 6R3 AA 4 D
PACKAGING:
D = STRAIGHT LEADS (STD.)
E = LEAD FORM TO 5mm CENTERS.
J = 3 LEAD AXIAL MOUNT.
*
O = KEYED POLARITY 3 LEAD RADIAL MOUNT.†
C = CUT LEADS.
V = SNAP-IN FORMED LEADS.
I = TAPE AND REEL PACKAGING‡
+ = TAPE AND AMMO PACK.‡
CASE STYLE:
2 = POLYESTER INSULATING SLEEVE
3 = P.V.C. SLEEEVE WITH EPOXY END SEAL
**
(REQ’D FOR EXPOSURE TO HALOGENATED CLEANING SOLVENTS.)
4 = P.V.C. SLEEVE (STD.)
**
5 = POLYESTER SLEEVE
W
/ EPOXY END SEAL
(REQ’D FOR EXPOSURE TO HALOGENATED CLEANING SOLVENTS.)
CASE CODE:
(SEE TABLE 1.)
DC VOLTAGE RATING:
EXPRESSED IN VOLTS. THE LETTER “R” SIGNIFIES A DECIMAL POINT.
(ie. 6R3 = 6.3 VOLTS.)
CAPACITANCE TOLERANCE:
M = ±20%
CAPACITANCE:
EXPRESSED IN PICOFARADS. THE FIRST TWO DIGITS ARE SIGNIFICANT
FIGURES, THE THIRD IS THE NUMBER OF ZEROS.
BMI TYPE #:
IDENTIFIES THE BASIC CAPACITOR DESIGN.
*Available for 12.5, 16, and 18mm dia. units.
**Sleeving rated to 105°C.
†Available
for 12.5, 16, and 18mm dia. units with epoxy end-seal.
‡
Available for 6, 8, and 10 mm dia. units.
Table 1. Case Dimensions mm(in.)
CASE
CODE
AA
BB
BD
CC
CD
CG
DG
DK
DM
DT
DS
EK
EN
ER
EU
FR
NOMINAL
STYLES 2& 4
STYLES 3 & 5 (w/EPOXY)
LEAD SPACING
‘D’
‘L’
‘D’ MAX. ‘L’ MAX.
‘D’ MAX.
‘L’ MAX.
S ± 0.6
T ± 0.5
6.0 (0.236) 11.0 (0.433) 6.5 (0.256) 12.0 (0.472) 6.5 (0.256)
13.0 (0.512) 2.5 (0.098)
N/A
8.0 (0.315) 12.0 (0.472) 8.5 (0.335)
8.0 (0.315) 16.0 (0.630) 8.5 (0.335)
13.0 (0.512)
17.0 (0.669)
8.5 (0.335)
8.5 (0.335)
10.5 (0.413)
10.5 (0.413)
10.5 (0.413)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
16.5 (0.650)
16.5 (0.650)
16.5 (0.650)
16.5 (0.650)
18.5 (0.728)
14.0 (0.551)
18.8 (0.740)
16.0 (0.630)
18.8 (0.740)
23.0 (0.906)
23.0 (0.906)
29.0 (1.142)
29.5 (1.161)
36.0 (1.417)
45.5 (1.791)
27.9 (1.098)
36.0 (1.417)
40.0 (1.575)
42.4 (1.669)
40.0 (1.575)
3.5 (0.138)
3.5 (0.138)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
5.0 (0.197)
7.5 (0.295)
7.5 (0.295)
7.5 (0.295)
7.5 (0.295)
N/A
N/A
N/A
N/A
N/A
2.5 (0.098)
2.5 (0.098)
2.5 (0.098)
2.5 (0.098)
2.5 (0.098)
3.8 (0.150)
3.8 (0.150)
3.8 (0.150)
3.8 (0.150)
WIRE GAUGE
‘W’
No. 22 AWG (0.025)
No. 22 AWG (0.025)
No. 22 AWG (0.025)
No. 22 AWG (0.025)
No. 22 AWG (0.025)
No. 22 AWG (0.025)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
No. 20 AWG (0.032)
10.0 (0.394) 13.0 (0.512) 10.5 (0.413) 14.3 (0.563)
10.0 (0.394) 16.0 (0.630) 10.5 (0.413) 17.0 (0.669)
10.0 (0.394) 20.0 (0.787) 10.5 (0.413) 21.5 (0.846)
12.5 (0.492)
12.5 (0.492)
12.5 (0.492)
12.5 (0.492)
12.5 (0.492)
16.0 (0.630)
16.0 (0.630)
16.0 (0.630)
16.0 (0.630)
20.0 (0.787)
25.0 (0.984)
26.5 (1.043)
33.5 (1.319)
42.5 (1.673)
25.0 (0.984)
32.0 (0.260)
36.0 (1.417)
40.0 (1.575)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
13.0 (0.512)
16.5 (0.650)
16.5 (0.650)
16.5 (0.650)
16.5 (0.650)
21.5 (0.846)
26.5 (1.043)
28.0 (1.102)
34.2 (1.347)
43.7 (1.721)
26.2 (1.032)
33.5 (1.319)
37.5 (1.476)
41.7 (1.642)
18.0 (0.709) 36.0 (1.417) 18.5 (0.728) 37.5 (1.476)
7.5 (0.295) 3.8 (0.150) No. 20 AWG (0.032)
511D
STANDARD RATINGS FOR TYPE 511D
Max.
Max. Max. Ripple Max. Ripple Max.
Z
ESR
ESR
Current
Nominal
Current
Rated
+25°C
+25°C
+25°C
+85°C
Catalog Number
Case Size
+85°C
Capacitance
120Hz 20-40kHz
20-40kHz 100kHz
DxL
120Hz
(µF)
(A
rms
)
(mm)
(A
rms
)
(Ω)
(Ω)
(Ω)
6.3 VOLTS DC WORKING; 8 VOLTS DC SURGE
150
270
560
820
1,200
1,800
2,700
4,700
6,800
8,200
10,000
100
220
390
680
1,000
1,200
1,800
3,300
4,700
5,600
8,200
82
150
270
470
680
820
1,500
2,200
3,300
3,900
5,600
47
100
180
270
390
560
820
1,200
1,800
2,200
3,300
511D157M6R3AA4D
511D277M6R3BB4D
511D567M6R3CC4D
511D827M6R3CD4D
511D128M6R3CG4D
511D188M6R3DG4D
511D278M6R3DK4D
511D478M6R3EK4D
511D688M6R3EN4D
511D828M6R3ER4D
511D109M6R3FR4D
511D107M010AA4D
511D227M010BB4D
511D397M010CC4D
511D687M010CD4D
511D108M010CG4D
511D128M010DG4D
511D188M010DK4D
511D338M010EK4D
511D478M010EN4D
511D568M010ER4D
511D828M010FR4D
511D826M016AA4D
511D157M016BB4D
511D277M016CC4D
511D477M016CD4D
511D687M016CG4D
511D827M016DG4D
511D158M016DK4D
511D228M016EK4D
511D338M016EN4D
511D398M016ER4D
511D568M016FR4D
511D476M025AA4D
511D107M025BB4D
511D187M025CC4D
511D277M025CD4D
511D397M025CG4D
511D567M025DG4D
511D827M025DK4D
511D128M025EK4D
511D188M025EN4D
511D228M025ER4D
511D338M025FR4D
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
3.130
1.518
0.710
0.520
0.420
0.300
0.204
0.121
0.089
0.078
0.068
4.073
1.855
1.012
0.596
0.407
0.371
0.265
0.166
0.122
0.104
0.094
4.294
2.433
1.081
0.748
0.521
0.429
0.243
0.176
0.147
0.125
0.100
6.120
2.914
1.590
1.086
0.724
0.508
0.351
0.239
0.194
0.162
0.150
2.720
1.100
0.650
0.400
0.270
0.190
0.128
0.075
0.060
0.055
0.050
2.800
1.150
0.625
0.430
0.290
0.206
0.138
0.086
0.060
0.056
0.056
2.940
1.250
0.685
0.442
0.295
0.208
0.140
0.090
0.062
0.058
0.055
2.940
1.350
0.950
0.550
0.300
0.208
0.140
0.110
0.080
0.064
0.060
0.123
0.219
0.383
0.481
0.590
0.802
1.020
1.580
2.040
2.280
2.640
0.108
0.198
0.321
0.449
0.603
0.721
0.930
1.350
1.740
1.970
2.240
0.106
0.173
0.310
0.419
0.533
0.671
0.971
1.310
1.580
1.800
2.170
0.089
0.158
0.256
0.333
0.452
0.616
0.808
1.127
1.380
1.580
1.770
0.132
0.257
0.400
0.548
0.741
1.010
1.280
2.010
2.480
2.720
3.070
0.131
0.252
0.408
0.529
0.715
0.968
1.280
1.880
2.480
2.690
2.910
0.127
0.241
0.390
0.522
0.709
0.963
1.270
1.840
2.440
2.650
2.930
0.127
0.232
0.331
0.468
0.703
0.963
1.270
1.660
2.150
2.520
2.810
2.800
1.270
0.670
0.400
0.286
0.200
0.136
0.090
0.066
0.062
0.061
2.900
1.300
0.650
0.435
0.290
0.206
0.138
0.094
0.067
0.063
0.063
2.950
1.250
0.680
0.442
0.295
0.208
0.140
0.098
0.067
0.063
0.059
2.950
1.350
0.900
0.500
0.305
0.205
0.140
0.105
0.080
0.074
0.064
10 VOLTS DC WORKING; 12 VOLTS DC SURGE
16 VOLTS DC WORKING; 20 VOLTS DC SURGE
25 VOLTS DC WORKING; 35 VOLTS DC SURGE
511D
STANDARD RATINGS FOR TYPE 511D
Max.
Max. Max. Ripple Max. Ripple Max.
ESR
ESR
Z
Current
Current
Nominal
Rated
+25°C
+25°C
+25°C
Catalog Number
Case Size
+85°C
+85°C
Capacitance
120Hz 20-40kHz
DxL
120Hz
20-40kHz 100kHz
(µF)
(A
rms
)
(mm)
(A
rms
)
(Ω)
(Ω)
(Ω)
35 VOLTS DC WORKING; 45 VOLTS DC SURGE
33
68
120
220
330
390
680
1,000
1,500
1,800
2,200
22
47
82
120
180
270
390
560
820
1,000
12
27
47
82
150
150
270
470
680
820
1,200
4.7
10
18
33
56
56
120
180
270
330
470
511D336M035AA4D
511D686M035BB4D
511D127M035CC4D
511D227M035CD4D
511D337M035CG4D
511D397M035DG4D
511D687M035DK4D
511D108M035EK4D
511D158M035EN4D
511D188M035ER4D
511D228M035FR4D
511D226M050AA4D
511D476M050BB4D
511D826M050CC4D
511D127M050CD4D
511D187M050CG4D
511D277M050DG4D
511D397M050DK4D
511D567M050EK4D
511D827M050EN4D
511D108M050ER4D
511D126M063AA4D
511D276M063BB4D
511D476M063CC4D
511D826M063CD4D
511D157M063CG4D
511D157M063DG4D
511D277M063DK4D
511D477M063EK4D
511D687M063EN4D
511D827M063ER4D
511D128M063FR4D
511D475M100AA4D
511D106M100BB4D
511D185M100CC4D
511D336M100CD4D
511D566M100CG4D
511D566M100DG4D
511D127M100DK4D
511D187M100EK4D
511D277M100EN4D
511D337M100ER4D
511D477M100FR4D
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.0 x 11.0
8.0 x 12.0
10.0 x 13.0
10.0 x 16.0
10.0 x 20.0
12.5 x 20.0
12.5 x 25.0
16.0 x 25.0
16.0 x 32.0
16.0 x 36.0
18.0 x 36.0
6.777
3.260
1.830
1.016
0.677
0.554
0.326
0.223
0.165
0.132
0.121
7.330
3.884
1.940
1.320
0.881
0.601
0.401
0.281
0.194
0.161
12.01
5.450
3.076
1.760
1.010
1.010
0.345
0.307
0.214
0.176
0.165
30.79
14.63
8.010
4.440
2.550
2.550
1.210
0.801
0.545
0.444
0.361
3.600
1.400
1.010
0.460
0.305
0.210
0.150
0.110
0.078
0.060
0.060
3.750
1.510
1.050
0.466
0.311
0.221
0.181
0.121
0.083
0.065
4.010
1.610
1.170
0.501
0.331
0.250
0.201
0.125
0.101
0.071
0.065
4.310
1.810
1.250
0.531
0.351
0.265
0.215
0.134
0.108
0.076
0.071
0.084
0.149
0.239
0.344
0.468
0.590
0.838
1.170
1.490
1.760
1.980
0.081
0.137
0.232
0.302
0.411
0.567
0.756
1.040
1.380
1.590
0.064
0.116
0.184
0.262
0.385
0.439
0.815
0.995
1.320
1.520
1.690
0.041
0.071
0.114
0.165
0.241
0.276
0.437
0.616
0.824
0.958
1.150
0.115
0.228
0.323
0.512
0.697
0.959
1.236
1.660
2.180
2.610
2.810
0.113
0.221
0.315
0.509
0.691
0.937
1.130
1.590
2.110
2.510
0.109
0.214
0.299
0.491
0.671
0.879
1.070
1.560
1.930
2.410
2.710
0.106
0.202
0.289
0.477
0.651
0.854
1.030
1.510
1.850
2.320
2.610
3.500
1.400
0.980
0.470
0.310
0.220
0.157
0.112
0.078
0.062
0.062
3.410
1.450
1.010
0.488
0.321
0.231
0.175
0.121
0.083
0.068
3.810
1.510
1.110
0.511
0.341
0.255
0.211
0.125
0.101
0.072
0.068
4.210
1.710
1.250
0.531
0.351
0.265
0.215
0.134
0.108
0.078
0.074
50 VOLTS DC WORKING; 63 VOLTS DC SURGE
63 VOLTS DC WORKING; 75 VOLTS DC SURGE
100 VOLTS DC WORKING; 125 VOLTS DC SURGE
Wireless Connectivity
京公网安备 11010802033920号
EEWORLD
