9418S-FL-00-85-PP datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 9418S-FL-00-85-PP

Preview

9418S-FL-00-85-PP: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9418S-FL-00-85-PP Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

9418S-FL-00-85-PP Parametric

Parameter Name	Attribute value
Objectid	1322271793
Reach Compliance Code	unknown
Other features	PICK & PLACE PAD
body width	0.165 inch
subject depth	0.11 inch
body length	0.725 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9400S
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

CC

S

Specifications

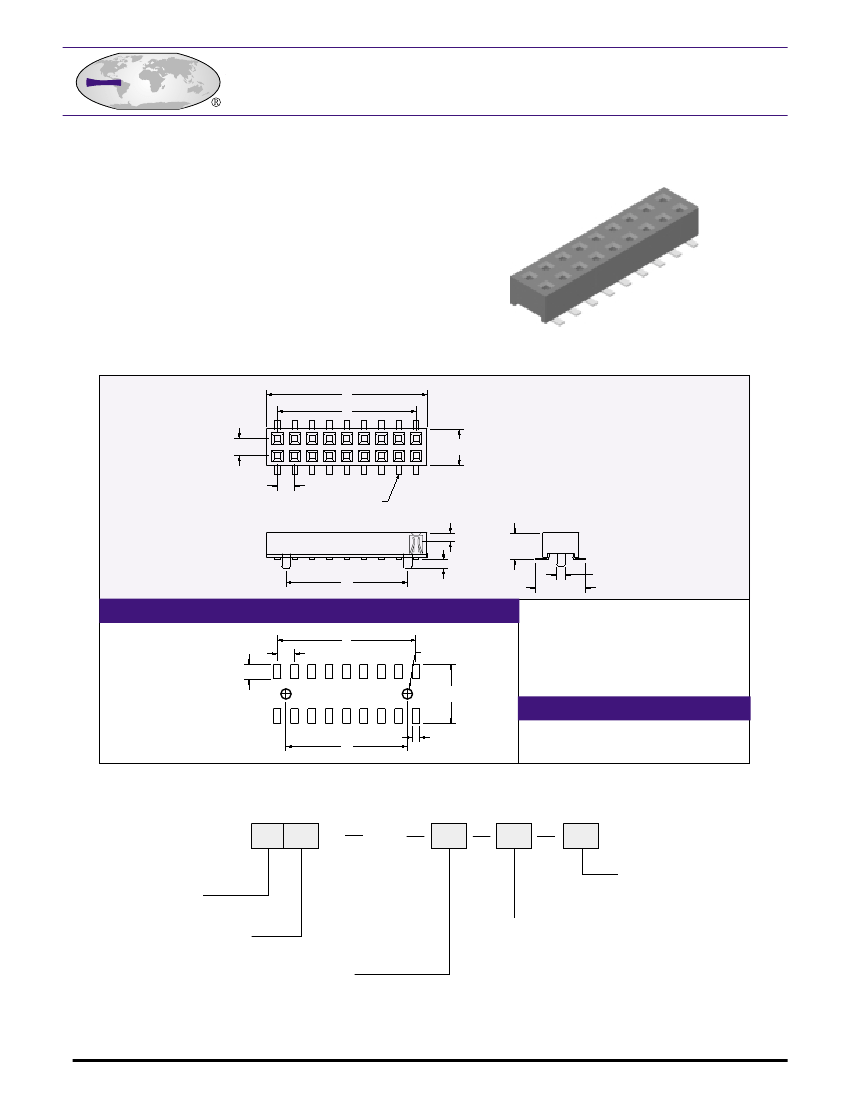

.079 [2.00] Low Profile SMT Socket

9400S Series Sockets

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Contact Resistance:

20 m ohms max.

Max Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

A

B

.079 [2.0]

.165 [4.20]

.0787 [2.0] TYP

.

.020 x.006 [.5 x.15]

.033 [.85]

.039 [1.00]

C

.110 [2.8]

Ø .039 [1.0]

.228 [5.8]

PCB LAYOUT

B

.0787 [2.0]

.065 [1.65]

.268 [6.8]

Ø.047 [1.20]

A

= .016+.0787 x No. of Pos.

B

= .0787 x (No. Of Cont./2 -1)

C

= .0787 x (No. Of Cont./2 -2)

SUGGESTED MATING CONNECTORS

C

.035 [.89]

(PAGE F-22)

94XX-BX-XX-XX

94XX-DX-XX-XX (PAGE F-23)

94XX-EX-XX-XX-X (PAGE F-24)

DIMENSIONS ARE IN INCHES & [MM]

PART NUMBERING

94 XX S

SERIES CODE

.079 SOCKETS

FL

XX

PACKAGING

TR

= TAPE & REEL PACKAGING

PP

= PICK AND PLACE PAD

BLANK = STANDARD PACKAGING

NO. OF CONTACTS

06 - 60

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

00

= 100µ”Sn

100µ”Sn

03

= Au Flash

Au Flash

80

= 10µ”Au

10µ”Au

85

= 15µ”Au

15µ”Au

90

= 30µ”Au

30µ”Au

CONSULT FACTORY FOR

TR

AND

PP

PACKAGING

AVAILABILITY

LOCATING PEG

00

= WITHOUT LOCATING PEG

01

= WITH LOCATING PEG

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
