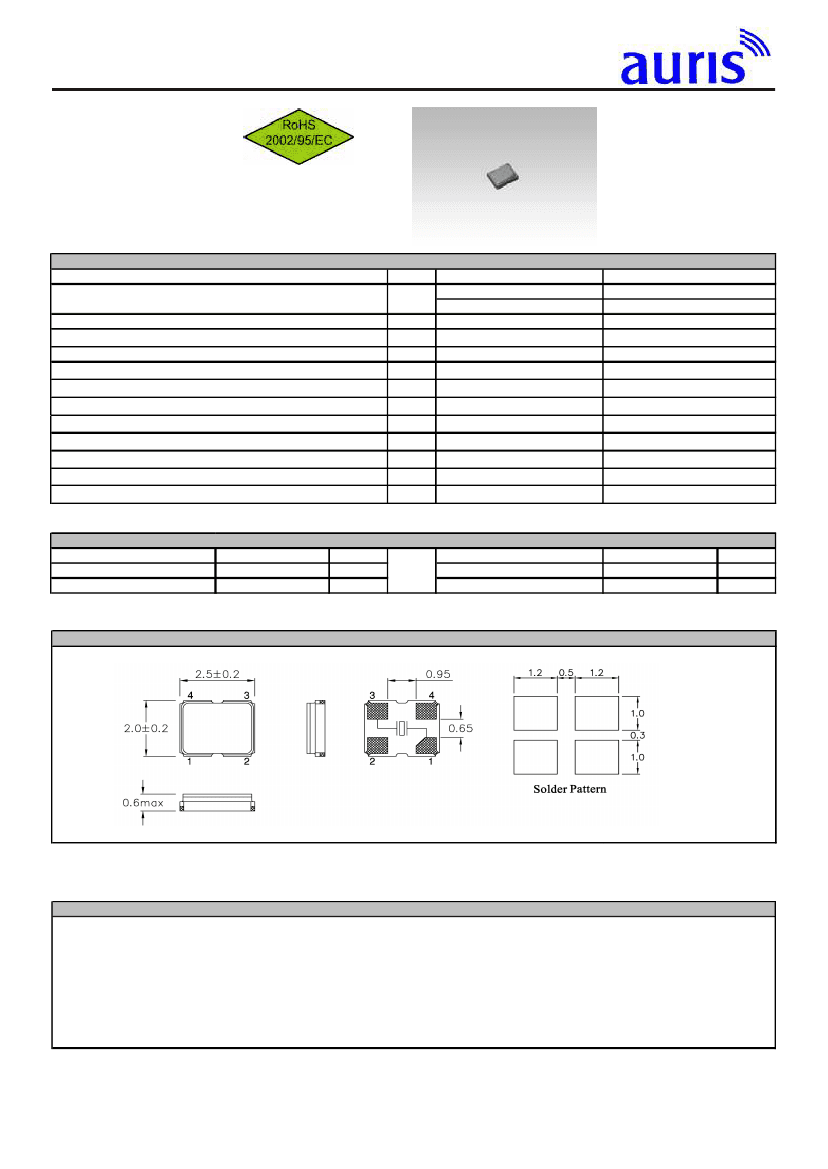

Quartz SMD, Ceramic
HC 2520/4
Features:
- SMD
- High reliability
- Application: Bluetooth, wireless LAN
- Ultra thin and small leadless type
Specifications
Frequency range
Frequency tolerance,Ta=25°C
Load capacitance
Temperature tolerance
Storage temperature range
Operating temperature range
Maximum drive level
Recommended drive level
Series resistance
Shunt capacitance
Insulation resistance
Aging
Symbol
f
∆f/f
C
L
∆f/f
T
STG
T
OPR
M
DL
R
DL
R
1
C
0
I
R
∆f
A
HC2520/4
16.000MHz ~ 50.000MHz
-
±10ppm ~ ±50ppm
7pf ~ 32pF
±10ppm ~ ±50ppm
-40°C ~ +85°C
-10°C ~ +60°C; -40°C ~ 85°C
100µW
50µW
As per table
3pF
500M Ohm
±1 ~ ±3ppm/Year
Remarks
Fundamental mode
Please specify
Please specify
Please specify
Others are offered
25°C ±3°C
Max.
Min.
Resistance of series resonance (ESR)
Frequency (MHz)
Mode
16.00 <= f < 26.00
Fundamental
26.00 <= f < 35.00
Fundamental
Ohm max
150
100
Frequency (MHz)
35.0 0<= f < 50.00
Mode
Fundamental
Ohm max
60
Drawing
HC2520/4
Dimensions in mm
Order key
Q
Part
- 20.000000M - HC2520/4
Frequency
Package
-F
Mode of
oscillation
- 30
Frequency
tolerance
±ppm
(25°C)
- 30
Temperature
tolerance
±ppm
(Temp. range)
-A
Temperature
range
A=
0°C ~ +70°C
- 10
Load
capacitance
pF
- TR
Option
Q=Quartz
M=MHz
HC2520/4
F=fund.
TR=Tape and reel
X=Special options
B= -10°C ~ +60°C
C= -10°C ~ +70°C
D= -20°C ~ +70°C
E= -40°C ~ +85°C
