633M/634M
SERIES

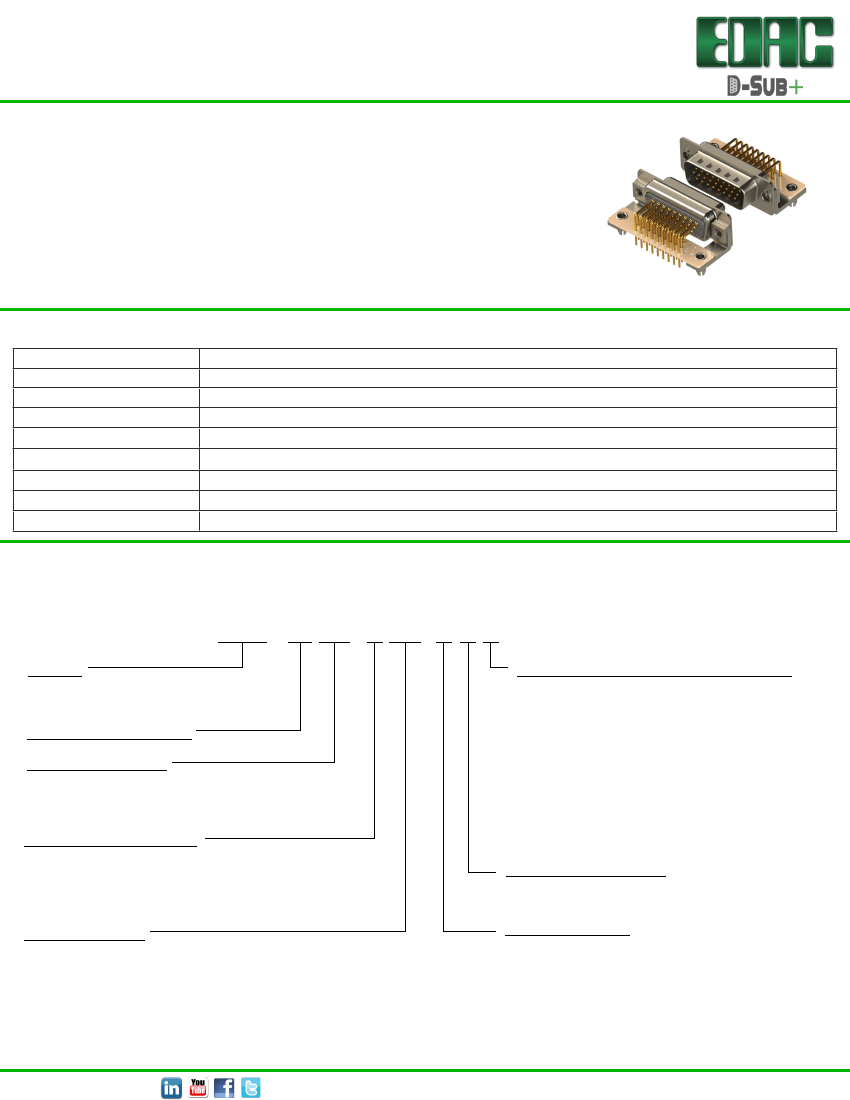

Machined D-Sub Connectors: Right Angle, High Density, 0.350” (8.89mm) Footprint
Features:
•
•
•
•
•
•
•
•
High density three contact rows with 0.350”(8.89mm) footprint, right angle bend with machined
contacts

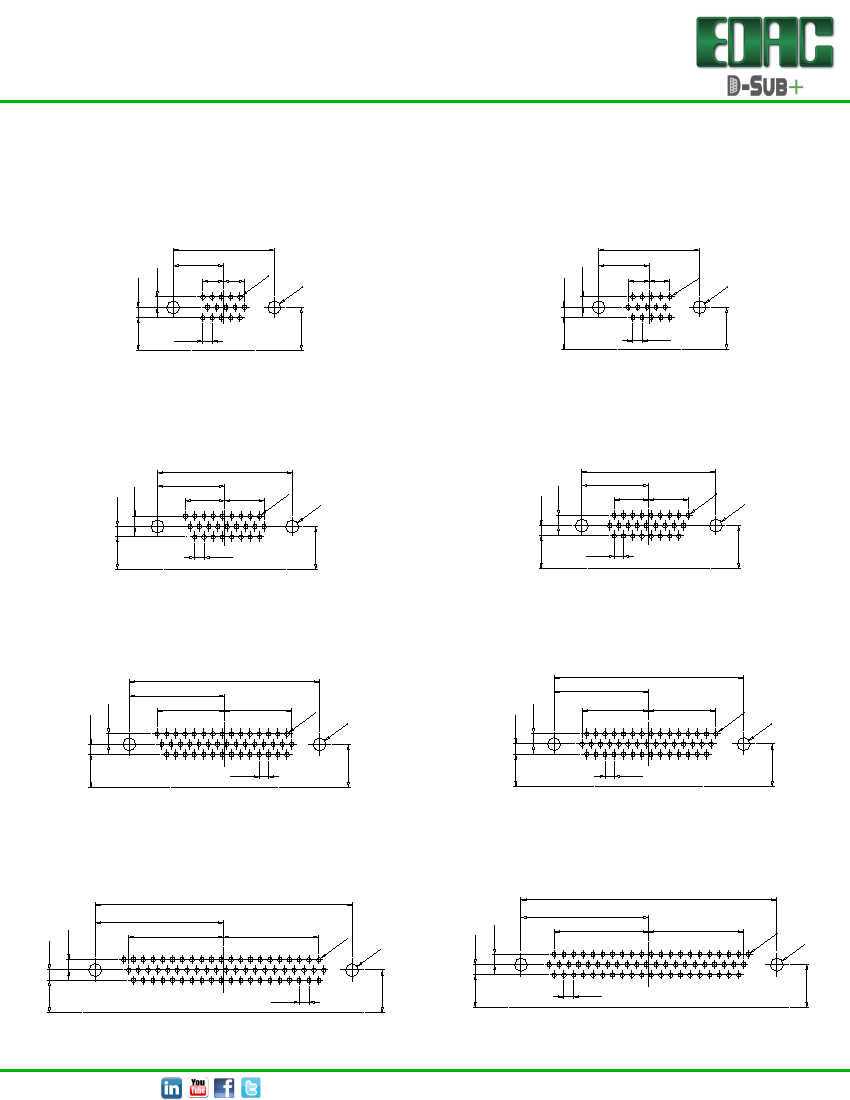

0.090”(2.29mm) contact spacing, 0.078”(1.98mm) row spacing
Plug and receptacle in 15, 26, 44 or 62 contact sizes
Pin and socket contact mating design with P.C. tail termination
Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating
retention
Grounding features include brackets and four prong boardlock for exceptional retention to P.C. board
Mounting options for panel mount or connector mating include through hole, threaded inserts and
threaded standoffs
D-shaped connector mating outline provides polarization
Specifications:
Insulator Material
Contact Material
Contact Plating
Shell Material
Current Rating
Contact Resistance
Dielectric Withstanding Voltage
Insulation Resistance
Operating Temperature
PA9T, UL 94V-0, Color: Black or White (PA6T, UL 94V-0 for 62 Contacts)
Copper Alloy
Gold Plating over Nickel All Over
Nickel Plated Steel
5 amps
10 Milliohms maximum
5000 megaohms minimum
1000 V AC rms at Sea Level
-55°C To +125°C
Ordering Code:
634-M15-263-BN1
SERIES:
633: PLUG (PIN)
634: RECEPTACLE (SOCKET)
MACHINED CONTACTS
NO. OF CONTACTS:
15 - 15 CONTACTS 26 - 26 CONTACTS
44 - 44 CONTACTS 62 - 62 CONTACTS
CONTACT FINISH CODE:
2 - GOLD FLASH PLATING
3 - 15 MICROINCHES OF GOLD PLATING
6 - 30 MICROINCHES OF GOLD PLATING
CONTACT CODE:
63 - STANDARD CONTACT TAIL LENGTH(3.50 ±0.40)
MOUNTING & GROUNDING OPTIONS:
1 - Ø3.05 THRU HOLE
2 - 4-40 UNC INSERT
3 - 4-40 UNC INSERT + STABILIZER PCB +
4 PRONG BOARD LOCK
4 - 4-40 UNC INSERT + STABILIZER PCB +
Ø3.20 DIA HOLE
5 - 4-40 UNC STANDOFF + STABILIZER PCB +
4 PRONG BOARD LOCK
6 - 4-40 UNC STANDOFF + STABILIZER PCB +
Ø3.20 DIA HOLE
SHELL PLATING CODE:
N - NICKEL
T - TIN
MATERIAL CODE:
B - BLACK
W - WHITE
www.edac.net
customerservice@edac.net
633M/634M
SERIES
Machined D-Sub Connectors: Right Angle, High Density, 0.350” (8.89mm) Footprint

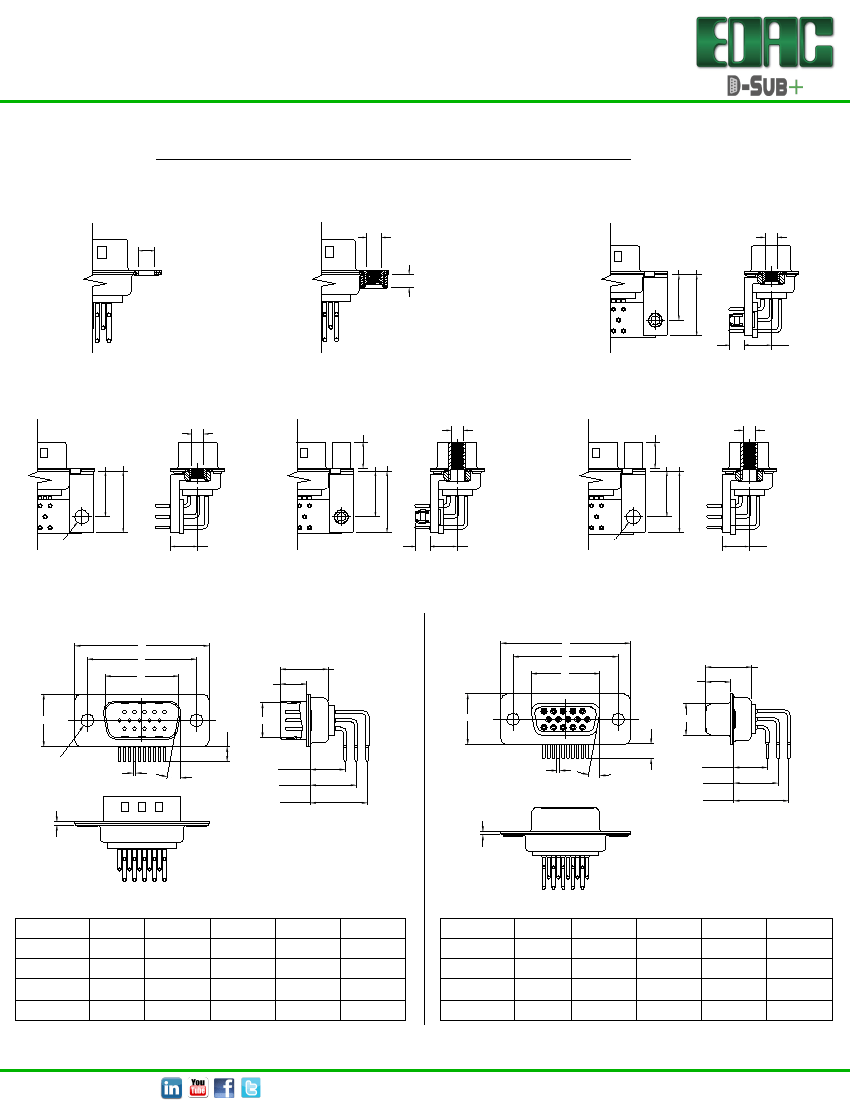

MOUNTING & GROUNDING OPTIONS
CODE - 1
THRU HOLE
Ø 3.05
CODE - 2
4-40 UNC INSERT
#4-40 UNC
CODE - 3
4-40 UNC INSERT+PCB + BOARDLOCK
#4-40 UNC
2.70
11.43
15.10
3.30
6.25
CODE - 4
4-40 UNC INSERT+PCB + THRU HOLE
#4-40 UNC
CODE - 5
4-40 UNC STANDOFF+PCB + BOARDLOCK
6.00
#4-40 UNC
CODE- 6
4-40 UNC STANDOFF+PCB + THRU HOLE
6.00
#4-40 UNC
15.10
11.43
15.10
.2
0
PLUG
A
B
C
11.00±0.30
6.10
A
B
C
RECEPTACLE
10.70±0.30
5.80
Ø3
.2
0
6.25
3.30
6.25
11.43
15.10
11.43
6.25
Ø3
3.10±0.40
3.10±0.40
D
D
.05
E
Ø0.65
Ø3
10°
8.89
11.43
13.97
Ø0.65
10°
0.80
No. of pos.
15
26
44
62
A
30.80
39.20
53.05
69.40
B
25.00
33.30
47.05
63.50
C
16.90
25.25
38.95
55.40
D
12.50
12.50
12.50
12.50
E
8.30
8.30
8.30
8.30
No. of pos.
15
26
44
62
0.80
A
30.80
39.20
53.05
69.40
B
25.00
33.30
47.05
63.50
C
16.30
24.60
38.40
54.80
E
8.89
11.43
13.97
D
12.50
12.50
12.50
12.50
E
7.90
7.90
7.90
7.90
