Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Floating Electrode Design with Flexible Termination System
(FF-CAP), X7R Dielectric, 6.3 – 250 VDC (Commercial & Automotive Grade)
Overview
KEMET’s Floating Electrode with Flexible Termination capacitor
(FF-CAP) combines two existing KEMET technologies–
Floating Electrode and Flexible Termination. The floating
electrode component utilizes a cascading internal electrode
design configured to form multiple capacitors in series within
a single monolithic structure. This unique configuration results
in enhanced voltage and ESD performance over standard
capacitor designs while allowing for a fail-open condition if
mechanically damaged (cracked). The flexible termination
component utilizes a conductive silver epoxy between the base
metal and nickel barrier layers of KEMET’s standard termination
system in order to establish pliability while maintaining terminal
strength, solderability and electrical performance. Both
technologies address the primary failure mode of MLCCs– flex
cracks, which are typically the result of excessive tensile and
shear stresses produced during board flexure and thermal
cycling.
Although neither technology can eliminate the potential for
mechanical damage that may propagate during extreme
environmental and/or handling conditions, the combination of
these two technologies provide the ultimate level of protection
against a low IR or short circuit condition. The FF-CAP
complements KEMET’s Open Mode, Floating Electrode (FE-CAP),
Flexible Termination (FT-CAP) and KEMET Power Solutions (KPS)
product lines by providing an ultimate fail-safe design optimized
for low to mid range capacitance values. These devices exhibit a
predictable change in capacitance with respect to time and voltage
and boast a minimal change in capacitance with reference to
ambient temperature. Capacitance change is limited to ±15% from
-55°C to +125°C.
In addition to Commercial Grade, Automotive Grade devices
are available which meet the demanding Automotive Electronics
Council's AEC–Q200 qualification requirements.

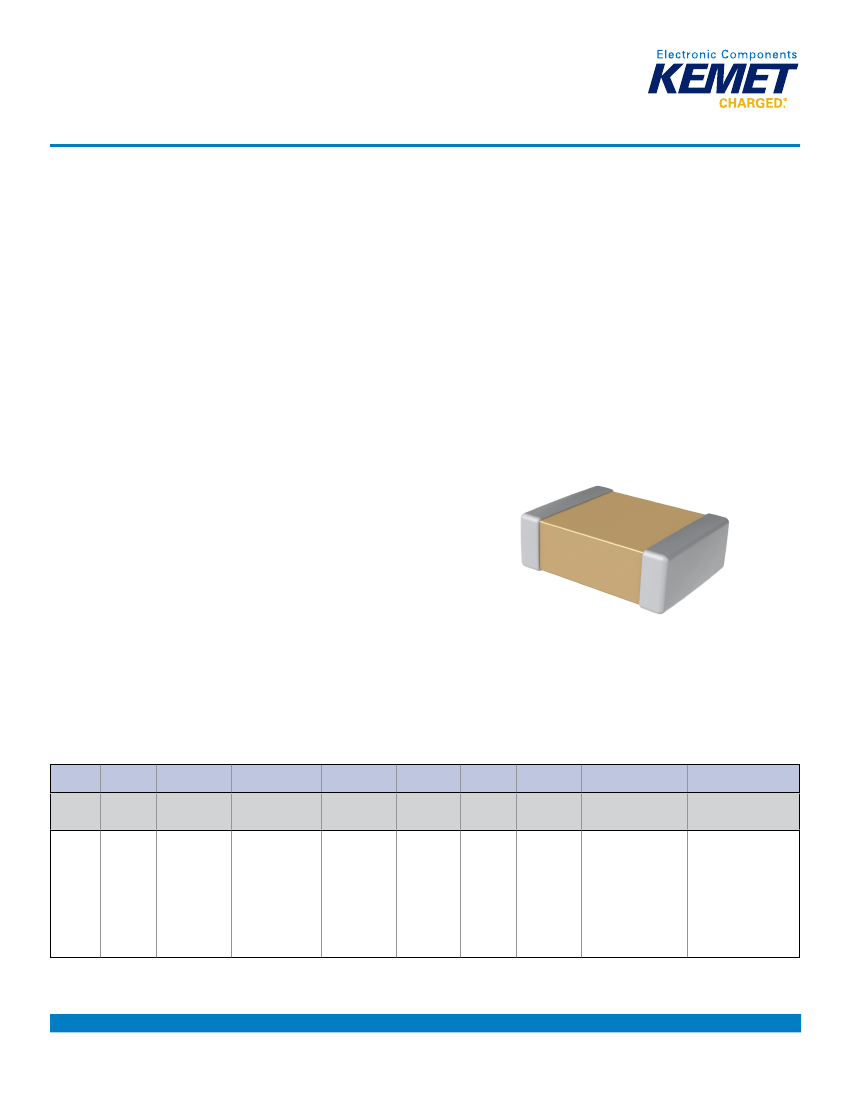

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
0805
Y
104
Capacitance
Code (pF)
2 Significant
Digits + Number
of Zeros
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
5
Voltage
9 = 6.3 V
8 = 10 V
4 = 16 V
3 = 25 V
5 = 50 V
1 = 100 V
2 = 200 V
A = 250 V
R
Dielectric
R = X7R
A
C
TU
Packaging/Grade
(C-Spec)
2
Blank = Bulk
TU = 7" Reel
Unmarked
TM = 7" Reel Marked
Case Size
Specification/
(L" x W")
Series
0603
0805
1206
1210
1812
Y = Floating
Electrode
with Flexible
Termination
Failure Rate/
Termination Finish
1
Design
A = N/A
C = 100% Matte Sn
L = SnPb (5%
minimum)
Additional termination finish options may be available. Contact KEMET for details.
SnPb termination finish option is not available on automotive grade product.
2
Additional reeling or packaging options may be available. Contact KEMET for details.
1
1,2
One world. One KEMET
C1015_X7R_FF-CAP_SMD • 6/6/2014
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Floating Electrode Design with Flexible Termination System (FF-CAP), X7R Dielectric, (Commercial & Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA
Size
Code
0603
0805
1206
1210
1812
Metric
Size
Code
1608
2012
3216
3225
4532
L
Length
1.60 (.064) ± 0.17 (.007)
2.00 (.079) ± 0.20 (.008)
3.30 (.130) ± 0.40 (.016)
3.30 (.130) ± 0.40 (.016)
4.50 (.178) ± 0.40 (.016)
W
Width
0.80 (.032) ± 0.15 (.006)
1.25 (.049) ± 0.20 (.008)
1.60 (.063) ± 0.20 (.008)
2.50 (.098) ± 0.20 (.008)
3.20 (.126) ± 0.30 (.012)
T
Thickness
B
Bandwidth
0.45 (.018) ± 0.15 (.006)
0.50 (0.02) ± 0.25 (.010)
S
Separation
Minimum
0.58 (.023)
0.75 (.030)
Mounting
Technique
Solder Wave or
Solder Reflow
Solder Reflow
Only
See Table 2 for
0.60 (.024) ± 0.25 (.010)
Thickness
0.60 (.024) ± 0.25 (.010)
0.70 (.028) ± 0.35 (.014)
N/A
Benefits
•
•
•
•
•
•
•
-55°C to +125°C operating temperature range
Superior flex performance (up to 5 mm)
Floating Electrode/fail open design
Low to mid capacitance flex mitigation
Lead (Pb)-Free, RoHS and REACH compliant
EIA 0603, 0805, 1206, 1210, and 1812 case sizes
DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V,
200 V, and 250 V
Capacitance offerings ranging from 180 pF to 0.22 μF
Available capacitance tolerances of ±5%, ±10%, and ±20%
Commercial & Automotive (AEC–Q200) grades available
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for
excellent solderability
• SnPb termination finish option available upon request (5%
minimum)
•
•
•
•
•
Applications
Typical applications include circuits with a direct battery or power source connection, critical and safety relevant circuits without
(integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Examples
include raw power input side filtering (power plane/bus), high current applications (automobile battery line) and circuits that cannot be
fused to open. Markets include consumer, medical, industrial (power supply), automotive, aerospace and telecom.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1015_X7R_FF-CAP_SMD • 6/6/2014
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Floating Electrode Design with Flexible Termination System (FF-CAP), X7R Dielectric, (Commercial & Automotive Grade)
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in
Table 4, Performance & Reliability.
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-Free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±15%
3.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
5% (6.3 and 10 V), 3.5% (16 and 25 V) and 2.5% (50 to 250 V)
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1015_X7R_FF-CAP_SMD • 6/6/2014
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Floating Electrode Design with Flexible Termination System (FF-CAP), X7R Dielectric, (Commercial & Automotive Grade)
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X7R
16/25
< 16
All
Capacitance
Value
Dissipation Factor
(Maximum %)
3.0
5.0
7.5
±20%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
Insulation Resistance Limit Table (X7R Dielectric)
EIA Case Size
0201
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
1,000 Megohm
Microfarads or 100 GΩ
N/A
< 0.012 µF
< 0.047 µF
< 0.15 µF
< 0.47 µF
< 0.39 µF
ALL
< 2.2 µF
ALL
< 10 µF
ALL
500 Megohm
Microfarads or 10 GΩ
ALL
≥ 0.012 µF
≥ 0.047 µF
≥ 0.15 µF
≥ 0.47 µF
≥ 0.39 µF
N/A
≥ 2.2 µF
N/A
≥ 10 µF
N/A
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1015_X7R_FF-CAP_SMD • 6/6/2014
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Floating Electrode Design with Flexible Termination System (FF-CAP), X7R Dielectric, (Commercial & Automotive Grade)
Table 1A – Capacitance Range/Selection Waterfall (0603 – 0805 Case Sizes)
Cap
Code
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
Case Size/
Series
Voltage Code
Rated Voltage
(VDC)
C0603Y
9
6.3
8
10
4
16
3
25
5
50
1
100
2
200
9
6.3
8
10
4
16
C0805Y
3
25
5
50
1
100
2
200
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
200
2
A
250
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
250
A
Capacitance
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF
1,000 pF
1,200 pF
1,500 pF
1,800 pF
2,200 pF
2,700 pF
3,300 pF
3,900 pF
4,700 pF
5,600 pF
6,800 pF
8,200 pF
10,000 pF
12,000 pF
15,000 pF
18,000 pF
22,000 pF
27,000 pF
33,000 pF
39,000 pF
47,000 pF
56,000 pF
68,000 pF
82,000 pF
0.10 µF
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
Capacitance
Tolerance
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
Rated Voltage
(VDC)
Voltage Code
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
Product Availability and Chip Thickness Codes
See Table 2 for Chip Thickness Dimensions
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
CF
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DG
DG
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DG
DG
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DG
DG
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DG
DG
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DG
DG
50
5
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DC
DD
DD
DD
200
100
Capacitance
Cap Code
9
8
4
3
5
1
2
9
8
4
3
Case Size/Series
C0603Y
C0805Y
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1015_X7R_FF-CAP_SMD • 6/6/2014
100
1
6.3
6.3
50
25
25
10
16
10
16
5
京公网安备 11010802033920号
EEWORLD
