2214-29-S-01

Description
Board Connector, 29 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size71KB,1 Pages
ManufacturerSingatron Enterprises Co
Download Datasheet Parametric View All

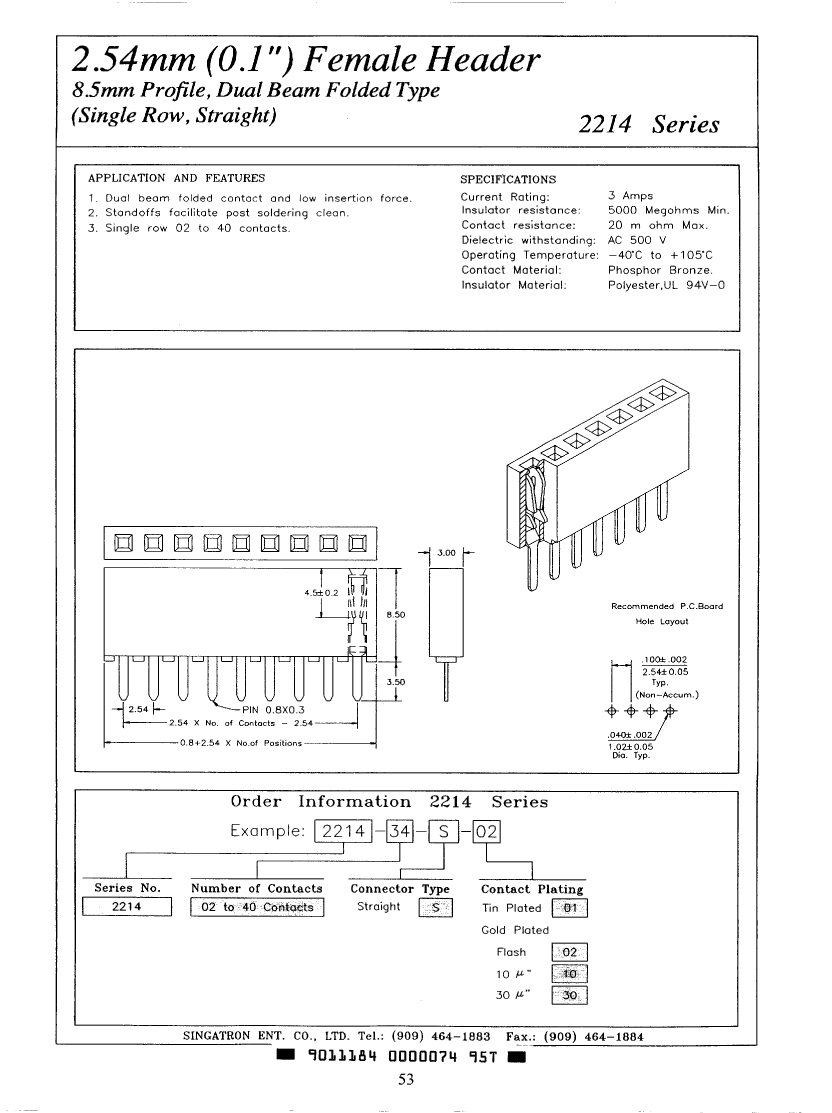

2214-29-S-01 Overview

Board Connector, 29 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

2214-29-S-01 Parametric

Parameter NameAttribute value
MakerSingatron Enterprises Co
Reach Compliance Codecompli
body width0.118 inch
subject depth0.335 inch
body length2.931 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
maximum insertion forceLIF N
Insulation resistance5000000000 Ω
insulator materialPOLYESTER
Manufacturer's serial number2214
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts29
Base Number Matches1
