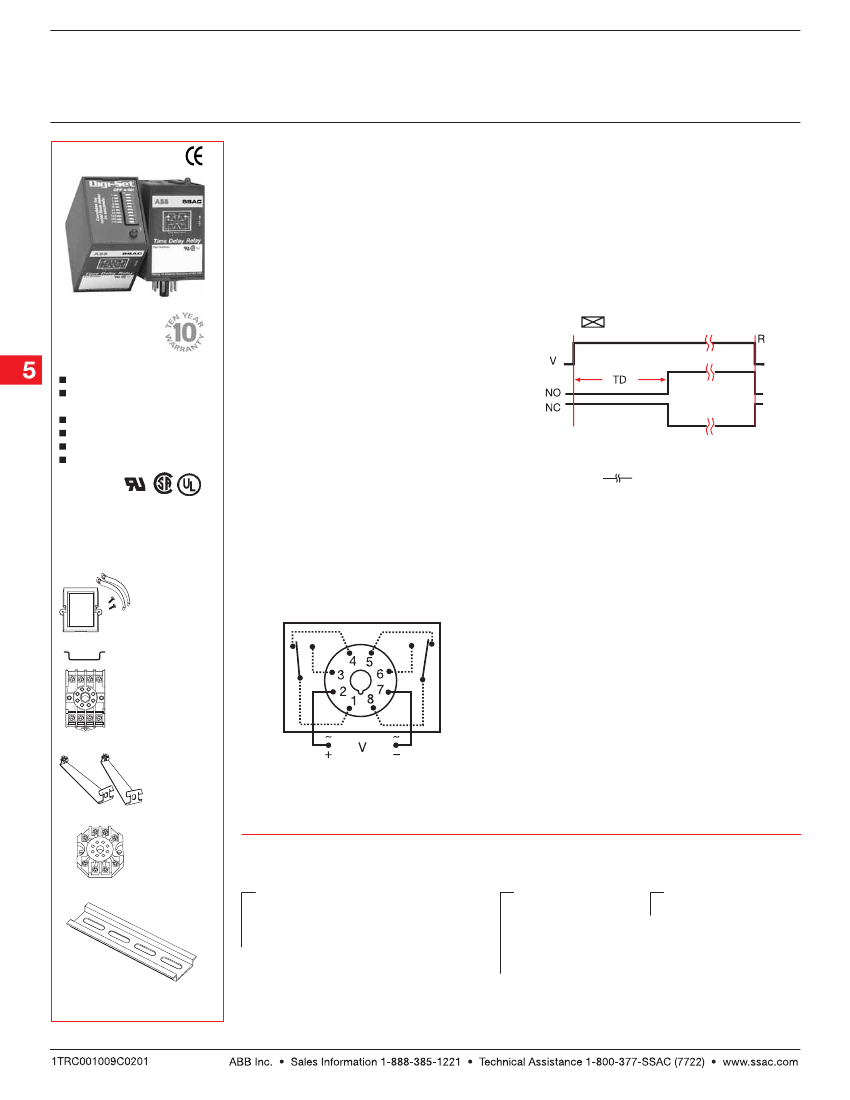

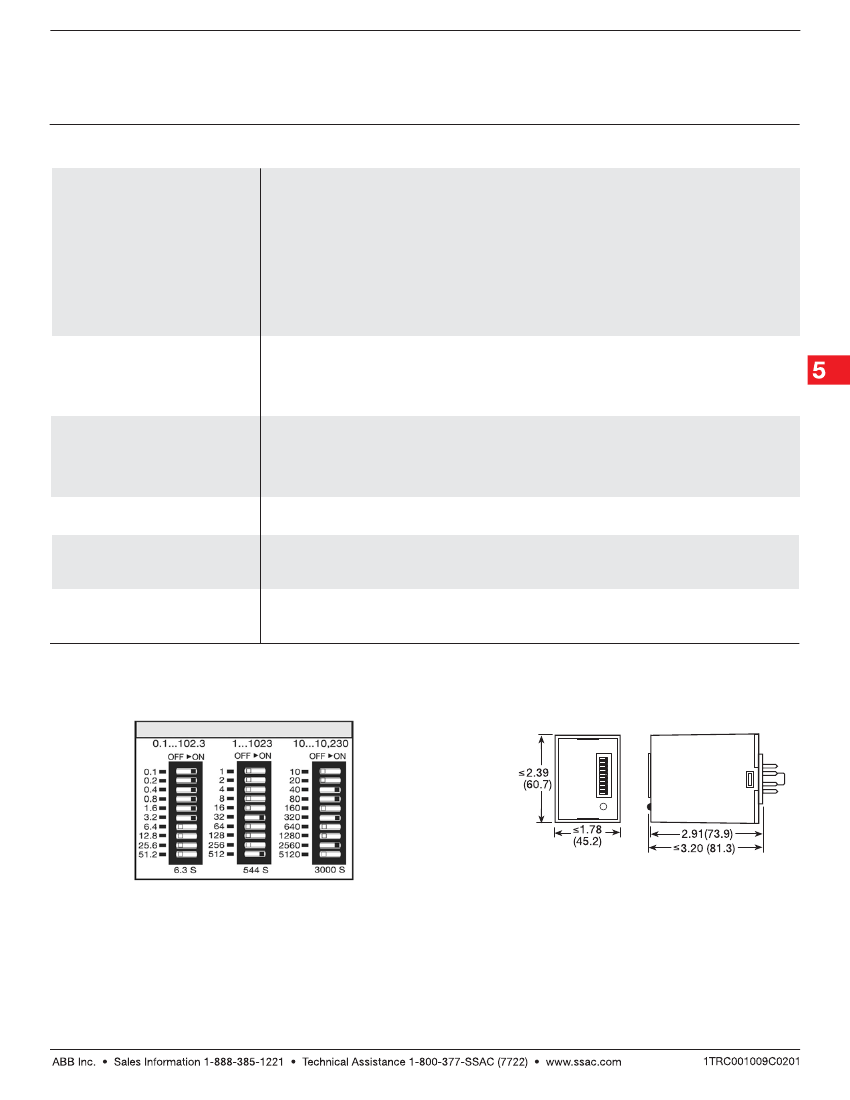

Delay On Make (Operate)
TDML, TDM, TDMH Series
Time Delay Relay
Description
The TDM Series is a delay on make timer that combines accurate digital circuitry with isolated DPDT relay
contacts in an industry standard 8 pin plug-in package. DIP switch adjustment allows precise selection of the
time delay over the full time delay range. The TDM Series is the product of choice for custom control panel and
OEM designers.
Operation
Upon application of input voltage, the time delay begins.
The output is de-energized before and during the time
delay. At the end of the time delay, the output relay
energizes and remains energized until input voltage is
removed.
Reset:
Removing input voltage resets the time delay
and output.
Function
Delay On Make
Switch Settable Time Delay
Three Time Ranges from
100 ms ... 10,230 s
+/-0.1% Repeat Accuracy
+/-2% Setting Accuracy
DPDT, 10 A Output Contacts
LED Indication
Approvals:
** 8 pin models used in
combination with P1011-6
socket only.
**
V = Voltage TD = Time Delay R = Reset
NO = Normally Open NC = Normally Closed
= Undefined time
Accessories
Connection
Panel mount kit
P/N: BZ1
Octal
8 pin socket
P/N: NDS-8
Hold down clips
P/N: PSC8
Relay contacts are isolated. Dashed lines are
internal connections.
Octal Socket
for UL Listing
P/N: P1011-6
Ordering Table
Ordering Table
X
Series/Time Range
–
TDML
- 0.1 ... 102.3 s in 0.1 s increments
–
TDM
-
1 ... 1023 s in 1 s increments
–
TDMH
- 10 ... 10,230 s in 10 s increments
X
Input
–
12D
- 12 V DC
–
24A
- 24 V AC
–
24D
- 24 V DC/28 V DC
–110D - 110 V DC
110D
–120A - 120 V AC
120A
–230A - 230 V AC
230A
X
LED Indication
–
L
12.22.04
TDM02B01
DIN rail P/Ns:
017322005 (Steel)
C103PM (Al)
See accessory pages for
specifications.
5.2
Example P/N:
TDM120AL
Low Voltage Products & Systems
Delay On Make (Operate)
TDML, TDM, TDMH Series
Time Delay Relay
Technical Data
Time Delay
Type
Range*
Repeat Accuracy
Setting Accuracy
Reset Time
Recycle Time
Time Delay vs. Temperature & Voltage
Indicator
Input
Voltage
Tolerance
12 V DC & 24 V DC/AC
110 V AC/DC ... 230 V AC
Frequency
Power Consumption
Output
Type
Form
Rating
Life
Protection
Polarity
Isolation Voltage
Mechanical
Mounting
Package
Termination
Environmental
Operating Temperature
Storage Temperature
Weight
Digital integrated circuitry
0.1 ... 102.3 s in 0.1 s increments
1 ... 1023 s in 1 s increments
10 ... 10,230 s in 10 s increments
+/-0.1% or 20 ms, whichever is greater
+/-2% or 50 ms, whichever is greater
≤
50 ms
During Timing -- TDMH:
≤
500 ms
TDM, TDML:
≤
300 ms
+/-2%
LED glows during timing; relay is de-energized
12, 24, or 110 V DC; 24, 120, or 230 V AC
-15% ... +20%
-20% ... +10%
50 ... 60 Hz
≤
2.25 W
* For CE approved applications,
power must be removed from the
unit when a switch position is
changed.
Electromechanical relay
Double pole double throw (DPDT)
10 A resistive at 120/240 V AC & 28 V DC; 1/3 hp at 120/240 V AC
Mechanical -- 1 x10
7
Electrical -- 1 x 10
6
DC units are reverse polarity protected
≥
1500 V RMS input to output
Plug-in socket
3.2 x 2.4 x 1.8 in. (81.3 x 60.7 x 45.2 mm)
Standard octal plug (8 Pin)
-20°C ... +65°C
-30°C ... +85°C
≅
6 oz (170 g)
Mechanical View
Digi-Set Binary Switch Operation
Inches (Millimeters)
TDM02B01
12.22.04
Low Voltage Products & Systems
5.3
