TS-118-G-L-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TS-118-G-L-3

TS-118-G-L-3: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TS-118-G-L-3 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

TS-118-G-L-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
body width	0.1 inch
body length	1.8 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (20) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TS
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

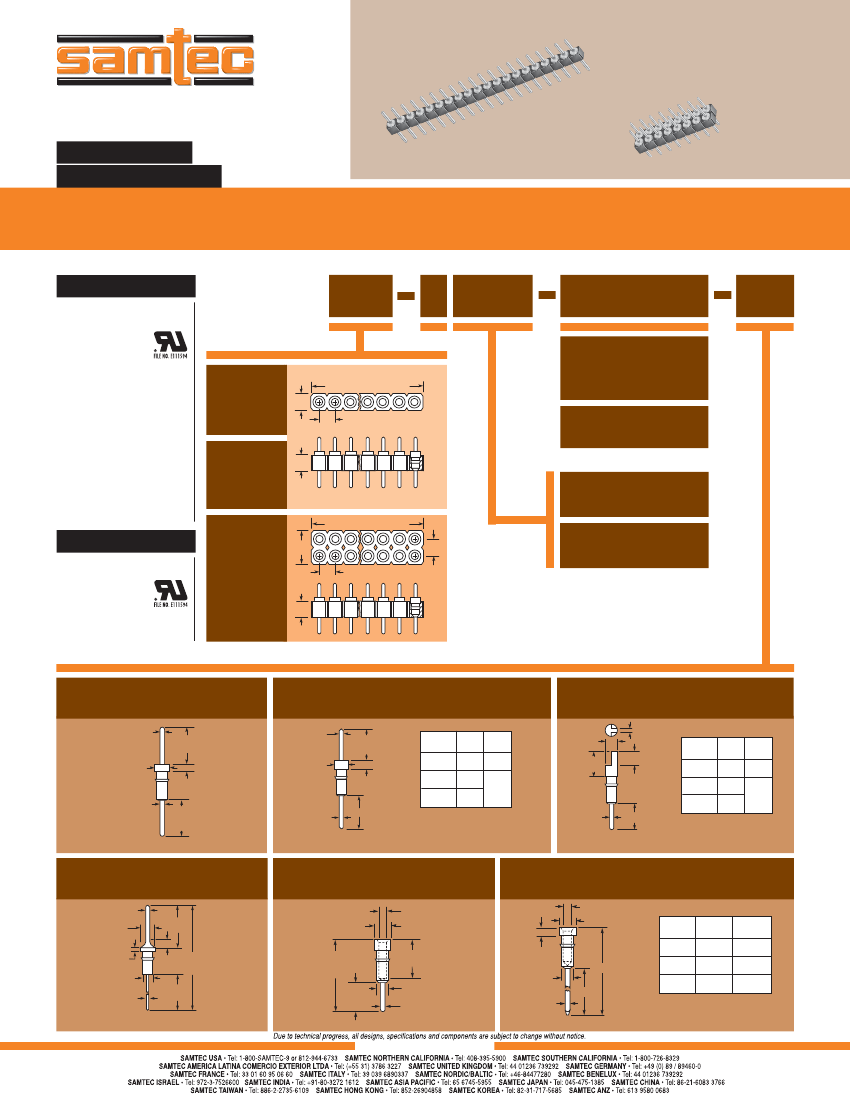

F-213

TS –120– G–A–1

TD –108–G–AA

(2,54 mm) .100"

TS, TD, HTS SERIES

PRECISION MACHINED TERMINAL STRIPS

SPECIFICATIONS

For complete speciﬁcations see

www.samtec.com?TS or

www.samtec.com?TD

Mates with:

SS, SD, HSS, SL,

SDL, ESS, ESD

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

TS, TD

Insulator Material:

Black G.F. Polyester

Terminal Material:

Brass, except Style G is

Phosphor Bronze

Plating:

Au over 50µ" (1,27 µm) Ni or

Sn over 100µ" (2,54 µm) Cu

or 50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Current Rating:

1A per contact

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

= Single

Row Terminal

Strip

(2,54)

.100

(2,54) .100 x No. of Positions

= 20µ" (0,51 µm) Gold

Except –J & –L are

10µ" (0,25 µm) Gold

–G

(2,54)

.100 TYP

–T

= Tin

HTS

= Single Row

High Temp

Terminal Strip

(2,54)

.100

thru

=TS Series

(2,54) .100 x No. of Positions

(5,08)

.200

(2,54)

.100

(2,54)

.100 TYP

SPECIFICATIONS

For complete speciﬁcations see

www.samtec.com?HTS

thru

= HTS & TD Series

= Double Row

Terminal Strip

(2,54)

.100

HTS

Same as TS except:

Insulator Material:

Black Liquid Crystal Polymer

Lead-Free Solderable:

Wave, or reﬂow with all Au

–AA

(0,46)

.018

DIA

(1,78)

.070

DIA

(0,46)

.018

DIA

(4,22)

.166

(0,64)

.025

DIA

(1,78)

.070

DIA

(1,32)

.052

(3,96)

.156

±.015

–A, –A–1, –A–2

(4,22)

.166

–C, –C–1, –C–2

(1,83)

.072

DIA

(3,99)

.157

(2,54)

.100

(0,89)

.035

LEAD

STYLE

-A

-A-1

-A-2

(DIA) (±.015)

(0,46) (3,96)

.018

.156

(0,64)

.025

(5,33)

(0,89) .210

.035

LEAD

STYLE

-C

-C-1

-C-2

(DIA) (±.015)

(0,46) (3,96)

.018

.156

(0,64)

.025

(5,33)

(0,89) .210

.035

(1,32)

.052

Component No. = T-1R5-

-A Component No. =T-1R0-

-A-X Component No. =T-1R7

-C Component No. =T-1R2-

-C-X Component No. =T-1R9-

–G–1

(0,51)

.020 DIA

(1,78)

.070 DIA

(0,51)

.020

(1,32)

.052 DIA

(0,46)

.018 DIA

(4,47)

.176

–J

(1,83)

.072

DIA

(7,62)

.300

± .015

(3,18)

.125

± .010

(1,07)

.042

DIA

(1,07)

.042

–L–1, –L–2, –L–3

(1,83)

.072 DIA

LEAD

STYLE

-L-1

-L-2

-L-3

(DIA)

(12,95)

.510

(9,14)

.360

(6,60)

.260

(±.015)

(17,86)

.703

(14,05)

.553

(11,51)

.453

(12,90)

(1,02) .508

.040 ± .015

(4,75)

.187

(3,81)

.150

(1,32)

.052 DIA

(0,51)

.020 DIA

(0,76)

.030

(1,32)

.052

DIA

(0,64)

.025

Component No. = S-1W1

Component No. = T-1R5-

Component No. = S-1P1-

WWW.SAMTEC.COM
