4610M-AP2-393LF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4610M-AP2-393LF

4610M-AP2-393LF: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.5W, 39000ohm, 100V, 2% +/-Tol, -100,100ppm/Cel,; CategoryPassive components The resistor; File Size247KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4610M-AP2-393LF Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.5W, 39000ohm, 100V, 2% +/-Tol, -100,100ppm/Cel,

4610M-AP2-393LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	770605873
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7.25
structure	Conformal Coated
JESD-609 code	e1
Lead length	3.3 mm
lead spacing	2.54 mm
Network Type	Isolated
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	6.35 mm
Package length	25.35 mm
Package form	SIP
Package width	2.49 mm
method of packing	Ammo Pack
Rated power dissipation(P)	0.5 W
resistance	39000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4600M
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Tolerance	2%
Operating Voltage	100 V

Preview

Download Datasheet

View All

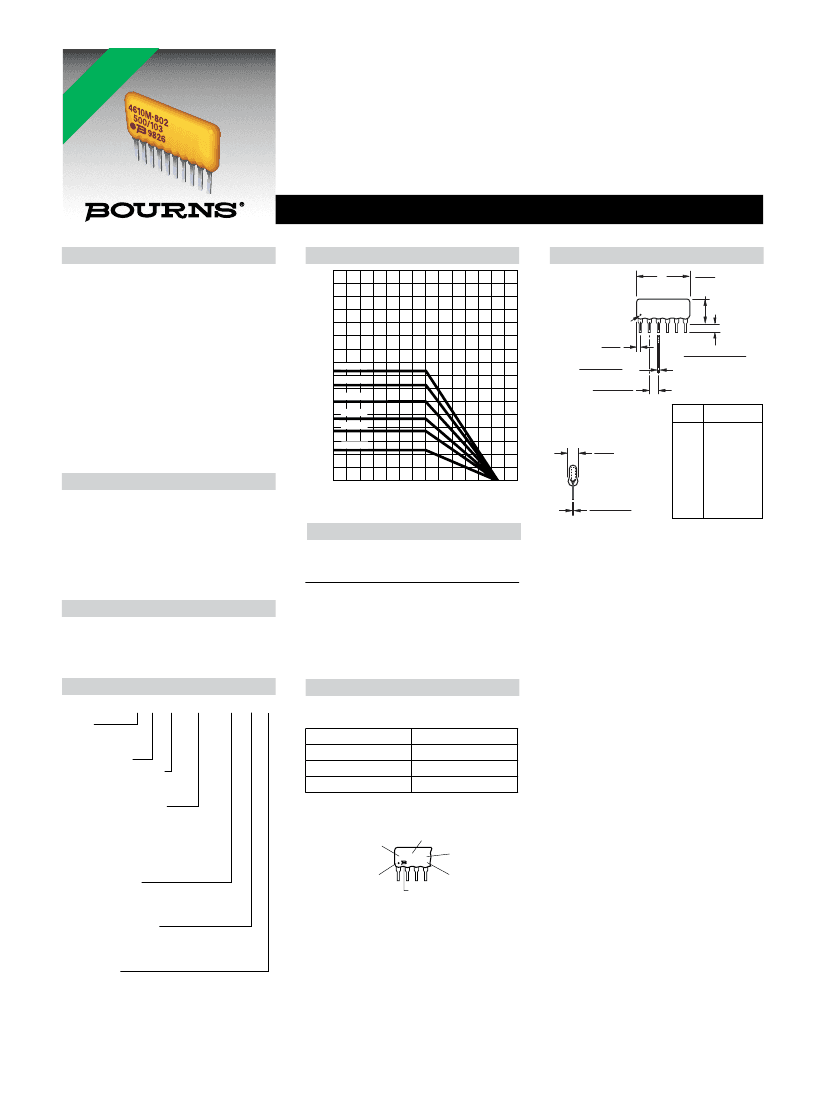

Features

■

RoHS compliant*

■

Medium proﬁle offers increased power

■

Recommended for rosin ﬂux and solvent

handling

■

Wide assortment of pin packages enhances

design ﬂexibility

■

Ammo-pak packaging available

clean or no clean ﬂux processes

■

Marking on contrasting background for

permanent identiﬁcation

4600M Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

....................10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 megohms ... ±100 ppm/°C

below 50

.................... ±250 ppm/°C

above 2.2 megohms ..... ±250 ppm/°C

TCR Tracking ........................ 50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Operating Temperature

............................... -55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202 ........ΔR MAX.

Short Time Overload ................ ±0.25 %

Load Life................................... ±2.00 %

Moisture Resistance ................. ±0.50 %

Resistance to Soldering Heat

.............................................. ±0.50 %

Terminal Strength ..................... ±0.25 %

Thermal Shock ......................... ±0.25 %

Physical Characteristics

Flammability ........Conforms to UL94V-0

Body Material ...................... Epoxy resin

Standard Packaging

..................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

6.35

MAX.

(.250)

3.50

3.00

2.50

4614M

2.00

1.50

1.00

.50

4612M

4610M

4608M

4606M

4604M

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.3 +0.5/-0.3

(.130 +.020/ -.012)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

.254

.050

TYP.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Package Power Ratings (Watts)

Ambient

Temp.

Pkg.

70 °C

Pkg.

70 °C

4604M

0.60

4610M

1.50

4605M

0.75

4611M

1.65

4606M

0.90

4612M

1.80

4607M

1.05

4613M

1.95

4608M

1.20

4614M

2.10

4609M

1.35

Typical Part Marking

Represents total content. Layout may

vary.

Part Number

4606M-101-RC

4608M-102-RC

4610M-104-RC/RC

Part Number

6M-1-RC

8M-2-RC

10M-4-RC/RC

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

46 06 M - 101 - 222 __ LF

Model

(46 = Conformal

SIP)

Number of Pins

Physical Conﬁguration

(M = Thick Film Medium

Proﬁle)

Electrical Conﬁguration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical conﬁgurations EXCEPT 104 & AP4:

LF = Sn/Ag/Cu-plated (RoHS compliant)

• ONLY electrical conﬁgurations 104 & AP4:

L = Sn/Ag/Cu-plated (RoHS compliant)

Consult factory for other available options.

**Available for packages with 10 pins or less.

RC = ohmic value, 3-digit resistance

code.

NUMBER OF PINS

CIRCUIT

6M-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
