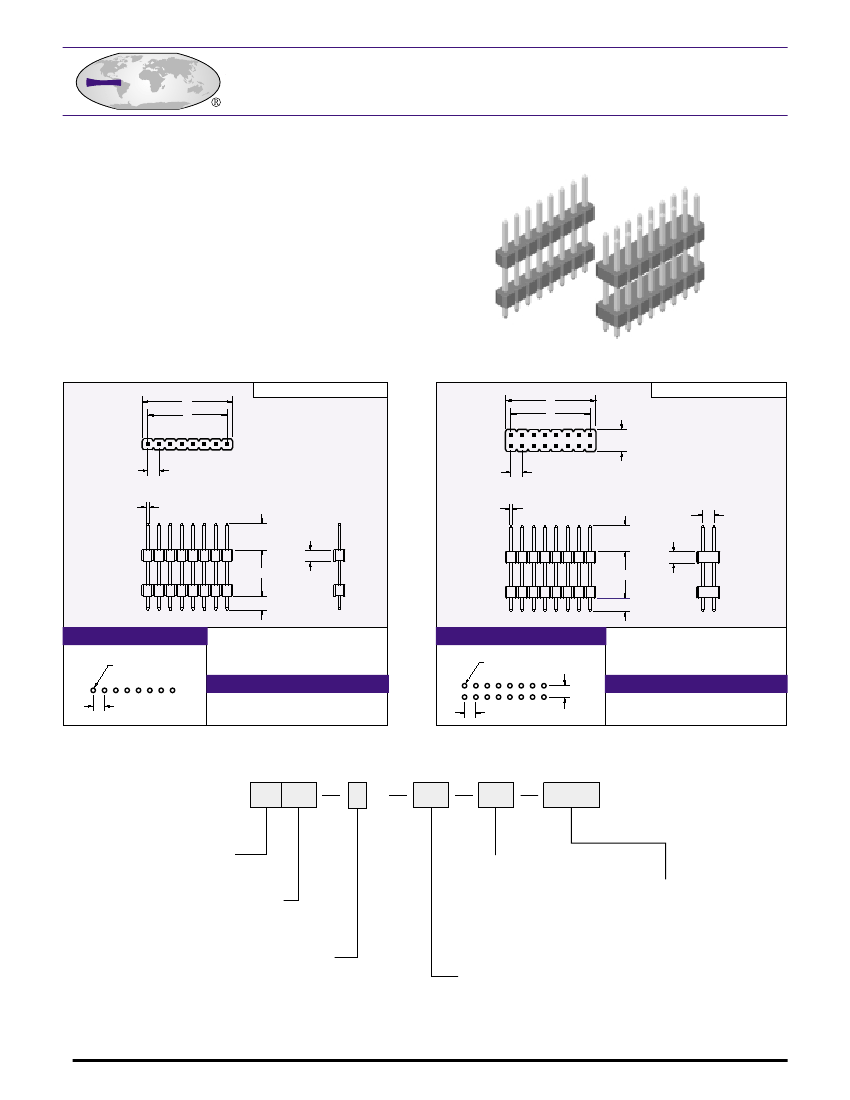

Specifications
.100 [2.54] Stacking Headers
9300 Series Headers
Insulator Material: Glass filled polyester, Type PBT,
94V-O, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 1000 VAC
Current Rating:
3 AMPS
Operating Temp.:
-40º to +105ºC
UL File Numbers:
E146967 & E176234
SINGLE ROW
A
B
A
B
.200 [5.08]
DOUBLE ROW
.100 [2.54]
.100 [2.54]
.025 [0.64] SQ.
CONTACT LENGTH
.100 [2.54]
STACK HEIGHT
.120 [3.05]
.025 [0.64] SQ.
.100 [2.54]
CONTACT LENGTH
.100 [2.54]
STACK HEIGHT
.120 [3.05]
PCB LAYOUT
Ø.040±.003 [1.02]
A
= .100 x No. of Pos.±.020
B
= .100 x (No. of Cont./2 -1)
SUGGESTED MATING CONNECTORS
PCB LAYOUT
Ø.040±.003 [1.02]
.100 [2.54]
.100 [2.54]
A
= .100 x No. of Pos.±.020
B
= .100 x (No. of Cont./2 -1)
SUGGESTED MATING CONNECTORS
93XXS-BX-XX-XX (PAGE F-45)
93XXS-FX-XX-XX (PAGE F-48)
.100 [2.54]
93XXS-AX-XX-XX (PAGE F-45)
93XXS-EX-XX-XX (PAGE F-47)
ALL DIMENSIONS ARE IN INCHES [MM]
PART NUMBERING
93 XX
SERIES CODE
.100 HEADERS
X 4
XX
XX
XXXX
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
03
= Au Flash
Au Flash
10
= 10µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
NO. OF CONTACTS
SINGLE ROW:
02 - 40
DOUBLE ROW:
04 - 80
STACK HEIGHT
EX 0.600 =
0600
EX 1.200 =
1200
NO. OF ROWS
1
= SINGLE ROW
2
= DOUBLE ROW
CONTACT LENGTH
01
= .230 [5.84]
09
= .320 [8.13]
14
= .120 [3.05]
CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS
CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION
