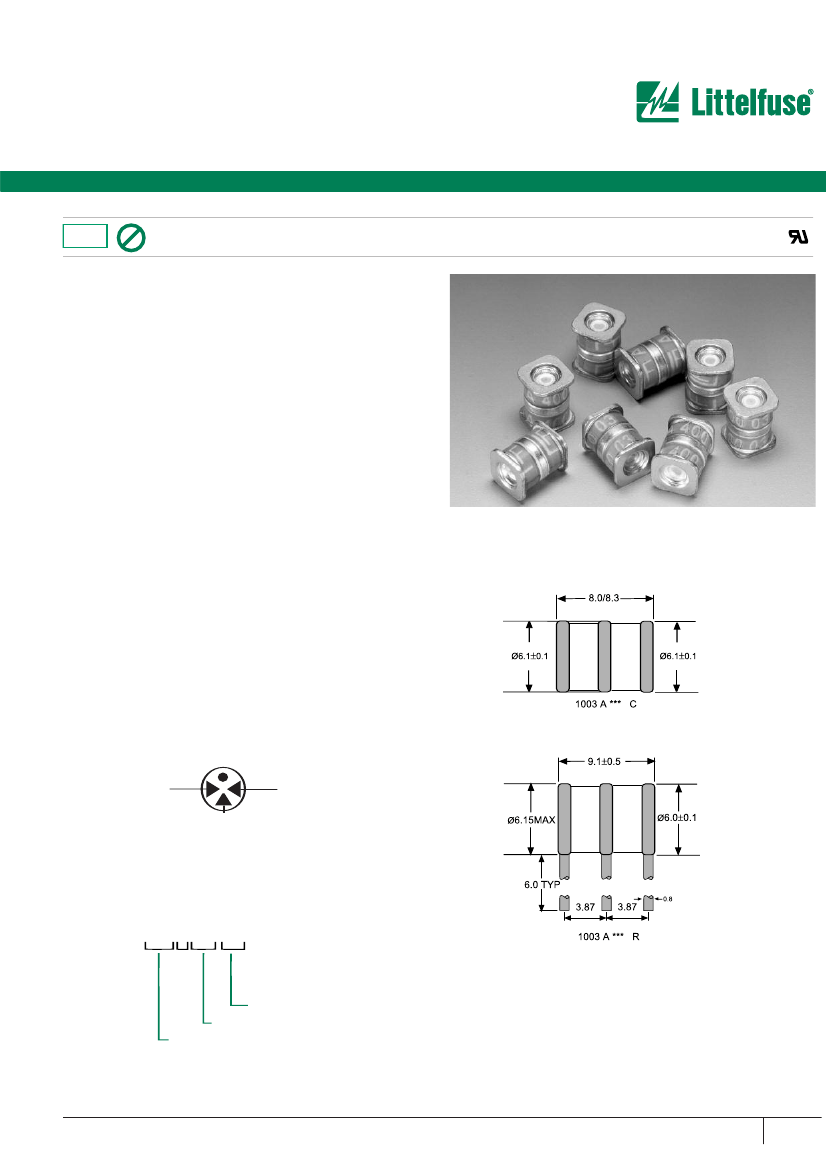

Greentube™ SL1003 Series Gas Plasma Arresters
®
The SL1003 series has been especially developed for Broadband
equipment. Unique design features offer high levels of perform-
ance on fast rising transients in the domain of 100V/µS to
1KV/µS, which are those most likely from induced Lightning dis-
turbances. These devices have Ultra low capacitance ( typically
1.2pF or less ) and present insignificant signal losses up to
1.5GHz. These devices are extremely robust and are able to
divert a 5000A pulse without destruction. For AC Power Cross of
long duration, overcurrent protection is recommended.
FEATURES
•
RoHS
compliant
• Low insertion loss
•
Surface mountable
•
5KA surge capability tested with 8/20µS pulse as defined by
IEC 61000-4-5
•
GHz working frequency.
•
Excellent response to fast rising transients.
•
Can be used to meet Telcordia GR1089 without
series resistance
•
10/700 6KV capability, as per ITUT k.21, enhanced test level
•
2000 Amp 2/10µS surge rating
Applications:
•
Broadband equipment.
•
ADSL equipment.
•
XDSL equipment.
•
Satellite and CATV equipment.
•
General telecom equipment.
3 ELECTRODE GDT
GRAPHICAL SYMBOL
ORDERING INFORMATION
SL
1003
A XXX
All dimensions in mm
Pin Configuration
Voltage
Type
3 Pole Arrester
C= Core
R= Leaded
w w w. l i t t e l f u s e . c o m
331
Gas Discharge Tubes
High Performance Beta Range
RoHS
Pb
Greentube™ SL1003 Series Gas Plasma Arresters
®
LITTELFUSE 3 TERMINAL MINI ARRESTER SERIES
TOTALLY NON-RADIOACTIVE, UL RECOGNIZED
Max Dynamic Max Dynamic Max Repetitive
Breakover
Impulse
Breakover
DC Voltage
Voltage @
Discharge
Voltage @
@100V/sec
100 V/µs (Vbr) 1 kV/µs (Vbr) Current
2
(kA)
(V)
Part Number
SL1003A090
SL1003A230
SL1003A250
SL1003A260
SL1003A300
SL1003A350
SL1003A400
SL1003A450
90
230
250
260
300
350
400
450
600
350
400
420
450
500
550
650
700
500
600
600
650
700
800
800
5
5
5
5
5
5
5
5
Nominal
Max
Holdover On-State
Alternating
4
Discharge Capacitance Voltage
1
Voltage @
(pF)
(V)
Current
3
(A)
1A (V)
1.2
50
5
20
1x10
9
@50V
1.2
135
5
20
1x10
9
@100V
1.2
135
5
20
1x10
9
@100V
Insulation
Resistance
7
(Ω)
1x10
9
@100V
1x10
9
@100V
1x10
9
@100V
1x10
9
@100V
1x10
9
@100V
5
5
5
5
5
1.2
1.2
1.2
1.2
1.2
135
135
135
135
135
20
20
20
20
20
Notes:
(1) Tested according to ITU-T Rec.K12
(2) 10 shots, 8/20µs wave form per IEC 61000-4-5
(3) Measured @ 100 Volts
(4) Measured @ 1 MHz, 0 volt bias
(5) Measured with 2/10µs wave form
(6) Measured with 10/350µs wave form
(7) Measured @ 100VDC except 90V which is measured at 50VDC
GAS DISCHARGE
8
Voltage vs Time Characteristic
Max dynamic breakover
voltage
Typ
ical Inser loss figures
tion
@1.0 GHz = 0.01dB
@1.4 GHz = 0.1dB
@1.8 GHz = 0.53dB
Voltage
(V)
@2.1 GHz = 0.81dB
@2.45 GHz = 1.0dB
Hold-over voltage
@2.8 GHz = 1.2dB
@3.1 GHz= 1.5dB
On-State voltage
@3.5 GHz = 2.1dB
0
200
400
600
Time (ns)
800
1000
1200
332
w w w. l i t t e l f u s e . c o m
Gas Discharge Tubes
High Performance Beta Range
RoHS
Pb
Greentube™ SL1003 Series Gas Plasma Arresters
®
Profile for reflow soldering
250
225
200
300
Profile for wave soldering
Temperature ˚C
175
150
125
100
Temperature (˚C)
Solder
Flow Area
o
T
1
max = 266C
o
T
1
= 239 C
200
75
50
25
0
0
50
100
150
200
250
300
350
400
450
500
Time in seconds
Tm = 179
o
C
Forced Cooling
Preheating
Area
100
10
20
Time(seconds)
30
40
Notes:
T
1
max
T
1
Tm
Tam
b
o
= Maximum TabTemperature = 266 C
= Flow Tempearture of Solder = 239
o
C
o
= Melting Point of Solder = 179 C
= 25 C
o
o
Maximum permissible rate of temperature change = 7 / sec
C
w w w. l i t t e l f u s e . c o m
333
