MAX180BCQH+TD datasheet, PDF - EEWORLD Datasheet

MAX180BCQH+TD: Descriptiondata converter systems 12-bit 8ch 100ksps 5.08v- precision adc; CategoryAnalog mixed-signal IC converter; File Size732KB，20 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

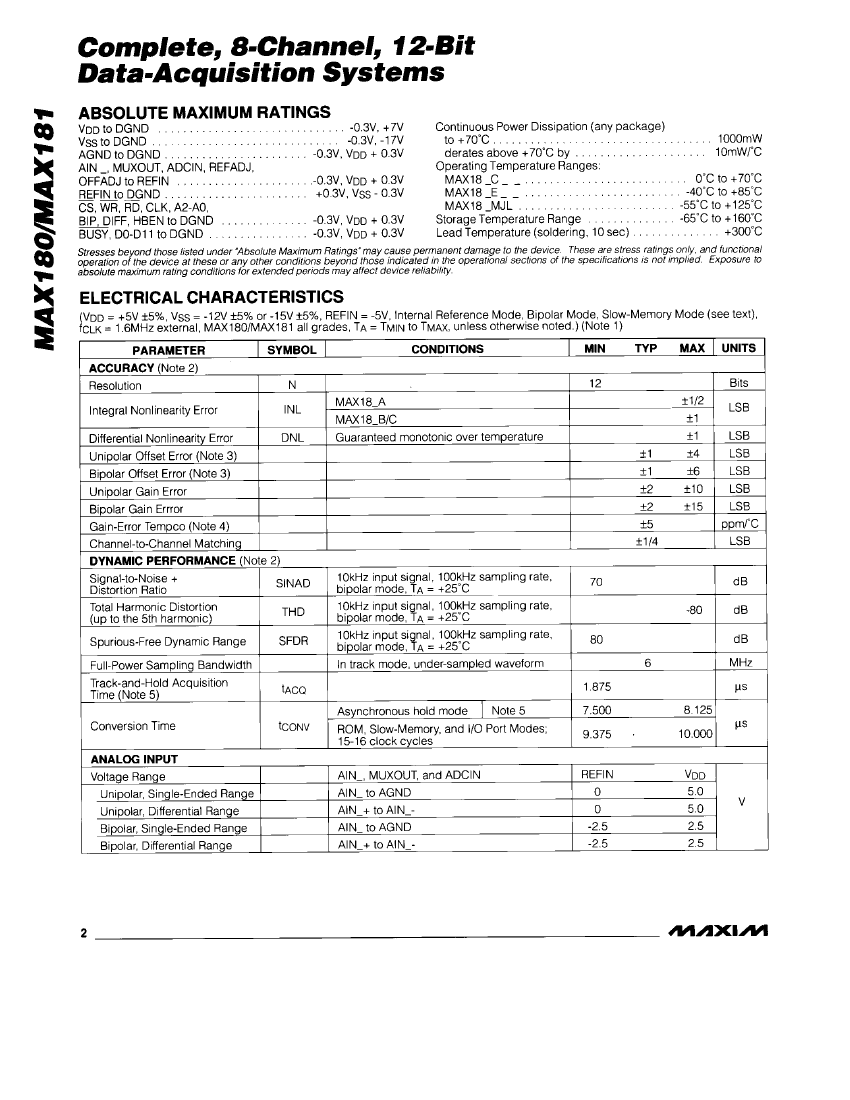

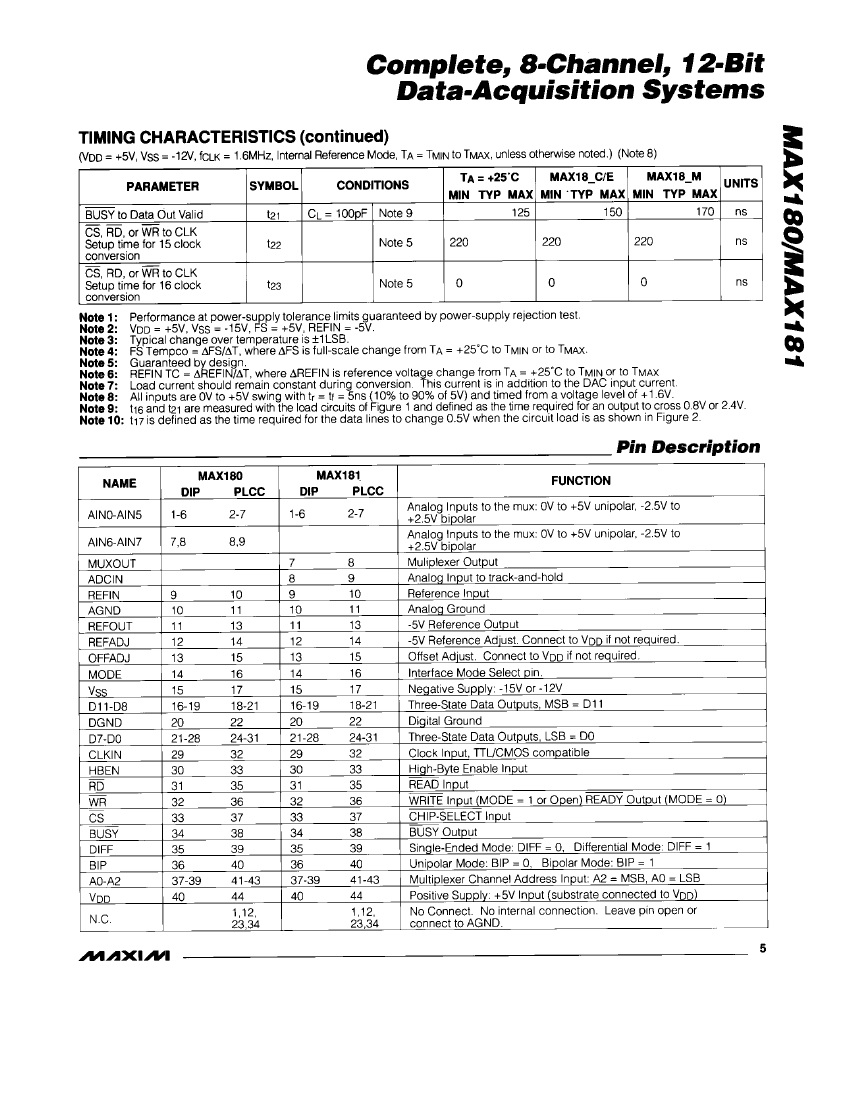

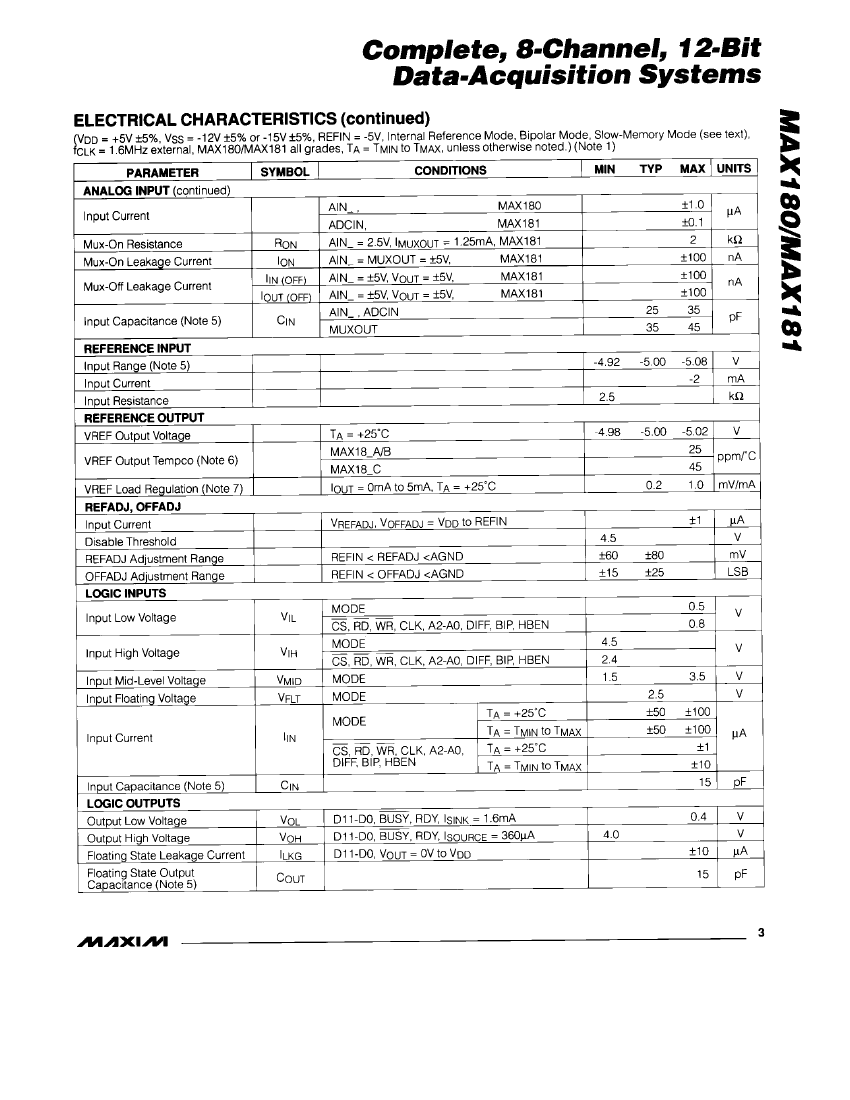

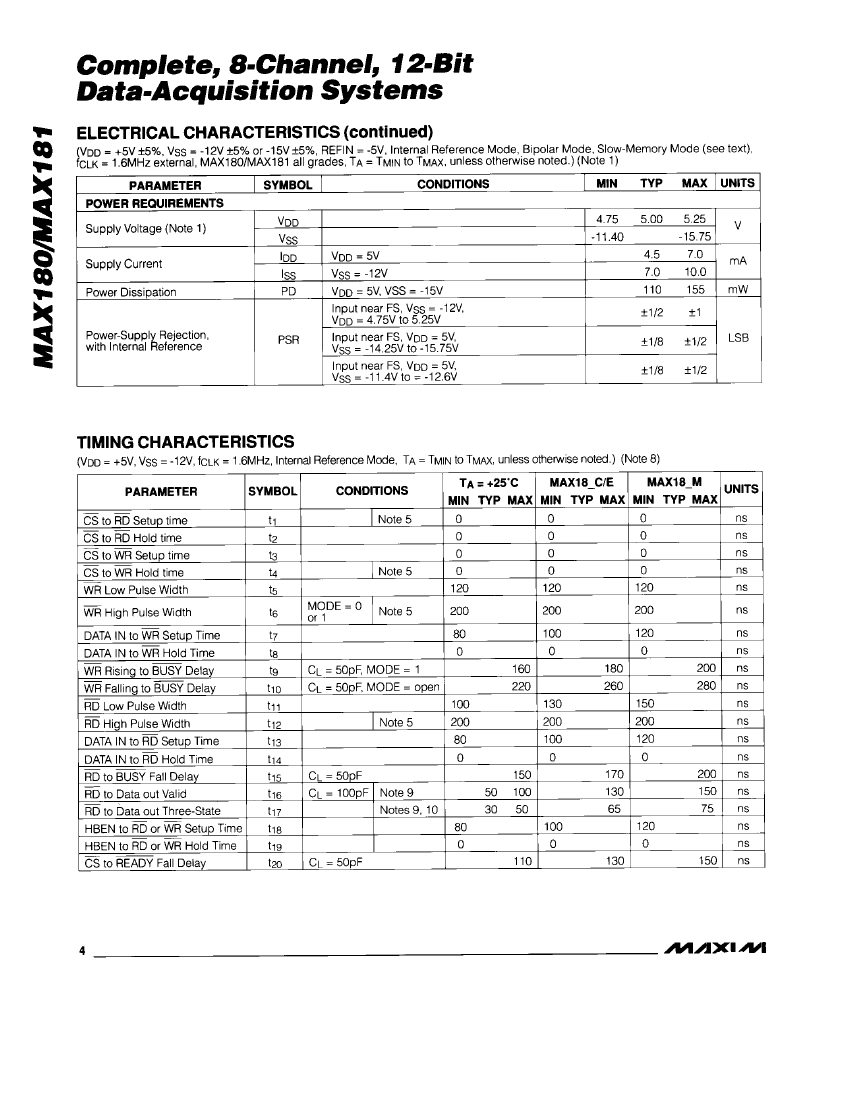

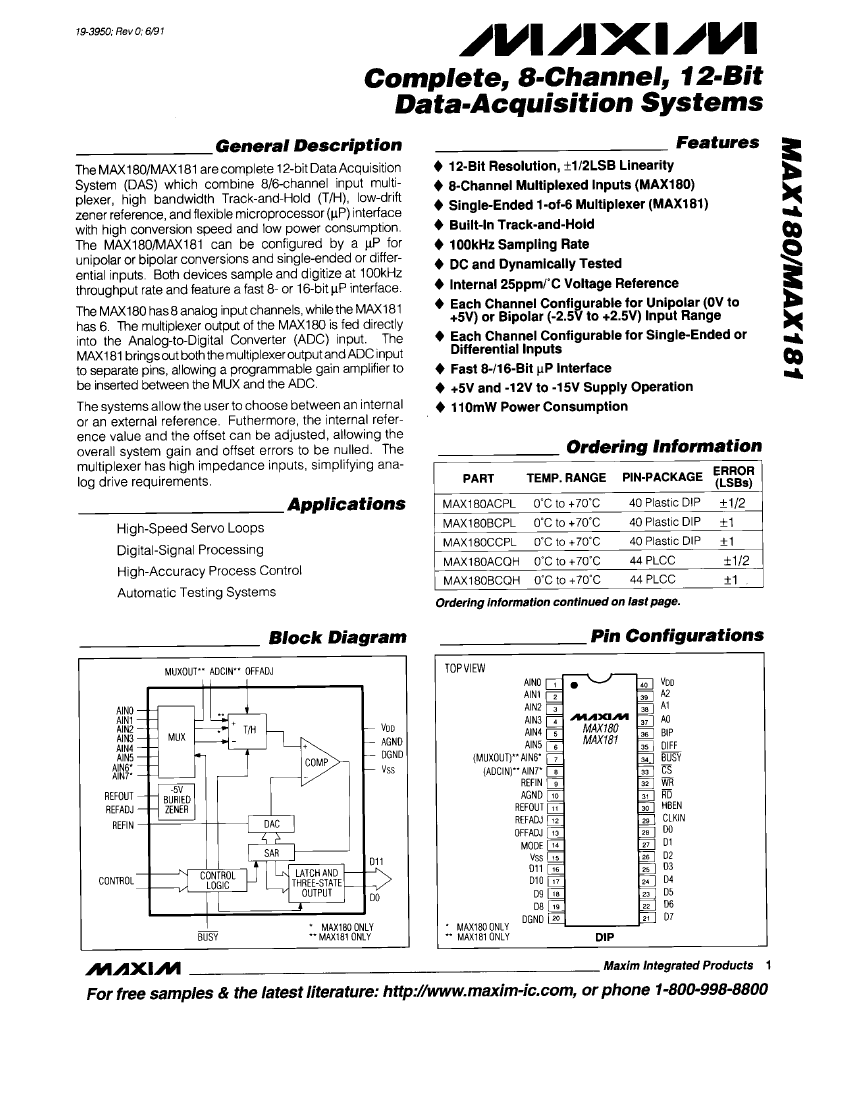

MAX180BCQH+TD Overview

data converter systems 12-bit 8ch 100ksps 5.08v- precision adc

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Maximum analog input voltage	2.5 V
Minimum analog input voltage	-2.5 V
Maximum conversion time	10 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	S-PQCC-J44
JESD-609 code	e3
length	16.585 mm
Maximum linear error (EL)	0.0244%
Nominal negative supply voltage	-12 V
Number of analog input channels	8
Number of digits	12
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-12/-15 V
Certification status	Not Qualified
Sampling rate	0.1 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	4.57 mm
Nominal supply voltage	5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.585 mm
