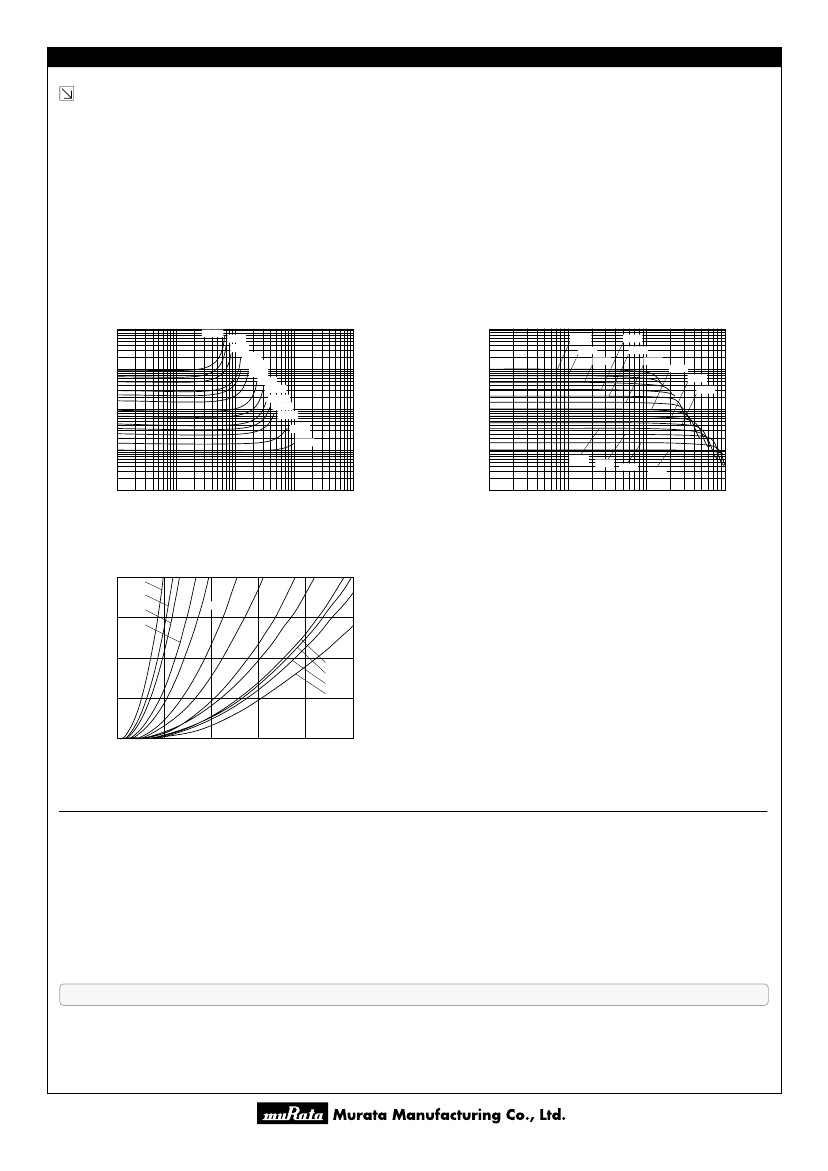

LQH6KKN100M43K: DescriptionChip Inductor (Chip Coil) Power Inductor (Wire Wound Type) LQH6PP Series; File Size69KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet View All

LQH6KKN100M43K Overview

Chip Inductor (Chip Coil) Power Inductor (Wire Wound Type) LQH6PP Series

Preview

Download Datasheet

View All

Inductors (Coils) > Chip Inductor (Chip Coil) > Power Inductor (Wire Wound Type)

Data Sheet

Chip Inductor (Chip Coil)

Dimensions

Power Inductor (Wire Wound Type)

LQH6PP Series (2424 Size)

Packaging

Code

6.0±0.2

4.3±0.2

(0.2)

Packaging

180mm Embossed Tape

330mm Embossed Tape

Minimum Quantity

250

1500

6.0±0.2

2.3 (typ.)

0.85 (typ.)

1.65±0.2

(in mm)

Rated Value (p: packaging code)

Part Number

LQH6PPN1R0N43p

LQH6PPN1R5N43p

LQH6PPN2R2N43p

LQH6PPN3R3N43p

LQH6PPN4R7M43p

LQH6PPN6R8M43p

LQH6PPN100M43p

LQH6PPN150M43p

LQH6PPN220M43p

LQH6PPN330M43p

LQH6PPN470M43p

LQH6PPN680M43p

LQH6PPN101M43p

Inductance

1.0µH±30%

1.5µH±30%

2.2µH±30%

3.3µH±30%

4.7µH±20%

6.8µH±20%

10µH±20%

15µH±20%

22µH±20%

33µH±20%

47µH±20%

68µH±20%

100µH±20%

Rated Current

(Based on Inductance Change)

7.50A

6.50A

5.60A

4.50A

4.00A

3.20A

2.60A

2.20A

1.70A

1.60A

1.25A

1.10A

0.92A

Rated Current

(Based on Temperature Rise)

4.30A

4.15A

4.10A

3.80A

3.20A

2.85A

2.60A

2.20A

1.55A

1.29A

1.10A

1.00A

0.80A

DC Resistance

0.009ohm±30%

0.010ohm±30%

0.014ohm±30%

0.016ohm±30%

0.020ohm±30%

0.028ohm±30%

0.044ohm±30%

0.065ohm±30%

0.108ohm±30%

0.137ohm±30%

0.230ohm±30%

0.289ohm±30%

0.436ohm±30%

Self Resonance

Frequency (min.)

110MHz

60MHz

30MHz

25MHz

20MHz

15MHz

10MHz

6MHz

5MHz

3MHz

Test Frequency: 100kHz

Class of Magnetic Shield: Magnetic shield of magnetic powder in resin

Operating Temperature Range (Self-temperature rise is included): -40°C to +125°C

Operating Temperature Range (Self-temperature rise is not included): -40°C to +85°C

Only for reflow soldering.

Continued on the following page.

This data sheet is applied for CHIP INDUCTORS (CHIP COILS) used for General Electronics equipment for your design.

Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product

specifications or transact the approval sheet for product specifications before ordering.

2010.9.9

http://www.murata.com/
