TB345-05ST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> TB345-05ST

TB345-05ST: Descriptionbarrier terminal blocks barrier block; CategoryThe connector; File Size112KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

TB345-05ST Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TB345-05ST	-	-	View	Buy Now

TB345-05ST Overview

barrier terminal blocks barrier block

TB345-05ST Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Barrier Terminal Blocks
RoHS	N
Produc	Barrier Terminal Blocks
Type	Bottom Marker Strips
Pitch	14.28 mm
Number of Positions	5
Wire Gauge Range	22-8
Current Rating	45 A
Voltage Rating	600 V
Mounting Style	Panel
Mounting Angle	Straigh
Termination Style	Screw
Contact Plating	Ti
Col	Black
Contact Material	Brass
Housing Material	Thermoplastic
Operating Temperature Range	- 40 C to + 130 C
Packaging	Bulk
Wire Gauge Max	8
Wire Gauge Mi	22
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

Connectors

Double Row Terminal Blocks

Series TB300 & TB345

Specifications

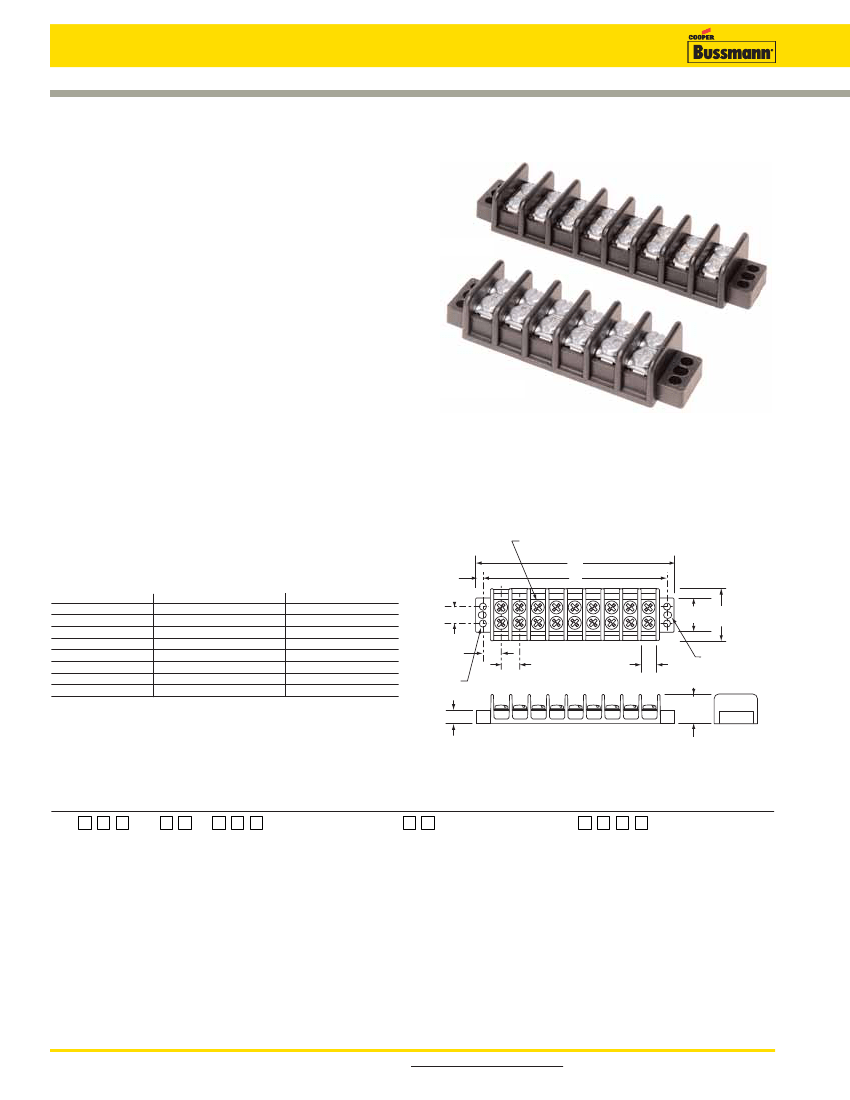

Description:

Double row terminal blocks.

Ratings:

Volts: — 600V*

Amps: — 30A* (TB300)

— 45A (TB345)

Center Spacing:

0.562” or 9/16” (14.28mm)

Wire Range:

#8 - 22 AWG Cu

Screw Size:

TB300 – #8-32 philslot screws

TB345 – #10-32 philslot screws

Torque Rating:

#8 screws - 16 lb-in. ;

#10 screws - 20 lb-in.

Distance Between Barriers:

0.41” (10.5mm)

Mounting:

TB300 – #8 screws; TB345 – #10 screws

Operating Temperature:

130°C (266°F) max., -40°C (-40°F)

min.

Material:

Molded base: Black, UL rated 94V0 thermoplastic

Terminal plating: Tin over brass; Screws: zinc-plated steel

Breakdown Voltage:

7500V

Agency Information:

UL File E62622, CSA File 47235; IEC

Compliance; CE Certified

* Max rating shown; some options may be rated lower - consult Cooper Bussmann.

TB300-08

TB345-06SP

TB300 & TB345 - in (mm)

8-32 binding head

screw

- TB 300

10-32 binding head

screw

- TB 345

0.22

(5.6)

Dimensions - in

Poles

2.13

2.69

3.25

3.81

4.37

4.94

5.50

6.06

1.69

2.25

2.81

3.37

3.94

4.50

5.06

5.62

Poles

6.62

7.18

7.75

8.31

8.87

9.43

9.99

10.56

6.19

6.75

7.31

7.87

8.44

9.00

9.56

10.12

Poles

11.12

11.68

12.24

12.80

13.37

13.93

14.49

10.68

11.25

11.81

12.37

12.93

13.50

14.06

0.50 (12.7)

0.90

1.33

(22.8) (33.8)

0.56

(14.2)

.21dia.

(5.3)

0.56

(14.2)

0.412

(10.4)

0.21 x 0.25

slots

(5.3 x 6.3)

1” = 25.4mm.

0.33 (8.4)

0.81

(20.5)

Catalog Number Build-A-Code

Series

—

300 = 8-32 screw 02 to 24

345 = 10-32 screw

Blank = Steel philslot, zinc-plated

00 = Screws shipped bulk

B = Brass philslot, nickel-plated

BS = Brass Sems philslot, nickel-plated

(TB300 only)

SP = Steel Sems philslot, zinc-plated

P = Steel Sems (P-style)

ST = Stainless steel, philslot

STR = Stainless steel, phillips (recess)

L1 to L6 Marking Strips (pg 318)

Special Markings (pg 318)

Covers (pg 318)

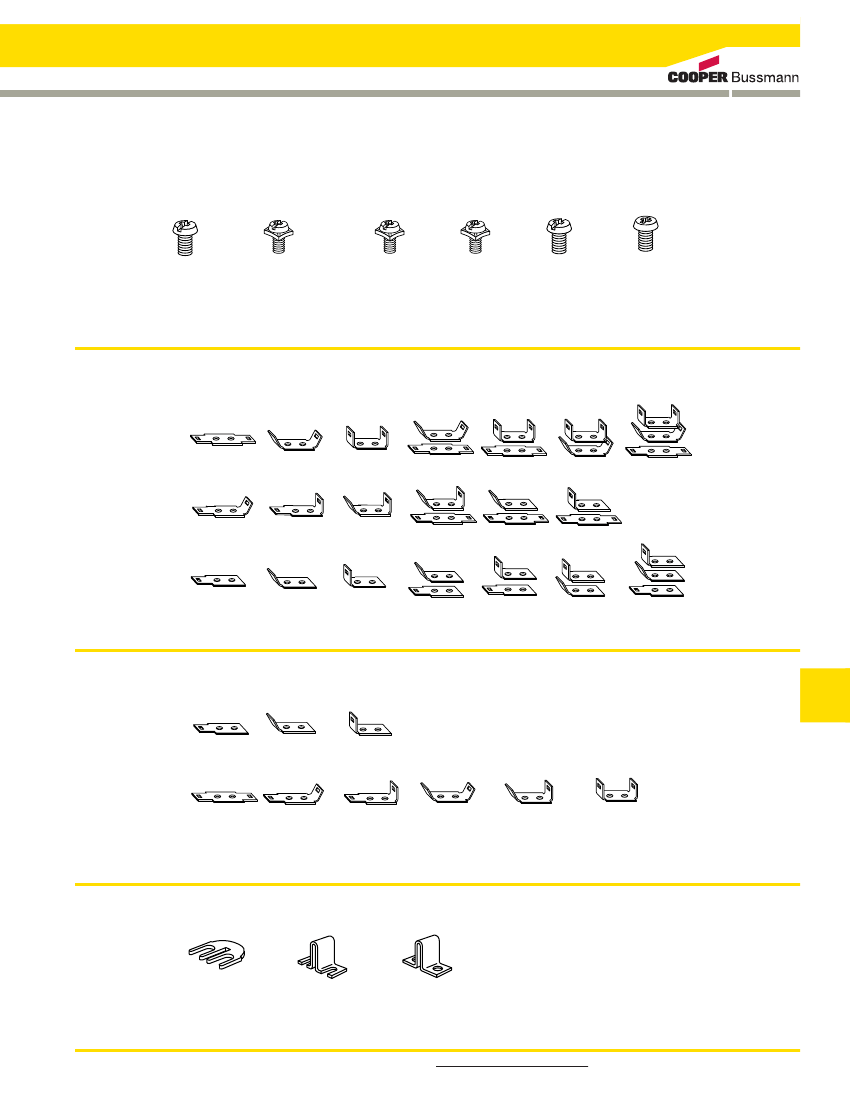

QC1 to QC20 = Quick connects (TB300 only)

J301 = Flat slip-on jumper

0J6 = Over barrier jumper

0J11 = Over barrier jumper

Poles

Screw Options

Marking/Cover

Hardware Options

316

For more information, visit www.cooperbussmann.com
