ROHS COMPLIANT
PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
B
DCN 41768
10/15
BNK
.312 7.92 HEX
.682 17.31
MATERIAL:
BODY, FERRULE, &
COUPLING NUT:
CONTACT &
CRIMP RING:
LOCK RING
CAP:
INSULATOR:
GASKET:
TUBING:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BRASS PER ASTM B16, ALLOY UNS No. C36000
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
STAINLESS STEEL PER ASTM A240, UNS S30400
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER A-A-59588,
CLASS 2B, GRADE 50/60
M23053/4
.524 13.31
FINISH:
BODY, CAP, FERRULE,
& COUPLING NUT:
PASSIVATED PER AMS-2700
CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
NICKEL PER AMS QQ-N-290, CLASS 2
MATERIAL:
FINISH:
CRIMP RING:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 12.4 GHz
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
DAL 10/13/15
BNK 10/13/15
JM 02/01/97

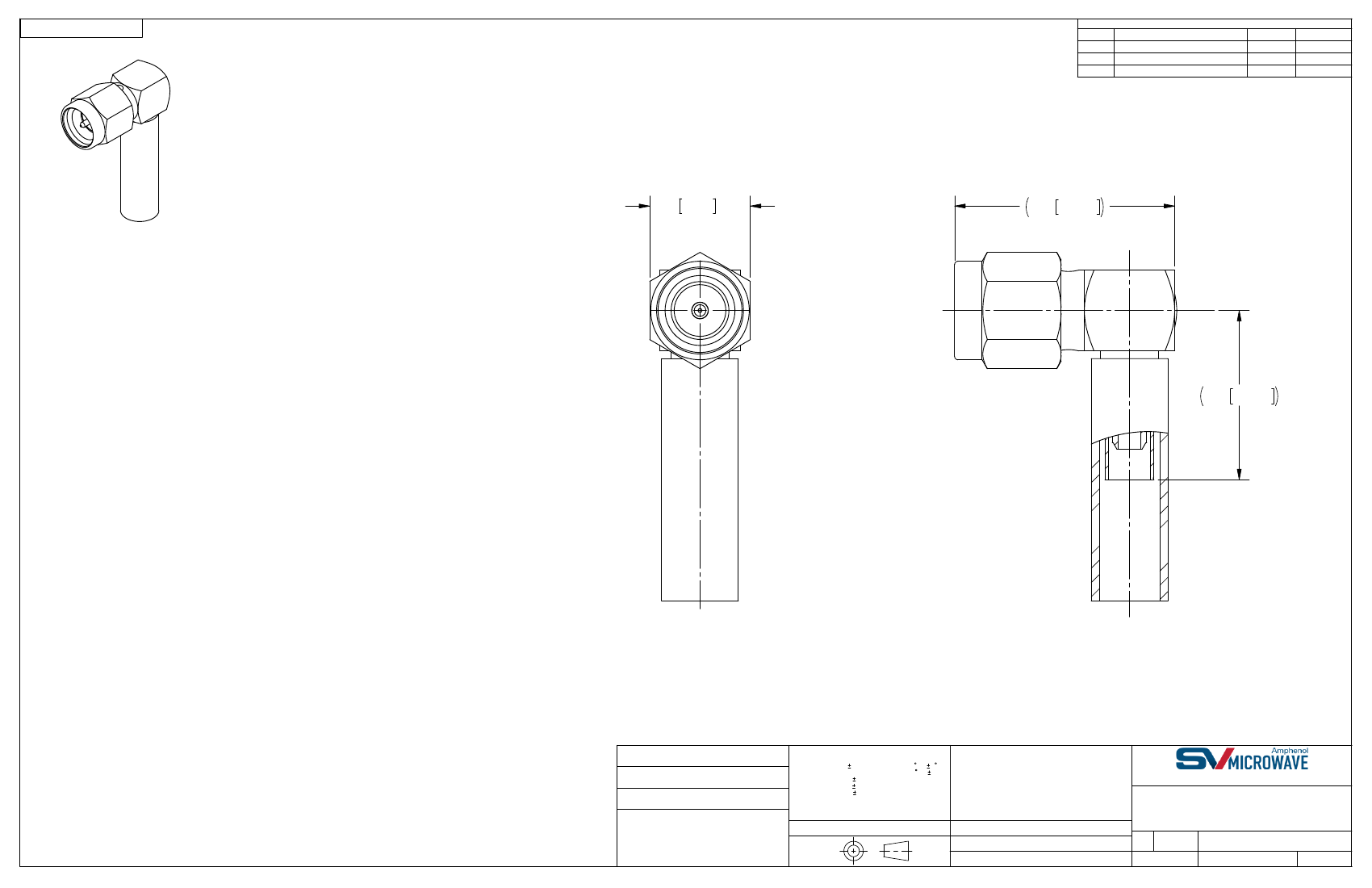

SMA MALE R/A FOR RG174,
316 CABLE
95077
SIZE CAGE CODE DWG. NO.
B
M39012/56B3119
SHEET 1 OF 1
SCALE: 4:1
