CTJ122E10A-513

Description
rectangular mil spec connectors
CategoryThe connector
File Size2MB，15 Pages
ManufacturerAll Sensors
Download Datasheet Parametric View All

CTJ122E10A-513 Online Shopping

Suppliers Part Number Price MOQ In stock
CTJ122E10A-513 - - View Buy Now

CTJ122E10A-513 Overview

rectangular mil spec connectors

CTJ122E10A-513 Parametric

Parameter NameAttribute value
ManufactureTE Connectivity
Product CategoryRectangular MIL Spec Connectors
MIL TypeMIL-T-81714 II
Number of Positions22
Contact TypeSocke
Current Rating5 A
Termination StyleSMD/SMT
Connector TypeReceptacle
GendeSocket (Female)
Insulation Resistance5 Ohms
Mounting AngleStraigh
Operating Temperature Range+ 65 C to + 200 C

Preview

Download Datasheet

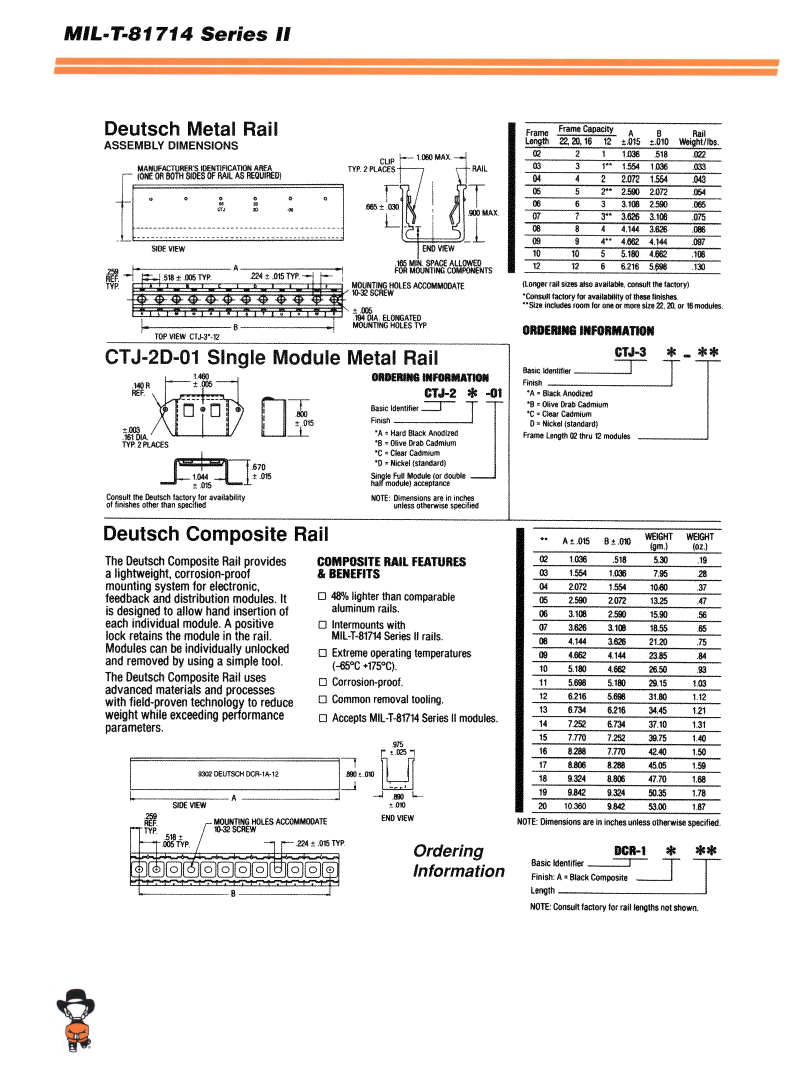

MIL-T-81714 Series II

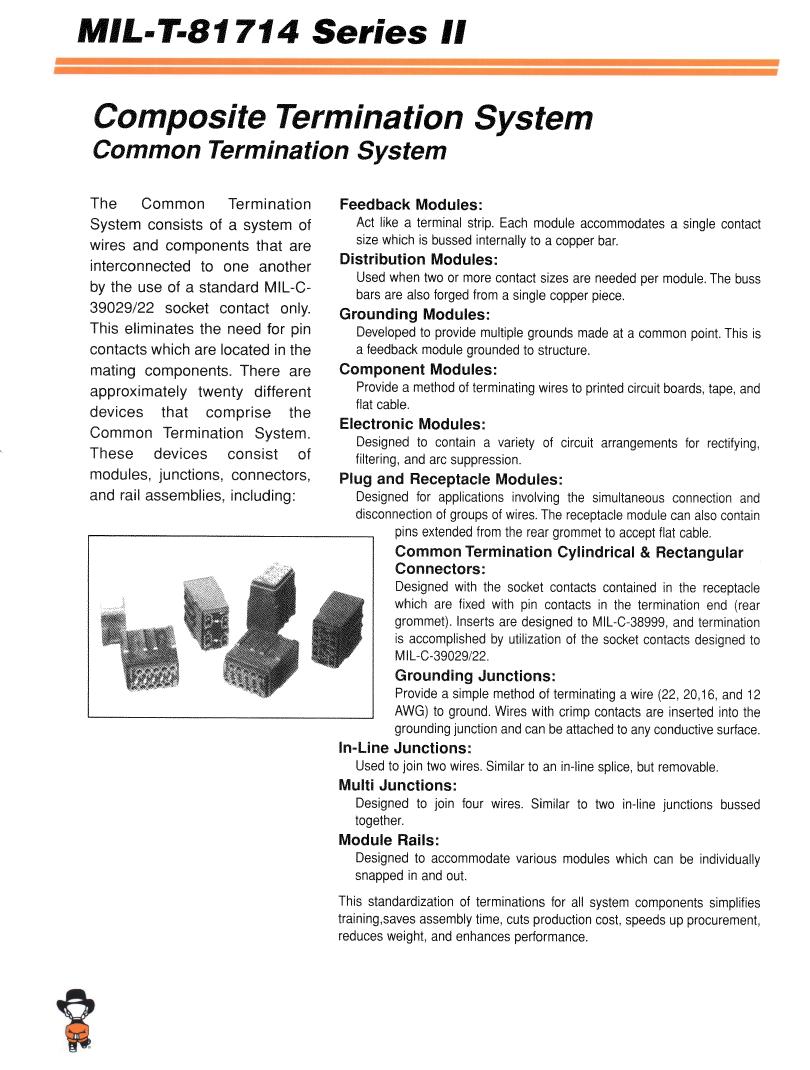

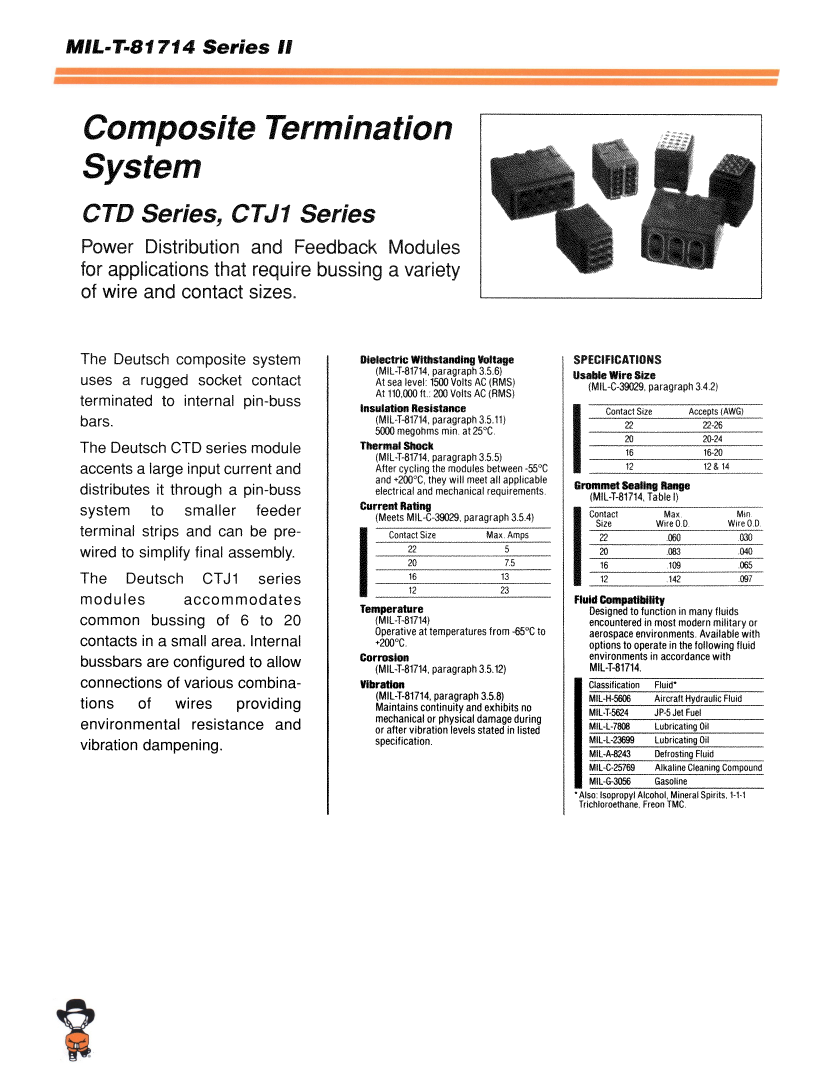

Composite Termination System
INCLUDING DEUTSCH SOCKET CONTACTS
DEUTSCH CTS SYSTEM:SERIES:
DEUTSCH COMPOSITE
DEUTSCH COMPOSITE
TERMINATION SYSTEM (CTS)
TERMINATION SYSTEM (CTS)
CTD
CTL
CTD
CTL

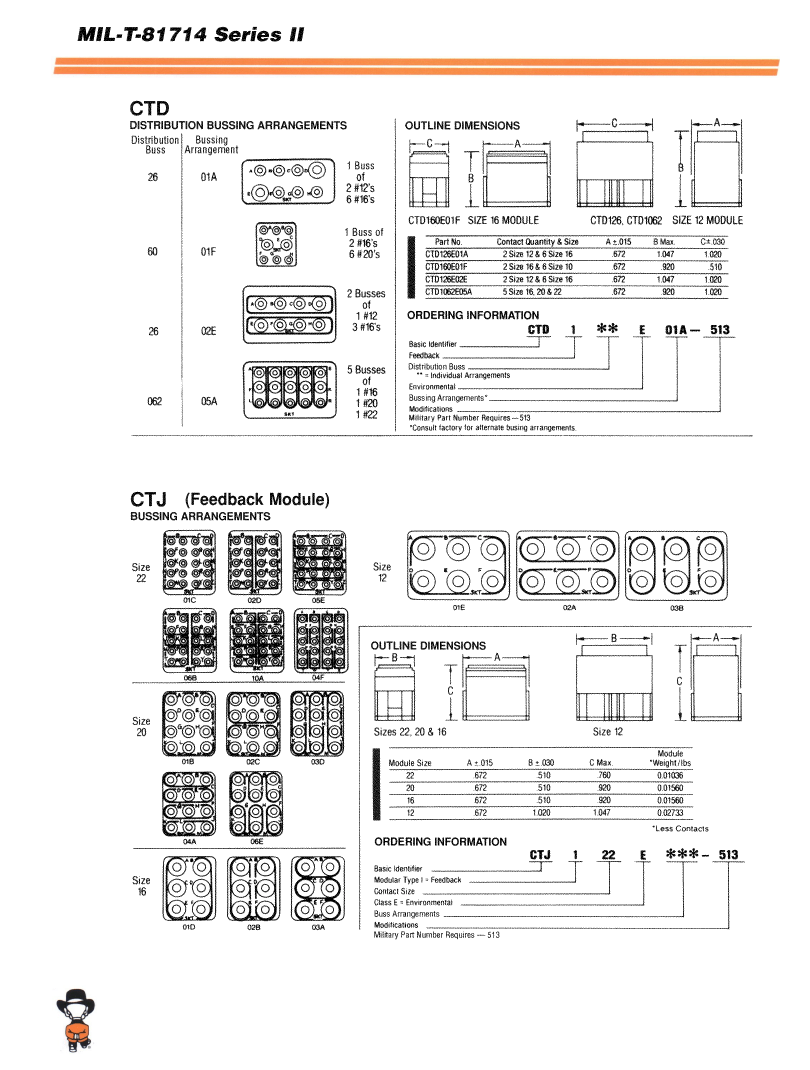

CTJ1
CTM
CTJ1
CTM
CTJ2
CTN
CTJ2
CTN
CTJ4
CTJ7
CTJ4
CTJ7
CTG
CTG
Deutsch ECD Defense Aerospace Operations
5733 W. Whittier Ave., Hemet CA (USA) 92545
Phone 909/765-2200 • FAX 909/922-1544
mil81714_ser2
©Copyright 2001 Deutsch ECD
