773I22204000J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 773I22204000J

773I22204000J: DescriptionCAPACITOR, METALLIZED FILM; CategoryPassive components capacitor; File Size999KB，18 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

773I22204000J Overview

CAPACITOR, METALLIZED FILM

773I22204000J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1250724915
package instruction	, 7124
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.1
capacitance	0.022 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	12 mm
length	18 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	300 V
Rated (DC) voltage (URdc)	800 V
surface mount	NO
Terminal pitch	15 mm
Terminal shape	WIRE
width	6 mm

Preview

Download Datasheet

View All

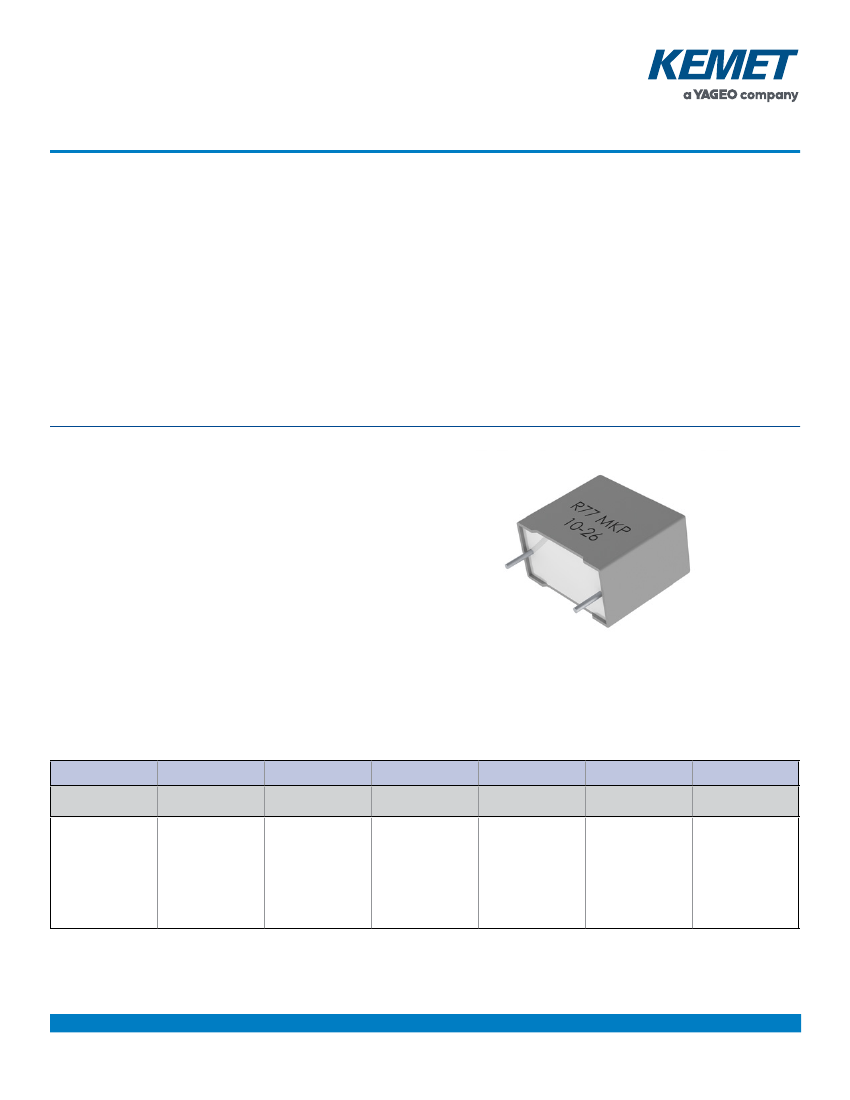

Polypropylene Pulse/High Frequency Capacitors

R77, Double Metallized Polypropylene Film,

Radial, AC Applications

Overview

The R77 Series is constructed of polypropylene film and

double metallized polyester film as electrodes with radial

leads of tinned wire. The radial leads are electrically welded

to the metal layer on the ends of the capacitor winding. The

capacitor is encapsulated in a self-extinguishing solvent

resistant plastic case with thermosetting resin material

meeting the UL 94 V–0 requirements. Four different winding

constructions are used depending on voltage parameters.

Please see the Performance Characteristics for more

information.

Applications

Typical applications include electronic lighting such as

automotive headlamps and ballasts, as well as pulse

applications with high AC voltage and high current.

Not suitable for across-the-line application

(see Suppressor Capacitors).

Benefits

• Voltage range: 250 – 900 VAC

• Capacitance range: 0.001 – 0.1 µF

• Lead Spacing: 10 – 27.5 mm

• Capacitance tolerance: ±2.5%, ±5%, ±10%

• Climatic category: 55/105/56 IEC 60068–1

• Operating temperature range of −55˚C to +105˚C

• RoHS compliance and lead-free terminations

• Tape & Reel packaging in accordance with IEC 60286–2

• Self-healing

Part Number System

R77

Series

Double

Metallized

Polypropylene

L = 250

N = 400

5 = 500

7 = 700

9 = 900

Rated Voltage

(VAC)

I = 15

N = 22.5

R = 27.5

Lead Spacing

(mm)

2270

Capacitance

Code (pF)

The last three

digits represent

significant figures.

The first digit

specifies the total

number of zeros

to be added.

Packaging

See Ordering

Options Table

Internal Use

Capacitance

Tolerance

H = 2.5%

J = ±5%

K = ±10%

Built Into Tomorrow

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

F3035_R77 • 9/7/2021
