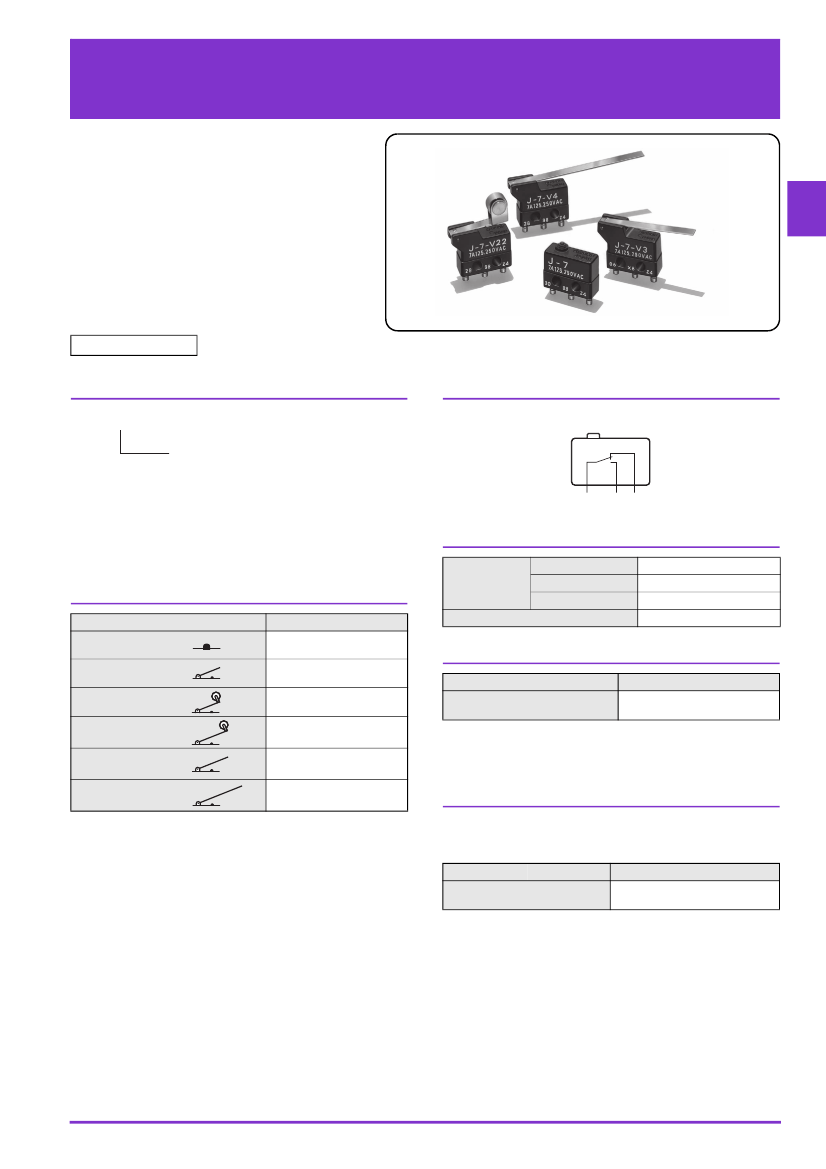

Note. The above rating values apply under the following test conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Approved Safety Standards
Consult your OMRON sales representative for specific
models with safety standard approvals.
UL (UL508)/
CSA
(CSA C22.2 No.55)
Rated voltage
125 VAC
250 VAC
Model
J-7
7A
7A
Note. Consult your OMRON sales representative for specific models with safety
standard approvals.
1
J
Characteristics
Permissible operating speed
Permissible operating
frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the same polarity
Dielectric strength
Between current-carrying metal parts and ground
Between each terminals and non-current-carrying metal parts
Vibration resistance *1
Shock resistance *1
Durability *2
Degree of protection
Ambient operating temperature
Ambient operating humidity
Weight
Malfunction
Durability
Malfunction
Mechanical
Electrical
Mechanical
Electrical
400 operations/min max.
30 operations/min max.
Subminiature Basic Switch
0.05 mm to 1 m/s (for pin plunger models)
100 mΩ min. (at 500 VDC with insulation tester)
15 mΩ max.
600 VAC 50/60 Hz for 1 min
1,500 VAC 50/60 Hz for 1 min
1,500 VAC 50/60 Hz for 1 min
10 to 55 Hz, 1.5 mm double amplitude
1,000 m/s
2
max.
200 m/s
2
max. (pin plunger models)
10,000,000 operations min. (60 operations/min)
50,000 operations min. (30 operations/min)
IEC IP40
-10°C to
+80°C
(at ambient humidity of 60% max.)
(with no icing or condensation)
85% max. (for
+5°C
to
+35°C)
Approx. 1 g (pin plunger models)
J
Note. The data given above are initial values.
*1. For the pin plunger models, the above values apply for use at the free position, operating position, and total travel position. For the lever models, they apply for
the total travel position. Close or open circuit of the contact is shorter than 1 ms.
*2. For testing conditions, consult your OMRON sales representative.

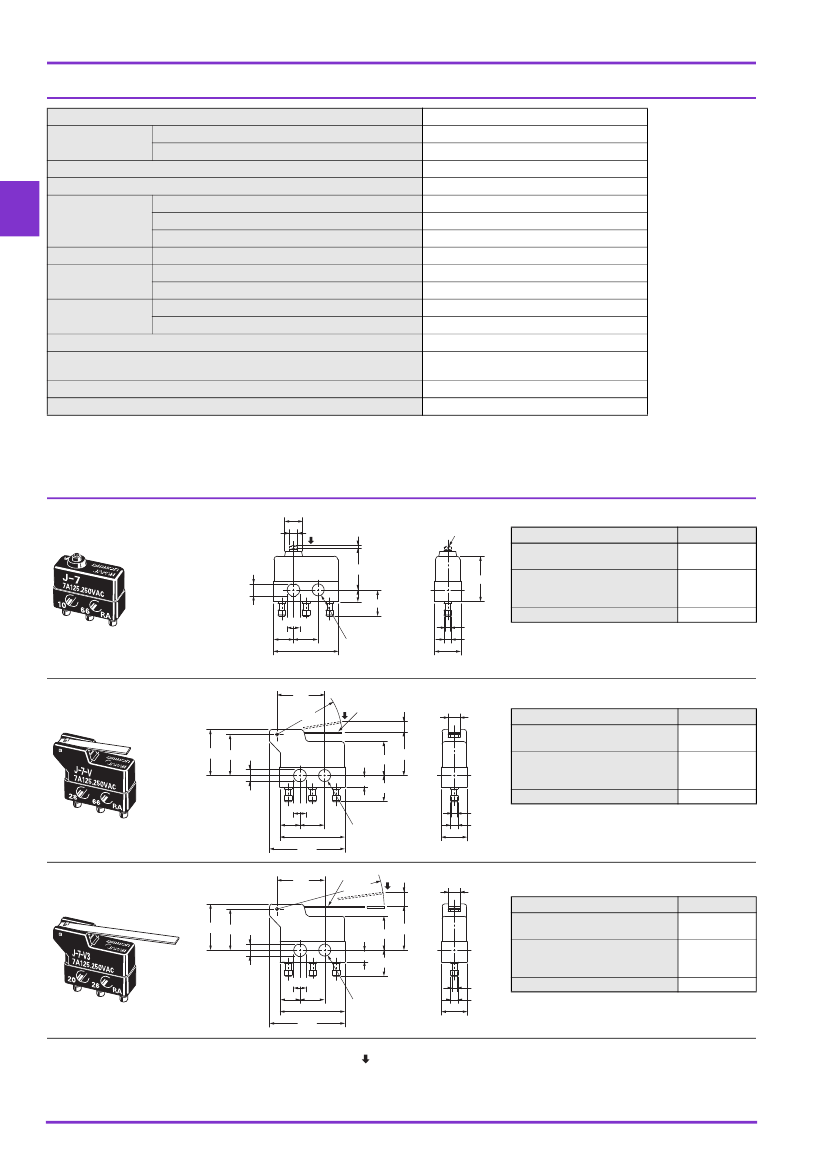

Dimensions
(Unit: mm)
and Operating Characteristics
●Pin
Plunger
J-7
3.5 dia.
1.5 dia.
A
PT
R0.8
Operating Characteristics
Operating Force
Releasing Force
8.9
Models
Max.
Min.
Max.
Min.
Max.
J-7
1.37 N {140 gf}
0.27 N {28 gf}
0.6 mm
0.1 mm
0.15 mm
8.1±0.3 mm
OP
2.3
2.35
+0.05
-0.025
0.05
2.5
+0.05
dia.
-0.025
OF
RF
PT
OT
MD
OP
5.1
1 dia.
1.5 dia.
5.1
±0.1
Pretravel
Overtravel
Movement Differential
Operating Position
3.95
4.8
±0.05
12.7
2.35
+0.05
dia.
-0.025
●Short
Hinge Lever
J-7-V
9.3
R12.7
±0.4
A t=0.3*
PT
2.3
Operating Characteristics
Operating Force
Releasing Force
OF
RF
PT
OT
MD
OP
Models
Max.
Min.
Max.
Min.
Max.
J-7-V
0.49 N {50 gf}
0.09 N {9 g}
1.7 mm
0.35 mm
0.5 mm
8.3±1.2 mm
9.15
±0.4
8
2.3
2.35
+0.05
-0.025
+0.05
2.5
-0.025
dia.
-0.025
6.6
OP
5.1
1 dia.
1.5 dia.
5.1
±0.1
Pretravel
Overtravel
Movement Differential
Operating Position
3.95
4.8
±0.05
12.7
14.7
2.35
+0.05
dia.
-0.025
* Stainless-steel lever
●Hinge
Lever
J-7-V3
9.15
±0.4
8
9.3
t=0.3*
R22
±0.4
A
PT
2.3
Operating Characteristics
6.6
2.3
2.35
+0.05
-0.025
0.05
2.5
+0.05
dia.
-0.025
Models
Max.
Min.
Max.
Min.
Max.
J-7-V3
0.29 N {30 gf}
0.05 N {5 gf}
2.9 mm
0.5 mm
0.7 mm
8.3±1.9 mm
OP
Operating Force
Releasing Force
Pretravel
Overtravel
Movement Differential
1 dia.
1.5 dia.
5.1
±0.1
OF
RF
PT
OT
MD
OP
5.1
Operating Position
3.95
4.8
±0.05
12.7
14.7
2.35
+0.05
dia.
-0.025
* Stainless-steel lever
Note 1. Unless otherwise specified, a tolerance of
±0.2
mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
2
J
●Long
Hinge Lever
J-7-V4
9.3
t=0.3*
R33.8
±0.4
A
PT
2.3
Subminiature Basic Switch
Operating
Characteristics
Operating Force
Releasing Force
OF
RF
Models
Max.
Min.
J-7-V4
0.20 N {20 gf}
0.03 N {3 gf}
4.5 mm
0.8 mm
1.2 mm
8.3±2.9 mm
9.15
±0.4
8
2.3
2.35
+0.05
-0.025
0.05
2.5
+0.05
dia.
-0.025
6.6
OP
5.1
1 dia.
Pretravel
PT Max.
Overtravel
OT Min.
Movement Differential MD Max.
Operating Position
OP
3.95
4.8
±0.05
12.7
14.7
2.35
+0.05
dia.
-0.025
* Stainless-steel lever
5.1
±0.1
1.5 dia.
J

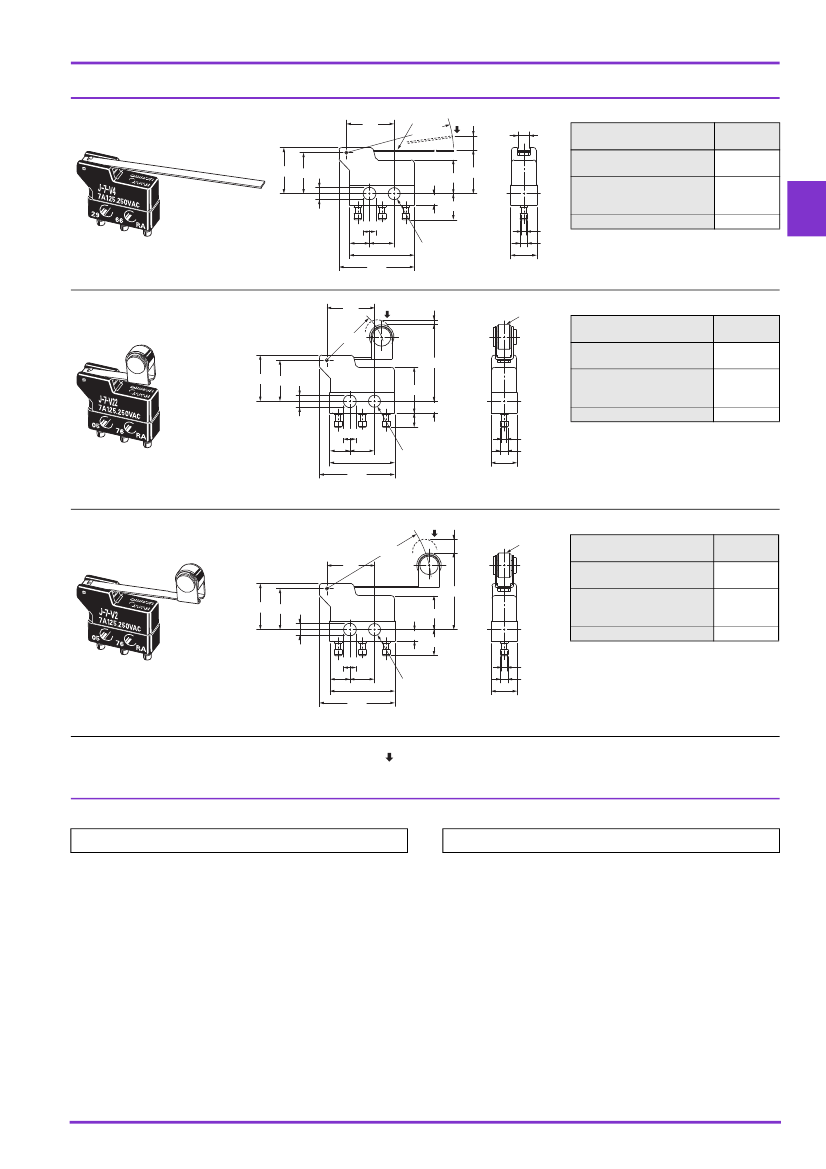

●Short
Hinge Roller Lever
J-7-V22
9.3
A
PT
4.8x2.2* dia.
R11.5
±0.4
OP
9.15
±0.4
8
8.9
2.3
2.35
+0.05
-0.025
2.8
0.05
2.5
+0.05
dia.
-0.025
Operating
Characteristics
Operating Force
Releasing Force
OF
RF
Models
Max.
Min.
J-7-V22
0.54 N {55 gf}
0.05 N {5 gf}
1.6 mm
0.25 mm
0.4 mm
14.7±1 mm
Pretravel
PT Max.
Overtravel
OT Min.
Movement Differential MD Max.
Operating Position
1 dia.
OP
3.95
4.8
±0.05
12.7
14.7
2.35
+0.05
dia.
-0.025
5.1
±0.1
1.5 dia.
* Stainless-steel lever
Stainless-steel roller
●Hinge
Roller Lever
J-7-V2
9.3
A
R20.5
±0.4
PT
4.8x2.2* dia.
Operating
Characteristics
Operating Force
Releasing Force
OF
RF
Models
Max.
Min.
J-7-V2
0.33 N {33 gf}
0.03 N {3 gf}
2.7 mm
0.45 mm
0.7 mm
14.7±1.9 mm
OP
9.15
±0.4
8
2.3
2.35
+0.05
-0.025
0.05
2.5
+0.05
dia.
-0.025
0.025
6.6
Pretravel
PT Max.
Overtravel
OT Min.
Movement Differential MD Max.
Operating Position
OP
5.1
1 dia.
1.5 dia.
5.1
±0.1
* Stainless-steel lever
Stainless-steel roller
3.95
4.8
±0.05
12.7
14.7
2.35
+0.05
dia.
-0.025
Note 1. Unless otherwise specified, a tolerance of
±0.2
mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
Precautions
★
Please refer to "Common Precautions" for correct use.
Caution
●Soldering
• Terminal connection
When soldering, make sure that the temperature of the
soldering iron tip is not higher than 280°C, and complete the
soldering within 3 seconds. Leave it for 1 minute without
applying any external force to the terminal after the soldering.
Soldering at an excessively high temperature or soldering for
more than 3 s may deteriorate the characteristics of the
Switch.
Correct Use
●Mounting
Use M2.3 mounting screw with plane washers or spring washers
to securely mount the Switch. Tighten the screws to a torque of
0.2 to 0.29 N·m {2 to 3 kgf·cm}.
3
J
Subminiature Basic Switch
J
•
