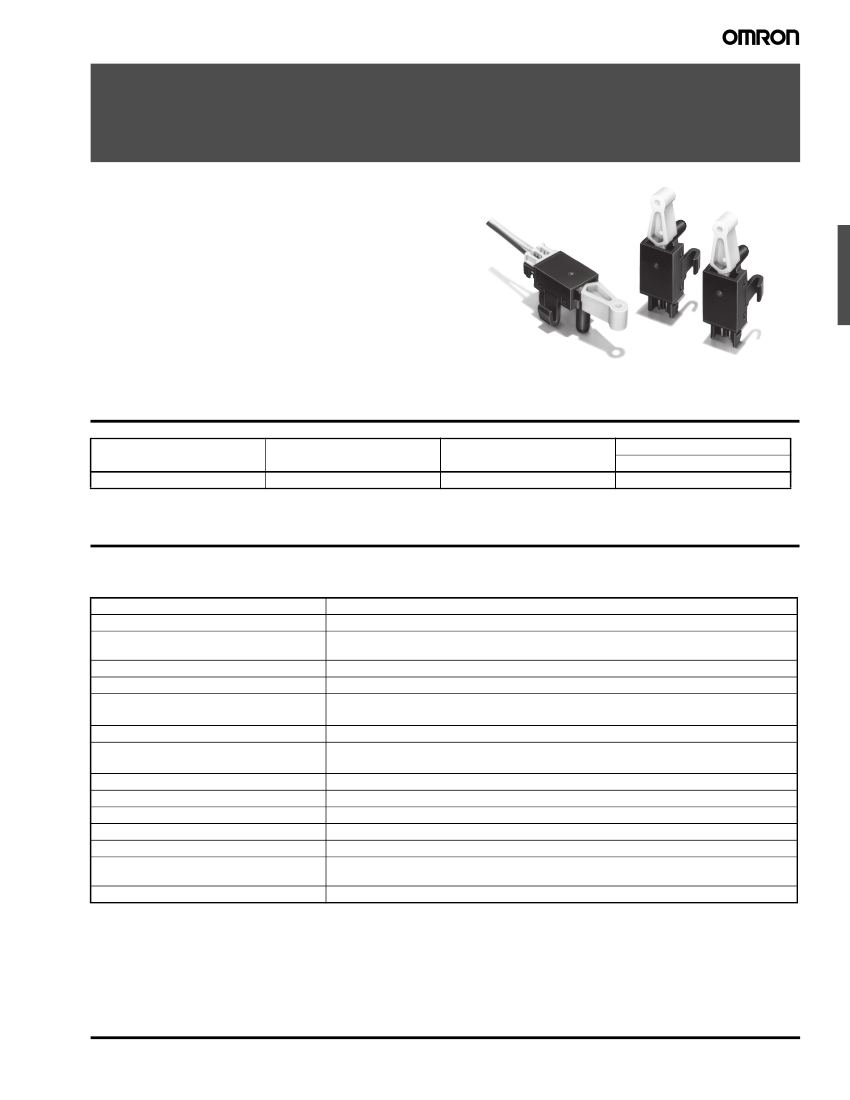

Detection Switch
D2X
Switch with Crimp Connector
• Reduced wiring time with AMP crimp-type connectors
• Snap-fit attachment for easy installation
• Actuator operates from either side, allowing mounting in
either direction
• High contact force and wiping action for greater contact
reliability
• Rated load 0.1 A at 30 VDC
• RoHS Compliant
Ordering Information
Actuator
Center mounted rotary lever
Terminal
Crimp-type connector
Contact OF
50 g
Model
Standard Model
D2X-C
Specifications
■
Characteristics
Electrical ratings
Operating speed
Operating frequency
Contact resistance
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Service life
Weight
0.1 A, 30 VDC (resistive load)
0.1 mm to 100 mm/second
Mechanical: 60 operations per minute
Electrical: 30 operations per minute
200 mΩ max.
100 MΩ min. at 250 VDC
250 VAC, 50/60 Hz for 1 minute between terminals of same polarity
250 VAC, 50/60 Hz for 1 minute between current-carrying metal parts and ground
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Destruction: 500 m/s
2
(approx. 50G) max.
Malfunction: 300 m/s
2
(approx. 30G) max.
IEC IP00
175
-10° to 70°C (at 60% RH max.) with no icing
45% to 85% (for 5°C to 35°C)
Mechanical: 1,000,000 operations min.
Electrical: 50,000 operations min.
Approx. 1 g
Degree of protection against electric shock
Class I
Note: 1.
Data shown are of initial value.
2.
The ratings apply under the following test conditions: Ambient Temperature = 20
±
2
°
C, Ambient Humidity = 65
±
5%, Operating frequency = 30 operations/min.
Detection Switch
D2X
41
Engineering Data
■
Contact Specifications
Item
Specification
Material
Minimum applicable load
(see note)
Slide
Gold plated
1 mA at 5 VDC
Specification
■
Contact Form
Note:
Minimum applicable loads are indicated by N standard
reference values. This value represents the failure rate at a
60% (λ
60
) reliability level (JIS C5003).
The equation
λ
60
=0.5 x 10
-6
/operations indicates that a failure
rate of 1/2,000,000 operations can be expected at a reliability
level of 60%.
■

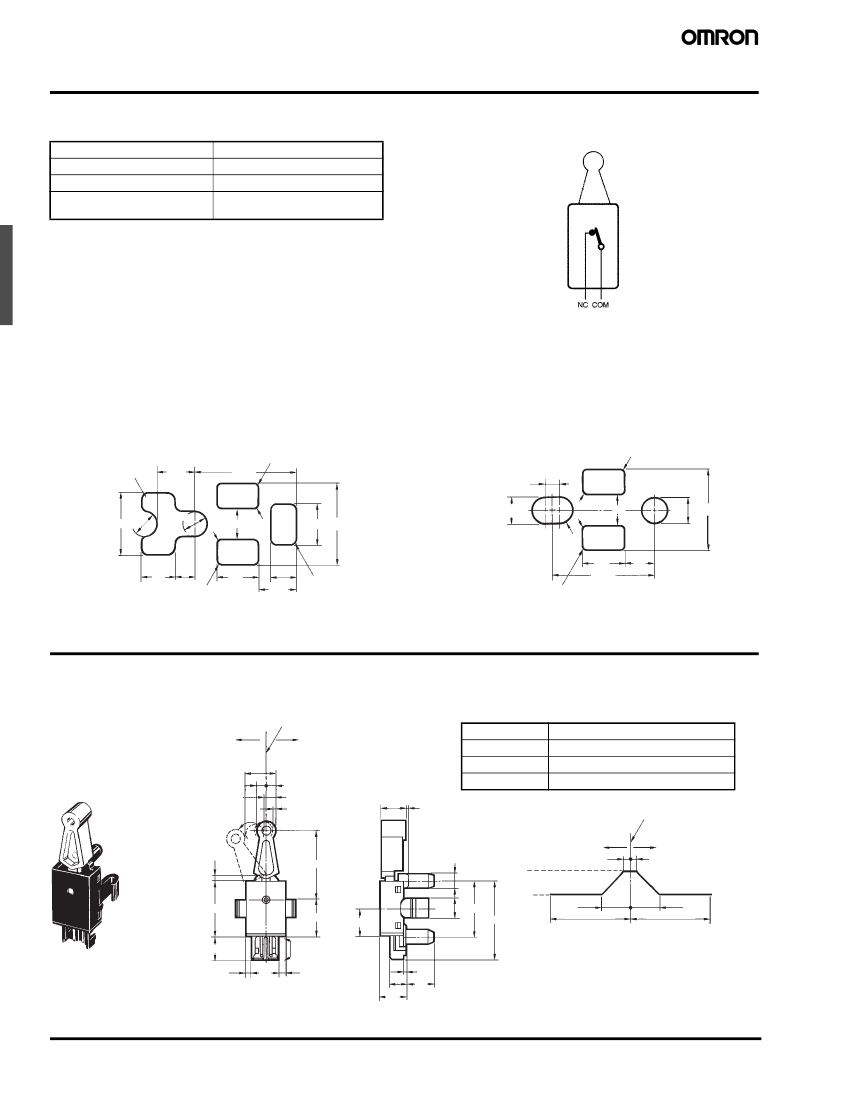

Panel Mounting Holes
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±0.1
mm applies to all dimensions
2.
The tolerance from the center of each hole is
±0.07
3.
Make sure that any burrs are located on the backside of the mounting plate
With 1.6 mm panel thickness
Two, 0.6R
Eight, 1R
4.8
12.9
With 1.2 mm panel thickness
Two, 0.6R
1.8
3.2±0.05 dia.
3.2
+0.1
–0
dia.
Two,
0.5R 4.4
Two,
0.5R
5.2 10.8
+0.8
–0
3.2±0.05 dia.
10.8
+0.8
–0
3.5
8±0.1
dia.
Two, 0.5R
Two, 0.5R 4.4
Two,
1.6R
4
2.7±0.1
5
Two, 0.6R
3.2
4.9
+0.1
–0
Four, 1R
Two, 0.6R
5
12.2
3.4
Dimensions
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±0.4
mm applies to all dimensions.
2.
The operating characteristics are for cases where the actuator operates in the A (←) direction or B (→) direction.
D2X-C
Direction A
Hub on
back
side
Center of two, 3.1-dia. holes
Direction B
OF
RF min.
OP
50 g
2g
2° to 9° max. or 0.52 to 2.35 mm
25° or 6.34 mm
Center Line
TTP
Stroke measurement reference
position Direction B: 2±0
OP max.
Stroke measurement reference
position Direction A: 2
±0
OP min.
4.8
(0.2)
TTP max.
1.55
15
Two, 3.1 dia.
ON
OFF
Direction A
0.52 min.
Direction B
0.52 min.
11.9
8
6
3.8
12.2
(17)
2.35 max.
2.35 max.
Total travel position Total travel position
6.34 min.
6.34 min.
Total stroke of actuator (mm)
5.1
1
5.8
*
1.6
3.3
5.3
0.4
6.2
*Use AMP’s CT Connector
type 173977-2.
42
Detection Switch
D2X
Precautions
Be sure to read the precautions and information common to all Snap Action and Detection Switches, contained in the Technical User’s Guide,
“Snap Action Switches, Technical Information” for correct use.
■
Correct Use
Operating Object
For proper operation, follow these guidelines:
Set the dog or cam stroke so the actuator does not receive excessive
force when the switch is actuated. When the actuator is released, the
dog or cam must not be touching the actuator head.
Set the dog or cam so that it will press the head of the lever in the
traveling direction of the lever.
Do not allow the lever to be pressed beyond the TTP, otherwise the
D2X may be damaged.
■
Wiring Connector
Use the following type CT connectors of AMP for wiring.
Press-fit connector:173997-2
Crimp-style connector housing:179228-2
Crimp-style connector contact:179227-1
The above connectors are not sold by Omron.
Contact Tyco Electronic’s AMP offices for these connectors
Lever Load
Do not impose loads in the following directions on the lever, other-
wise the Switch may be damaged or malfunction.
Microload
Be sure that the load is within the following range:
Voltage
(V)
30
0.41 mA
100 mA
Operating
range
5
Inoperable
range
1 mA
0
0.1
1
10
100
Current (mA)
Detection Switch
D2X
43
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at
http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
847-882-2288
Cat. No. X303-E-1
11/10
Specifications subject to change without notice
Printed in USA
Detection Switch
D2X
