5962-01-426-3491 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-426-3491

5962-01-426-3491: DescriptionIC,LOGIC GATE,QUAD 2-INPUT XOR,ACT-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size210KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962-01-426-3491 Overview

IC,LOGIC GATE,QUAD 2-INPUT XOR,ACT-CMOS,SOP,14PIN,PLASTIC

5962-01-426-3491 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOP, SOP14,.25
Reach Compliance Code	_compli
JESD-30 code	R-PDSO-G14
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.024 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Prop。Delay @ Nom-Su	14.6 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

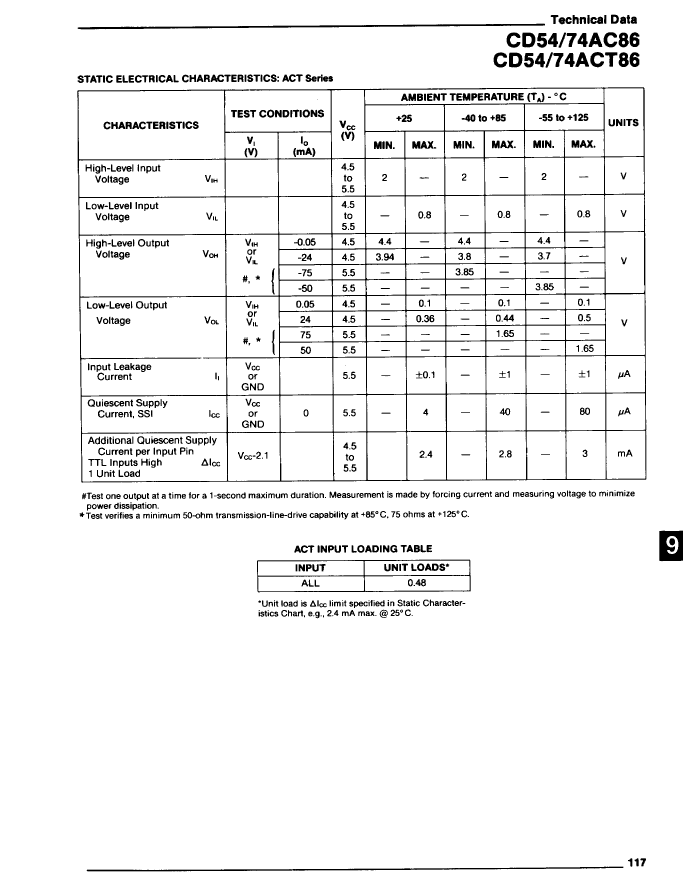

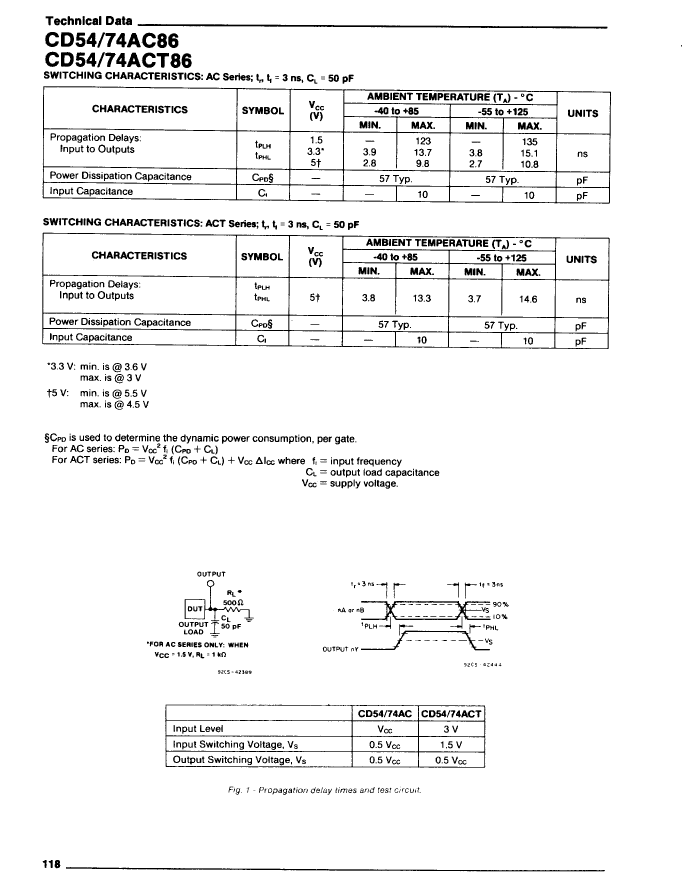

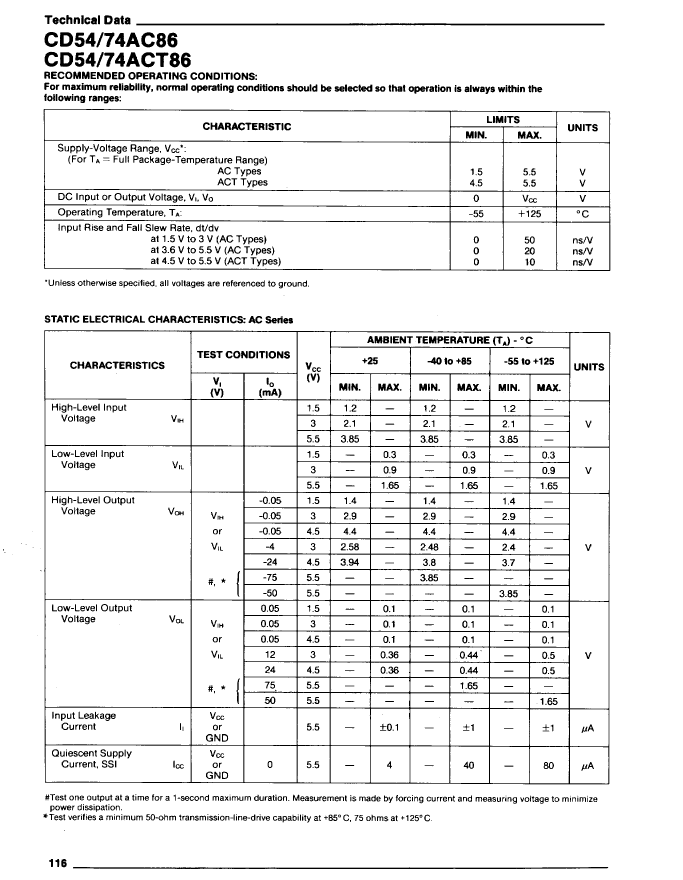

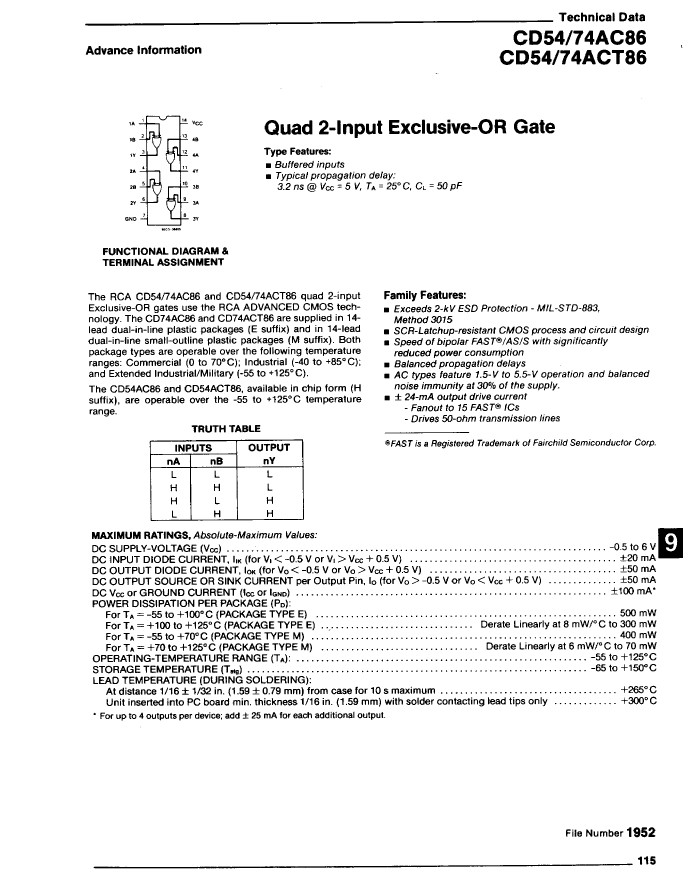

Preview

Download Datasheet

View All

5962-01-426-3491 Related Products

	5962-01-426-3491	CD74AC86M96	CD74AC86E	CD74AC86M	CD54AC86F3A	CD74ACT86M96	CD74ACT86E	CD74ACT86M	5962-01-319-8888	5962-01-393-8701
Description	IC,LOGIC GATE,QUAD 2-INPUT XOR,ACT-CMOS,SOP,14PIN,PLASTIC	XOR GATE	XOR GATE	XOR GATE	IC,LOGIC GATE,QUAD 2-INPUT XOR,AC-CMOS,DIP,14PIN,CERAMIC	XOR GATE	XOR GATE	XOR GATE	IC,LOGIC GATE,QUAD 2-INPUT XOR,AC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,QUAD 2-INPUT XOR,AC-CMOS,DIP,14PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
package instruction	SOP, SOP14,.25	-	-	-	-	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-XDIP-T14	R-PDSO-G14	R-PDIP-T14	-	R-XDIP-T14	R-XDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	-	50 pF	50 pF
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	-	XOR GATE	XOR GATE
MaximumI(ol)	0.024 A	0.012 A	0.012 A	0.012 A	0.012 A	0.024 A	0.024 A	-	0.012 A	0.012 A
Number of terminals	14	14	14	14	14	14	14	-	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	-	CERAMIC	CERAMIC
encapsulated code	SOP	SOP	DIP	SOP	DIP	SOP	DIP	-	DIP	DIP
Encapsulate equivalent code	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25	DIP14,.3	SOP14,.25	DIP14,.3	-	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	-	IN-LINE	IN-LINE
power supply	5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	5 V	5 V	-	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	-	NO	NO
surface mount	YES	YES	NO	YES	NO	YES	NO	-	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	-	-	-	-
JESD-609 code	-	e0	e0	e0	e0	e0	e0	-	-	-
Prop。Delay @ Nom-Sup	-	15.1 ns	15.1 ns	15.1 ns	18.9 ns	14.6 ns	14.6 ns	-	18.9 ns	18.9 ns
Minimum supply voltage (Vsup)	-	1.5 V	1.5 V	1.5 V	1.5 V	-	-	-	1.5 V	1.5 V
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-
