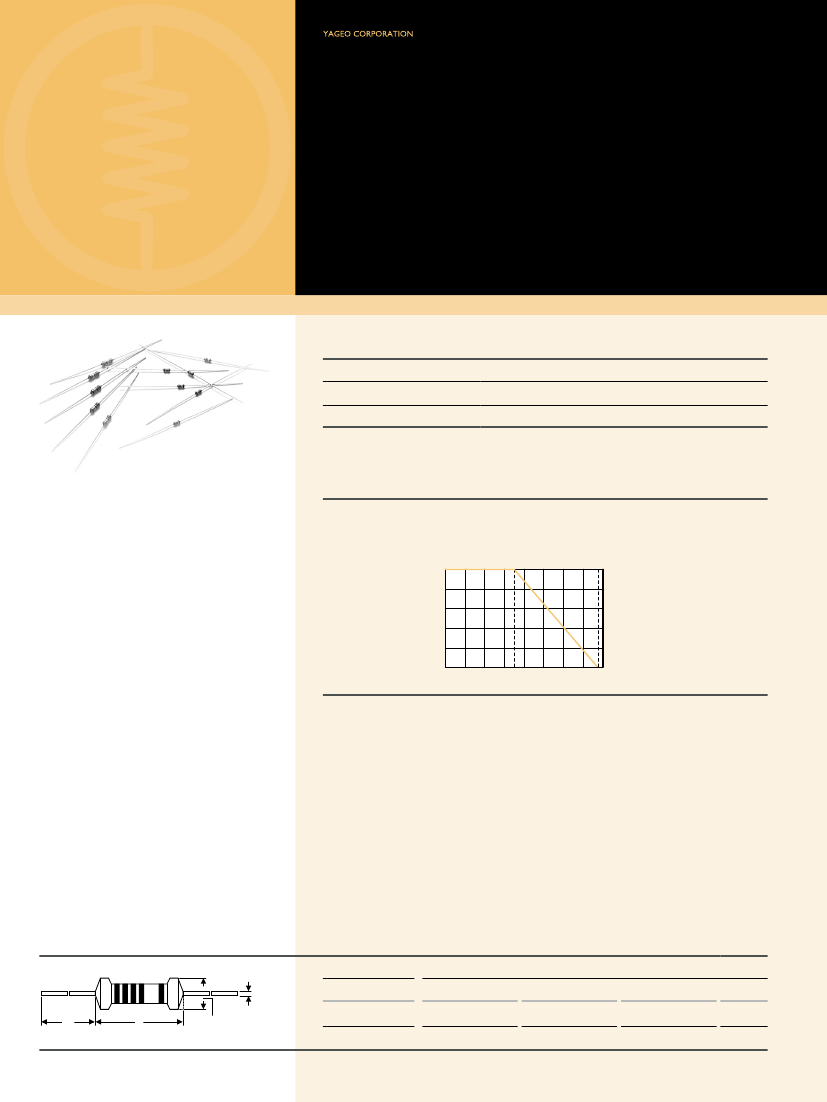

Leaded ResistoRs
Metal Film Resistors
Professional Type
Miniature Style [ MF0 Series ]
FeatURes
Power Rating
Resistance Tolerance
T.C.R.
0.4W, 0.6W
±0.5%, ±1%, ±5%,
±50ppm/°C
deRatiNG CURVe
iNtRodUCtioN
The MF0 Series Metal Film Professional
Resistors are manufactured using a vacuum
sputtering system to deposit multiple layers of
mixed metal alloys and passivative materials
onto a carefully treated high grade ceramic
substrate. After a helical groove has been cut
in the resistive layer, tinned connecting leads of
electrolytic copper are welded to the end-caps.
The resistors are coated with layers of blue
color lacquer.
For resistors operated in ambient temperatures above 70°C, power rating must be derated
in accordance with the curve below.
Rated Load (%)
70
100
80
60
40
20
20
40
60
80
100 120 140 160
155 °C
Ambient Temperature (°C)
diMeNsioNs
stYLe
ød
H
L
øD
Miniature
MF0204
MF0207
diMeNsioN
L
3.4±0.3
6.3±0.5
ød
1.9±0.2
2.4±0.2
H
28±2.0
28±2.0
Unit: mm
ød
0.45±0.05
0.55±0.05
Note:
eLeCtRiCaL CHaRaCteRistiCs
stYLe
Power Rating at 70°C
Maximum Working Voltage
Maximum Overload Voltage
Voltage Proof
Resistance Range
Operating Temp. Range
Temperature Coefficient
MF0204
0.4W
250V
500V
300V
1
Ω
- 10M
Ω
& 0
Ω
for E24 & E96 series value
-55°C to +155°C
±50ppm/°C
MF0207
0.6W
350V
700V
500V
Note: Special value is available on request
eNViRoNMeNtaL CHaRaCteRistiCs
PeRFoRMaNCe test
Short Time Overload
Voltage Proof
Temperature Coefficient
Insulation Resistance
Solderability
Solvent Resistance of Marking
Robustness of Terminations
Periodic-pulse Overload
Damp Heat Steady State
Endurance at 70°C
Temperature Cycling
Resistance to Soldering Heat
test MetHod
IEC 60115-1 4.13
IEC 60115-1 4.7
IEC 60115-1 4.8
IEC 60115-1 4.6
IEC 60115-1 4.17
IEC 60115-1 4.30
IEC 60115-1 4.16
IEC 60115-1 4.39
IEC 60115-1 4.24
IEC 60115-1 4.25
IEC 60115-1 4.19
IEC 60115-1 4.18
2.5 times RCWV for 5 Sec.
in V-block for 60 Sec., test voltage by type
-55°C to +155°C
in V-block for 60 Sec.
235±5°C for 3±0.5 Sec.
IPA for 5±0.5 Min. with ultrasonic
Direct load for 10 Sec. in the direction of the terminal leads
4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off)
40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV
70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body
aPPRaise
±0.25%+0.05
Ω
By type
By type
>10,000M
Ω
95% Min. coverage
No deterioration of
coatings and markings
≥2.5kg (24.5N)
±1.0%+0.05
Ω
±1.5%+0.05
Ω
±1.5%+0.05
Ω
±0.75%+0.05
Ω
±0.25%+0.05
Ω
Note: Rated Continuous Working Voltage (RCWV) =
Power Rating x Resistance Value
