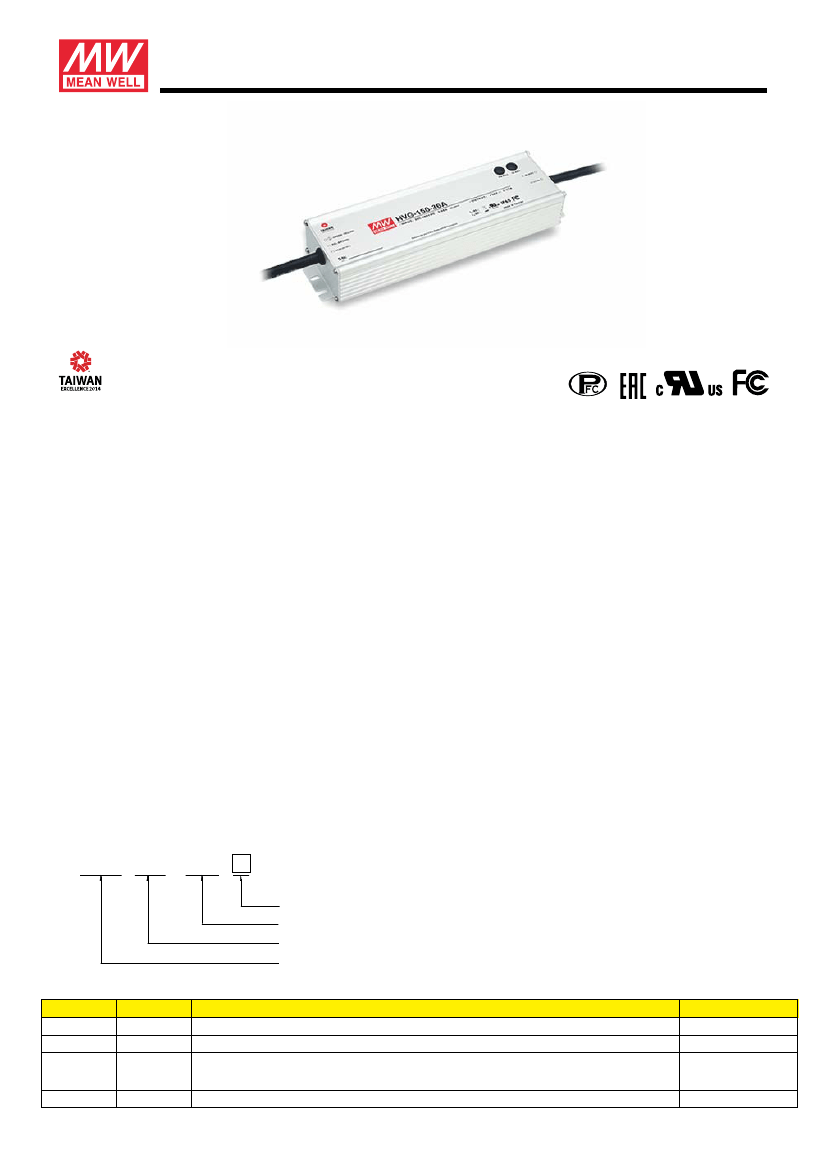

150W Constant Voltage + Constant Current LED Driver
HVG-150
series
IP65 IP67
■
Features
Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with Class
Ⅰ
design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty
Type HL
■
Applications
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type HL for use in Class
Ⅰ
, Division 2
hazardous (Classified) location.
■
Description
HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and
constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated
voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the
series is able to operate from -40
℃
through as high as +85
℃
case temperature under free air convection.
The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and
outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies,
so as to provide the optimal design flexibility for LED lighting system.
■
Model Encoding
HVG - 150 - 36
A
Function options
Rated output
voltage(12V/15V/20V/24V/30V/36V/42V/48V/54V)
Rated
wattage
Series name
Type
A
B
AB
D
IP Level
IP65
IP67
IP65
IP67
Function
Io and Vo adjustable through built-in potentiometer.
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
Timer dimming function, contact MEAN WELL for details(safety pending).
Note
In Stock
In Stock
In Stock
By request
File Name:HVG-150-SPEC 2018-09-30
150W Constant Voltage + Constant Current LED Driver
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HVG-150-12
12V
10A
120W
CONSTANT CURRENT REGION
Note.4
7.2~12V
HVG-150
HVG-150-36
36V
19.8~36V
4.17A
series
HVG-150-15
15V
8.25~15V
HVG-150-20
20V
11~20V
HVG-150-24
24V
13.2~24V
HVG-150-30
30V
16.5~30V
5A
HVG-150-42
42V
23.1~42V
3.58A
HVG-150-48
48V
26.4~48V
HVG-150-54
54V
29.7~54V
10A
150W
150mVp-p
7.5A
150W
150mVp-p
17 ~ 22V
4.13 ~ 7.5A
±1.0%
±0.5%
±1.0%
6.25A
150W
150mVp-p
22 ~ 27V
3.13A
150.24W
200mVp-p
43 ~ 53V
2.78A
150.12W
200mVp-p
49 ~ 58V
150W
200mVp-p
27 ~ 33V
150.12W
200mVp-p
33 ~ 40V
150.36W
200mVp-p
38 ~ 46V
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE ADJ. RANGE
OUTPUT
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer)
10.8 ~ 13.5V 13.5 ~ 17V
6 ~ 10A
±0.5%
±2.0%
5.5 ~ 10A
±2.0%
±0.5%
±1.5%
Adjustable for A/AB-Type only (via the built-in potentiometer)
3.44 ~ 6.25A 2.75 ~ 5A
±1.0%
±0.5%
±0.5%
±1.0%
±0.5%
±0.5%
2.29 ~ 4.17A 1.97 ~ 3.58A 1.72 ~ 3.13A 1.53 ~ 2.78A
±1.0%
±1.0%
±1.0%
±1.0%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
TOTAL HARMONIC DISTORTION
INPUT
EFFICIENCY (Typ.)
AC CURRENT
(Typ.)
347VAC
480VAC
Note.5
Note.6
500ms, 80ms /230VAC, 347VAC, 480VAC
18ms/347VAC, 480VAC
180 ~ 528VAC
254VDC ~ 747VDC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF
≧
0.98/230VAC, PF
≧
0.97/277VAC, PF
≧
0.95/347VAC, PF
≧
0.93/480VAC @full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20%(@ load
≧
50%/230VAC, 277VAC, 347VAC [@ load
≧
60% only for 12V model]; @ load
≧
75%/480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
87%
0.45A
89%
0.5A
90.5%
91%
91%
91%
91%
91.5%
91.5%
INRUSH CURRENT (Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
PROTECTION
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
MAX. CASE TEMP.
ENVIRONMENT
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
0.38A
0.35A
COLD START 35A(t
width
=790 s measured at 50% I
peak
) at 480VAC; Per NEMA 410
μ
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
<0.75mA / 480VAC
95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
Constant current limiting, recovers automatically after fault condition is removed
34 ~ 38V
23 ~ 27V
28 ~ 34V
41 ~ 46V
14.4 ~ 16.8V 18 ~ 21V
Shut down o/p voltage with auto-recovery or re-power on to recovery
Shut down o/p voltage, recovers automatically after temperature goes down
Tcase=-40 ~ +85
℃
(-40 ~ +75
℃
for 12V model, -40 ~ +80
℃
for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Tcase=+85
℃
(+75
℃
for 12V model, +80
℃
for 15V model)
20 ~ 95% RH non-condensing
47 ~ 53V
54 ~ 60V
59 ~ 65V
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 60
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:1.5KVAC
SAFETY STANDARDS
Note.7
UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved
SAFETY &
EMC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, EN61000-3-2 Class C (
@ load
≧
55% load,
@ load
≧
60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) , EAC TP TC 020
158.6K hrs min. MIL-HDBK-217F (25
℃
)
245*68*38.8mm (L*W*H)
DIMENSION
1.24Kg; 12pcs/15.9Kg/0.78CUFT
PACKING
1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4.
Please refer to "DRIVING METHODS OF LED MODULE".
5.
De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75
℃
or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf
File Name:HVG-150-SPEC 2018-09-30
150W Constant Voltage + Constant Current LED Driver
Block Diagram
HVG-150
series
PFC fosc : 130KHz
PWM fosc : 70KHz
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
FG
PFC
CONTROL
O.T.P.
DETECTION
CIRCUIT
O.V.P.
+V
-V
DIM+
DIM-
(B Type)
I/P
O.L.P.
PWM & PFC
CONTROL
DRIVING METHODS OF LED MODULE
※
This series is able to work in either Constant Current mode (a direct drive way) or
Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
100
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
(A) Constant
Voltage area
(B)
Constant
Current region
Vo(%)
50
100
Io (%)
Typical output current normalized by rated current (%)
File Name:HVG-150-SPEC 2018-09-30
150W Constant Voltage + Constant Current LED Driver

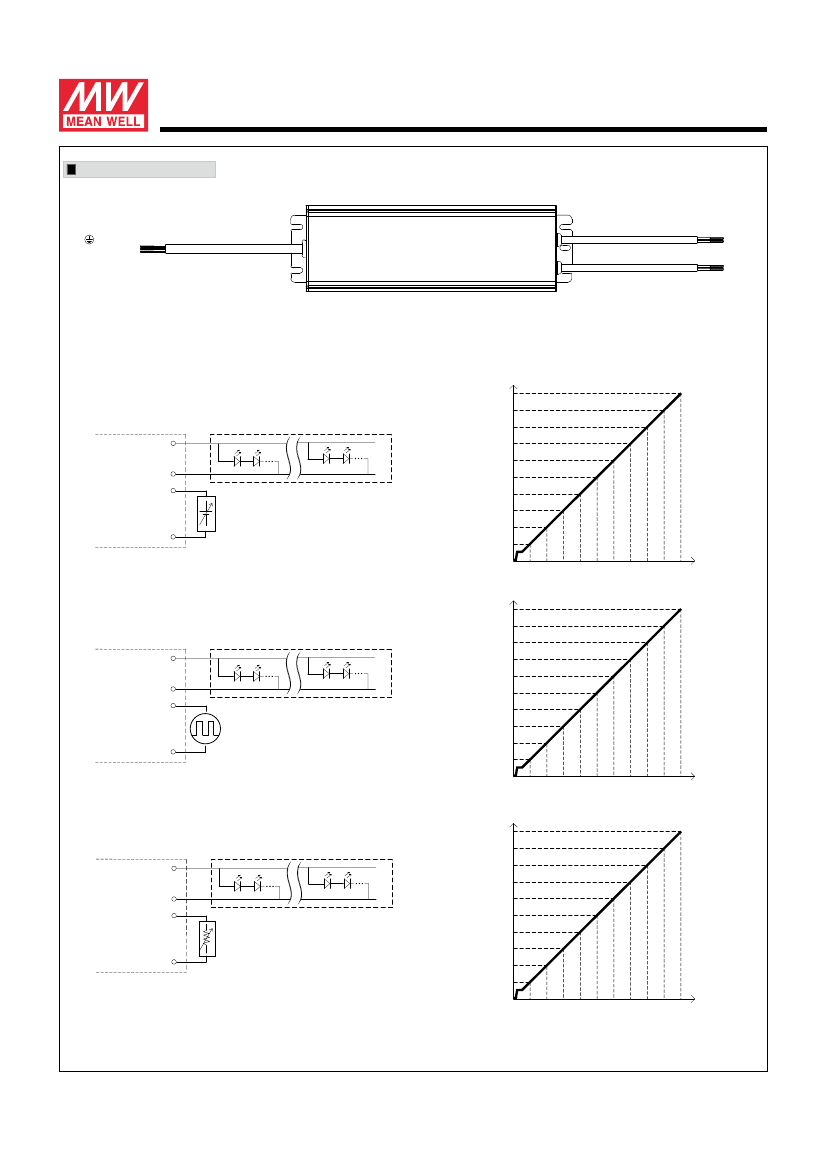

DIMMING OPERATION
HVG-150
series
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HVG-150
DIM+(Blue)
DIM-(White)
-V(Black)
+V(Red)
※
3 in 1 dimming function (for B/AB-Type)
Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
0 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 1 0 0
μ
A (typ.)
◎
Applying additive 0 ~ 10VDC
100%
90%
80%
Output current (%)
+V
-V
DIM+
+
-
+
Additive Voltage
-
+
-
70%
60%
50%
40%
30%
20%
10%
0%
0V 1V
2V 3V 4V 5V 6V 7V 8V 9V 10V
Dimming input: Additive voltage
DIM-
“DO
NOT connect "DIM- to -V"
◎
Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
100%
90%
80%
Output current (%)
+V
-V
DIM+
+
-
+
-
70%
60%
50%
40%
30%
20%
Additive PWM signal
DIM-
“DO
NOT connect "DIM- to -V"
10%
0%
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Duty cycle of additive 10V PWM signal dimming input
◎
Applying additive resistance:
+
-
100%
90%
+V
-V
DIM+
+
Output current (%)
80%
70%
60%
50%
40%
30%
-
Additive Resistance
DIM-
“DO
NOT connect "DIM- to -V"
20%
10%
0%
Short
10K/N 20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
(N=driver quantity for
synchronized
dimming operation
)
Dimming input: Additive resistance
Note : 1. Min. dimming level is about 6% and the output current is not defined when 0%<
I
out<6%.
2. The output current could drop down to 0% when dimming input is about 0k
Ω
or 0Vdc, or 10V PWM signal with 0% duty cycle.
File Name:HVG-150-SPEC 2018-09-30
150W Constant Voltage + Constant Current LED Driver
HVG-150
series

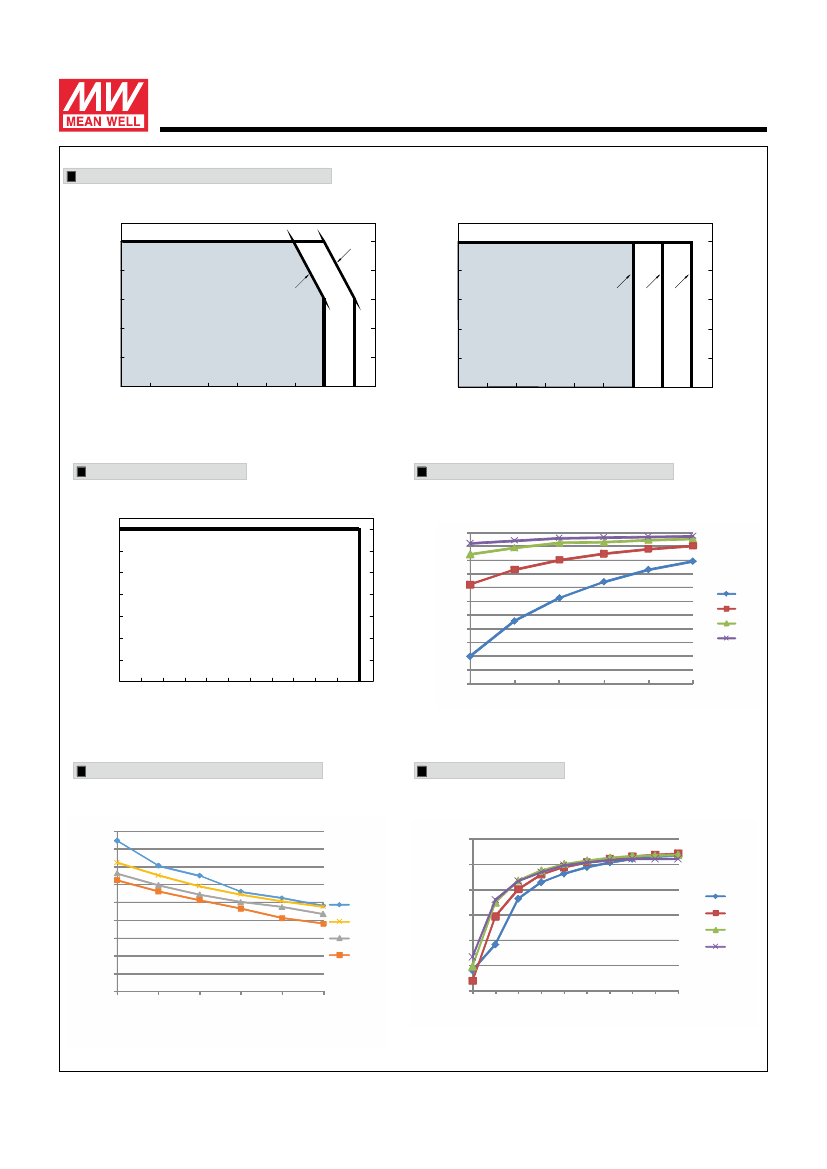

OUTPUT LOAD vs TEMPERATURE(Note.9)
100
Others
100
80
80
60
12V,15V
60
12V
15V
Others
LOAD (%)
40
LOAD (%)
(HORIZONTAL)
40
20
20
-40
-25
-10
0
15
30
50
60
70
-40
-25
0
20
45
65
75
80
85 (HORIZONTAL)
AMBIENT TEMPERATURE,Ta (
℃
)
Tcase (
℃
)
STATIC CHARACTERISTIC
POWER FACTOR (PF) CHARACTERISTIC
※
Tcase at 75℃
Constant Current Mode
100
90
80
70
1
0.98
0.96
0.94
0.92
0.9
480V
347V
277V
230V
LOAD (%)
PF
347
440
480
528
60
50
40
0.88
0.86
0.84
0.82
0.8
0.78
50%
60%
70%
80%
90%
100%
(150W)
180
INPUT VOLTAGE (V) 60Hz
LOAD
TOTAL HARMONIC DISTORTION (THD)
※
48V Model, Tcase at 75℃
18
16
14
12
EFFICIENCY vs LOAD
HVG-150 series possess superior working efficiency that up to 91.5% can
be reached in field applications.
※
48V Model, Tcase at 75℃
95
90
EFFICIENCY(%)
THD(%)
10
8
6
4
2
0
50%
60%
70%
80%
90%
100%
85
80
75
70
65
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
480VAC
347VAC
277VAC
230VAC
480V
347V
277V
230V
LOAD
LOAD
File Name:HVG-150-SPEC 2018-09-30
