CM8608IP Overview

CLASS AB STEREO HEAD PHONE DRIVER

CM8608
C
LASS
AB S
TEREO
H
EADPHONE
D
RIVER
GENERAL DESCRIPTION
The CM8608 is an integrated class AB stereo headphone
driver contained in an SO8 or a DIP8 plastic package. The
device is fabricated in a 1 mm CMOS process and has
been primarily developed for portable digital audio
applications.

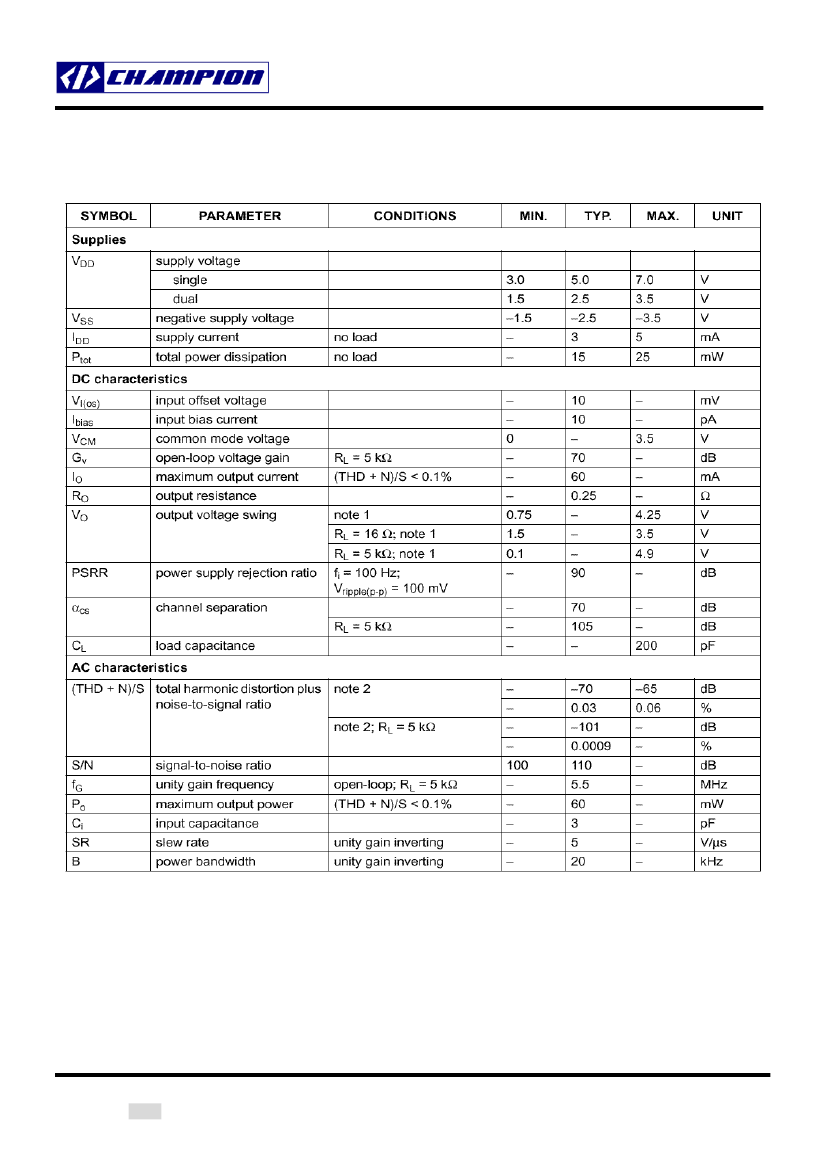

FEATURES
Wide temperature range
No switch ON/OFF clicks
Excellent power supply ripple rejection.
Low power consumption
Short-circuit resistant
High performance
high signal-to-noise ratio
high slew rate
low distortion
Large output voltage swing

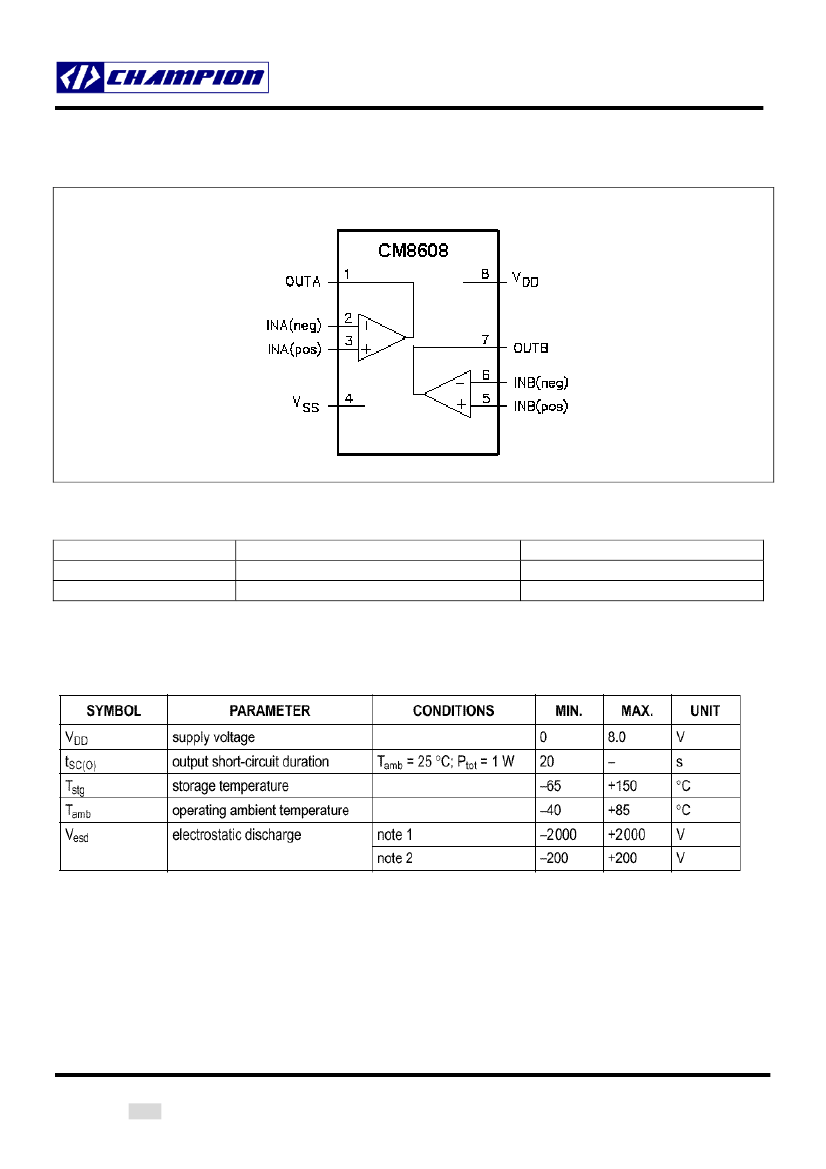

PIN CONFIGURATION
SOP-8 (S08)/PDIP (P08)
Top View
1
2
3
4
OUTA
INA(neg)
INA(pos)
VSS
VDD
OUTB
INB(neg)
INB(pos)
8
7
6
5
PIN DESCRIPTION
Pin No.
1
2
3
4
5
6
7
8
OUTA
INA(neg)
INA(pos)
VSS
INB(pos)
INB(neg)
OUTB
VDD
Symbol
Output A
Inverting input A
Non-inverting input A
Negative supply
Non-inverting input B
Inverting input B
Output B
Positive supply
Description
2001/12/20
Rev. 1
Champion Microelectronic Corporation
Page 1
