UNL6W80K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UNL6W80K-F

UNL6W80K-F: Descriptionfilm capacitors 80uf 600volts; CategoryPassive components; File Size149KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

UNL6W80K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UNL6W80K-F	-	-	View	Buy Now

UNL6W80K-F Overview

film capacitors 80uf 600volts

UNL6W80K-F Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Film Capacitors
RoHS	Yes
Produc	DC Link Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	80 uF
Voltage Rating DC	600 V
Tolerance	10 %
Termination Style	Radial
Lead Spacing	12.7 mm
Case Diamete	50 mm
Case Length	63 mm
ESR	6.5 mOhms
Packaging	Bulk

Preview

Download Datasheet

View All

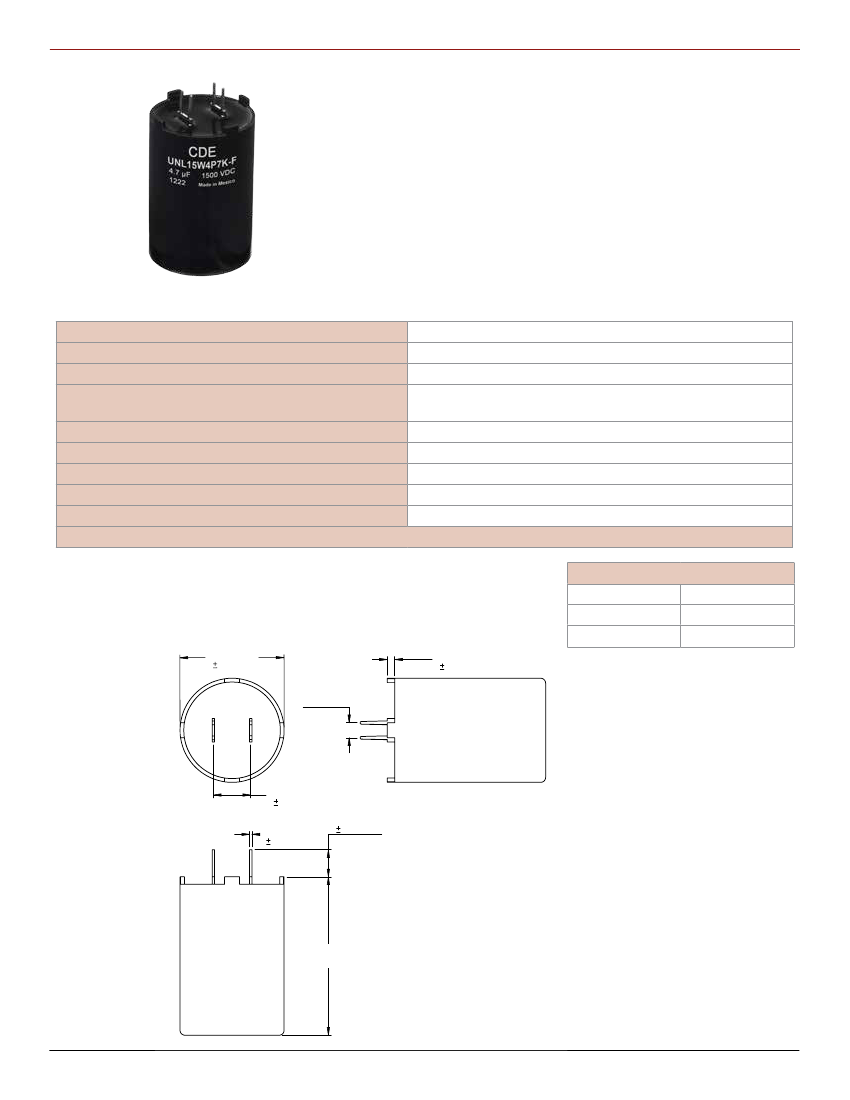

Type UNL, DC Link and Filter Capacitors

High Capacitance, High Current, Board Mount

Constructed using a low-loss polypropylene film, the UNL series

offers high ripple current capabilities and high capacitance values

making them ideal for electrolytic bank replacement and high

ripple current applications.

Highlights

Advantages over Electrolytics

- Exceptionally low ESR

- Up to 10 times the ripple current

- Non-polar

- Higher voltage ratings

- Dry construction - no electrolyte

- Improved reliability

4.7 to 100 µF

±10% (K) standard, ±5% (J) optional

400 to 1500 Vdc

–55 ºC to 105 ºC*

*Full rated voltage at 85 ºC - derate linearly to 50% rated at 105 ºC

Check tables for values

125% rated DC voltage for 60 s

3 kVac @ 50/60 Hz for 60 s

2,000 h @ 85 ºC, 125% rated voltage

60,000 h @ 70 ºC, rated voltage

RoHS Compliant

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Maximum rms Current

Test Voltage between Terminals @ 25 ºC

Test Voltage between Terminals & Case @ 25 ºC

Life Test

Life Expectancy

Dimensions

Construction Details

Case Material

Resin Material

Terminal Material

0.8 mm

5.1 mm

2.54

0.8 mm

Plastic UL94V-0

Dry Resin UL94V-0

Tin Plated Brass

12.7

0.8 mm

0.8

0.08 mm

0.5 mm

* Standard Long Pins: h = 7.6 mm

'S' Short Pins: h =3.8 mm

Pins are tapered 1.27 - 1.14 mm

±0.5 mm

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
