30WQ04FN
Technical Data
Data Sheet N0685, Rev. A
30WQ04FN SCHOTTKY RECTIFIER
Features
Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
Green products in compliance with the RoHS directive
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

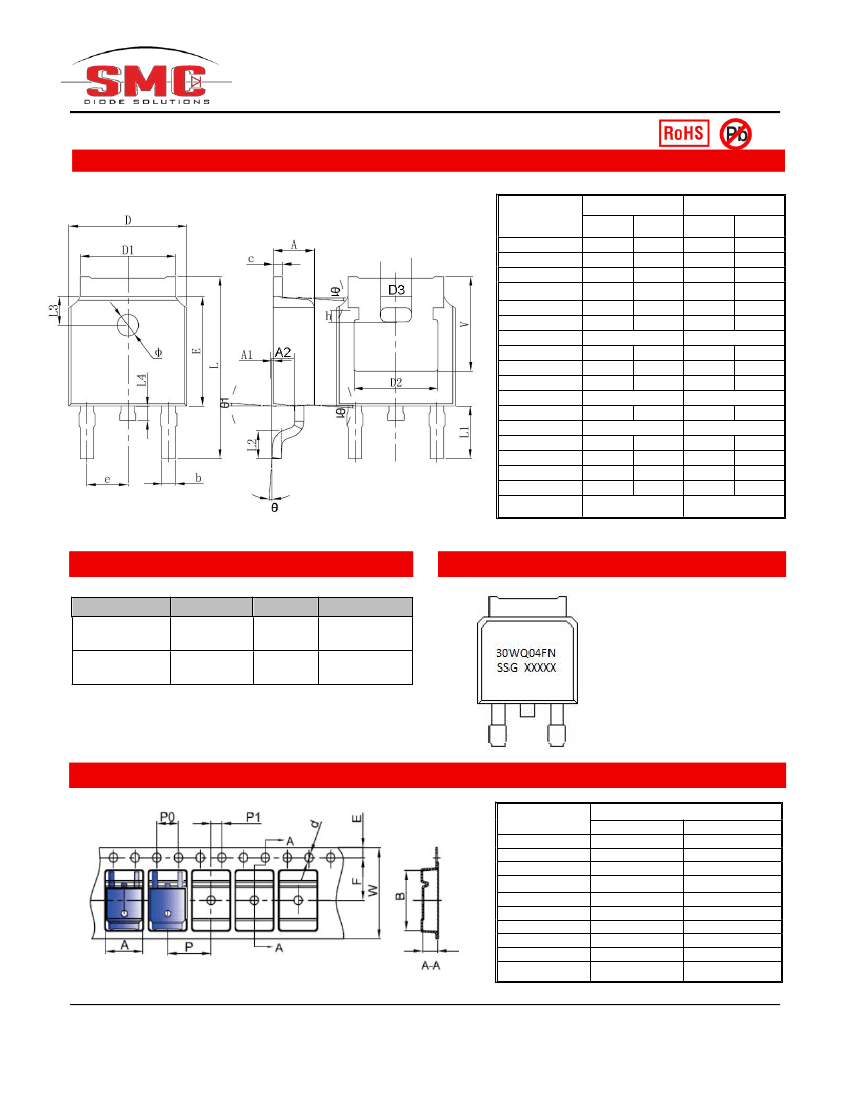

DPAK

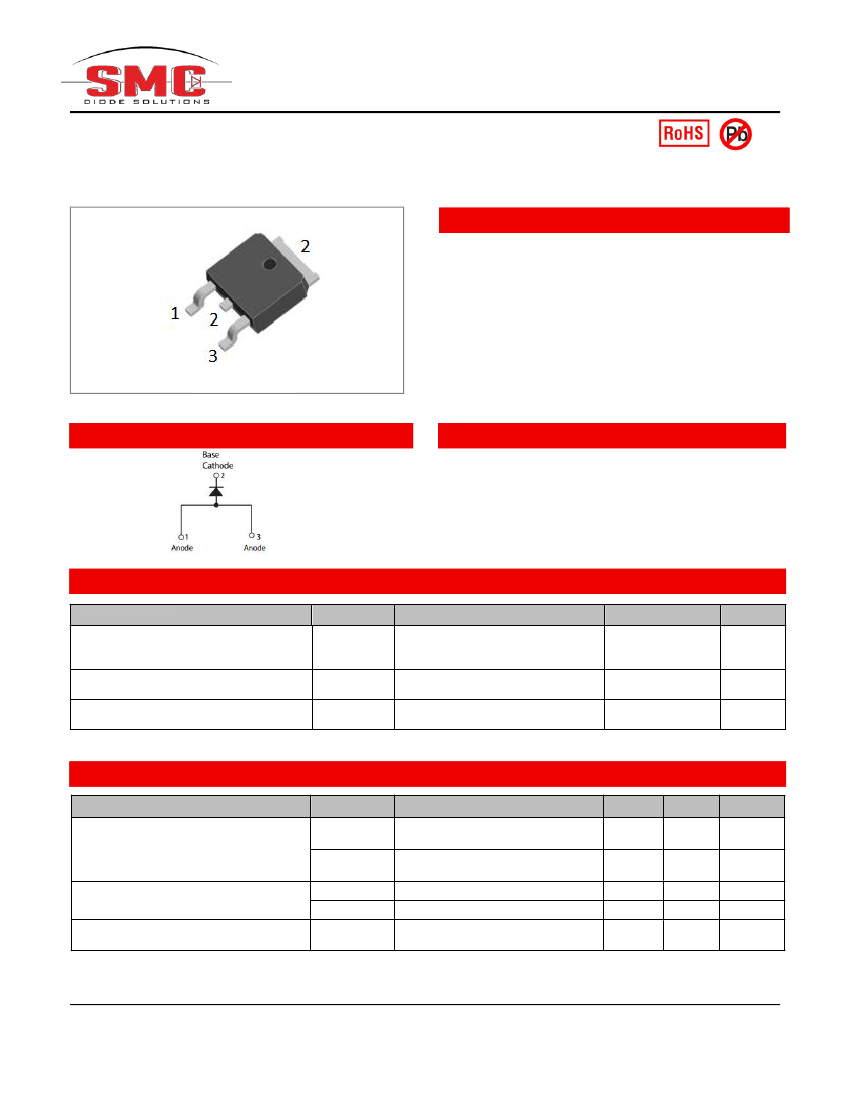

Circuit Diagram
Applications
Disk drives
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Battery charging

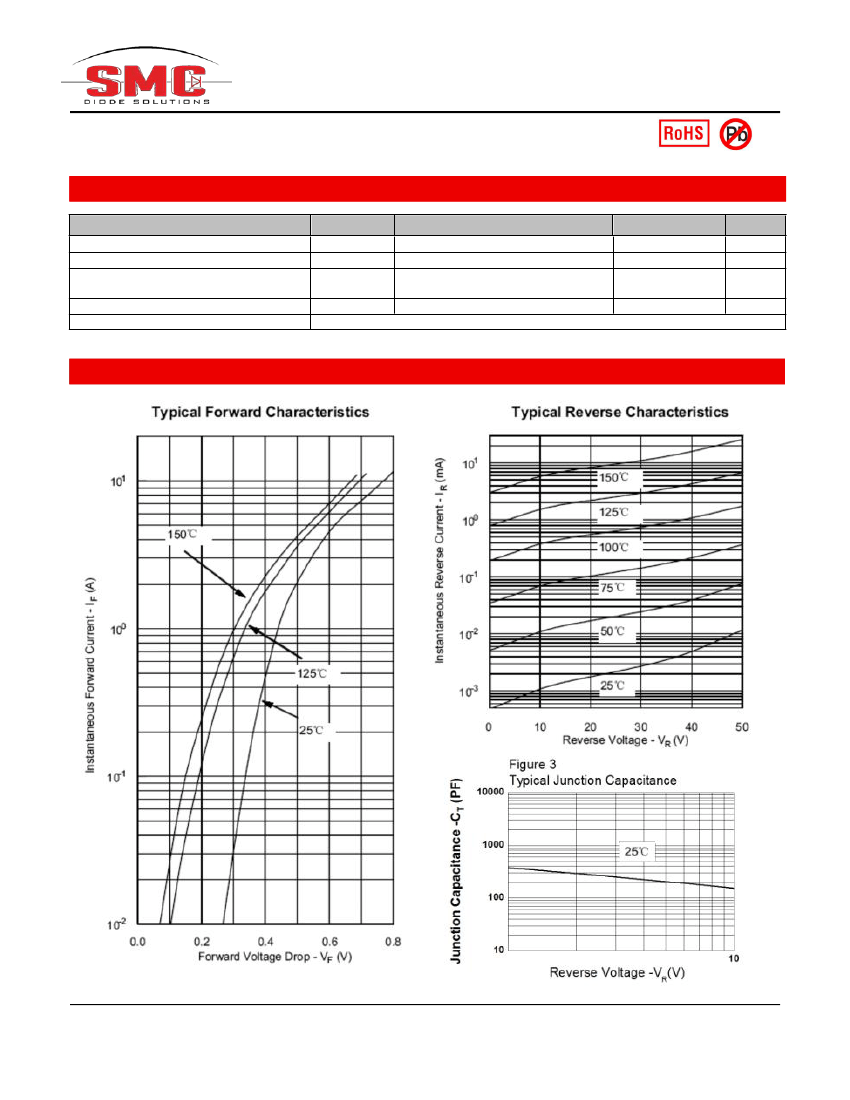

Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=135°C,
rectangular wave form
8.3ms, Half Sine pulse, T
C
= 25
C
Max.
40
3.5
96
Units
V
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Symbol
V
F1
V
F2
Reverse Current *
Junction Capacitance
* Pulse width < 300 µs, duty cycle < 2%
Condition
@ 3A, Pulse, T
J
= 25
C
@ 6A, Pulse, T
J
= 25
C
@ 3A, Pulse, T
J
= 125
C
@ 6A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
Typ.
0.50
0.65
0.47
0.60
0.01
2
203
Max.
0.53
0.67
0.49
0.62
2.00
24
300
Units
V
V
mA
mA
pF
I
R1
I
R2
C
T
