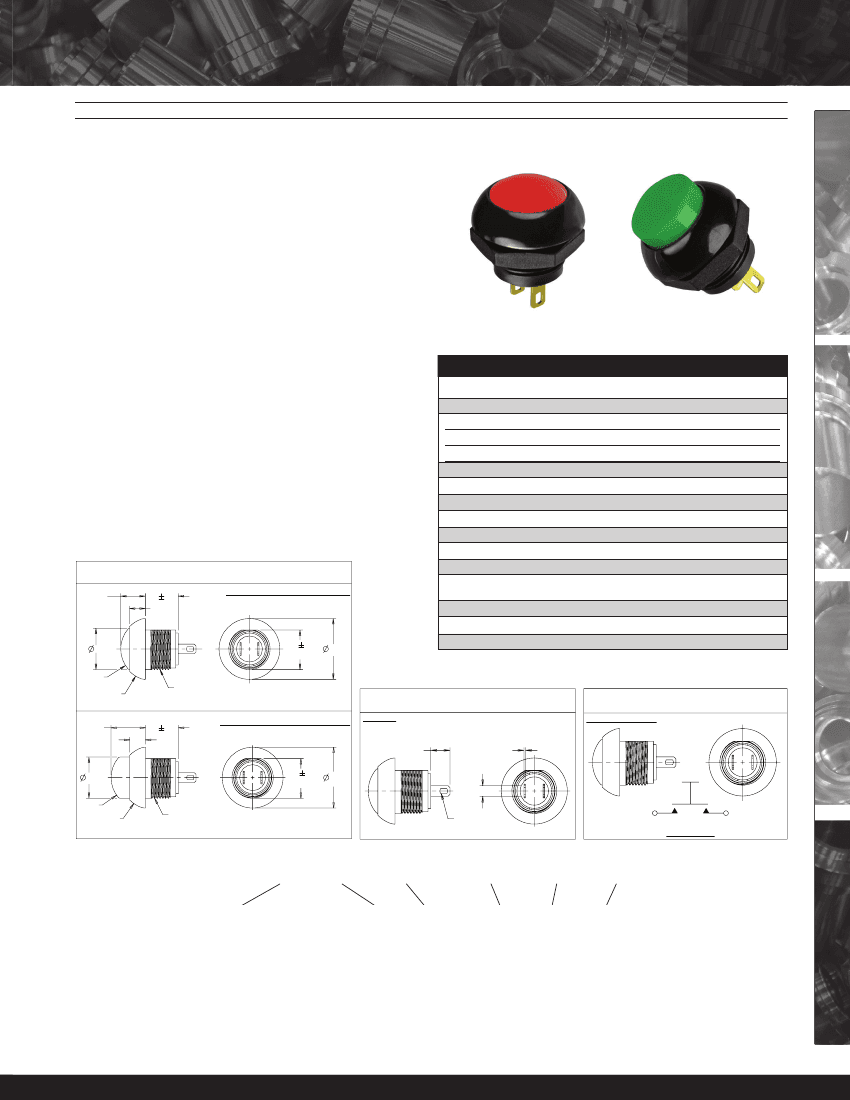

LOW LEVEL SEALED PUSHBUTTON SWITCHES

Competitively priced, the P9C pushbutton is a low-level only

momentary, normally open, IP68S sealed switch with a dome

style pushbutton and a 3 million cycle life. Flush dome and raised

dome button profiles are available in either gloss or matte finish.

The P9C comes with a standard 15/32" threaded

case for hex nut mounting and features short behind

panel depth. It also offers excellent performance

while operating under severe conditions found in

demanding applications.

The P9C is a quality precision switch designed for use in control

panels, grips, computers, instruments and other applications

where attractive, rugged, long life pushbutton switches are

required.

DOME

PUSHBUTTONS

P9C

LOW LEVEL, MOMENTARY ACTION, LONG LIFE, RUGGED PUSHBUTTON FOR HARSH ENVIRONMENTS

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

DWV

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Total Travel:

Overtravel:

1-32VDC

100mA

1000Vrms

3,000,000 cycles

Dusttight and Watertight per IP68S

1.2 lbs. ± 0.7 lb.

0.080 inches max

0.010 inches min

Features:

•

3 million cycles

Sealed to IP68S

All plastic housing & button construction

Positive tactile feedback

2 button heights

RoHS/WEEE/Reach compliant

BUTTON & CASE OPTIONS

.28

Operating Temp Range:

-40°C to +85°C

.37 .04

.180

FLUSH DOME(STYLE 1 AND 3)

MATERIALS:

Case:

Button:

Mounting Hardware:

Thermoplastic

Hex nut, lockwasher

.47

SR.35

SR.36

.450 .005

TO FLAT

.690

15/32-32 UNRS-2A

TO WITHIN .062

OF SHOULDER

.37 .04

.180

TERMINAL OPTIONS

SOLDER

CIRCUIT OPTIONS

NORMALLY OPEN

.39

RAISED DOME (STYLE 2 AND 4)

TERMINALS ARE NOT ORIENTED TO CASE FLAT

.20 TYP.

.016 TYP.

.47

SR.35

SR.36

.450 .005

OF FLAT

.690

.110 TYP.

15/32-32 UNRS-2A

TO WITHIN .062

OF SHOULDER

.05 X .08

SLOT TYP.

SPST-NO-DB

SCHEMATIC

P9C

Button Style

–

P9C PART NUMBER CODE

Case Style

Case Finish

Gloss Finish

Matte Finish

Case

Color

Black

Button

Color

Red

Black

Orange

Yellow

Green

Blue

Violet

Gray

White

PUSHBUTTONS

Terminal

Style

Solder

Flush Dome with Standard Gloss Finish

Threaded

Raised Dome with Standard Gloss Finish

15/32-32

Flush Dome with Matte Finish

Raised Dome with Matte Finish

Specifications Subject To Change Without Notice

www.ottoexcellence.com
