S0603CPY113G10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> S0603CPY113G10

S0603CPY113G10: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 11000ohm, 45V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size160KB，1 Pages; ManufacturerState of the Art Inc.; Environmental Compliance; Related ProductsFound8parts with similar functions to S0603CPY113G10

Download Datasheet Parametric View All

S0603CPY113G10 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 11000ohm, 45V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

S0603CPY113G10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	State of the Art Inc.
package instruction	SMT, 0603
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e4
Manufacturer's serial number	0603
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.46 mm
Package length	1.58 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.81 mm
method of packing	BULK
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	11000 Ω
Resistor type	FIXED RESISTOR
series	0603(STD)-THICKFILM
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Silver (Ag) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	45 V
Base Number Matches	1

Preview

Download Datasheet

View All

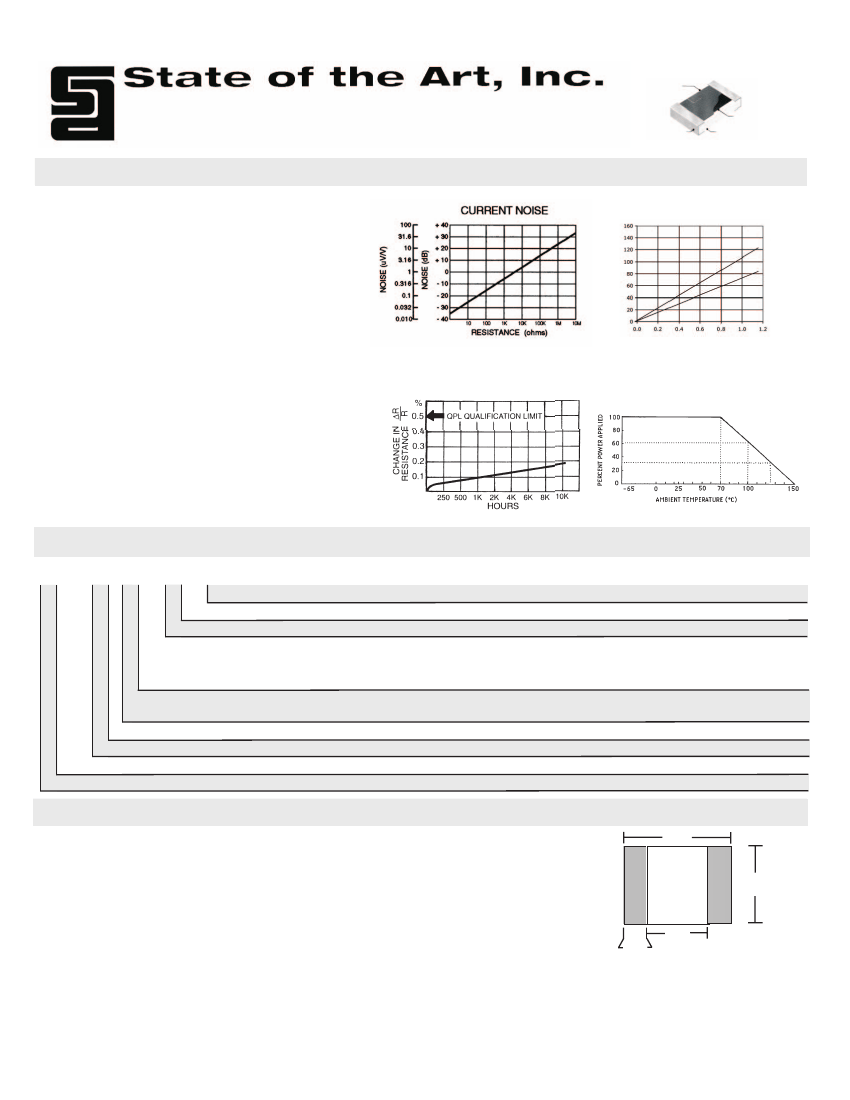

0603 Thick Film Chip Resistor

Standard Grade, Wraparound

PERFORMANCE CHARACTERISTICS

TEMPERATURE RISE (°C)

GLASS

PASSIVATION

RESISTOR

FILM

96% ALUMINA CHIP

WRAPAROUND

TERMINATIONS

Resistance Range

Tolerances (1)

TCR

Thermal Resistance

Maximum Power

Maximum Voltage

(1)+/- 0.5% limited availability

W-40

0.5%,1%, 2%, 5%,10%

±100, ±200, ±300 ppm

78.4°C/W

100 mW

45 Volts

POWER DISSIPATION

fiber epoxy board

ceramic board

ENVIRONMENTAL PERFORMANCE (2)

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Bonding Exposure

Moisture Resistance

High Temperature Exposure

Life Test

±0.03%

±0.05%

See Chart

POWER DISSIPATION (WATTS)

LIFE TEST

POWER DERATING

(2)Typical resistance change, test methods and criteria

per MIL-PRF-55342.

PART NUMBERING

S 0603 C P X 150 J 20 - TR

PACKAGING CODE: - TR = Tape/Reel - W = Waffle Carrier (Default packaging is Bulk)

TEMPERATURE CHARACTERISTIC: 10: ±100 ppm 20: ±200 ppm 30: ±300 ppm

TOLERANCE: F: 1% G: 2% J: 5% K: 10% M: 20%

RESISTANCE VALUE:

Four digits are used for tolerances of 1% or lower, three digits are used above 1%. Leading digits are significant while the last digit

specifies the number of zeros to add. The letter "R" is used to represent the decimal for fractional ohmic values. Example: 5R6 is 5.6

ohms.

TERMINATION FINISH: X: Sn60 over Nickel (Solderable) C: Silver bearing (Epoxy bondable-RoHS) G: Gold (Epoxy bondable-RoHS)

Y: Silver over Nickel (Solderable -RoHS) Z: Gold over Nickel (Solderable-RoHS)

PRODUCT DESIGNATION: P: Thick film on alumina U: Untrimmed alumina (10% & 20% tolerance only)

TERMINATION TYPE: C: Wraparound termination

SIZE CODE

GRADE: S: Standard Production H: High Reliability (For Screening options, contact the factory)

MECHANICAL

INCHES

MILLIMETERS

.092

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.062 (.060 - .070)

.032 (.030 - .037)

.018 (.013 - .023)

.010 (.007 - .017)

.014 (.010 - .020)

.034 (.030 - .038)

.00235 grams

1.58

0.81

0.46

0.25

0.36

0.86

(1.52 - 1.78)

(0.76 - 0.94)

(0.33 - 0.58)

(0.18 - 0.43)

(0.25 - 0.51)

(0.76 - 0.97)

.034

.030

.031

“Specifications subject to change without notice.”

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004

www.resistor.com

Fax (814) 355-2714

Toll Free 1-800-458-3401

02/08/08
